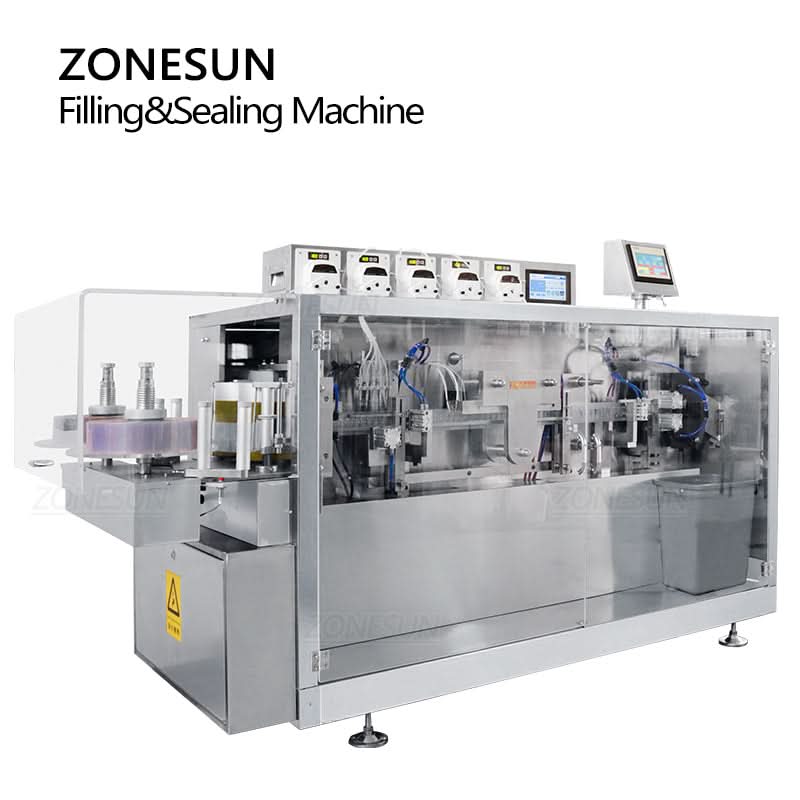

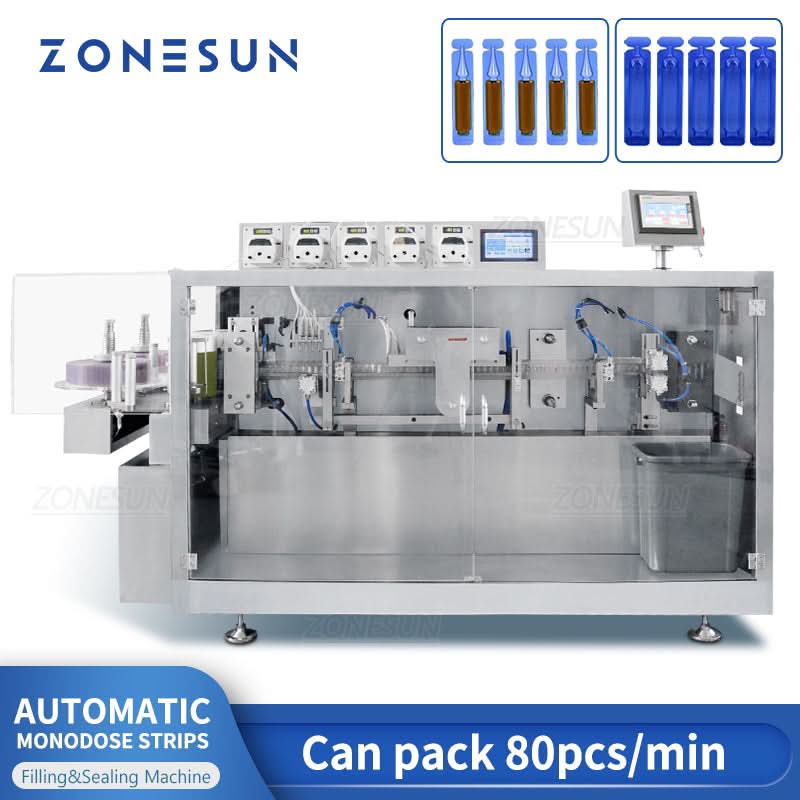

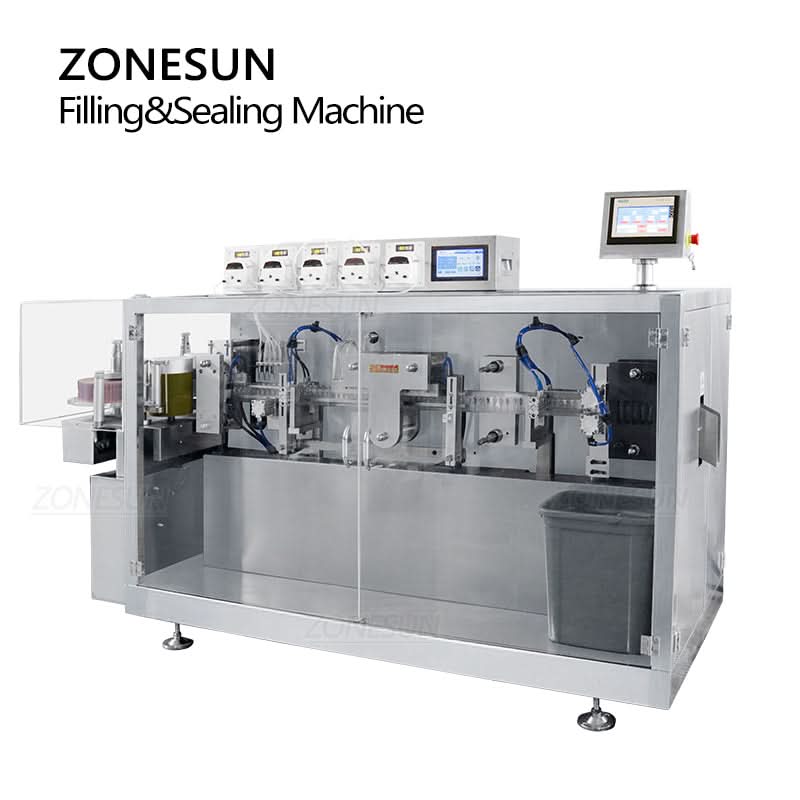

The ZS-FS120 form-fill-seal machine is a compact, multifunctional solution for producing single-dose liquid strips. Equipped with a PLC-controlled touch screen and five peristaltic pump nozzles, it ensures hygienic, precise filling without product contamination. This all-in-one system automates strip forming, liquid filling, sealing, and cutting, delivering up to 80 packs per minute. Ideal for daily chemical, pharmaceutical, and specialty chemical industries seeking efficiency and minimal footprint.
ZS-FS120 Form-Fill-Seal Machine Specifications
Parameter Specification
Machine Model ZS-FS120
Voltage 220V–380V / 50Hz
Power 7kW
Pump Type Peristaltic Pump
Filling Nozzles 5 Nozzles
Filling Range 1–50ml
Production Capacity Approx. 80 pcs/min
Cutting Frequency 15–30 times/min

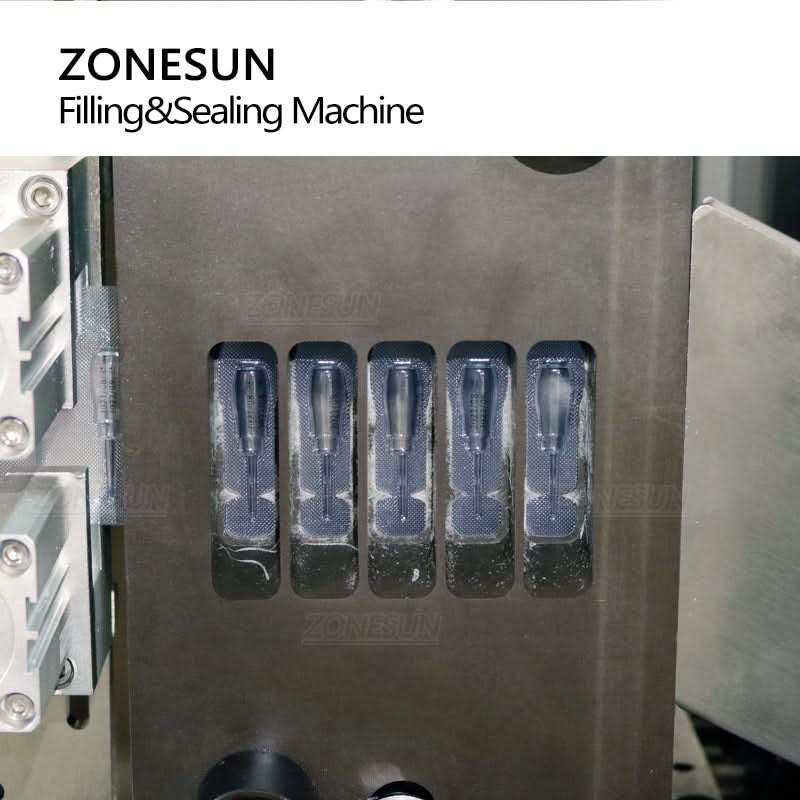

Max Forming Depth 12mm
Max Forming Plate Size 110 × 120mm
Packing Film Material PVC / PE
Machine Material Stainless Steel
Machine Dimensions Approx. 2300 × 850 × 1400mm (L × W × H)
Machine Weight Approx. 900kg
PLC CONTROL PANEL The PLC control panel makes operating parameters easy to set and machine operation straightforward. Its interface language can be customized as required.

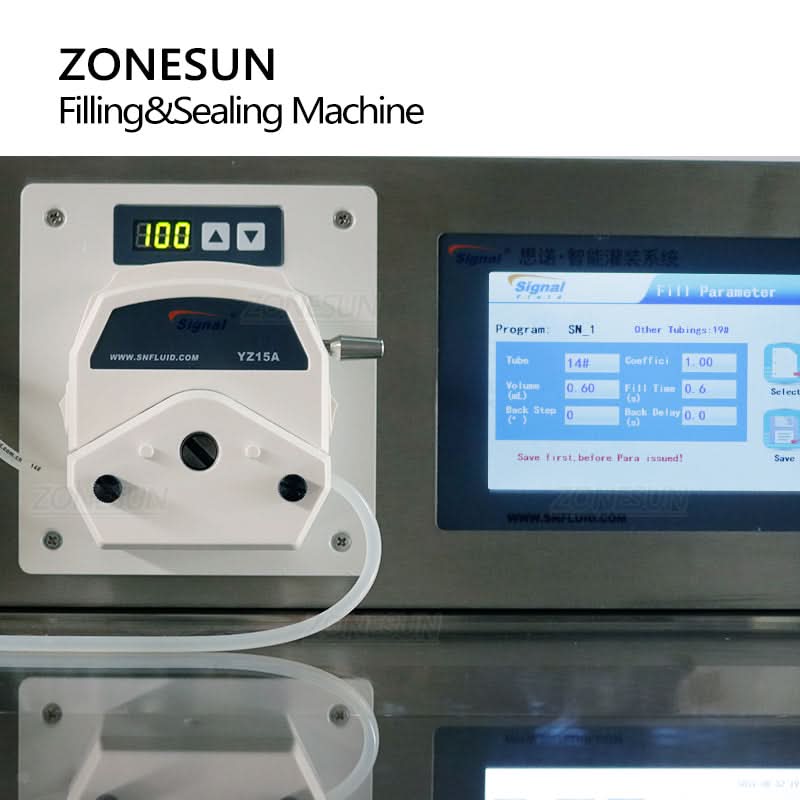

STAINLESS STEEL FILLING NOZZLES The stainless steel nozzles support accurate liquid filling. Their small size helps prevent splashing and maintain clean production. INDIVIDUALLY CONTROLLED PERISTALTIC PUMPS The liquid does not pass through the peristaltic pumps during filling, helping maintain cleanliness. The filling speed and volume of all five pumps can be adjusted separately.

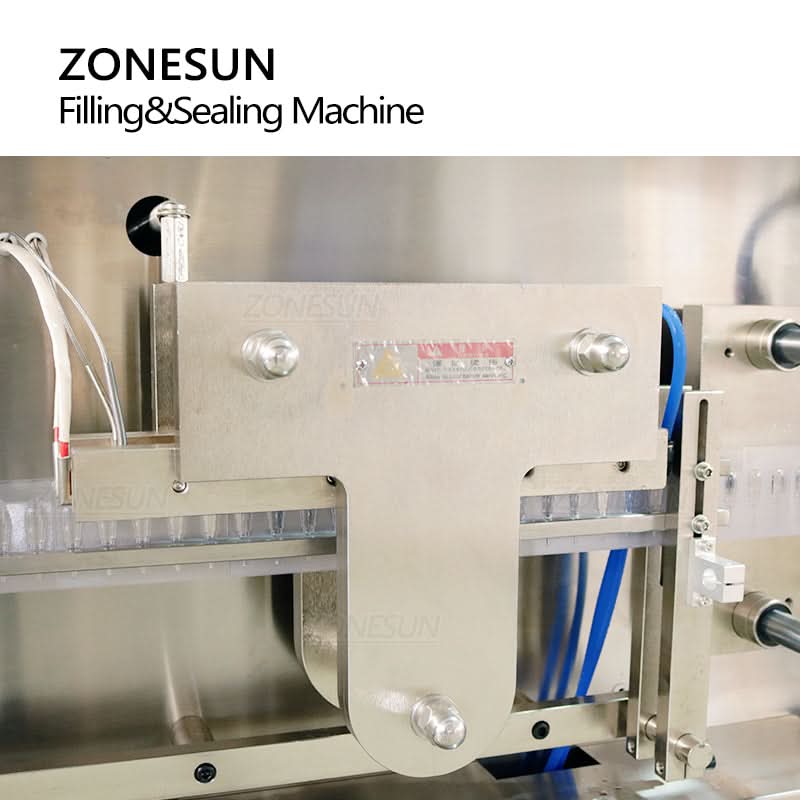

HEAT-SEALING AREA The heating and sealing system seals the film securely. Sealing temperature can be set through the control panel as required. AUTOMATIC CUTTING AND DISCHARGE After filling and sealing, the machine automatically cuts and discharges the single-dose strips, reducing manual handling and improving working efficiency.
