Regular price $4,850.00 Sale

Description

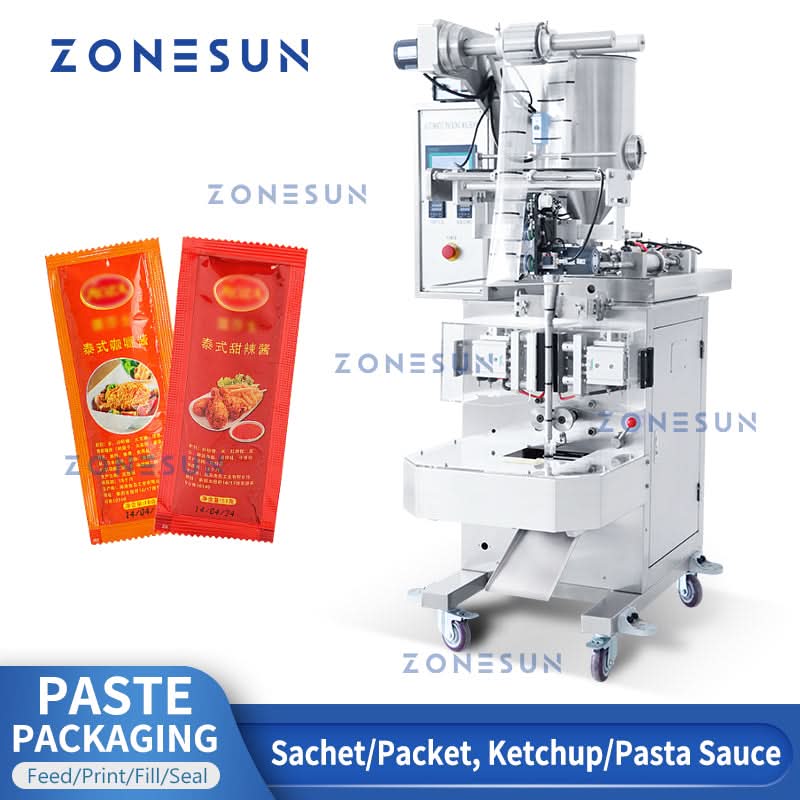

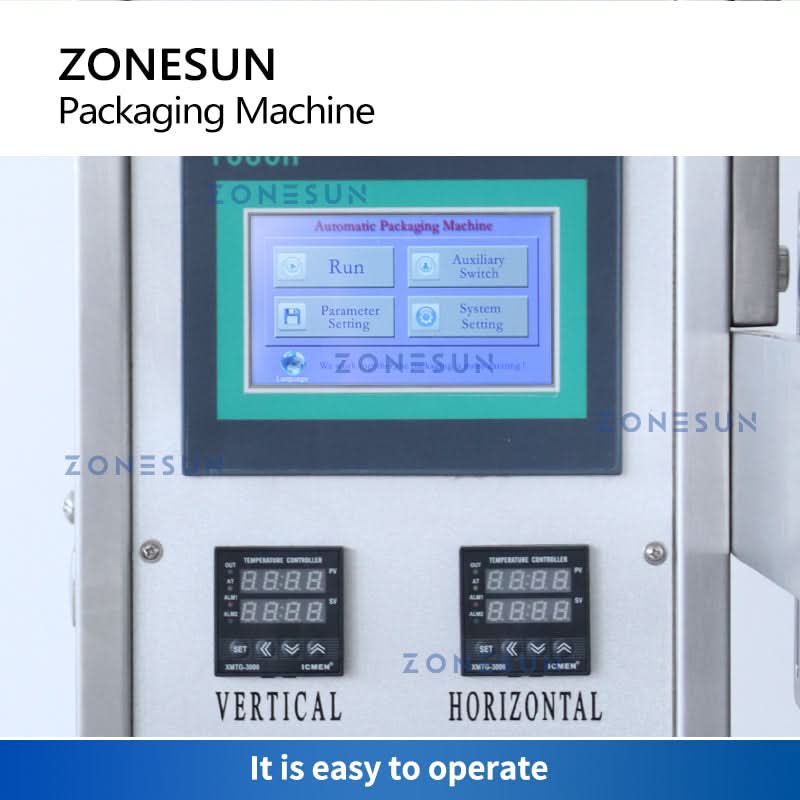

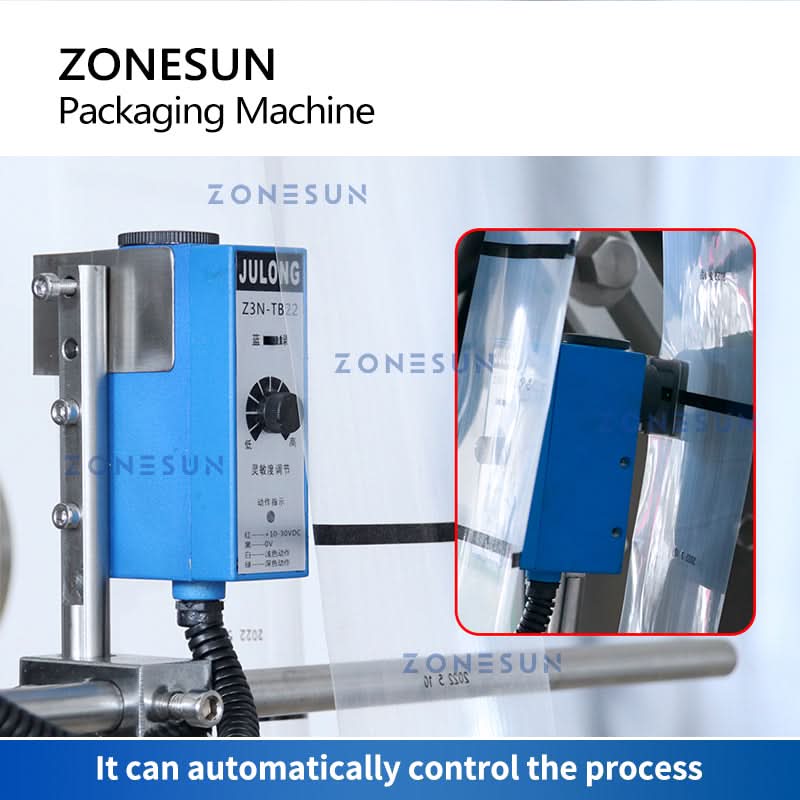

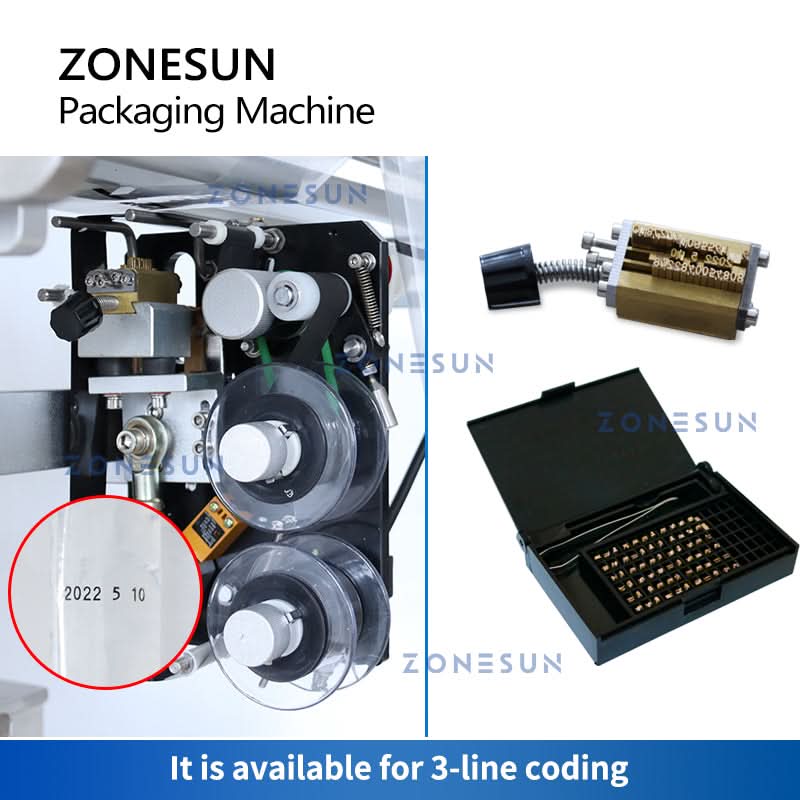

This machine can be customized into back seal packaging machine, three seal packaging machine and four seal packaging machine. The microcomputer control system is adopted, and the packaging operation data is displayed on the display screen. Equipped with photoelectric control device to ensure the pattern on the bag is complete. One machine can automatically complete bag making, filling, sealing and coding.

Parameter

Model

ZS-S100

ZS-S200

ZS-S300

Bag length

50-150mm

50-250mm

50-300mm

Bag width

25-120mm

25-120mm

70-190mm

Film width

50-240mm

50-240mm

140-380mm

Bag volume

5-100ml

50-300ml

100-1000ml

Packing speed

30-50 bags/min

25-40 bags/min

23-30 bags/min

Power supply

220V/AC 50Hz 1.5Kw

220V/AC 50Hz 1.6Kw

220V/AC 50Hz 1.8Kw

Air requirements

0.8Mpa, 150L/min

0.8Mpa, 180L/min

0.8Mpa, 250L/min

Machine size

760*1380*1700mm

760*1380*1700mm

900*1800*2040mm

Machine weight

300kg

300kg

500kg



Notice

This machine can choose back seal, three side seal and four side seal. Please contact us for confirmation.
