DESCRIPTION

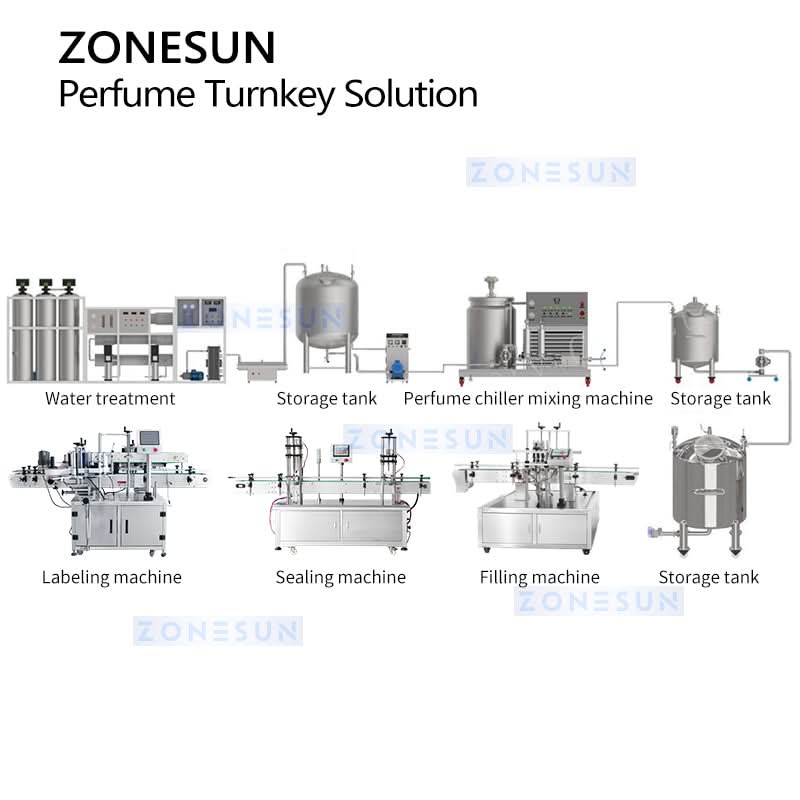

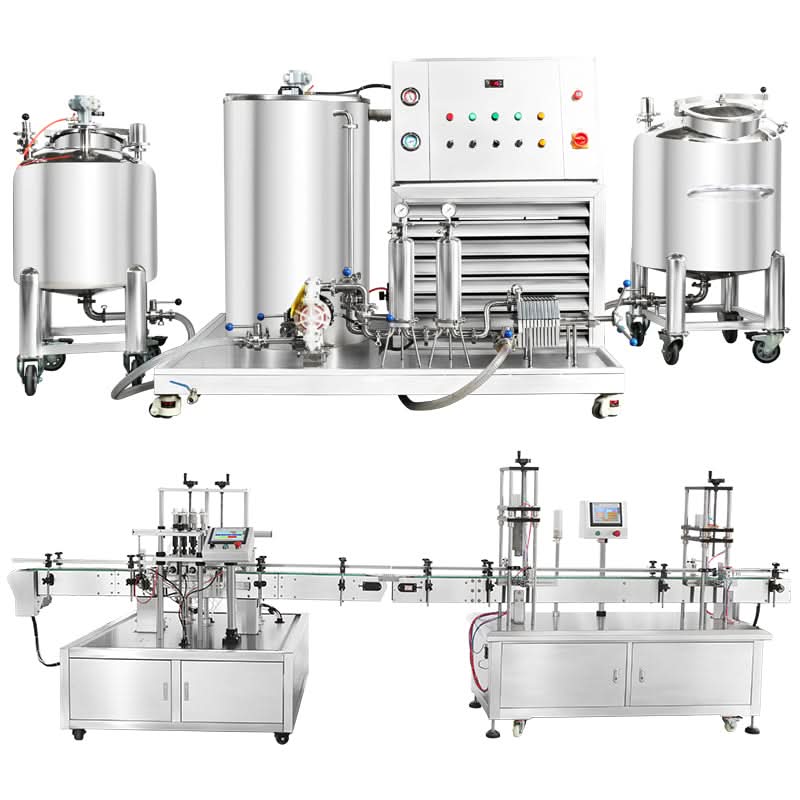

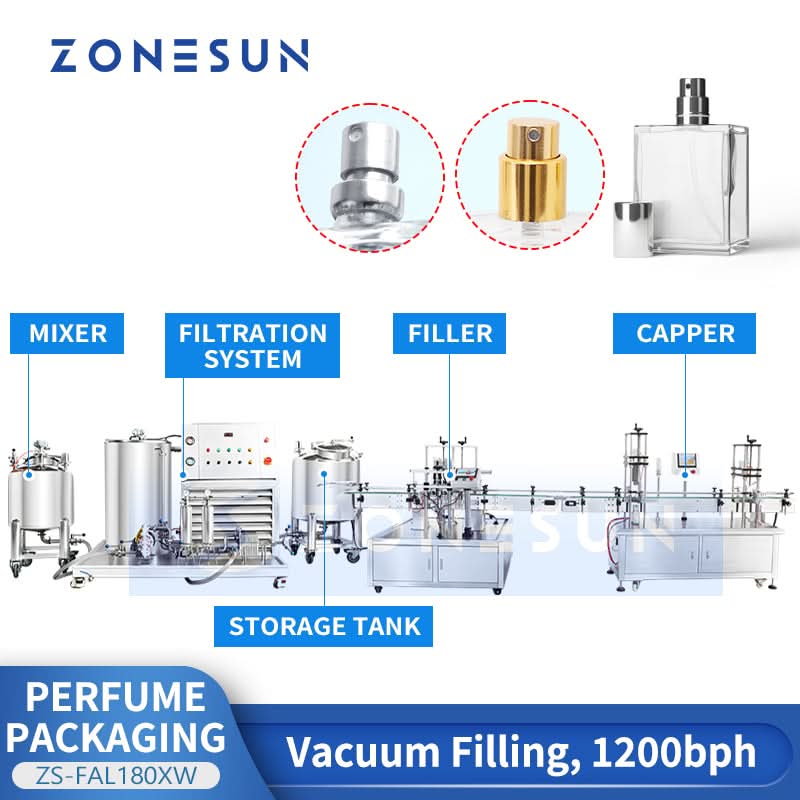

This is a cutting-edge solution for achieving crystal-clear and pure perfumes. It integrates mixing, cooling, filtration, filling, and sealing, which provides a comprehensive process with a high quality standard.
Whatever your packaging needs are, you can rely on ZONESUN.
NOTE
Because this production line has a high overall power requirement, it is available only in 220V or 380V versions. To ensure proper operation, please confirm with customer service whether the voltage in your region is compatible before placing your order.
Mixing Tank Specifications:
- Machine Capacity: 20L / 50L / 100L / 200L / 300L / 500L / 800L / 1000L / 1500L / 2000L / 3000L / 4000L / 5000L
- Rotating Speed: 40r/min (customizable: 0–80r/min)
- Tank Material: 304 or 316 stainless steel
- Extra Functions: Emulsifying, Explosion-proof, Vacuum, Heating, Weighing, and more
Filtration System Specifications (Model Comparison):
| Model | ZS-PF100 | ZS-PF200 | ZS-PF300 | ZS-PF500 | ZS-PF1000 |
|---|---|---|---|---|---|
| Volume | 100L | 200L | 300L | 500L | 1000L |
| Cooling Capacity | 2P | 3P | 5P | 5P | 10P |
| Voltage | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz |
| Power | 1.5kW | 2.2kW | 3.7kW | 5.5kW | 7.5kW |
| Refrigeration Temp. | -5 ~ -15°C | -5 ~ -15°C | -5 ~ -15°C | -5 ~ -15°C | -5 ~ -15°C |
| Refrigerating Fluid | 404A | 404A | 404A | 404A | 404A |
| Air Pressure | 0.5–0.6MPa | 0.5–0.6MPa | 0.5–0.6MPa | 0.5–0.6MPa | 0.5–0.6MPa |
| Filter Pressure | 0.2MPa | 0.2MPa | 0.2MPa | 0.2MPa | 0.2MPa |
| Filter Accuracy | 1μm | 1μm | 1μm | 1μm | 1μm |
ZS-YTZL4A Specifications:
- Model: ZS-YTZL4A
- Filling Head: 4 Head
- Air Pressure: 0.5–0.8MPa
- Liquid Level Accuracy: ±1mm
- Viscosity Range: ≤20cps (static viscosity)
- Working Speed: 20–40 bottles/min
- Bottle Height: ≤250mm
- Bottle Opening Size: ⌀4.5–⌀28mm
- Adjustable Liquid Level (from bottle mouth): 20–200mm
- Air Pumping Rate: 5.5L/s
- Machine Size (L × W × H): Approx. 1500 × 1150 × 1530mm
- Machine Weight: Approx. 278kg
- Package Size: Approx. 1660 × 1310 × 1670mm
- Package Weight: Approx. 339kg
ZS-YG11U Bottle Capping Machine Specifications:
- Machine Model: ZS-YG11U
- Voltage: 220V, 50–60Hz
- Power: 1.5kW
- Capping Speed: Approx. 20 bottles/min (varies by bottle and cap size)
- Suitable Bottle Height: 50–200mm
- Bottle Cap Diameter: 15–22mm
- Bottle Mouth Diameter: 14–20mm
- Suitable Bottle Diameter: 40–110mm
- Conveyor Size: 113 × 2400mm
- Machine Size (L × W × H): Approx. 2600 × 760 × 1700mm
- Weight: Approx. 300kg
PNEUMATIC MIXING TANK
CHILLER
Supports a temperature range of −5°C to 15°C.
COOLING TANK
Equipped with a titanium-alloy coil pipe.
IMPORTED DIAPHRAGM PUMP
Equipped with a dual-stage filter.

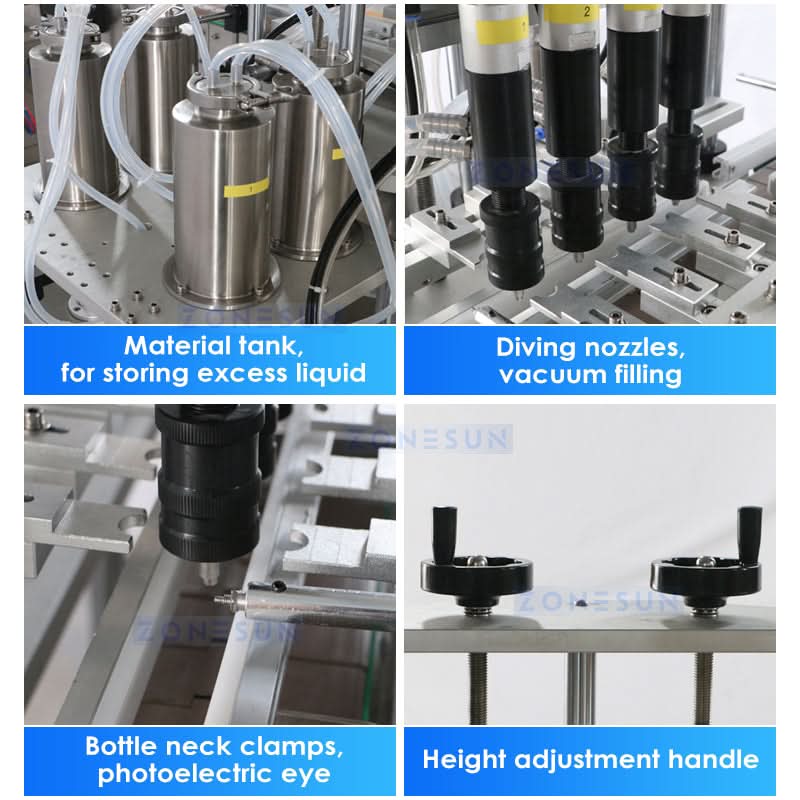

MATERIAL TANK
Stores excess liquid.
DIVING NOZZLES
Support vacuum filling.
BOTTLE-NECK CLAMPS
Work with a photoelectric sensor.
HEIGHT-ADJUSTMENT HANDLE

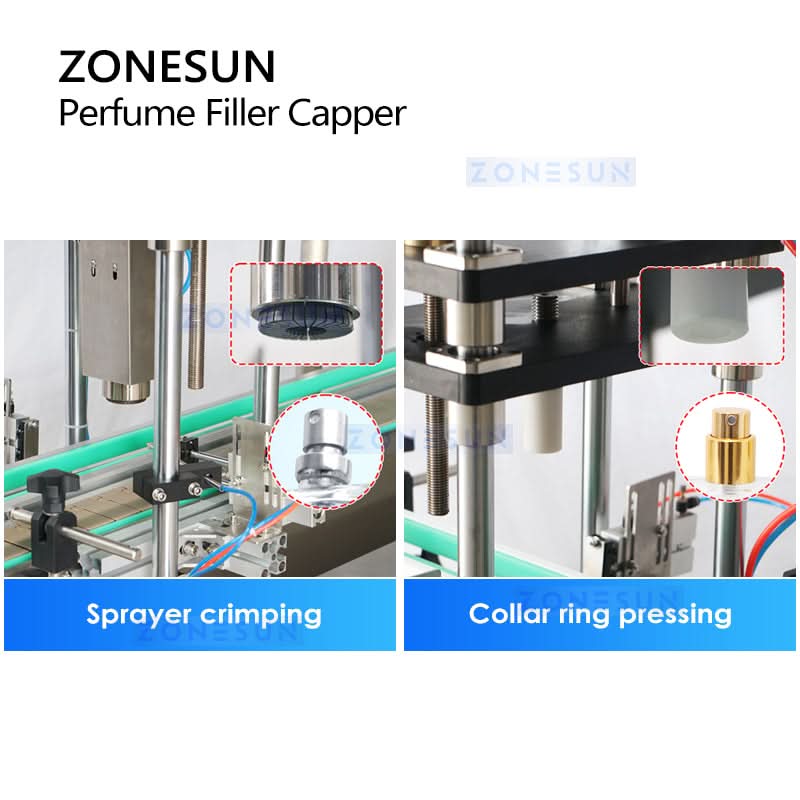

SPRAYER CRIMPING
COLLAR-RING PRESSING

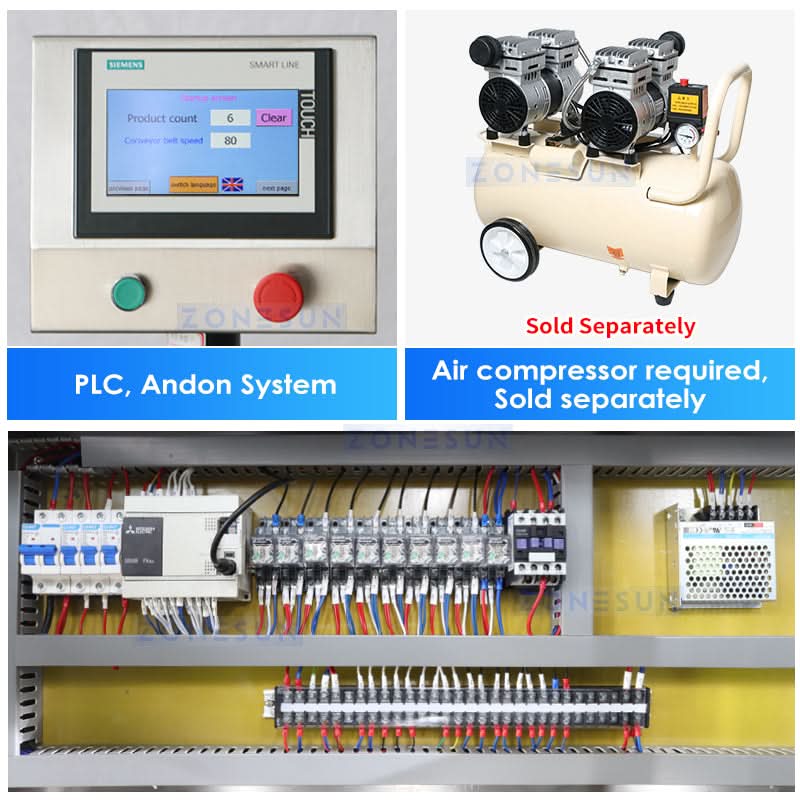

PLC & ANDON SYSTEM
AIR COMPRESSOR REQUIRED
An air compressor is required and sold separately.
CIRCUIT LAYOUT
The well-designed circuit layout uses components from established brands.
