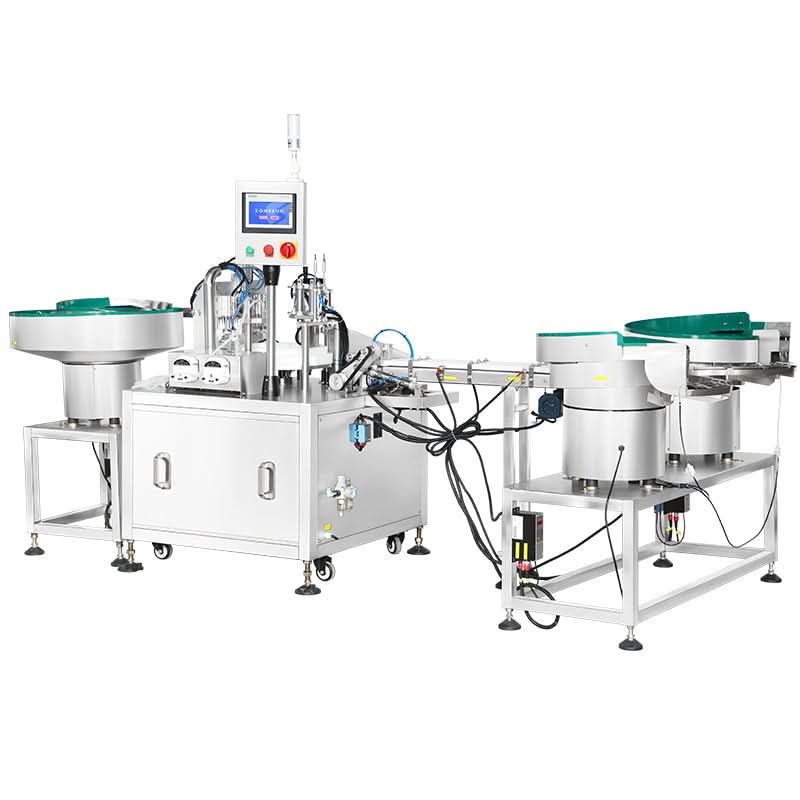

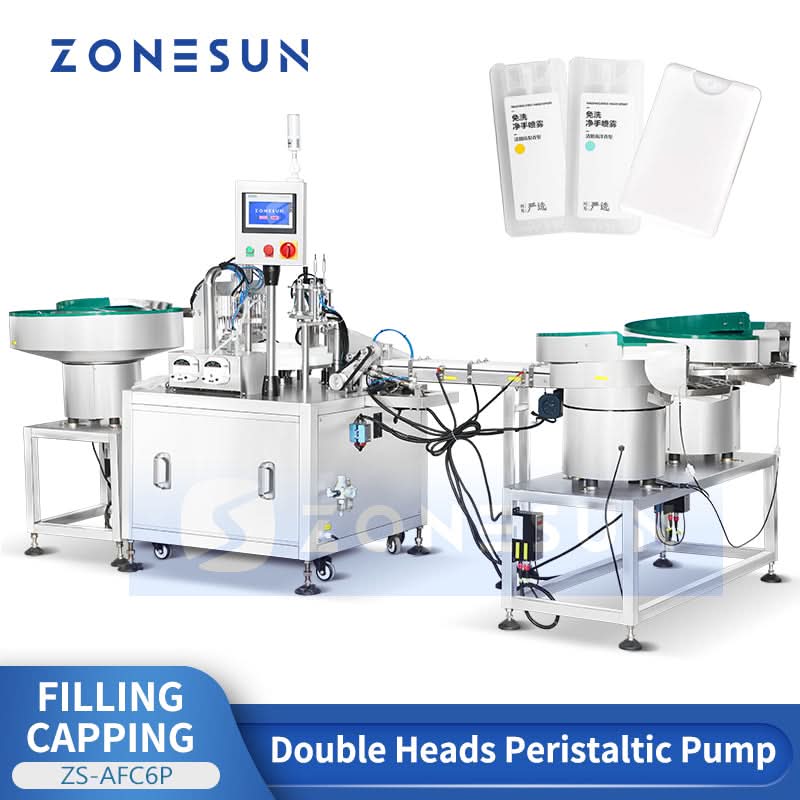

The ZS-AFC6P is a compact, fully automatic filling and capping machine designed for pocket perfumes and scents. Featuring precision peristaltic pumps, it ensures accurate dosing with minimal waste. Its streamlined structure and smooth operation make it ideal for cosmetic production lines. Built for durability and efficiency, this machine supports high-speed output while maintaining consistent quality. Whether you're scaling up or refining your packaging process, ZONESUN delivers reliable performance tailored to your needs.
Parameter
Machine Model ZS-AFC6P
Voltage 220V/110V, 50–60Hz
Power About 3 kW
Filling Pump Peristaltic Pump
Production Speed About 2200–2500 pcs/h (depends on product & material)
Filling Range Customizable
Suitable Product Size Customizable
Suitable Cap Size Customizable
Air Pressure 0.6–0.8 MPa
Package Size Main Machine: 1230 × 1000 × 1790 mm
Brackets: 1900 × 560 × 650 mm
Vibratory Bowl 1: 940 × 780 × 670 mm
Vibratory Bowl 2: 1420 × 790 × 710 mm
Package Weight Main Machine: 283 kg
Brackets: 67 kg
Vibratory Bowl 1: 90 kg
Vibratory Bowl 2: 153 kg

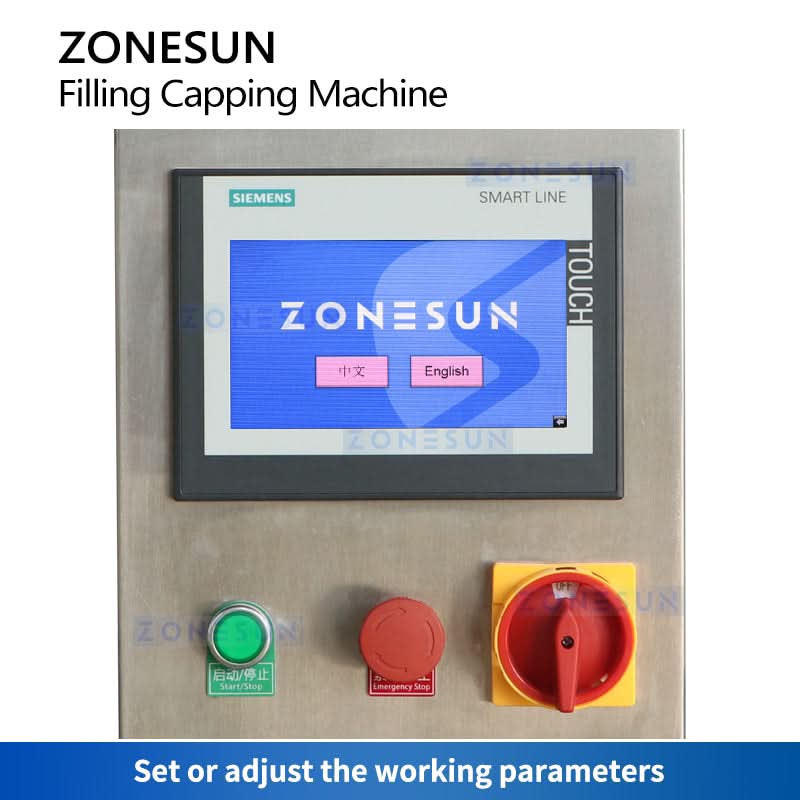

CONTROL PANEL
The control panel allows operators to set and adjust the machine’s working parameters.

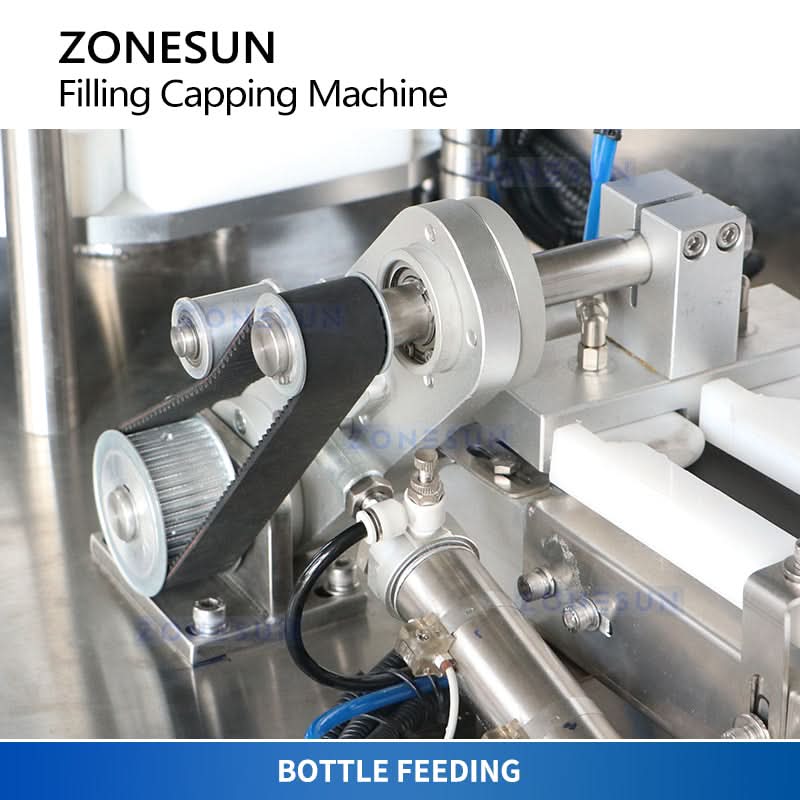

BOTTLE FEEDING
This component picks up pocket perfume bottles and places them into the positioning molds for filling.

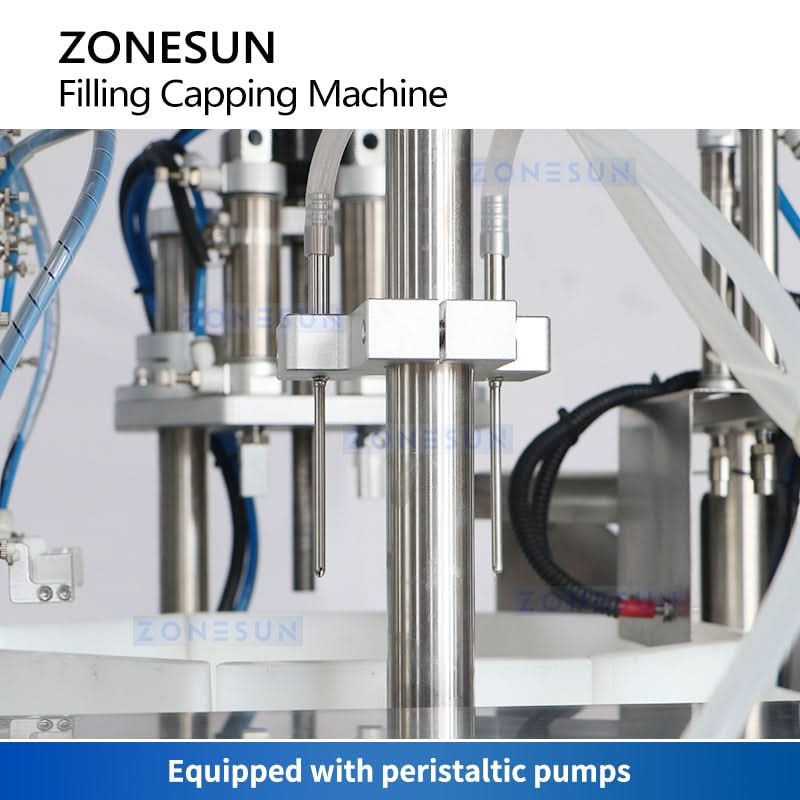

FILLING SYSTEM
The peristaltic-pump filling system keeps the liquid inside the tubing during filling, supporting clean and hygienic operation.

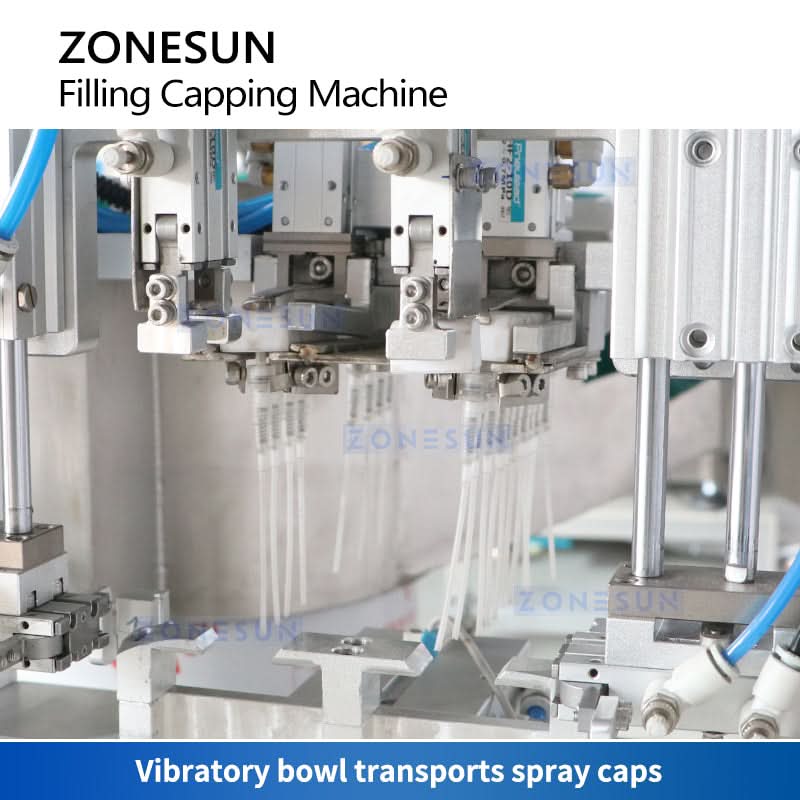

CAP FEEDING
The vibrating bowl sorts and supplies spray caps, while the sensor positions each cap accurately on the bottle.

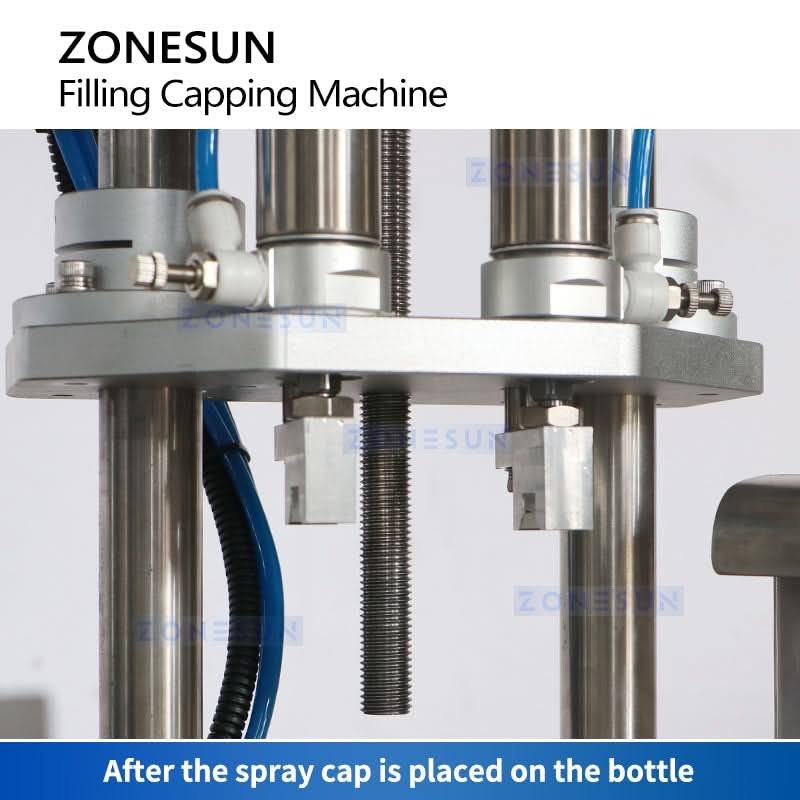

CAPPING HEADS
After a spray cap is placed on the bottle, the capping heads detect it and tighten it accurately.
