Parameter
Machine Model ZS-AFS07
Voltage 220V, 3-Phase
Power Approx. 1.5kW
Production Capacity Approx. 25 cups/min (depends on cup size and materials)
Filling Range 10–100ml (customizable)
Filling Pump Piston Pump
Suitable Cup Size Customizable
Hopper Capacity 50L
Hopper Function Heating & Mixing
Machine Size (L × W × H) Approx. 1400 × 1100 × 1750mm

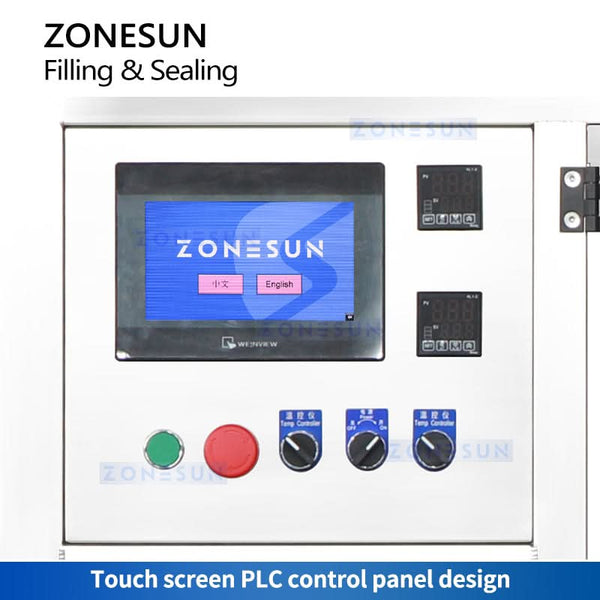

PLC CONTROL PANEL
The PLC touchscreen provides convenient adjustment of machine settings, and the interface language can be customized as required.

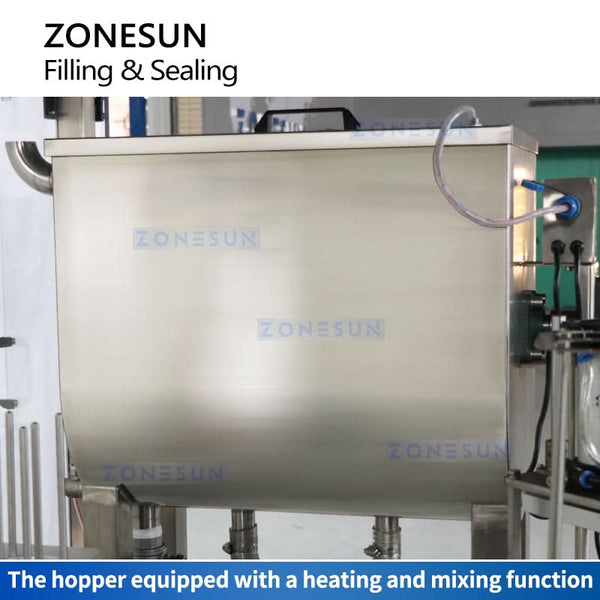

HOPPER HEATING
The hopper includes a heating function for compatible products that need to remain warm during filling.
HOPPER MIXING
The integrated mixer helps maintain a consistent product texture inside the hopper.
AUTOMATIC MATERIAL FEEDING
A feeding pump automatically transfers material into the hopper during production.

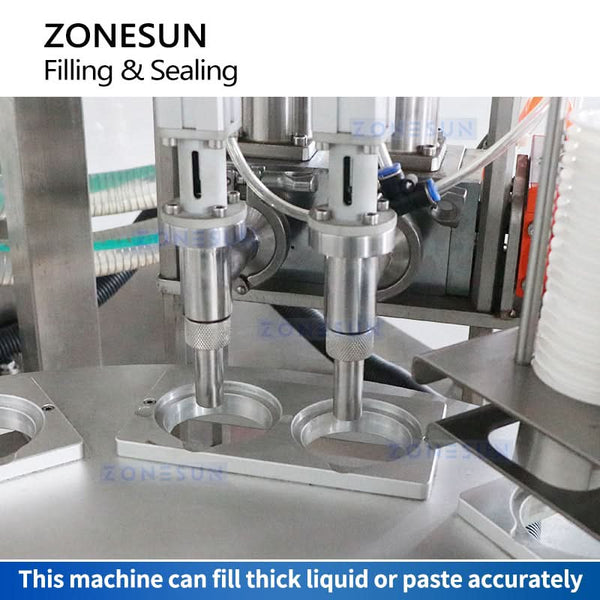

PISTON-PUMP FILLING
The piston-pump system fills compatible thick liquids and pastes with controlled dispensing.
CUSTOMIZABLE FILLING RANGE
The filling range can be customized according to the required cup size and product volume.

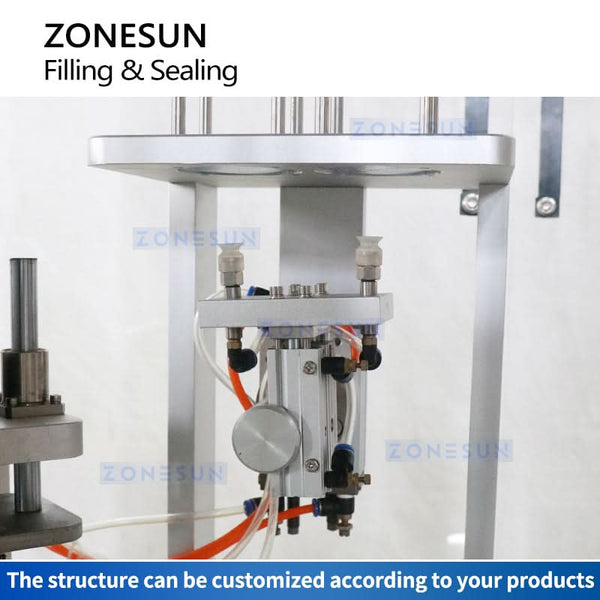

AUTOMATIC LID FEEDING
The lid-feeding structure places pre-cut film lids onto cups before sealing and can be customized for different products.

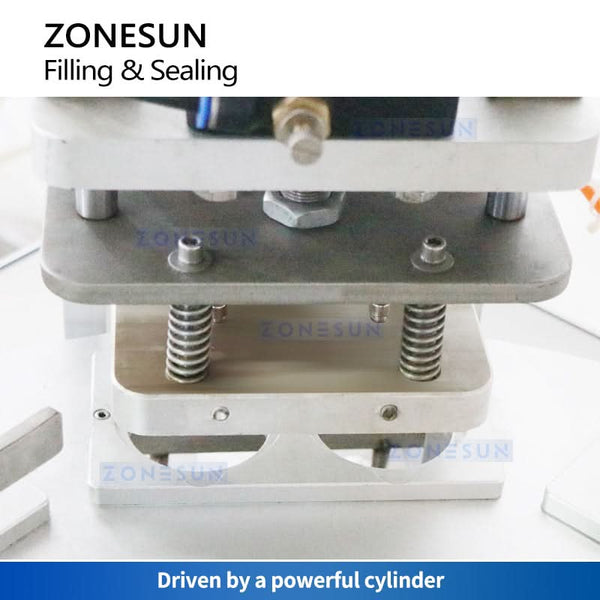

CYLINDER-DRIVEN SEALING
The cylinder-driven sealing unit creates an airtight seal on compatible plastic cups.
ADJUSTABLE SEALING SETTINGS
Sealing temperature and time can be adjusted according to production requirements.
