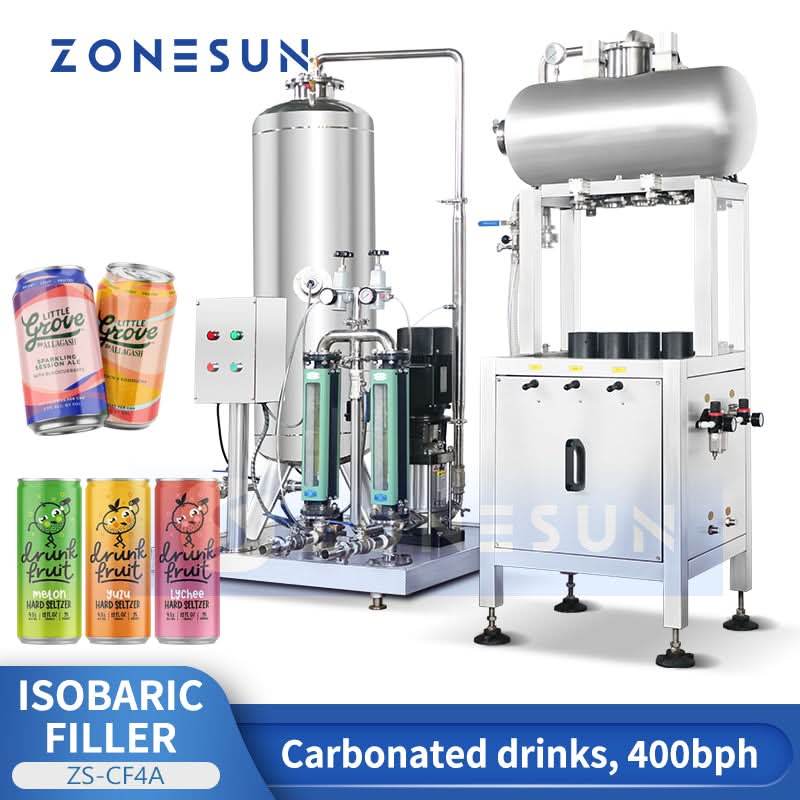

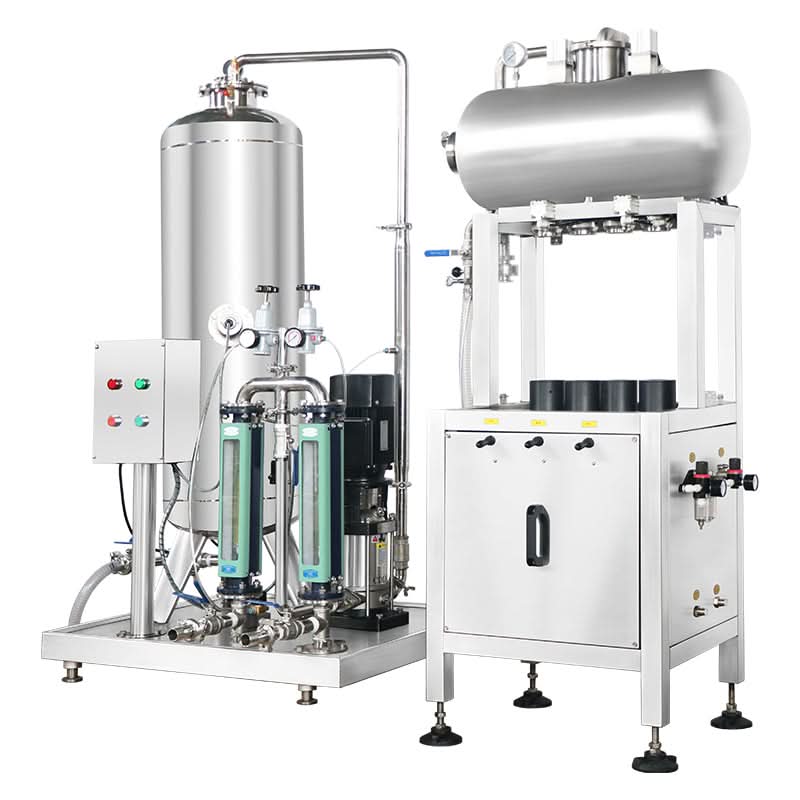

ZONESUN Carbonated Beverage Filling and Sealing Machine ZS-CF4A
DESCRIPTION
Introducing our latest innovation, the Isobaric Filler and CO2 Blending Machine Combo! This powerful combination is designed for efficiently filling carbonated beverages. It is an ideal solution for businesses in the beverage industry, ensuring precise and reliable filling operations.
Whatever your packaging needs are, you can rely on ZONESUN.
PARAMETER
|

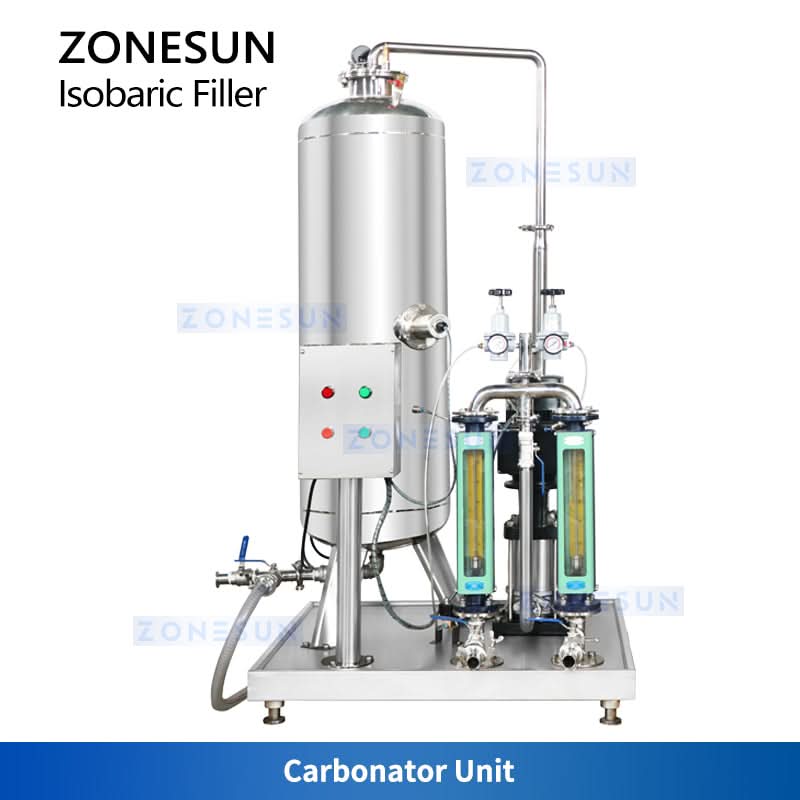

Mixing Machine |
|
|
Technical requirements |
|
|
Production capacity |
1.5-2T/h |
|
The mixing ratio of syrup and water |
1:2-1:8 |
|
Beverage liquid outlet temperature |
<6℃ |
|
Beverage liquid outlet pressure |
0.3-0.5Mpa |
|
Carbonation gas content |
3G.V |
|
Requirements for raw materials |
|
|
Inlet pressure of treated water |
0.2 MPa |
|
Inlet temperature of treated water |
<6℃ |
|
Syrup inlet temperature |
<4℃ |
|
CO2 inlet pressure |
0.28-0.35 MPa |
|
CO2 purity |
＞99% |
|
Package size |
About 910*1000*1880mm |
|
Package weight |
About 200kg |
|
Filling Machine |
|
|
Filling nozzle quantity |
4 |
|
Filling material temperature |
1-4℃ |
|
Filling material pressure |
0.2-0.3MPa |
|
Working capacity |
240-400BPH |
|
Applicable containers |
For 330/500ml Aluminum Cans (Customizable) |
|
Air pressure |
0.5-0.7MPa |
|
CO2 pressure |
0.2-0.3MPa |
|
Package size |
About 950*750*1960mm |
|
Package weight |
About 163kg |
