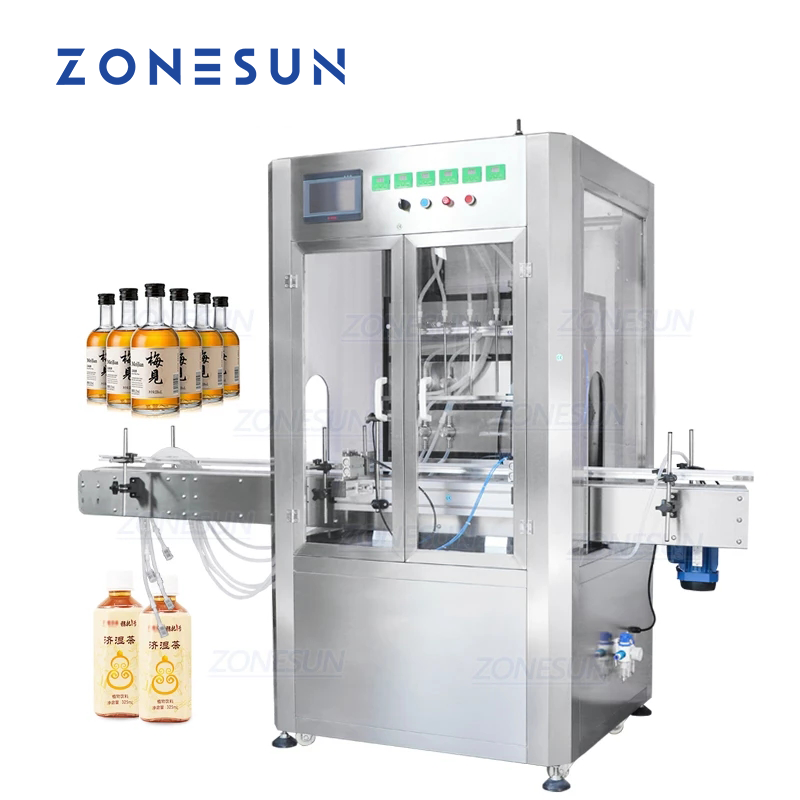

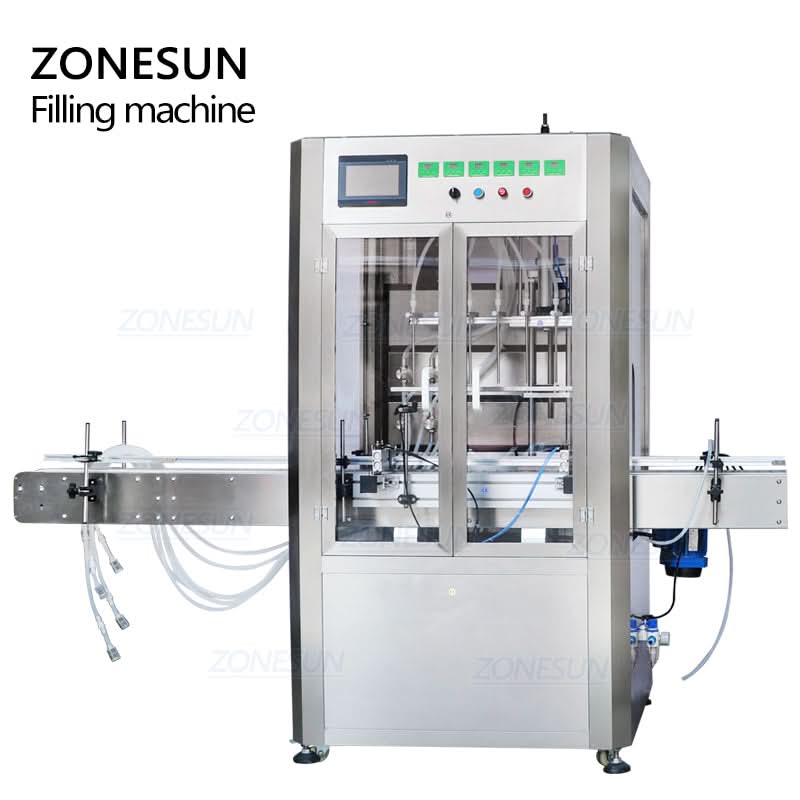

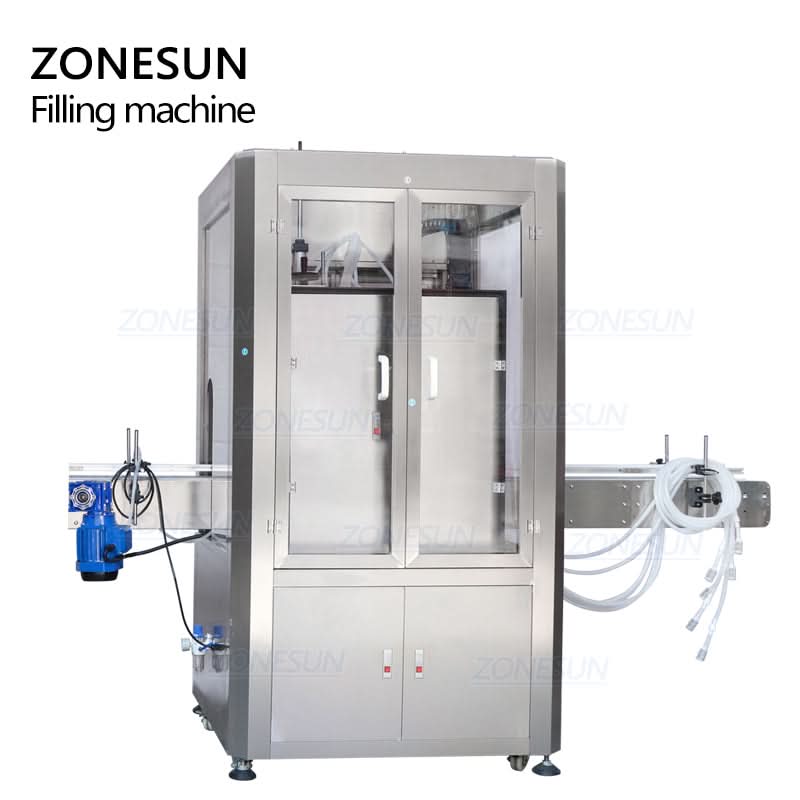

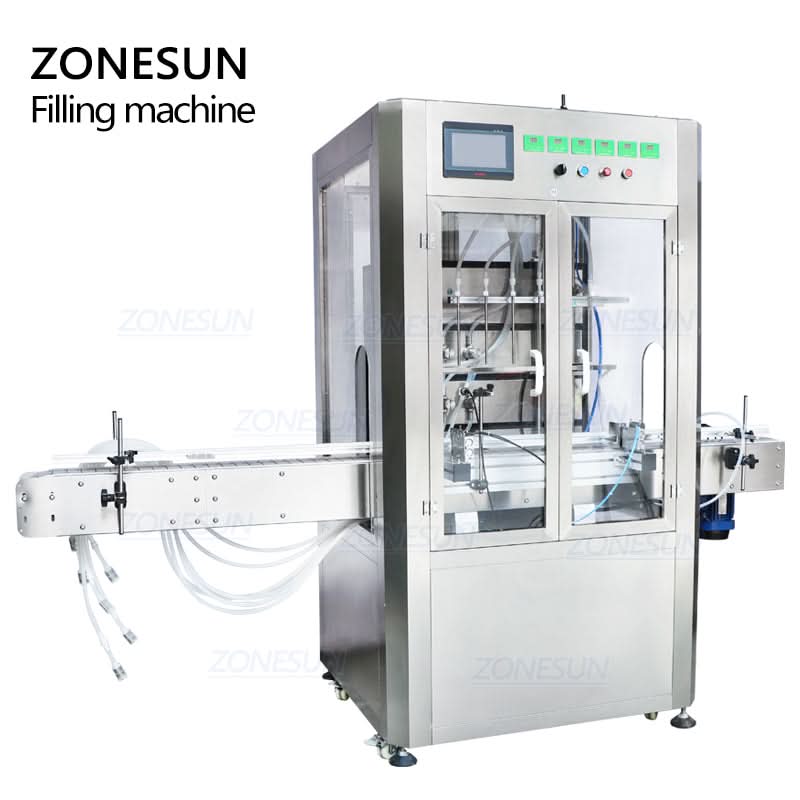

The ZS-VTMP80D is an automatic filling machine designed for precise dispensing of liquids such as solvents, juices, perfumes, and essential oils. Equipped with magnetic pumps and a protective dust cover, it ensures hygienic, high-accuracy filling. Customizable filling heads allow flexible production, making it ideal for pharmaceutical, cosmetic, beverage, and daily chemical industries. Compatible with capping and labeling machines for full automation. For glass bottles with volume variation, suction function helps maintain consistent liquid levels.
Parameter
Machine Model ZS-VTMP80D
Container Size φ20–100 mm, H30–300 mm
Max Flow Rate 5500 ml/min (304 stainless steel)
5500 ml/min (316 stainless steel)
7500 ml/min (316 stainless steel)
12 L/min (316 stainless steel)
Pump Material 304 stainless steel / 316 stainless steel
Filling Accuracy ≤100 ml: ±1 ml deviation
>100 ml: ±1% deviation (based on water)
Filling Speed 20–50 pcs/min
25–60 pcs/min
50–70 pcs/min
Power Supply 220V–50Hz / 110V–60Hz 2000W
Machine Weight Approx. 285 kg
Machine Size Approx. 1000 × 900 × 1860 mm
Packing Weight Approx. 390 kg
Packing Size Approx. 1970 × 1020 × 2050 mm
TOUCHSCREEN CONTROL PANEL
The touchscreen interface provides convenient filling settings and machine operation.
Electric eye can detect bottle when they pass through,and send the signal to the system,then the machine will start or stop to work.This can ensure the filling accuracy.
The chain conveyor belt is with large weight capacity,it can transport bottles smoothly,help you save production labor and reduce production process.
