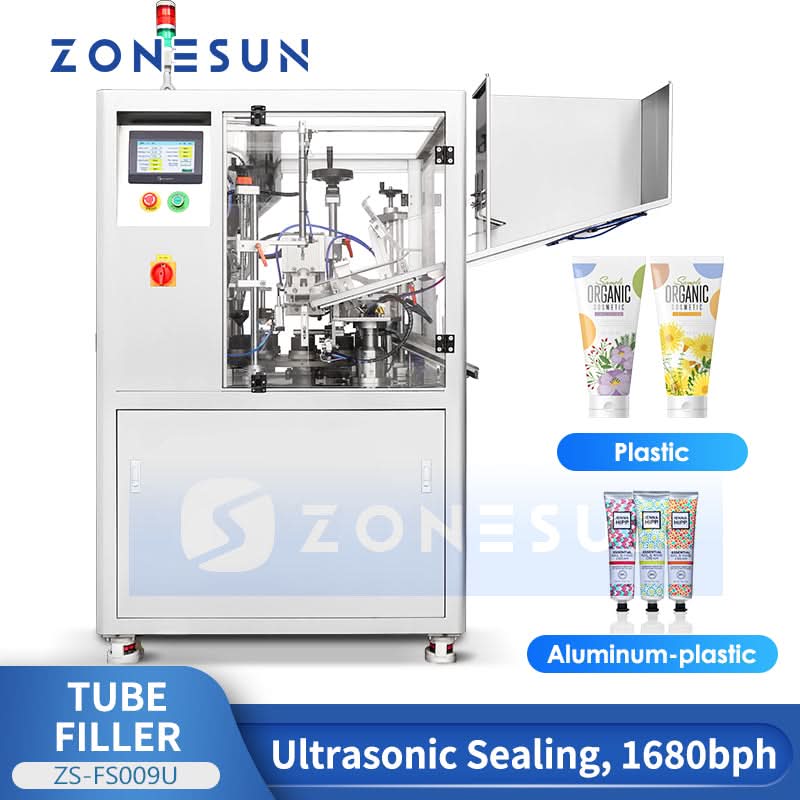

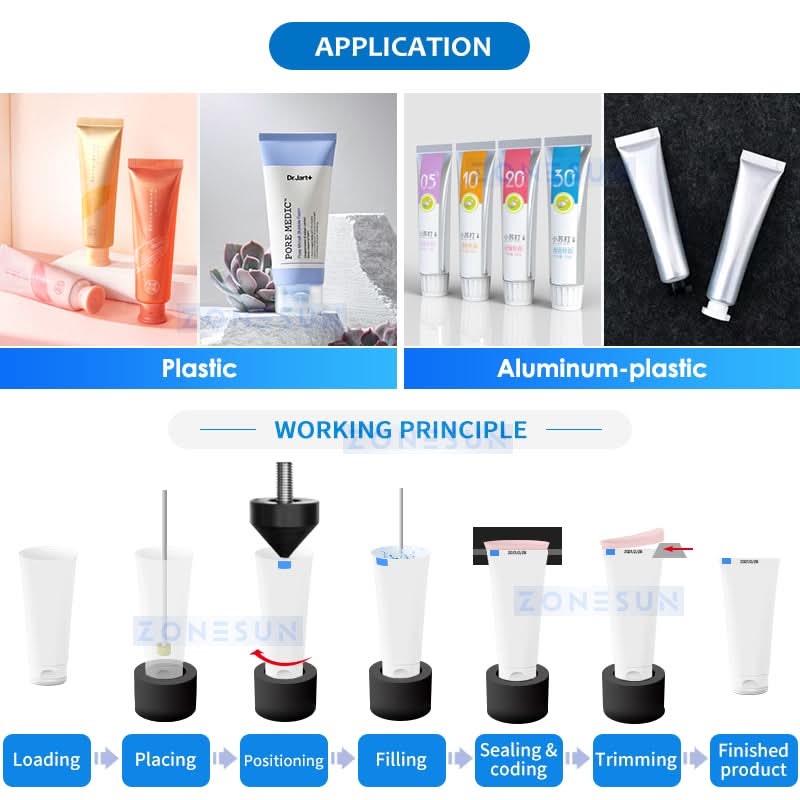

The ZONESUN ZS-FS009U is a fully automatic tube filling and ultrasonic sealing machine engineered for precision, speed, and reliability. Its integrated workflow includes tube loading, orientation via color mark detection, piston pump filling, ultrasonic sealing with date coding, pneumatic trimming, and final discharge—all within a compact monoblock system.
Designed for soft tubes made of plastic or aluminum-plastic laminate, this machine ensures accurate filling and a clean, professional seal. The ultrasonic technology delivers consistent sealing quality without the need for heat, making it ideal for temperature-sensitive products. With intuitive controls and high automation, the ZS-FS009U is a smart solution for businesses looking to streamline their packaging process and boost output.
Model ZS-FS009U
Voltage 220V/110V, 50/60Hz
Power 2.6kW
Hopper Capacity 30L
Filling Range 6–60ml / 10–120ml / 25–250ml
Filling Accuracy ±1%
Capacity 18–28 pcs/min
Tube Diameter 16–50 mm
Tube Height 70–210 mm
Cutting Method Ultrasonic, 20kHz
Air Pressure 0.6 Mpa
Application Aluminum-plastic soft tube, plastic soft tube
Machine Material Stainless Steel
Net Weight / Gross Weight Approx. 450 kg / 555 kg
Machine Size Approx. 1615 × 1400 × 1590 mm
Package Size Approx. 1610 × 1760 × 1860 mm

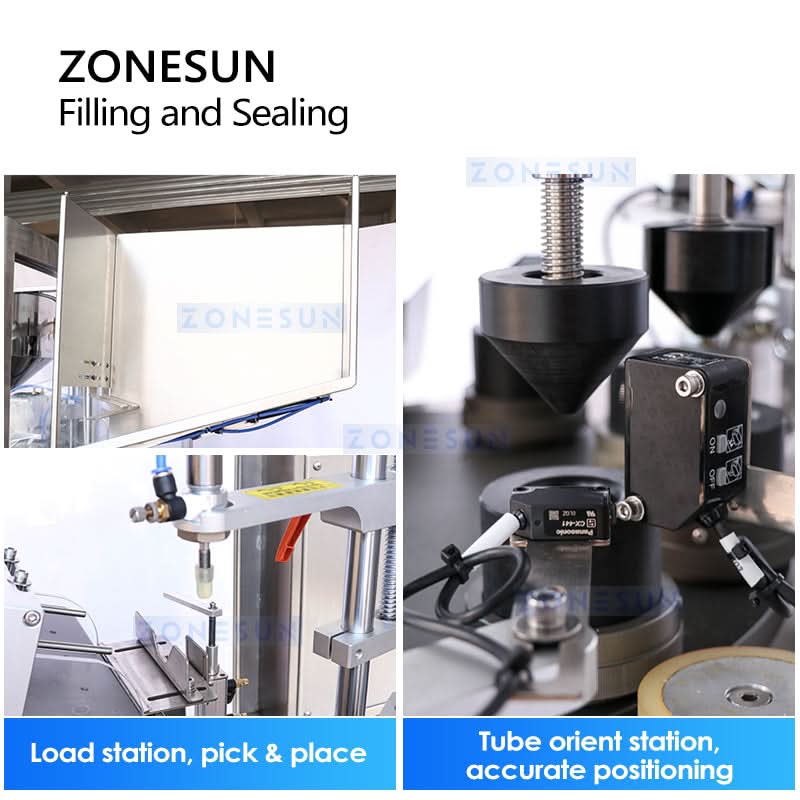

TUBE LOADING STATION
The loading station introduces tubes into the machine for processing.
TUBE ORIENTATION STATION
The tube-orientation station provides accurate positioning before filling and sealing.

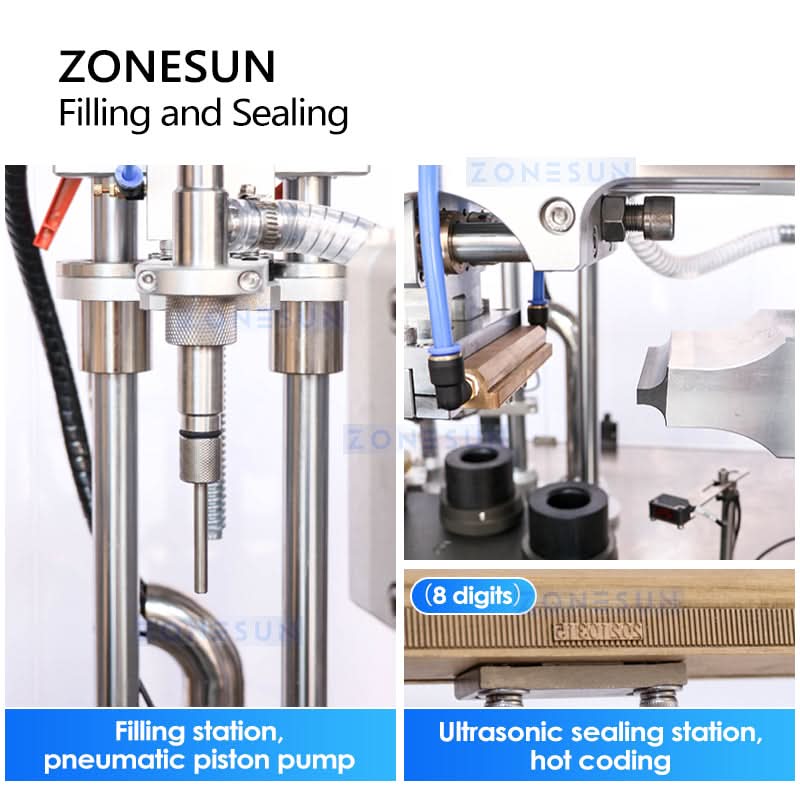

PNEUMATIC PISTON FILLING
The pneumatic piston-pump filling station dispenses product into the tubes.
ULTRASONIC SEALING
The ultrasonic sealing station uses hot coding for the tube seal.

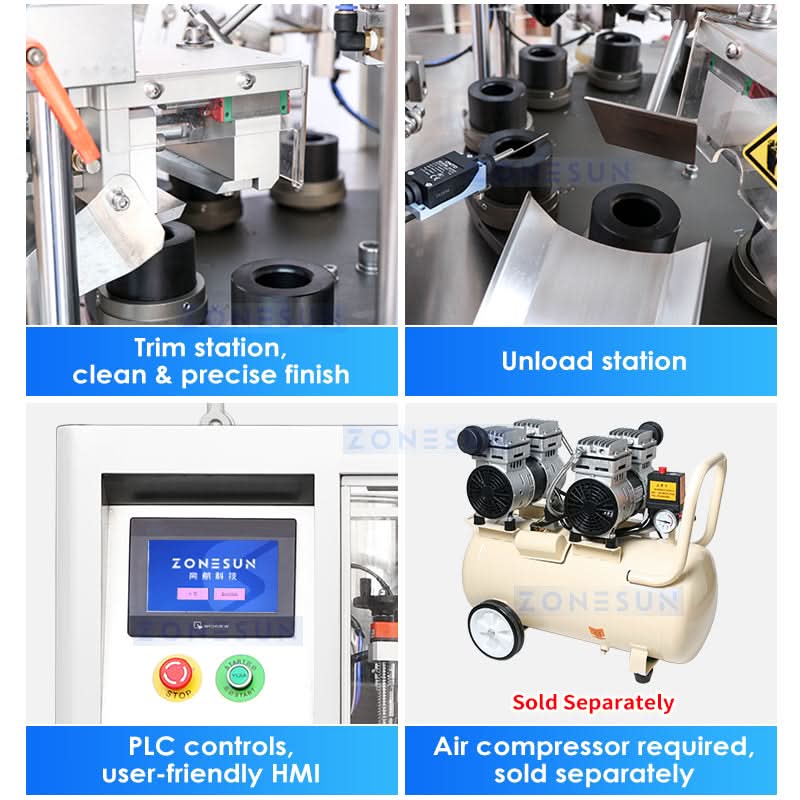

TRIMMING STATION
The trimming station creates a clean, precise tube finish.
AUTOMATIC UNLOADING
The unloading station removes finished tubes automatically.
PLC CONTROL
The PLC interface provides user-friendly machine control.
AIR SUPPLY REQUIREMENT
An external air compressor is required and is sold separately.
