DESCRIPTION

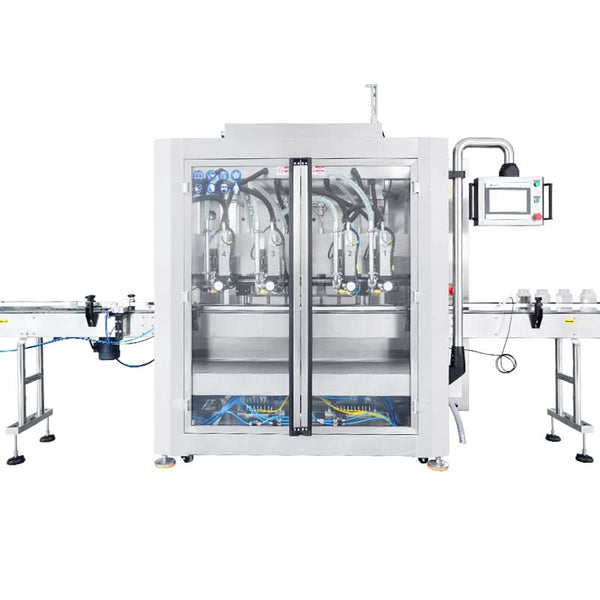

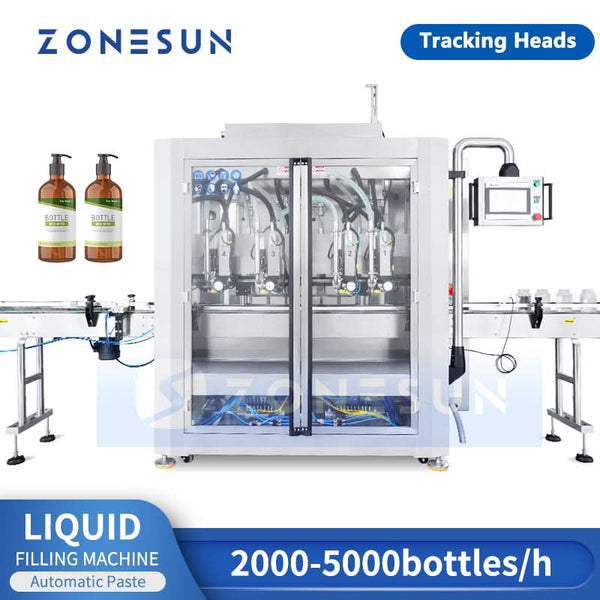

This high-speed servo-driven filling machine is built for uninterrupted, precision paste filling. With advanced tracking technology and four synchronized filling heads, it ensures smooth, continuous operation without pausing bottles—boosting efficiency in large-scale production. Ideal for industries that demand reliability, speed, and accuracy, it offers a modern solution for automating your bottling line.
Parameter
Filling Heads Four heads
Filling Range 500–5000ml (customizable)
Filling Speed 2000–5000 bottles/hour (depends on filling volume and product characteristics)
Metering Accuracy ±1%
Power & Voltage 6KW, 380V
Working Air Pressure 0.6–0.8 MPa
Air Consumption 6–7 m³/min
Machine Size 3000 × 1500 × 2700 mm
Machine Net Weight 900 kg

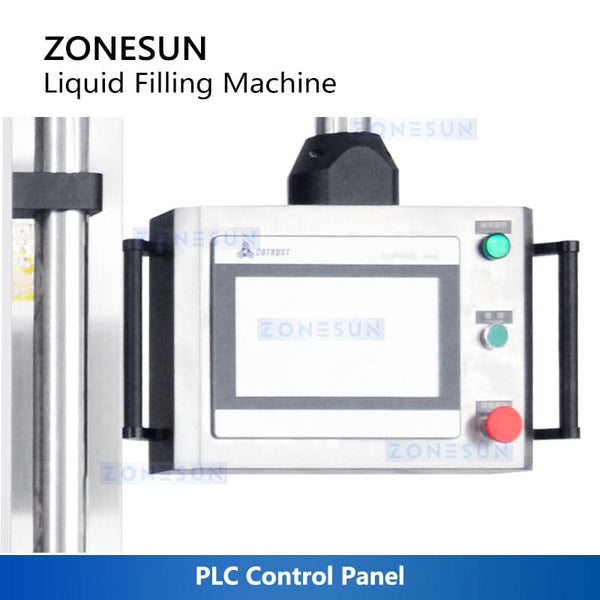

TOUCHSCREEN PLC CONTROL
The touchscreen PLC panel provides convenient access to machine settings and operating controls.
CUSTOMIZABLE INTERFACE LANGUAGE
The control-panel language can be customized to meet operator requirements.

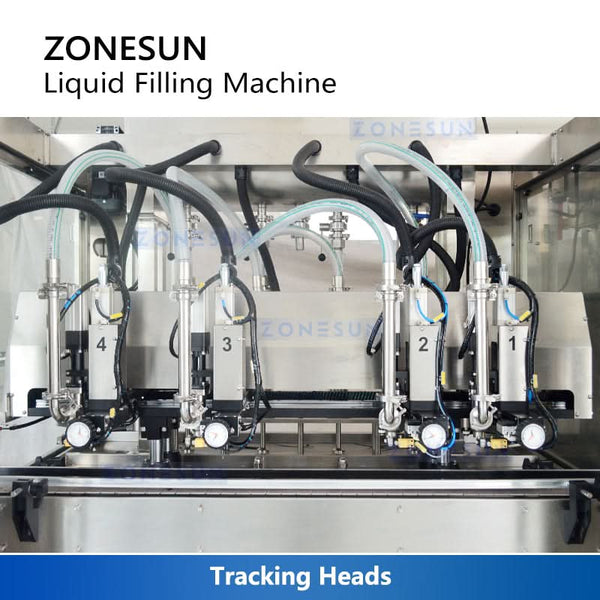

TRACKING FILLING HEADS
The filling heads follow moving bottles during filling to support continuous production and accurate dispensing.

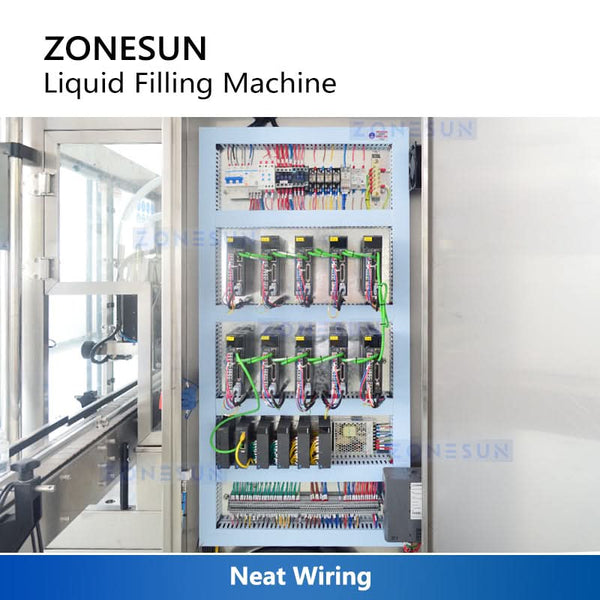

ORGANIZED ELECTRICAL WIRING
Neatly arranged wiring helps reduce interference, crossover, and short-circuit risks between machine circuits.
CONVENIENT TROUBLESHOOTING
The organized electrical layout helps maintenance personnel identify and locate faults efficiently.

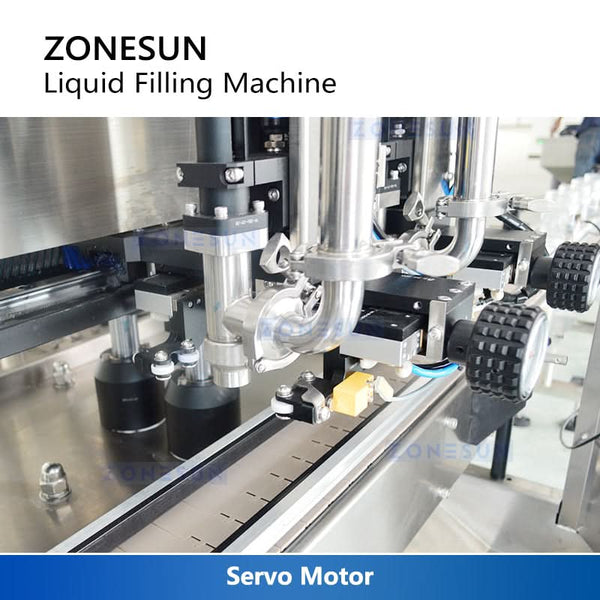

SERVO-DRIVEN FILLING
The servo motor controls the filling process to support fast, stable, and accurate dispensing.
