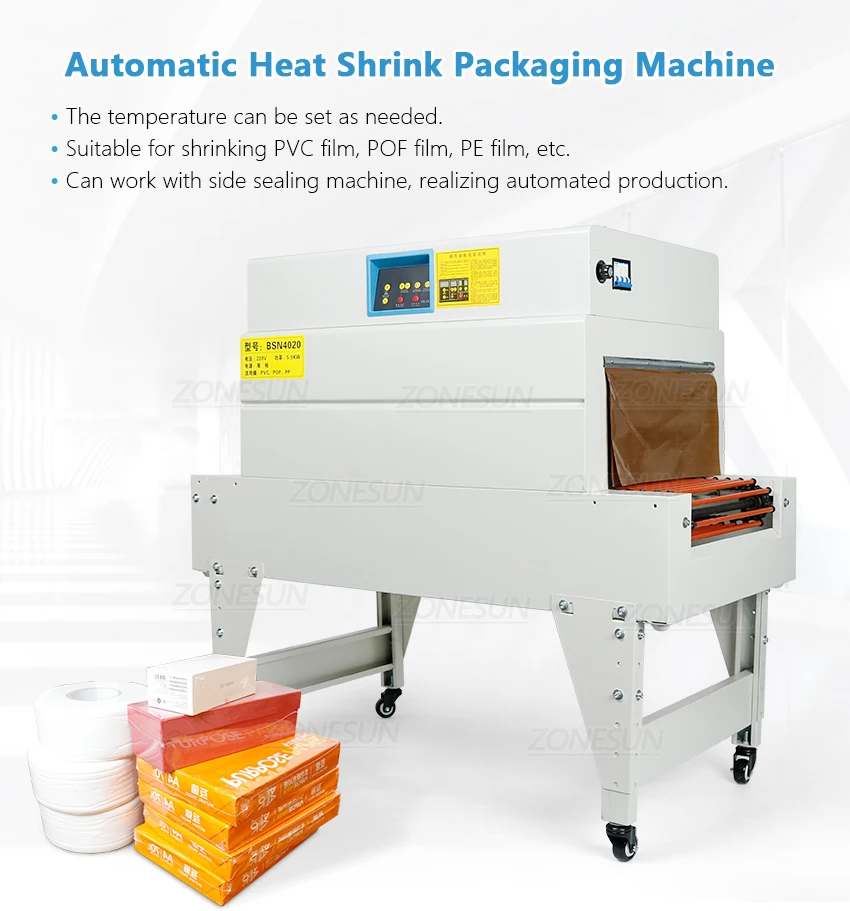

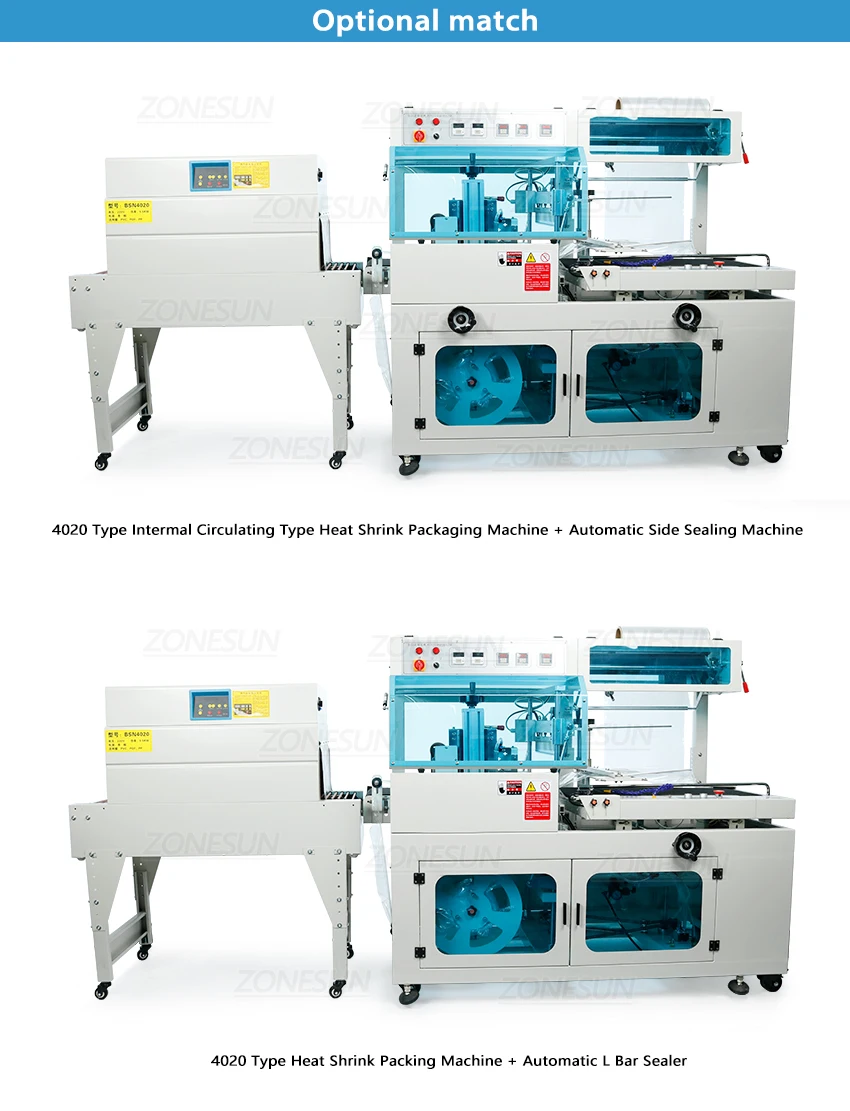

ackaging machine designed for a wide range of applications. With its sleek design and stable performance, it offers energy-efficient operation and adjustable temperature control to suit various shrink films like PVC, PP, PE, and POF. This machine can be paired with a sealing and cutting unit to create a fully automated packaging line. It’s ideal for wrapping items such as tissue rolls, beverage bottles, cartons, and sports equipment, making it a versatile solution for commercial and industrial packaging needs.
Parameter

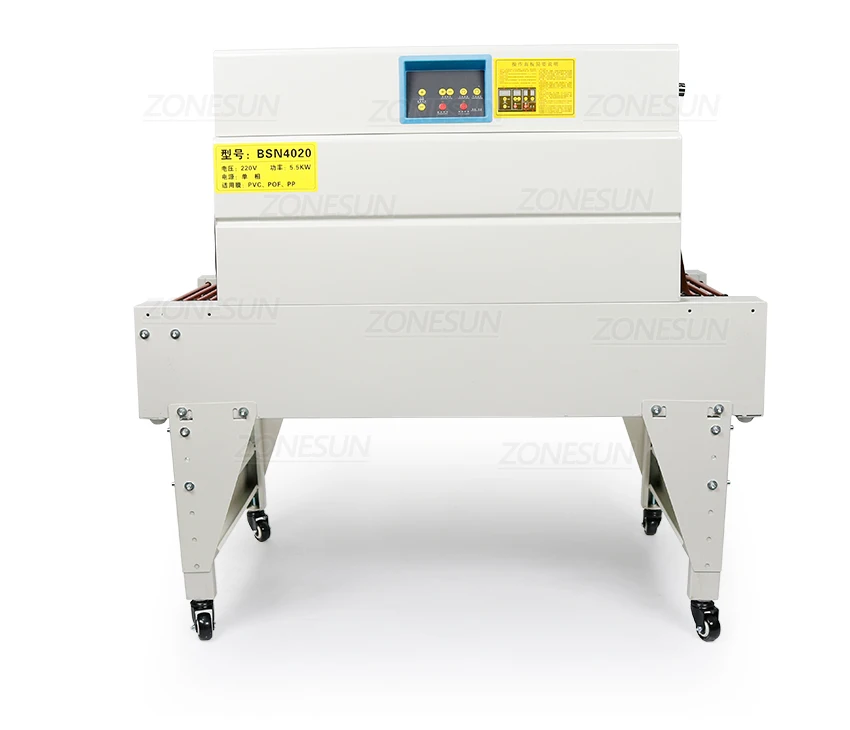

Machine Model ZS-BSN4020
Voltage 220V
Power 5.5 kW
Conveyor Speed 0–10’’
Furnace Size 800 × 400 × 200 mm
Max Temperature 300°C
Conveyor Loading Capacity ≤10 kg
Conveyor Size 1100 × 360 mm (L×W)
Applicable Film Material PVC, PP, PE, POF
Machine Size 1100 × 560 × 1050 mm (L×W×H)
Machine Weight 63 kg
Package Size 1220 × 650 × 900 mm (L×W×H)

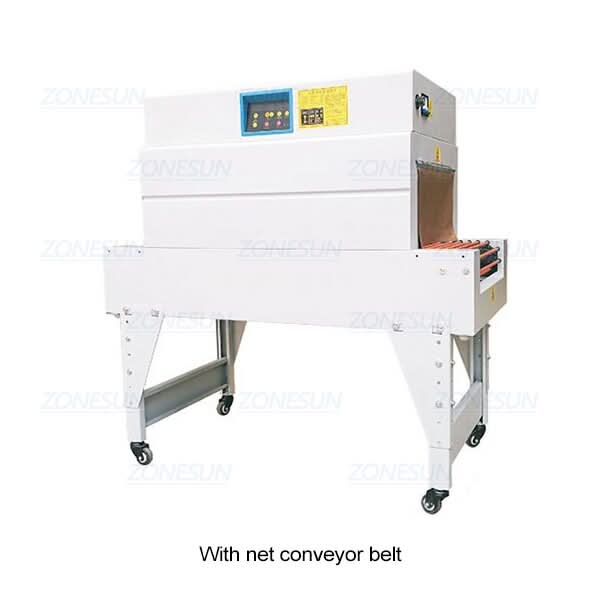

MESH-BELT SHRINK TUNNEL
The mesh-belt conveyor supports shrink packaging for applicable products.

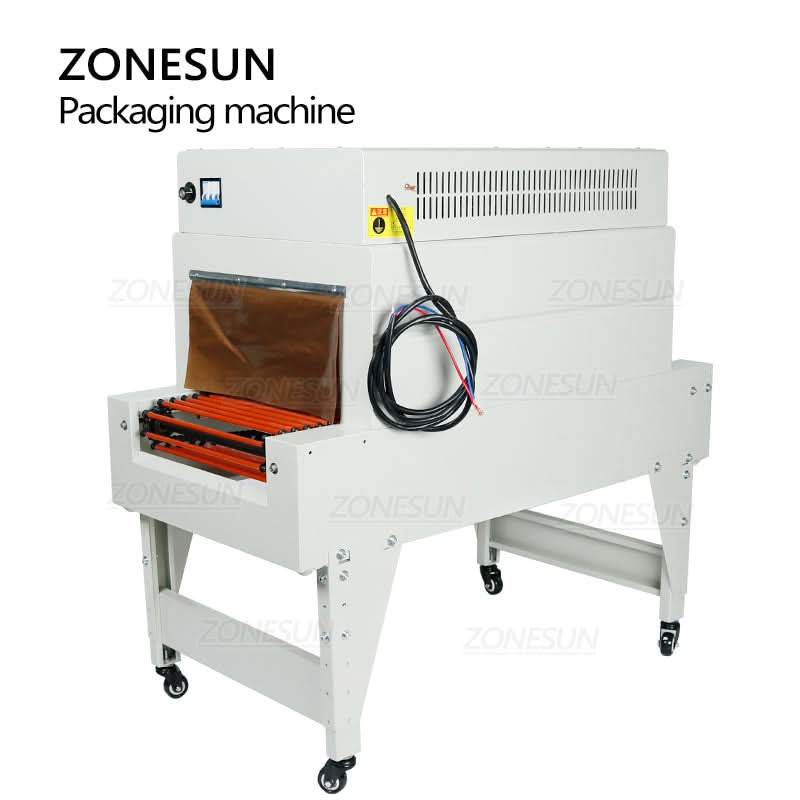

CHAIN-CONVEYOR SHRINK TUNNEL
The chain conveyor provides stable product transport through the shrink tunnel.
TEFLON MESH-BELT SHRINK TUNNEL
The Teflon mesh belt provides an alternative conveying surface for shrink packaging.
- Features: Constructed with galvanized or stainless steel mesh. Metal belts conduct heat rapidly, creating higher base temperatures.
- Limitations: Thin shrink film is prone to marking/embossing when flat products with large bottom contact areas are placed directly on the belt. Not recommended for pristine aesthetics.
- Best Suited For: Ideal for items with minimal bottom contact, such as tableware (recessed rims) or irregular shapes without quality loss.
- Features: Uses a chain-driven system with spring steel rods. Rods are sleeved with heat-resistant silicone tubing for premium thermal insulation, preventing film melting or warping.
- Specifications: Features a tight 2cm chain pitch.
- Best Suited For: Cylindrical or round products nest securely in the gaps and roll smoothly during transit, maximizing the shrink effect. Perfect for products with larger base contact surfaces.
- Material & Tech: Engineered from high-performance fiberglass mesh infused with premium PTFE (Teflon) emulsion. A highly versatile, industrial-grade composite material.
- Benefits: Perfectly accommodates ultra-small products and effectively prevents film burning or surface marking.

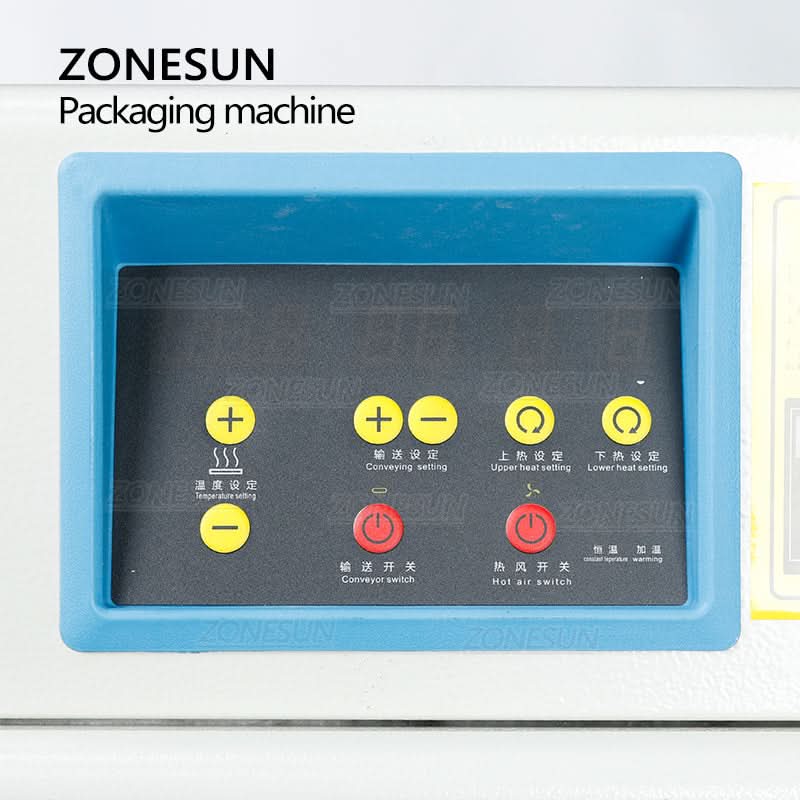

CONTROL PANEL
The control panel is easy to operate and supports adjustment of temperature, conveyor speed, and other operating settings.
ROTARY KNOB
The rotary knob adjusts hot-air flow to help distribute heat evenly around the products.

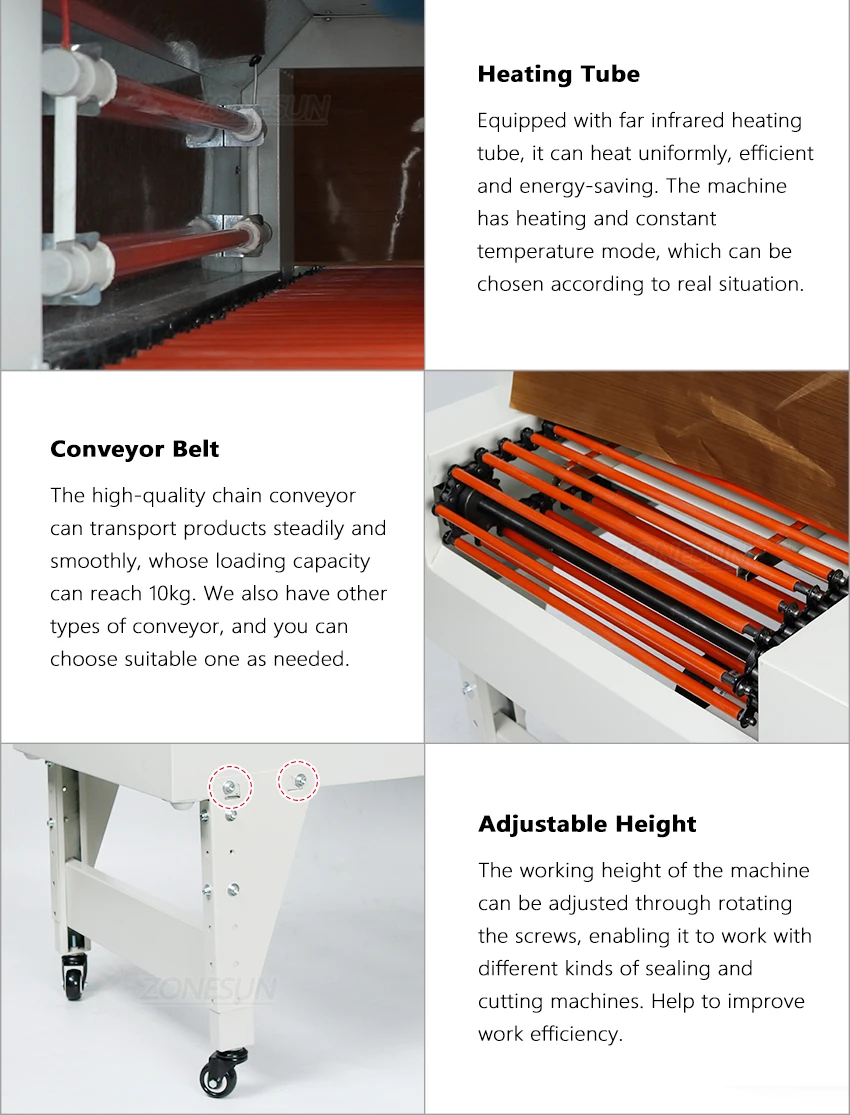

HEATING TUBES
The heating tubes support efficient heat generation for the shrinking process.

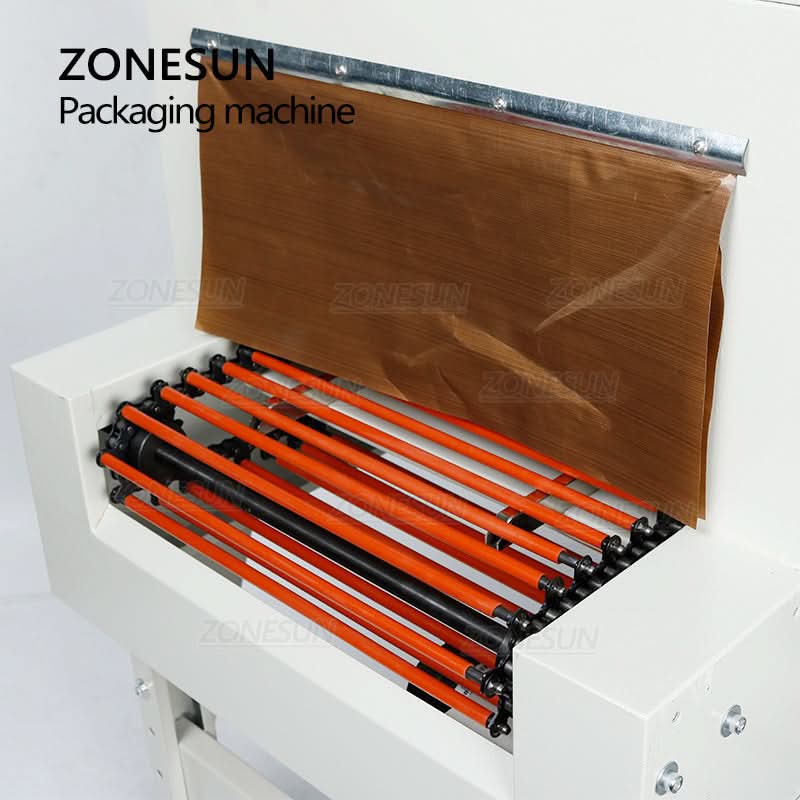

CONVEYOR BELT
The conveyor transports products steadily through the shrink tunnel.
ADJUSTABLE HEIGHT
The machine height can be adjusted to suit the operating setup.
