DESCRIPTION

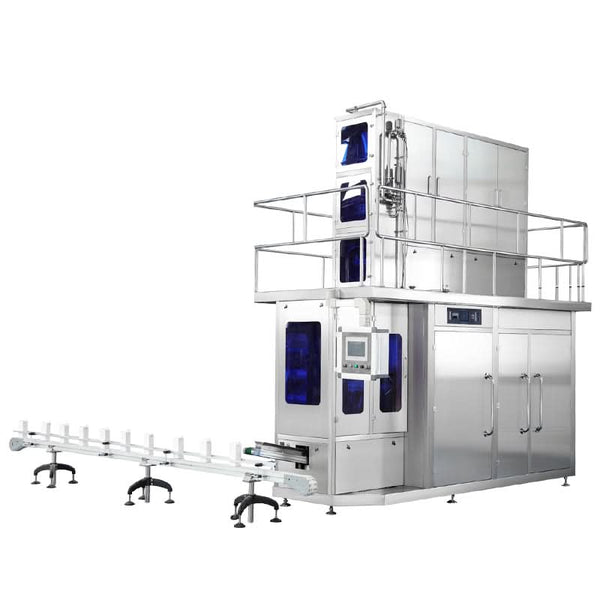

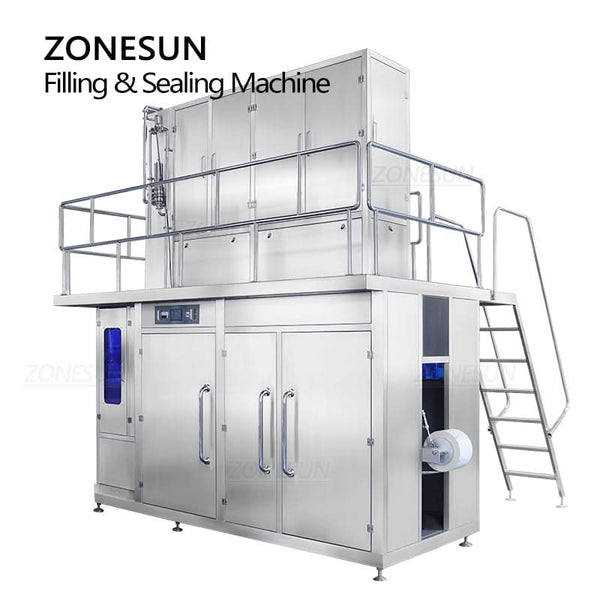

This aseptic filling machine offers a comprehensive solution for liquid food packaging. It integrates carton forming, sterilization, precise filling, sealing, and transport—all in one streamlined process. With its high-speed capacity and low material loss rate, it's ideal for large-scale production in the dairy, juice, and beverage industries. Built with food-grade steel and equipped with an intuitive interface, it ensures reliability, efficiency, and ease of use. Components from top-tier brands and a multi-layer aseptic protection system further enhance its performance.
Parameter
Model Type ZS-AUBP5000-200 / ZS-AUBP5000-250 / ZS-AUBP5000-500 / ZS-AUBP5000-1000
Filling Capacity 200ml – 1000ml
Compressed Air Pressure >0.6 MPa (6 bar)
Packaging Speed 5000 cartons/hour
Power Requirement 18KW
Actual Power Consumption 8KW
Power Supply 50Hz, 380/220V
Machine Dimensions (L×W×H) 4200mm × 1800mm × 4000mm
Machine Weight 3000KG
Package Format Brick-shaped cartons made of paper + AL/PE laminated materials

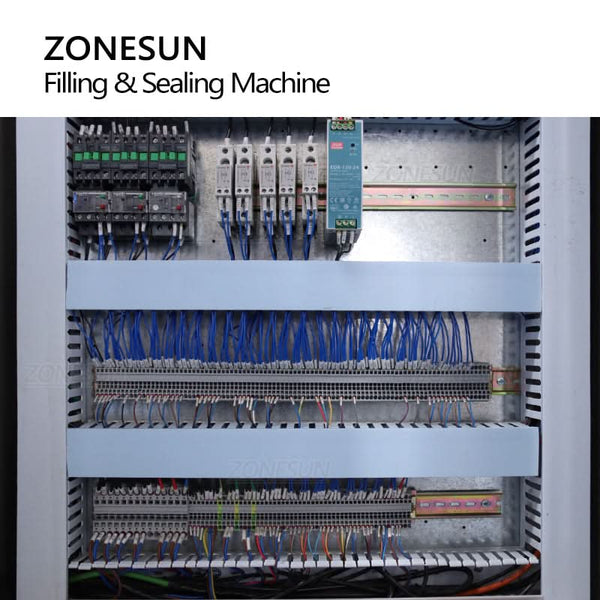

CIRCUIT CONTROL BOX
The circuit control box uses components from brands such as Yaskawa, SMC, Schneider, Carlo Gavazzi, and Omron, supporting stable machine operation and production performance.

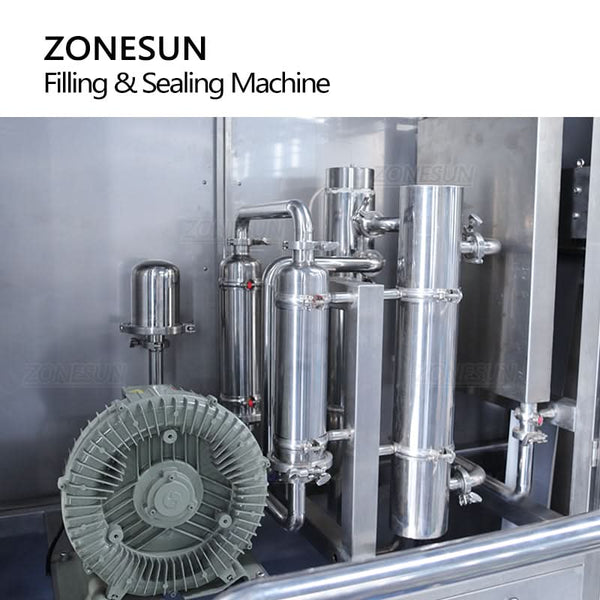

AIR FILTRATION AND DISINFECTION SYSTEM
The high-temperature air heating and filtration system provides clean air and maintains the pre-shaping area in an aseptic environment.
HYDROGEN PEROXIDE AND UV DISINFECTION SYSTEM
A hydrogen-peroxide sterilizing device and UV disinfection system help maintain an aseptic filling process.
PRE-SHAPING SYSTEM
Cartons are pre-shaped at this stage, and the packaging material is then sterilized with hydrogen peroxide and ozone.

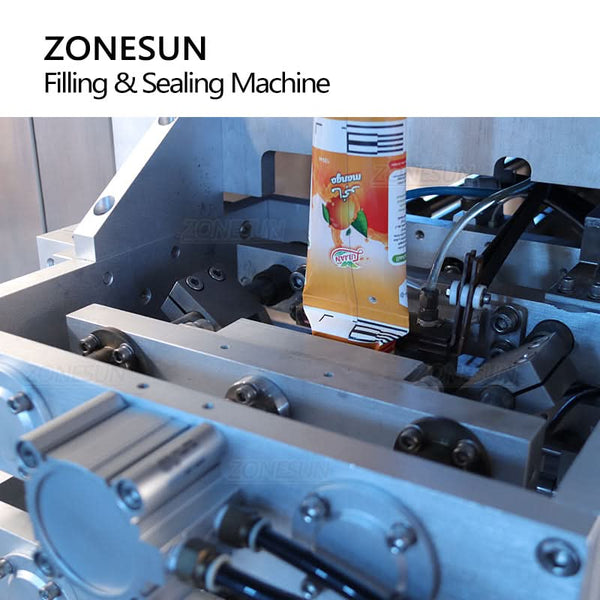

ASEPTIC FILLING SYSTEM
Liquid is filled accurately into the packaging material and formed into aseptic cartons before being transferred to the conveyor.
TOUCHSCREEN
The 10-inch touchscreen HMI is connected to the PLC system, making it easy to operate and supporting multilingual versions.
