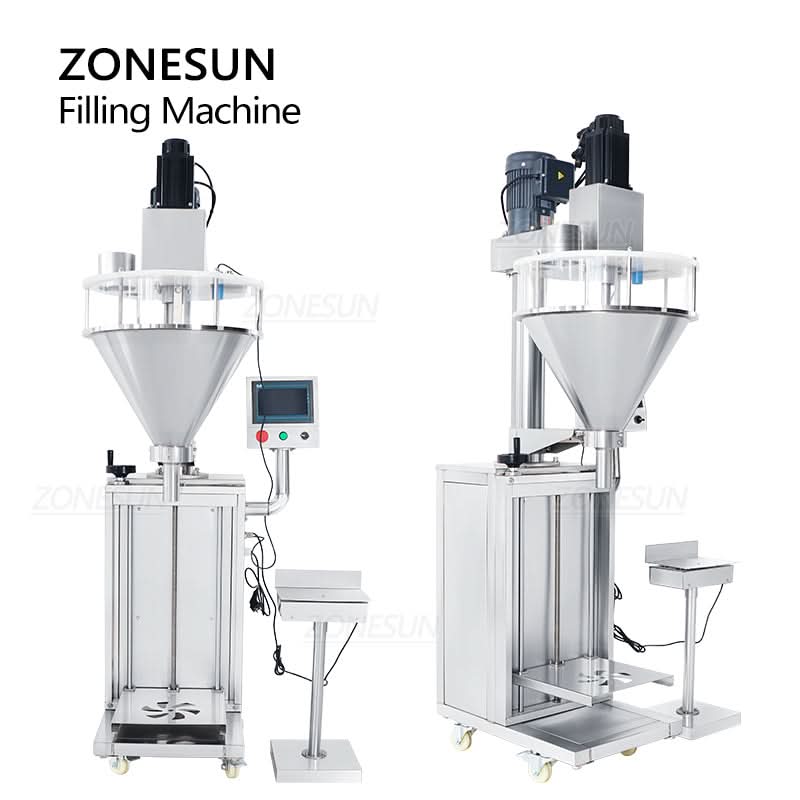

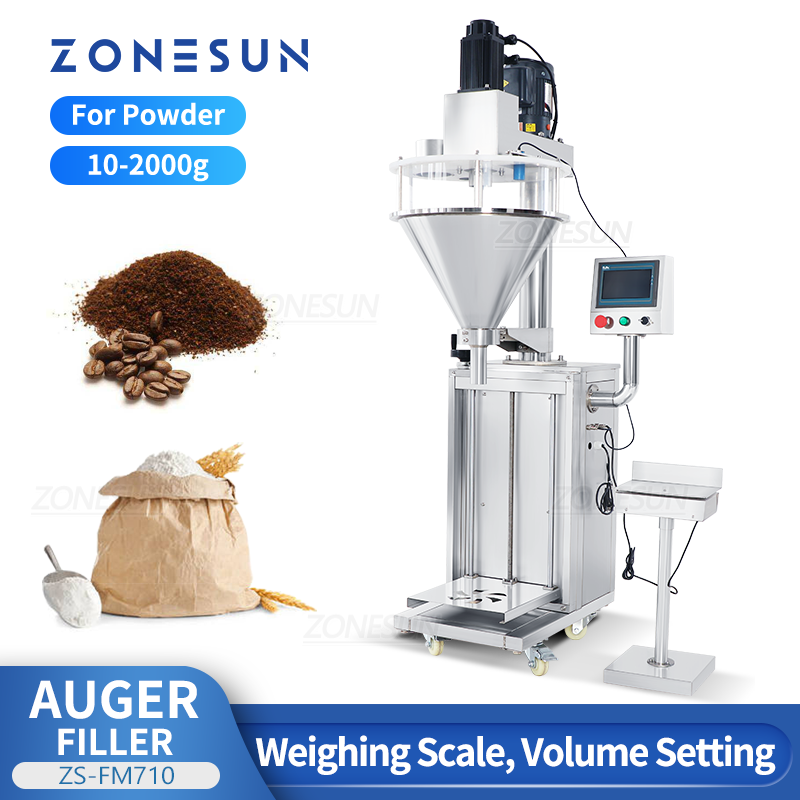

The ZS-FM710 is a semi-automatic powder filling machine designed for precise dosing of dry ingredients such as flour, spices, talcum powder, and protein powder. Featuring dual filling modes—volume-based or weight-controlled via integrated scale—it offers flexibility for diverse packaging needs. With a 25L hopper and support for bottles or jars of various sizes, it’s ideal for food, pharmaceutical, and chemical industries requiring efficient, accurate filling.

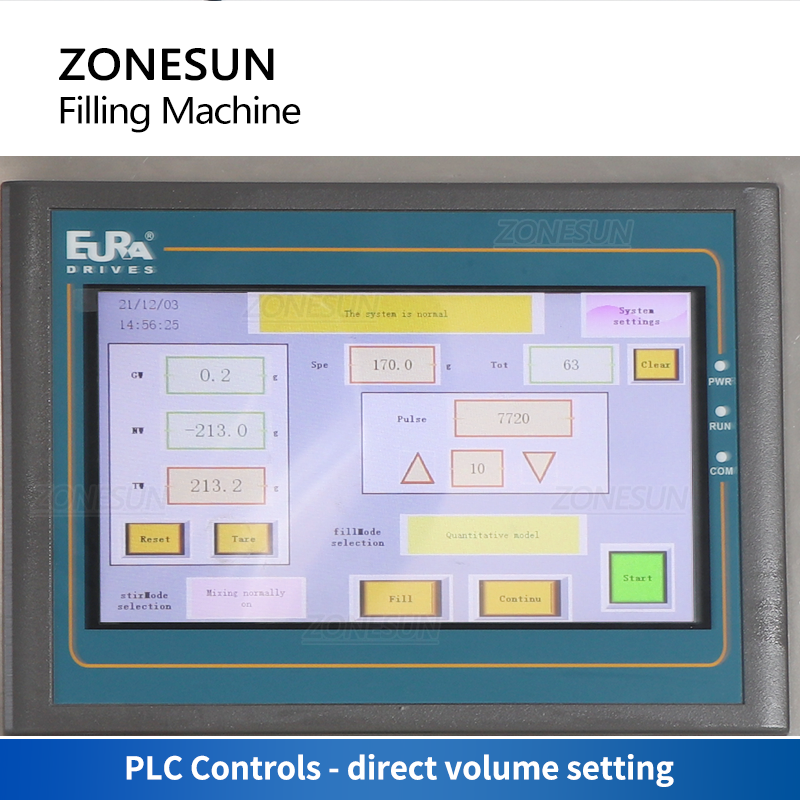

PLC CONTROL PANEL
The PLC control provides straightforward parameter settings and direct filling-volume input.

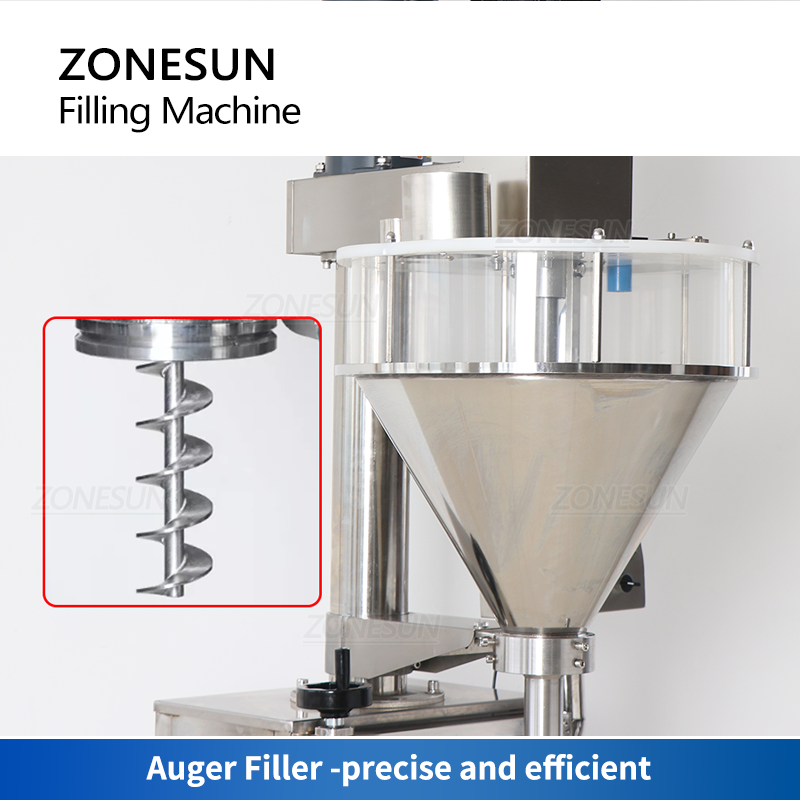

25 L AUGER HOPPER
The auger filling system uses a 25 L hopper for convenient material feeding and accurate filling.

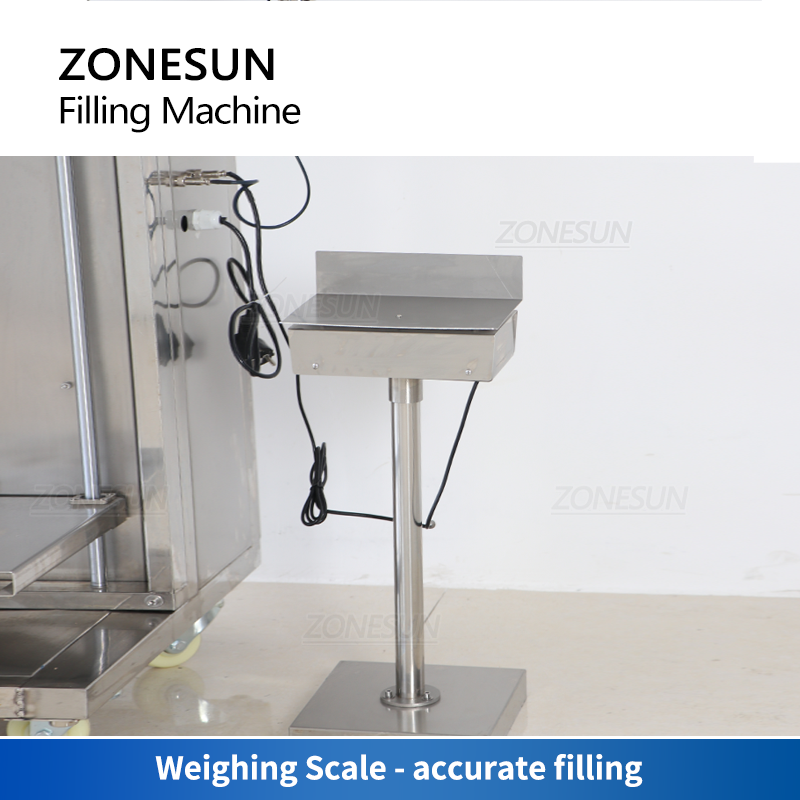

DUAL FILLING MODES
The machine supports quantitative filling and weight-based filling to meet different production requirements.

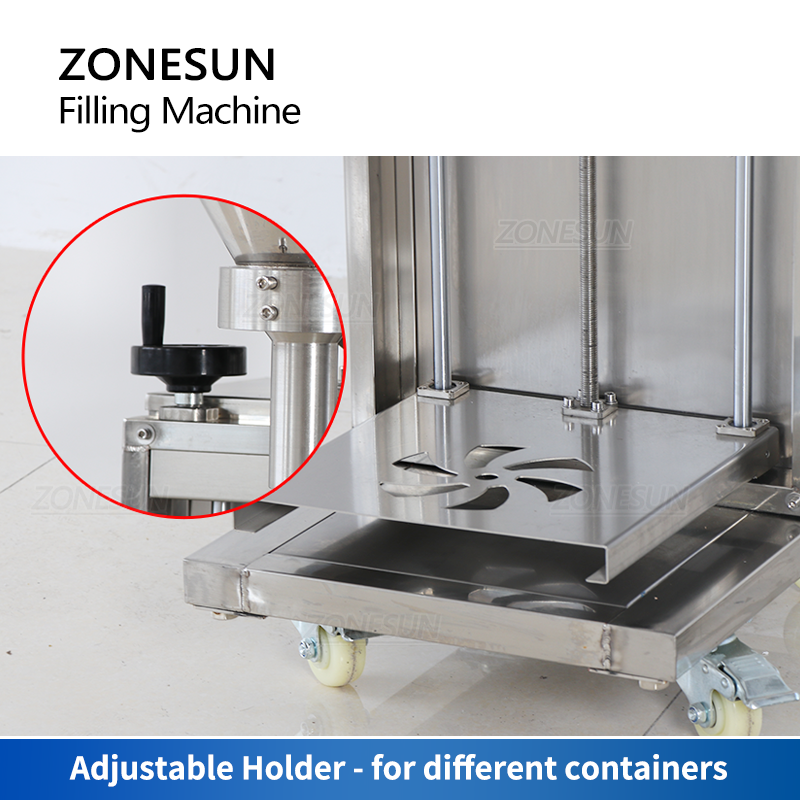

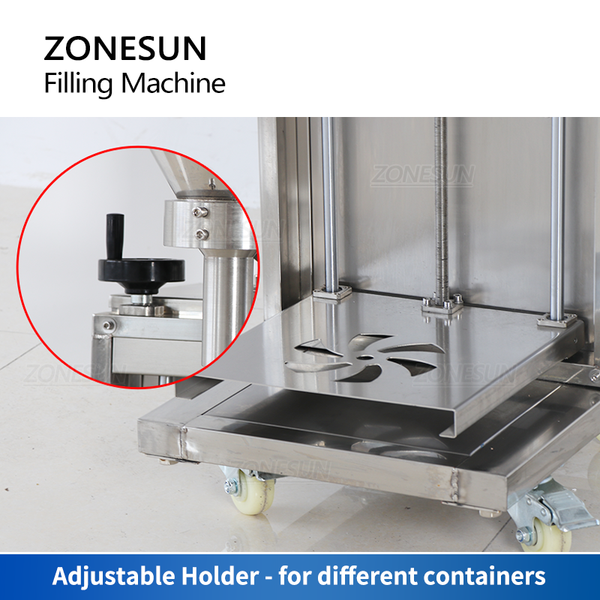

ADJUSTABLE CONTAINER HOLDER
The holder height can be adjusted to suit the container by turning the control knob.
Specification Details
Model ZS-FM710
Machine Voltage 110V / 220V / 380V, 50–60Hz
Power Consumption Approx. 1.25 KW
Filling Type Weight filling or Auger filling
Filling Range Approx. 10–2000 g
Suitable Bottle Diameter Approx. 25–150 mm
Suitable Bottle Height Approx. 60–300 mm
Hopper Capacity Approx. 25 L
Working Speed Approx. 1–30 bottles/min
Machine Size 450 × 650 × 1860 mm (Main Unit) <br> 265 × 265 × 570 mm (Weighing Device)
Machine Weight Approx. 128 kg
Package Size Approx. 1900 × 2170 × 820 mm
Package Weight Approx. 171 kg
