Parameter
|
Machine Model |
ZS-TB100S1 |
ZS-TB100S2 |
ZS -TB100SW |
|
Main Feature |
Standard Version |

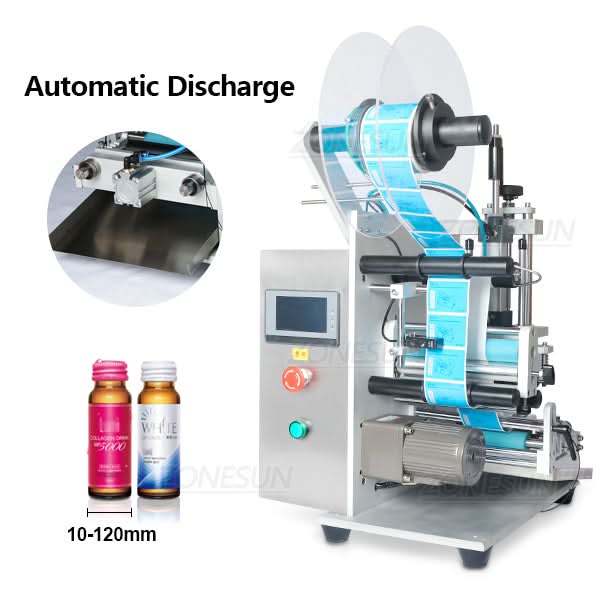

Automatic Discharge |
Wider Labeling |
|
Power supply |
110V/220V 50-60Hz |
||
|
Working Speed |
15-35 pcs/min |
20-40 or 15-35 pcs/min |
15-35 pcs/min |
|
Labeling Accuracy |
±1mm |
||
|
Air pressure |
0.4-0.6MPa |
||
|
Label Outputting Direction |
Right |
Left |
Right |
|

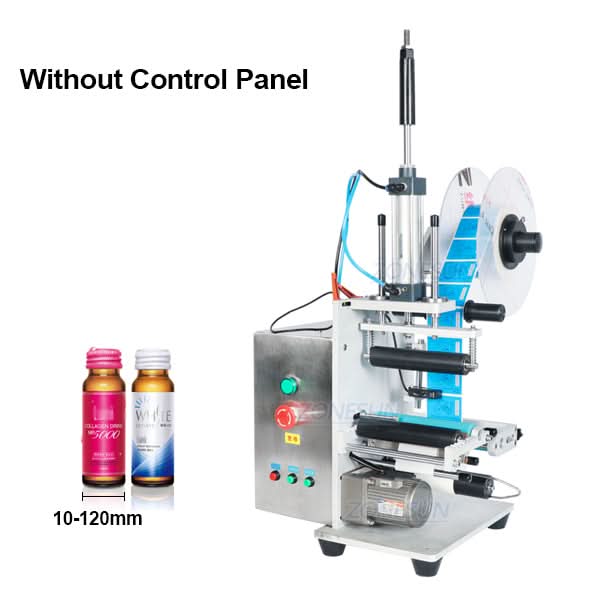

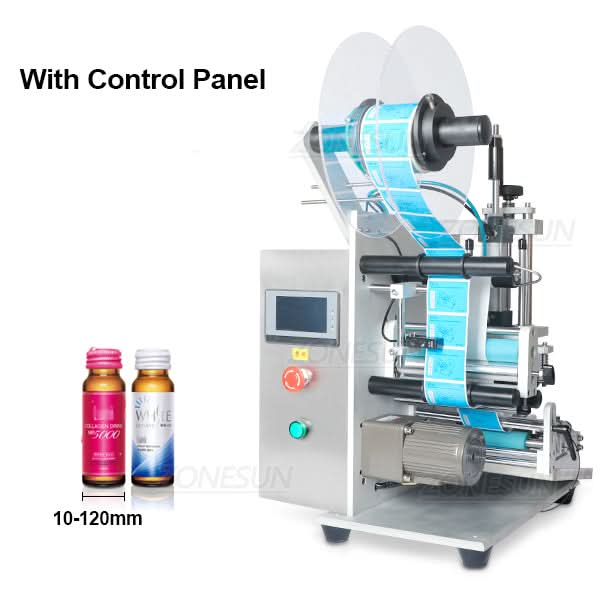

Labeling Object Diameter |
φ10-120mm |
φ10-30mm or φ10-120mm |
φ10-150mm |
|
Labeling Object Height |
≤250mm |
≤250mm |
≤380mm |
|
Suitable Label size |
15-170mm(W) |
15-170mm(W) |
≤200mm(W) |
|
Label Roll OD |
φ220mm |
||
|
Label Roll ID |
φ75mm |
||
|

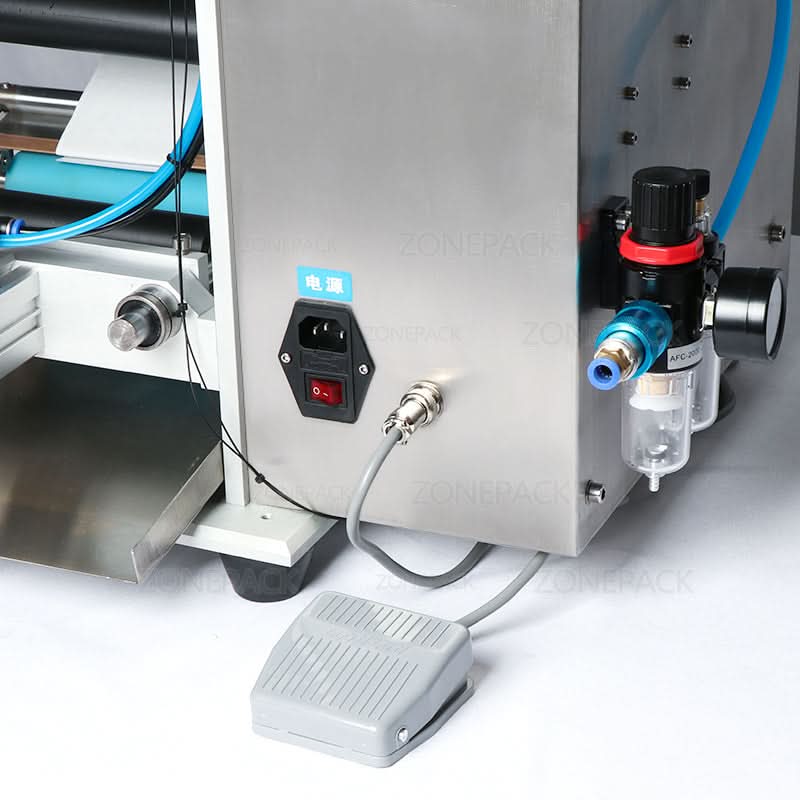

Size of Air Compressor Connector |
OD8mm |
||
|
Machine size |
About 410*475*720mm |
||
|
Machine weight |
32kg |
||
Application

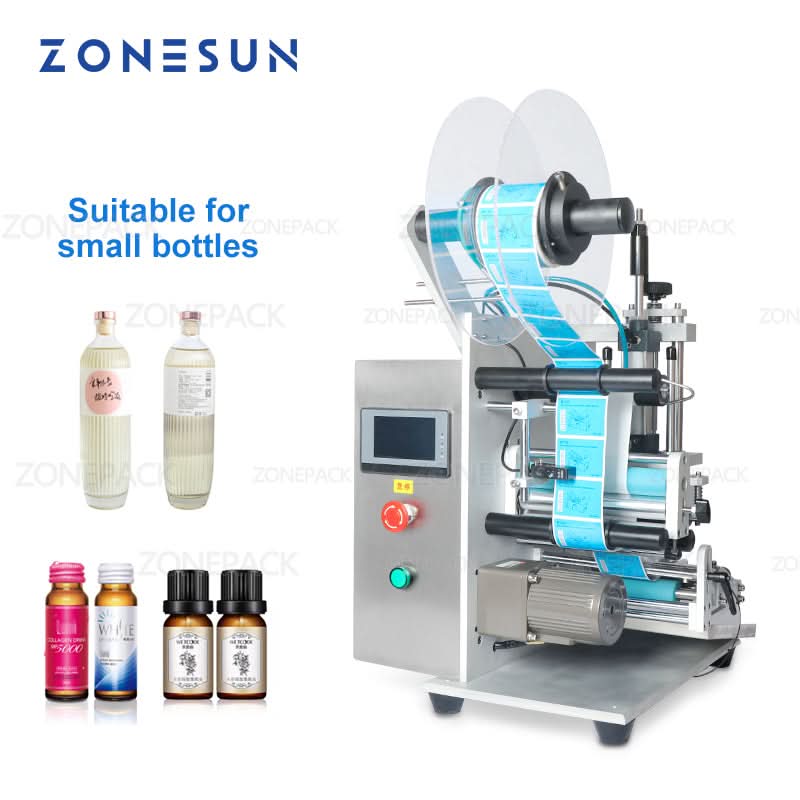

This semi automatic labeling machine is suitable for single side and double side labeling,it is designed for small things like reagent bottles,vial,pen,electronic cigarette etc.
Notice
1. This machine can be equipped with a date coder, which can print production date or batch number. If you need it, please feel free to contact us. Thank you!
2. The machine shown online is suitable for normal labels, if you need it for transparent labels, please contact us. Thank you!!
