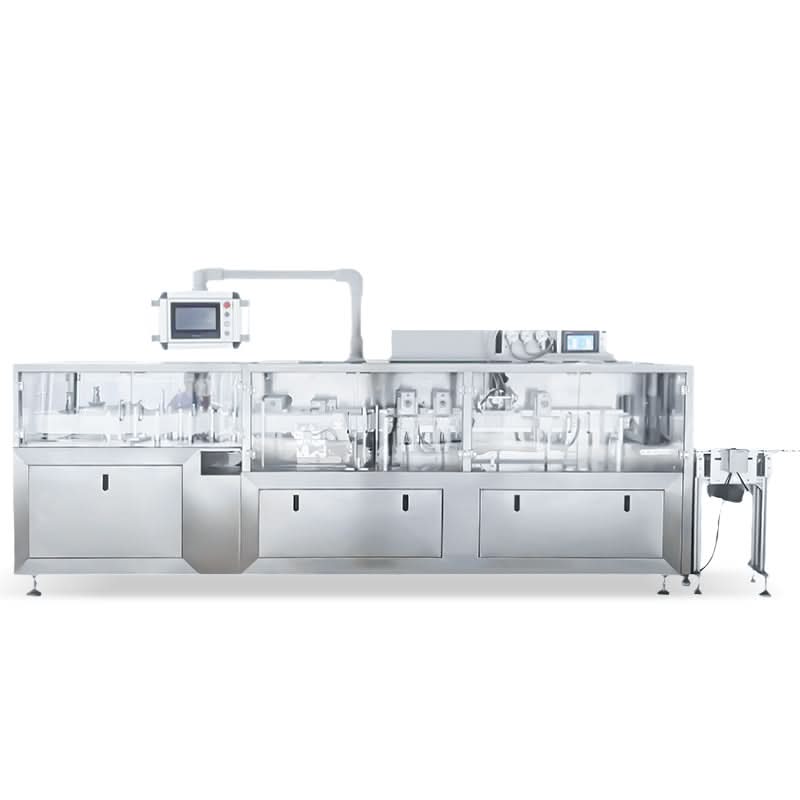

The ZONESUN ZS-FS180 is an automatic snap-sachet packaging machine designed for liquid and semi-liquid products. It produces single-dose portion packs with a one-hand snap-open design, ideal for sauces, shower gels, skincare samples, and more. Engineered for precision and efficiency, this machine enhances your packaging workflow with professional-grade results.
Parameter
Model ZS-FS180
Voltage 380V / 50Hz
Power 6.5 kW
Pump Type Peristaltic Pump
Filling Capacity 1–30 ml
Packing Material PVC/PE (0.2–0.4) × 120 mm
Max Forming Depth 20 mm
Machine Weight 1100 kg
Machine Size 4200 × 950 × 1400 mm (L × W × H)
PLC CONTROL
The PLC touchscreen makes operating settings easy to configure and supports selectable interface languages for straightforward machine control.

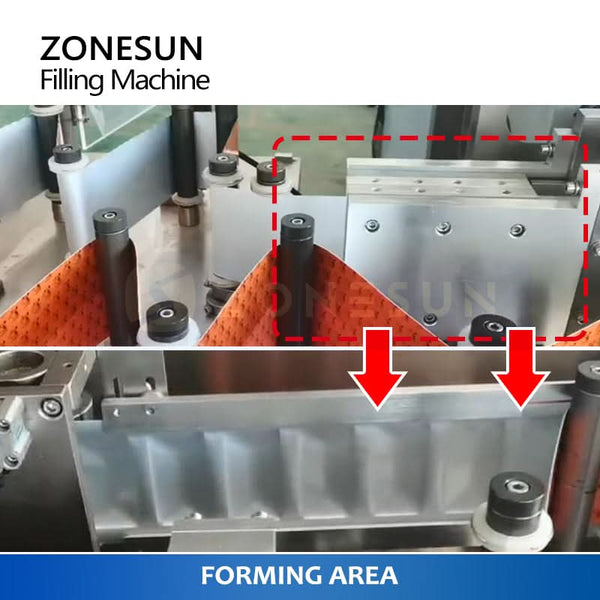

FORMING AREA
The forming station heats and compresses the film to produce uniformly sized snap-sachets. The forming mold can be customized to the required pack dimensions.

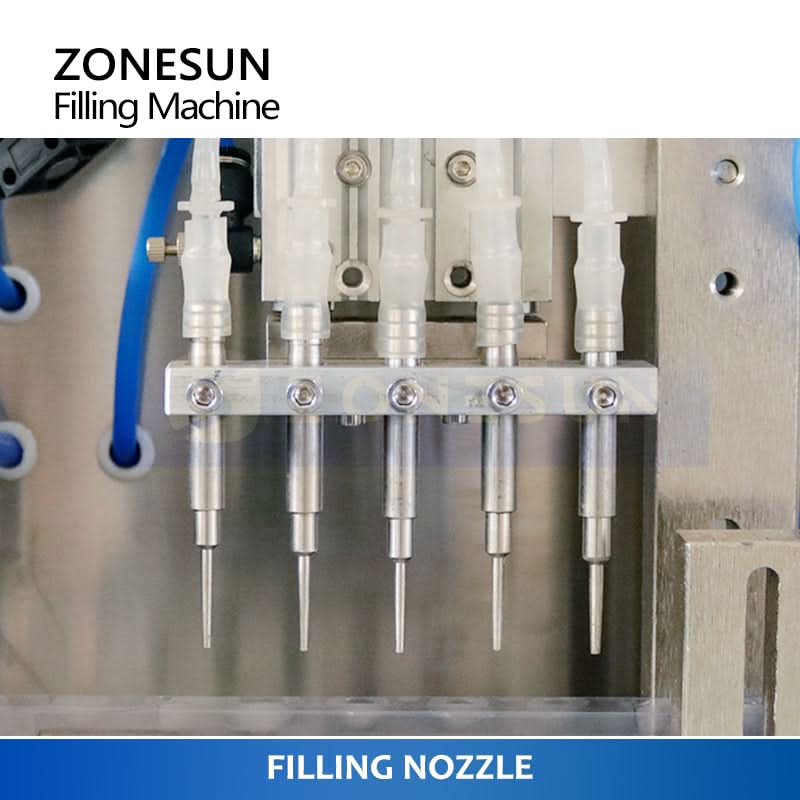

FILLING NOZZLES
The stainless steel filling nozzles support accurate small-volume dosing and feature an anti-drip design for cleaner production.

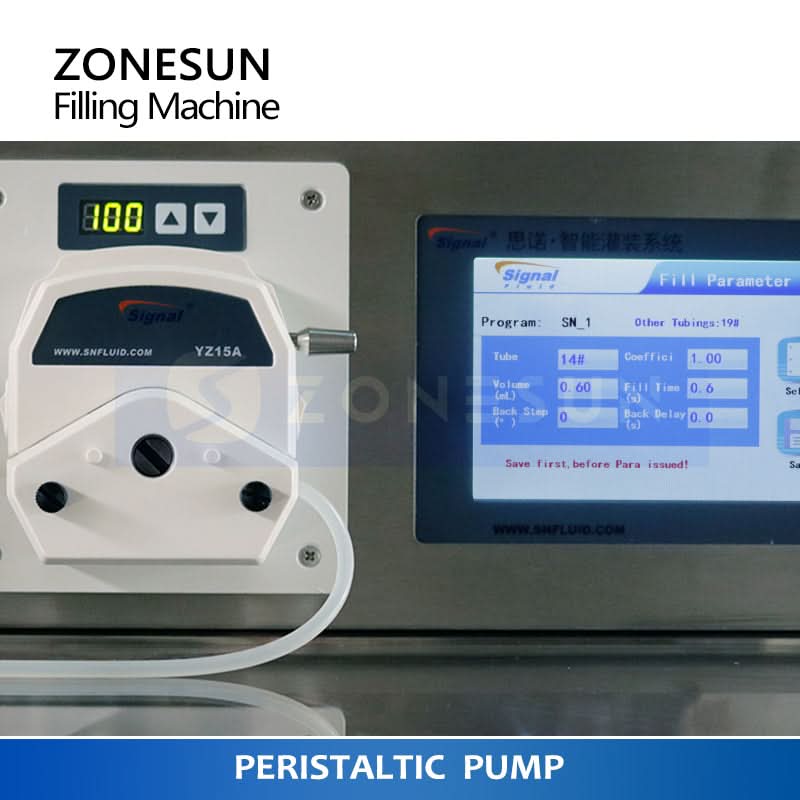

PERISTALTIC PUMP
The peristaltic pump keeps the liquid inside the tubing during filling, supporting clean, accurate dosing. Filling volume can be adjusted through the control interface.

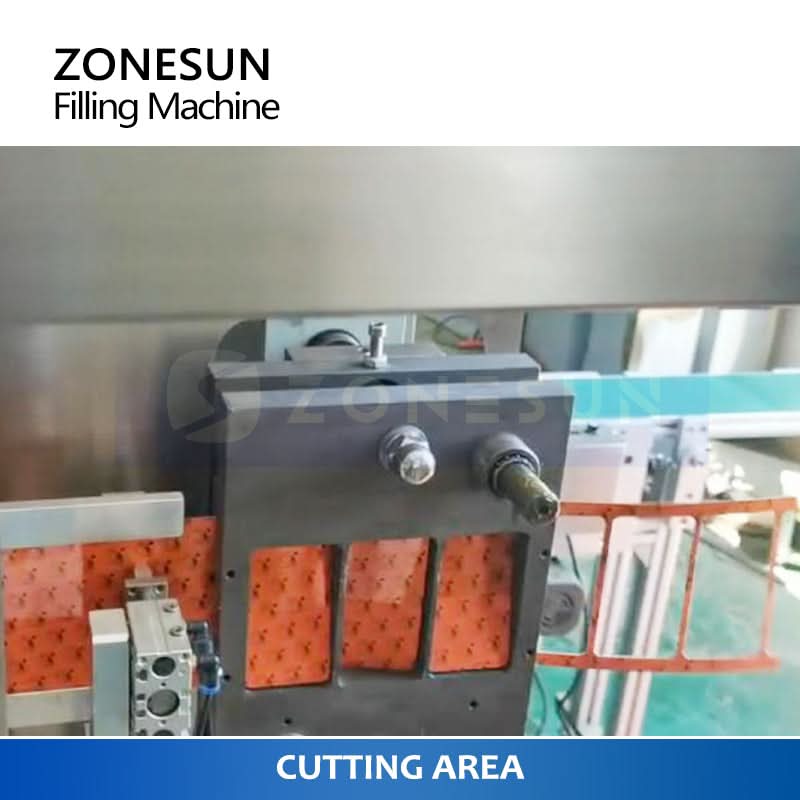

CUTTING AREA
After filling and sealing, the cutting unit automatically separates the finished sachets for efficient discharge.
