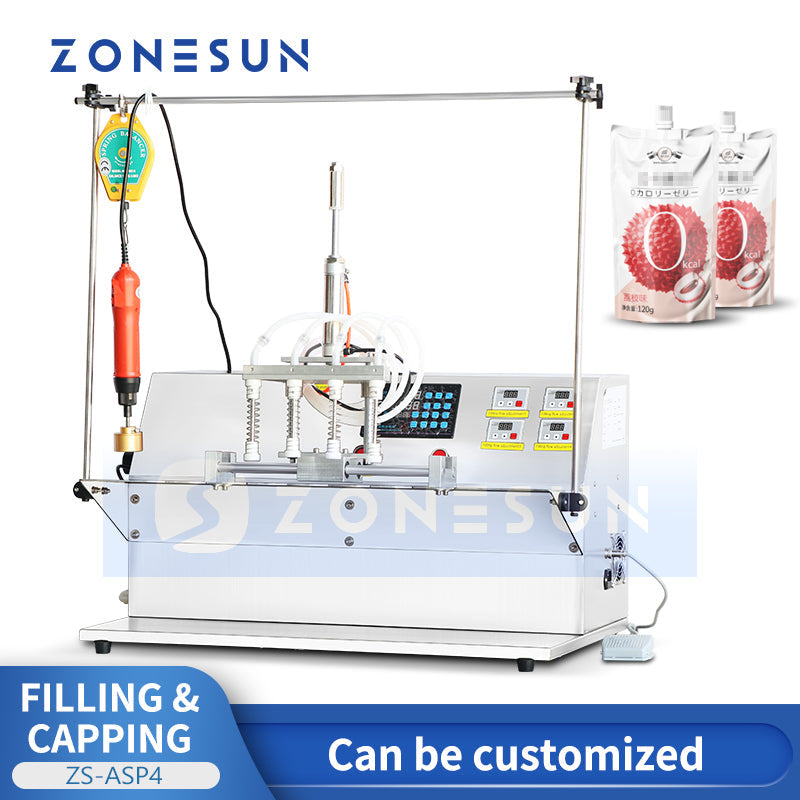

ZONESUN ZS-ASP4 Semi-Automatic 4-Nozzle Spout Pouch Filling Machine

Price
$1,663.00

Please check your cart or click "Buy It Now" to view shipping costs

Shipping Information

Shipping methods and costs vary by machine, package size, destination, and delivery method. Available options may include express delivery, air freight, sea freight, or logistics services.

To view the available shipping options and estimated cost, add the product to your cart and enter your delivery address at checkout.

We can help coordinate shipping and customs clearance for eligible destinations. Please contact us before ordering to confirm availability, delivery arrangements, and applicable charges.

For large machines, customized equipment, or complete production lines, please contact us before ordering so we can confirm the shipping method, packing requirements, freight cost, and estimated delivery time.

Import duties, customs clearance fees, local taxes, and other destination charges may apply.

Voltage:110V

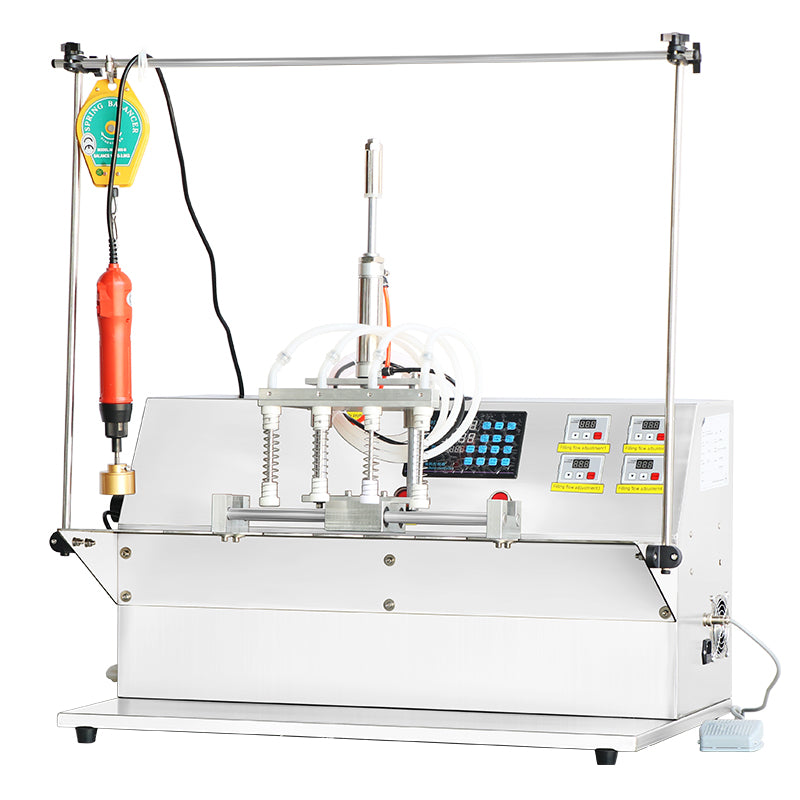

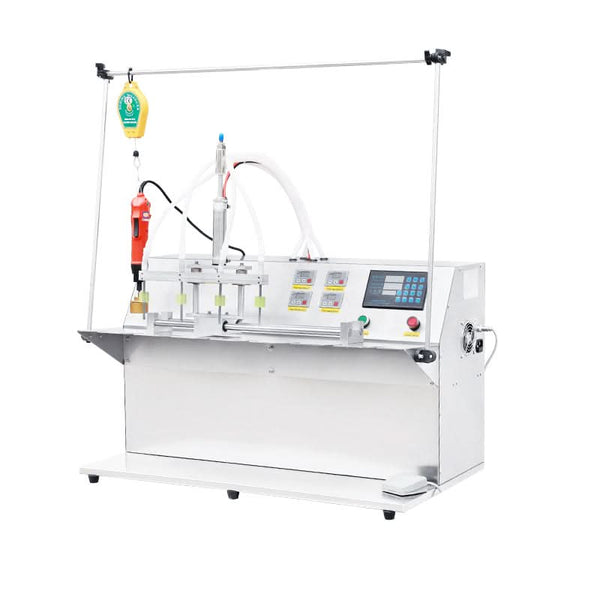

The ZONESUN ZS-ASP4 is a semi-automatic spout pouch filling machine with four nozzles and a gear-pump filling system. The four-head layout supports simultaneous filling of four compatible pouches, while the pouch support platform helps position bags during operation.

Key Features

  • Four filling nozzles: Fill compatible spout pouches in a multi-head setup.
  • Gear-pump system: Set filling time and pump speed to adjust the dispensed volume.
  • Independent nozzle control: Each filling nozzle can be controlled separately.
  • Pouch support: The platform and hanging slots help position pouches for filling.
  • Customization options: Discuss nozzle count, pump flow and pouch-hanging slot requirements with us.

Check Your Pouch & Liquid Before Ordering

Provide your target fill volume, liquid characteristics, pouch height and width, spout inner diameter, spout collar dimensions and cap dimensions. These details help match the nozzles, hanging slots and capping setup to your packaging.

If you need to use two pouch sizes, contact us to confirm a suitable ZS-ASP4 configuration. Confirm any slot changes, tooling and customization costs for the actual pouch sizes.

Technical Specifications

Machine Model ZS-ASP4
Machine Voltage 110V or 220V, 50–60Hz; 380 W — select the required voltage
Filling Pump Type Gear Pump
Listed Maximum Pump Flow Rate 5 L/min per pump (customizable)
Filling Nozzles 4 Heads
Listed Filling Accuracy ±1%
Suitable Cap Size Customizable
Machine Size Approx. 800 × 500 × 460 mm
Package Size Approx. 880 × 600 × 650 mm
Package Weight Approx. 55 kg

The listed 5 L/min per pump is a maximum flow-rate specification, rather than a pouch-per-minute production rate. Actual output depends on the liquid, filling volume, settings and operator handling.

The listed ±1% accuracy should be confirmed for your liquid, target volume and calibration conditions. Contact us to confirm the working filling-volume range for your application.

Filling & Capping Workflow

This is a semi-automatic setup with operator involvement in pouch handling and capping. Confirm the capping tool, its operating method, utilities and supplied accessories for your order.

Frequently Asked Questions

Can each nozzle be controlled separately?

Yes. The control panel allows separate nozzle control and adjustment of filling time and speed.

Can this machine fill any liquid?

Send your product details, viscosity and any particle content so we can check the filling system and liquid-contact components for your application.

How do I choose between 110V and 220V?

Select the voltage that matches your intended electrical supply and confirm the local frequency and connection requirements.

What accessories should I confirm?

Ask us to confirm the supplied capping tool, cap-matching heads, pouch-hanging slots, hoses and other accessories, together with any additional equipment or customization needed.

Compare Related Equipment

Browse our semi-automatic filling machines or compare liquid filling equipment for your packaging workflow.

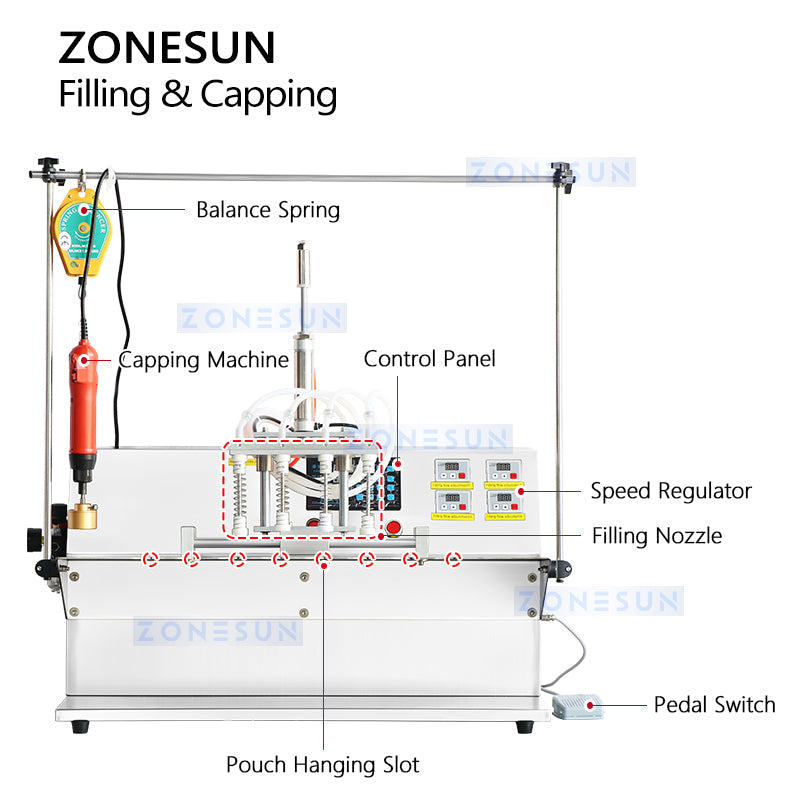

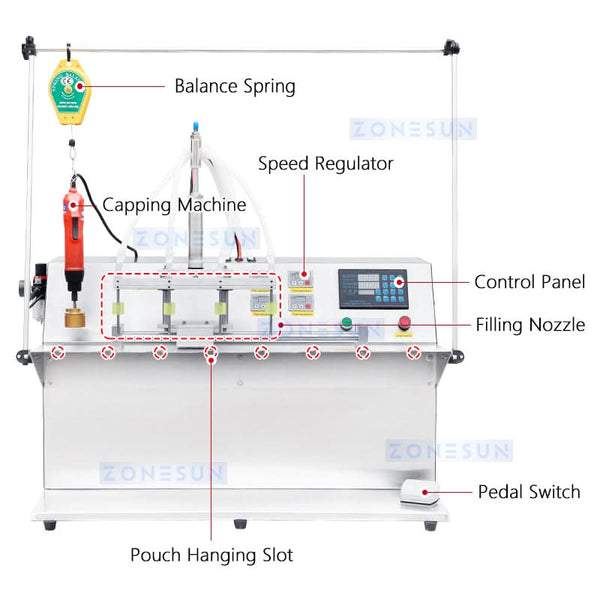

Machine Details & Controls

ZONESUN ZS-ASP4 four-nozzle spout pouch filling machine ZONESUN ZS-ASP4 four-nozzle spout pouch filling machine ZONESUN ZS-ASP4 four-nozzle spout pouch filling machine ZONESUN ZS-ASP4 four-nozzle spout pouch filling machine

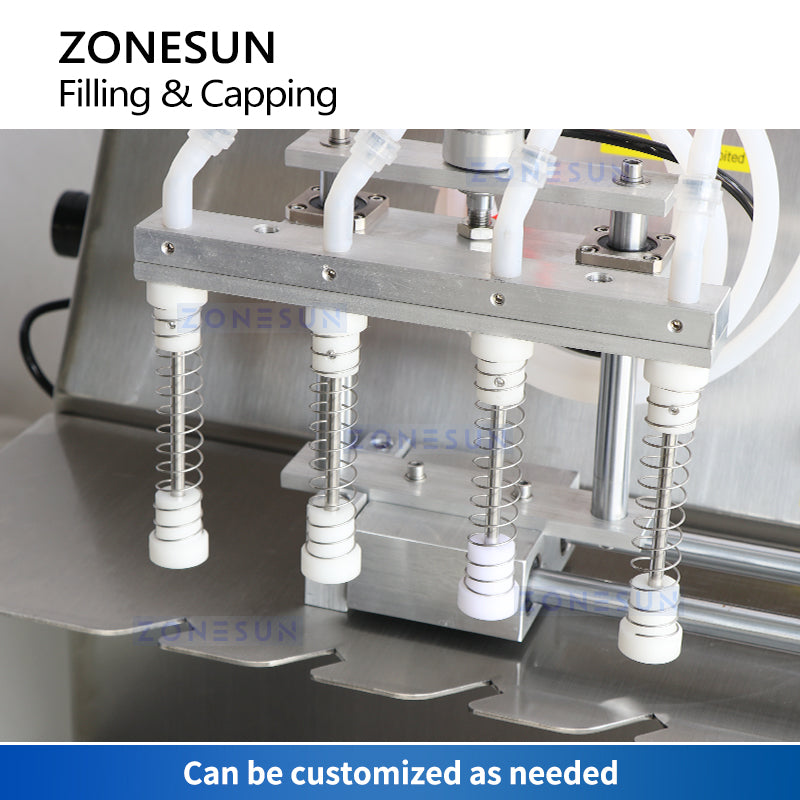

FILLING HEADS

The number of filling heads can be customized as needed.

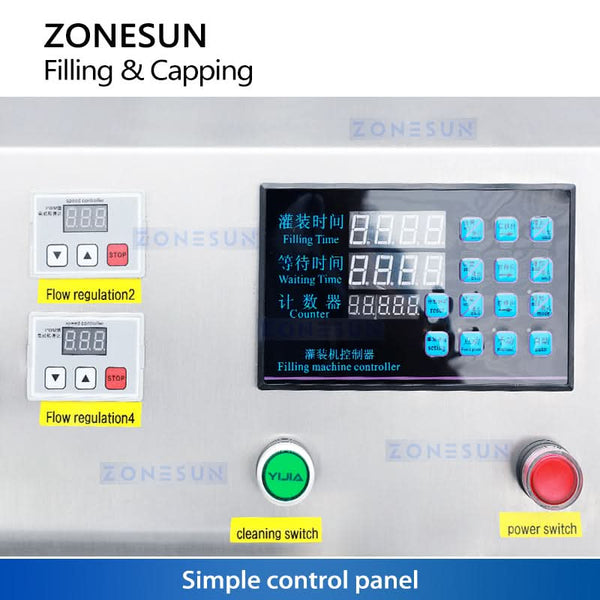

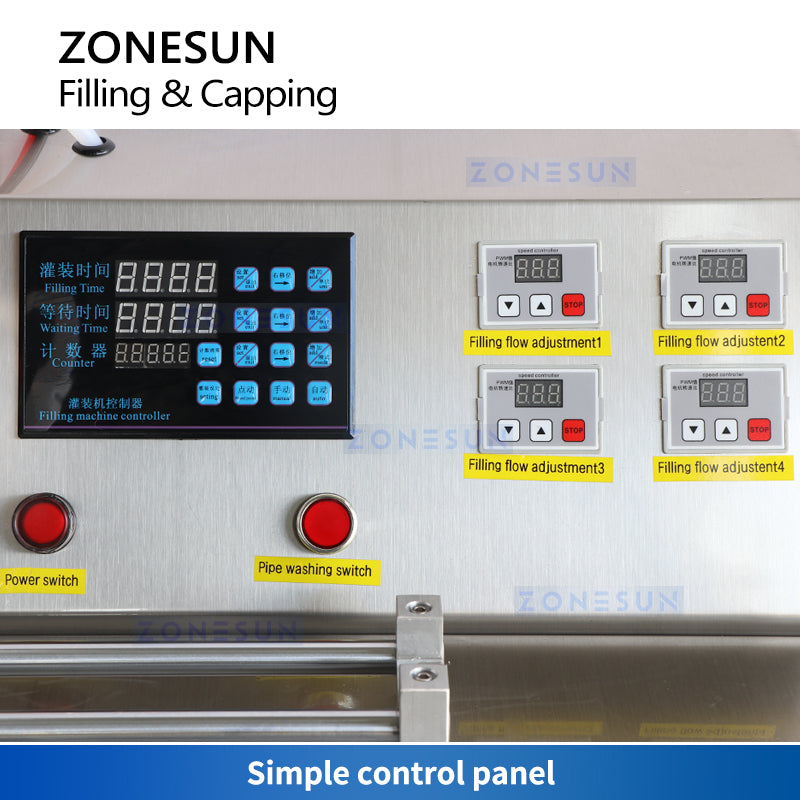

CONTROL PANEL

The straightforward panel controls filling volume by setting filling time and speed. Each filling nozzle can be controlled separately.

ZONESUN ZS-ASP4 four-nozzle spout pouch filling machine

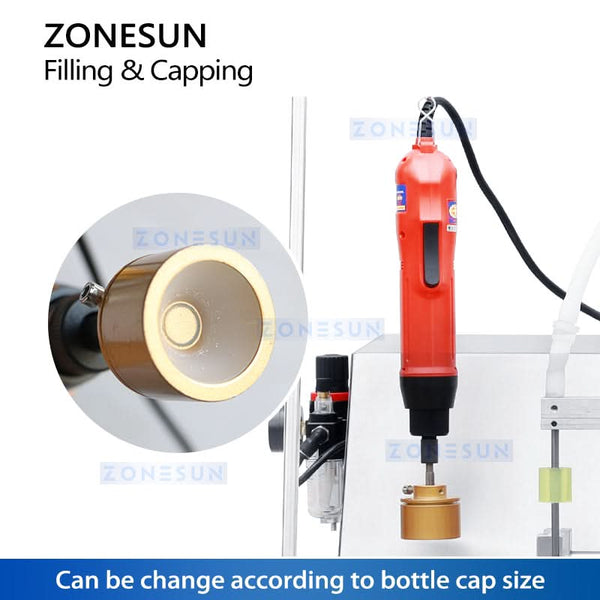

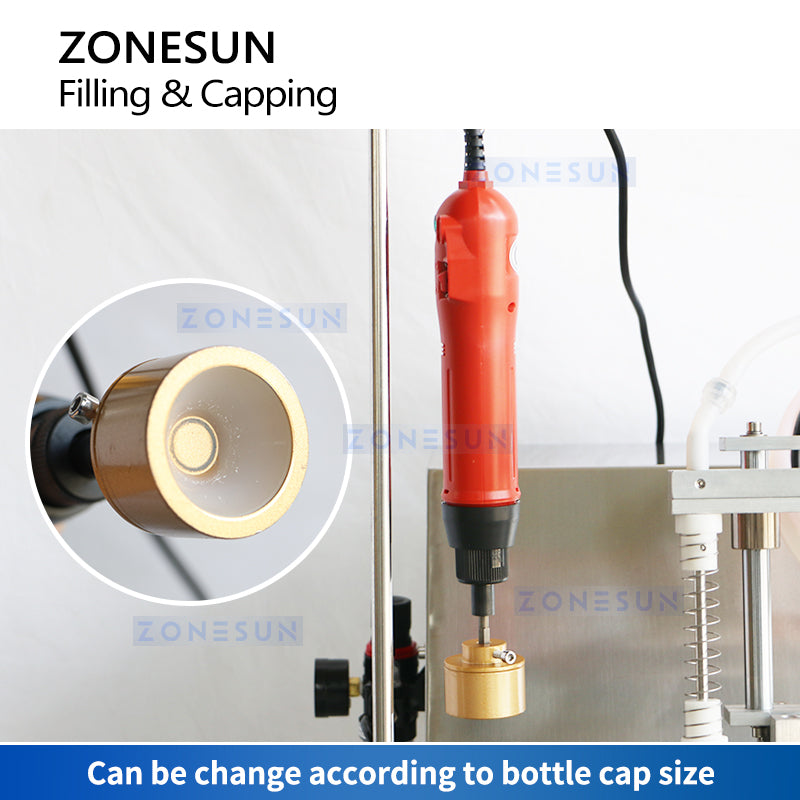

CAPPING HEAD

The capping head should be matched to the pouch cap size. Confirm the required head and supplied capping equipment for your cap.

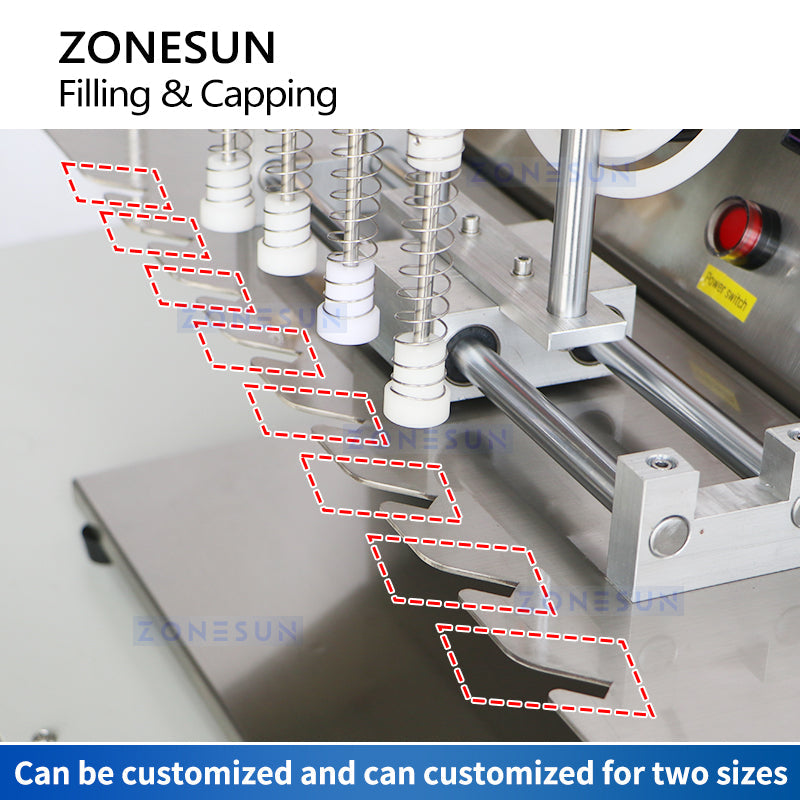

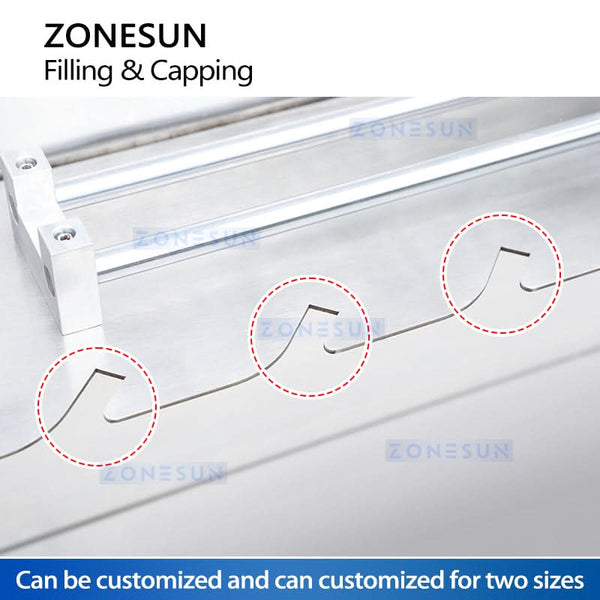

POUCH-HANGING SLOT

The pouch-hanging slot can be customized. If you need to run two pouch sizes, confirm their spout dimensions and the required slot configuration before ordering.

ZONESUN ZS-ASP4 four-nozzle spout pouch filling machine ZONESUN ZS-ASP4 four-nozzle spout pouch filling machine ZONESUN ZS-ASP4 four-nozzle spout pouch filling machine
