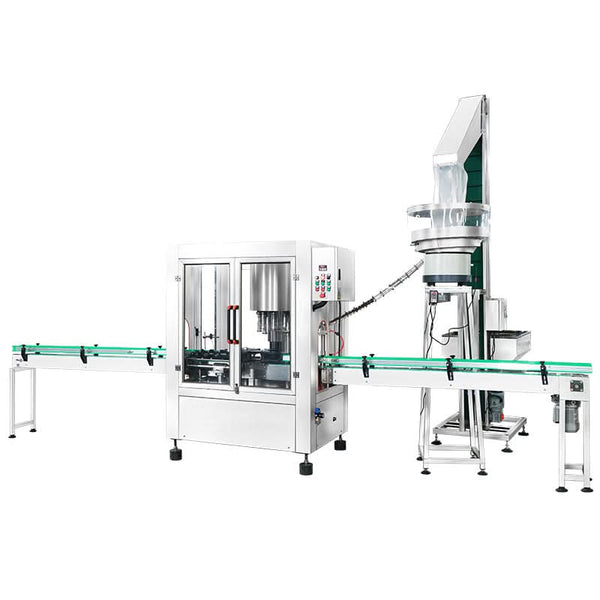

The ZONESUN ZS-XG440K is an advanced automatic wine bottle corking machine designed to streamline sealing operations in wineries and production lines. Engineered for speed and precision, it automatically inserts cork stoppers into bottle necks without compromising quality or efficiency. Ideal for high-volume production, this machine supports various cork types and bottle sizes, making it a versatile solution for modern bottling systems.
Parameter
Machine Model ZS-XG440K
Working Voltage 380V / 220V / 110V, 50–60Hz
Machine Power 1.5 kW ± 0.18 kW
Suitable Bottle Height Approx. 70–260 mm
Working Capacity Approx. 6000 bottles/hour
Machine Size Approx. 5750 × 3100 × 3500 mm (L × W × H)
Package Size (Main Unit) Approx. 1890 × 1310 × 2170 mm
Package Size (Cap Elevator) Approx. 3670 × 910 × 1380 mm
Package Size (Bowl Sorter) Approx. 790 × 800 × 690 mm
Package Weight Approx. 1072 kg + 378 kg + 98 kg (Main + Elevator + Sorter)
BUTTON CONTROL PANEL
The clearly arranged button controls allow operators to adjust machine functions without extensive training.
CAP ELEVATOR
The cap elevator transfers corks to the vibratory bowl sorter for continuous feeding.

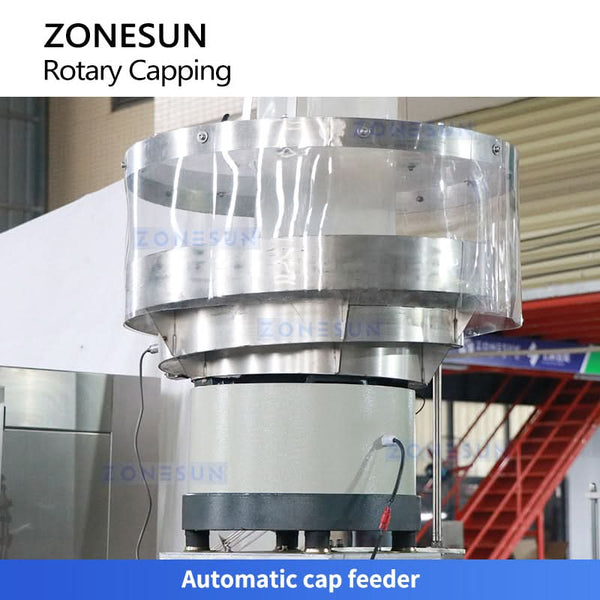

VIBRATORY BOWL SORTER
The vibratory bowl arranges corks in order before they enter the corking system.
CUSTOMIZED STAR WHEEL
The star wheel is customized for the bottle diameter to support stable bottle transfer during corking.

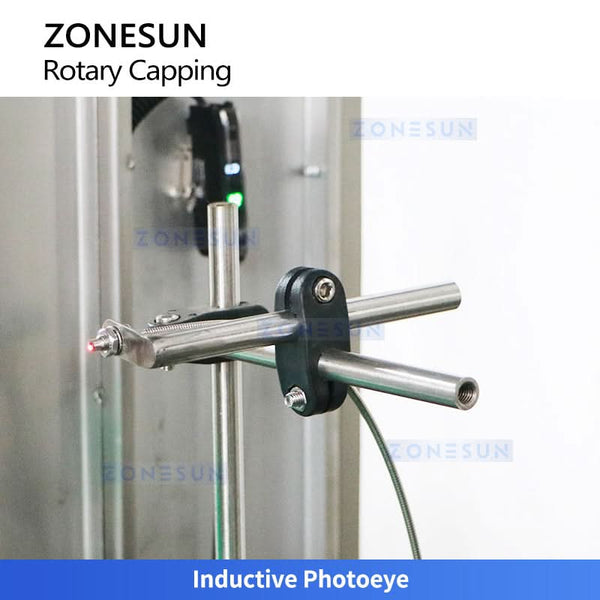

PHOTOELECTRIC SENSOR
The photoelectric sensor detects passing bottles and coordinates machine operation automatically.
CORK GUIDE RAIL
The guide rail supplies sorted corks to the star-wheel corking section.

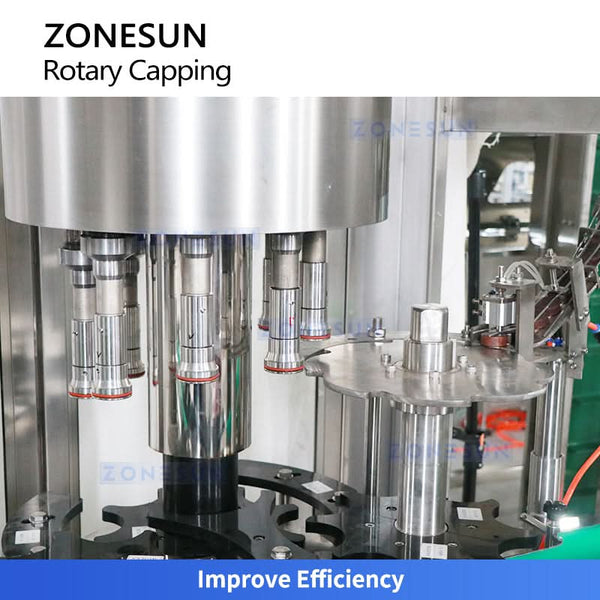

EIGHT-HEAD CORKING SYSTEM
Eight corking heads insert corks as bottles rotate through the machine, supporting continuous production.
