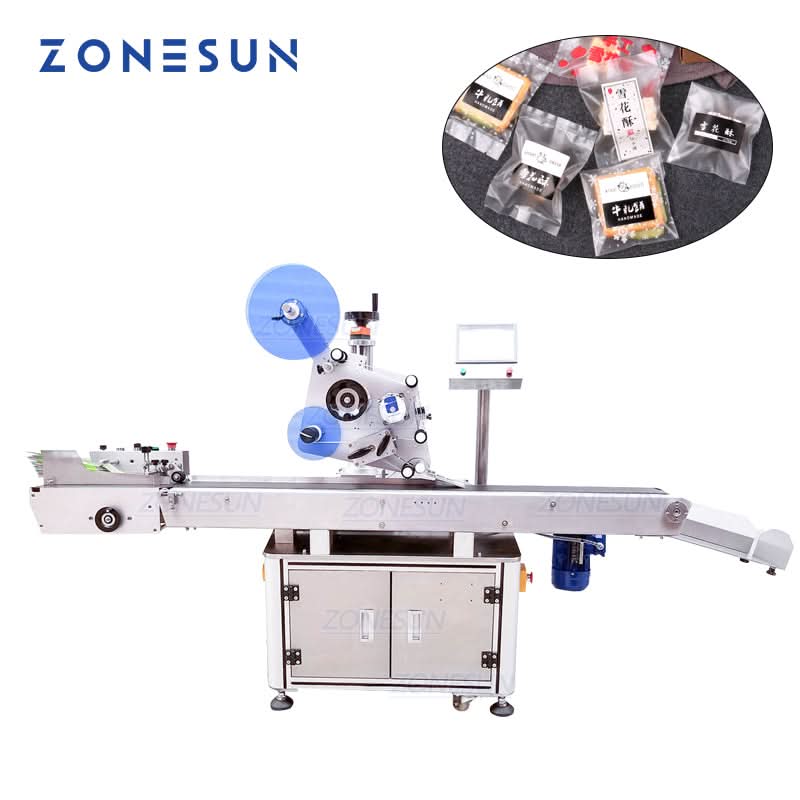

The ZONESUN XL-T832 offers high-speed, precision labeling for flat-surfaced items like books, folders, cartons, bags, and packaging films. With an adaptable labeling mechanism and ±1mm accuracy, it's ideal for large-format applications—even on uneven surfaces. Optional integration with ribbon or inkjet printers enables simultaneous coding for batch, date, or expiry info, boosting production efficiency in industries like food, paper, and logistics.
Parameter
Labeling capacity +-1mm
Labeling speed 40-120pcs/min
Suitable Product size:
height: 6mm-120mm
width: 40mm-300mm
height: 0.2mm-2mm
Suitable label size
length : 6mm-300mm
width: 6mm-120mm
Machine size 2380x665x1470mm
Power supply 220V/50Hz
Machine weight 180kgs
Label inner diameter 76mm
Label outer diameter not more than 300mm

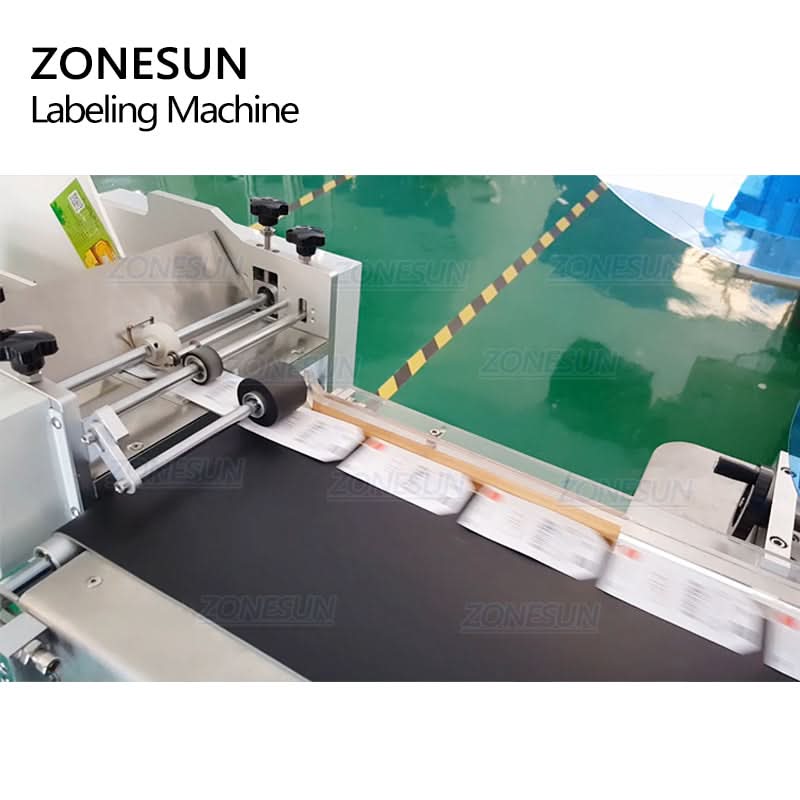

ADJUSTABLE FEEDING INLET
The feeding inlet width can be adjusted to suit the size of the product being labeled, expanding the range of compatible materials.

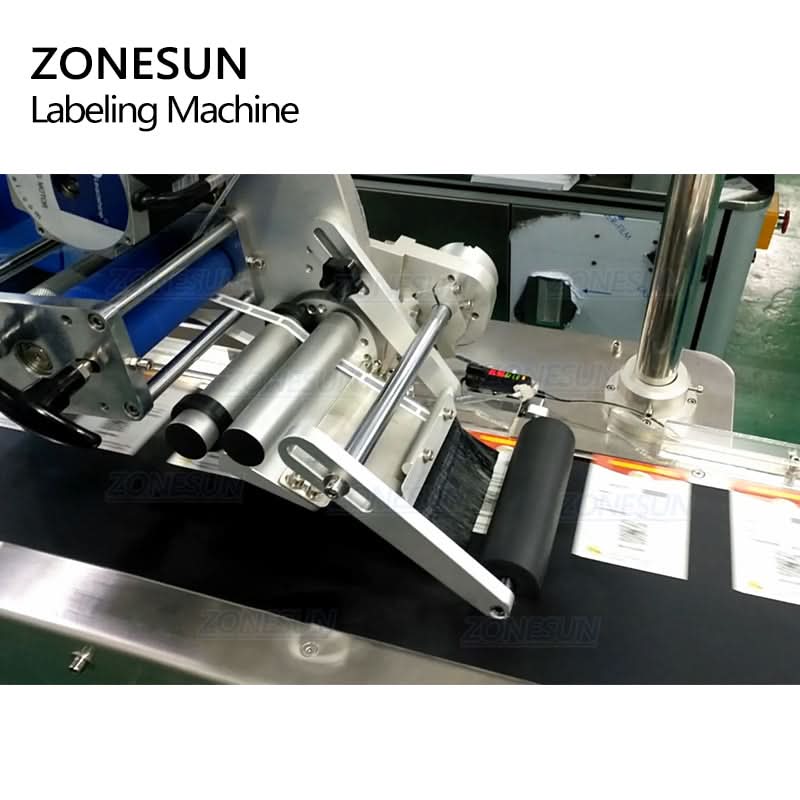

LABELING ROLLER AND FLAT CONVEYOR
The labeling roller and flat conveyor support consistent label application. The roller can be replaced to suit the labeling material.

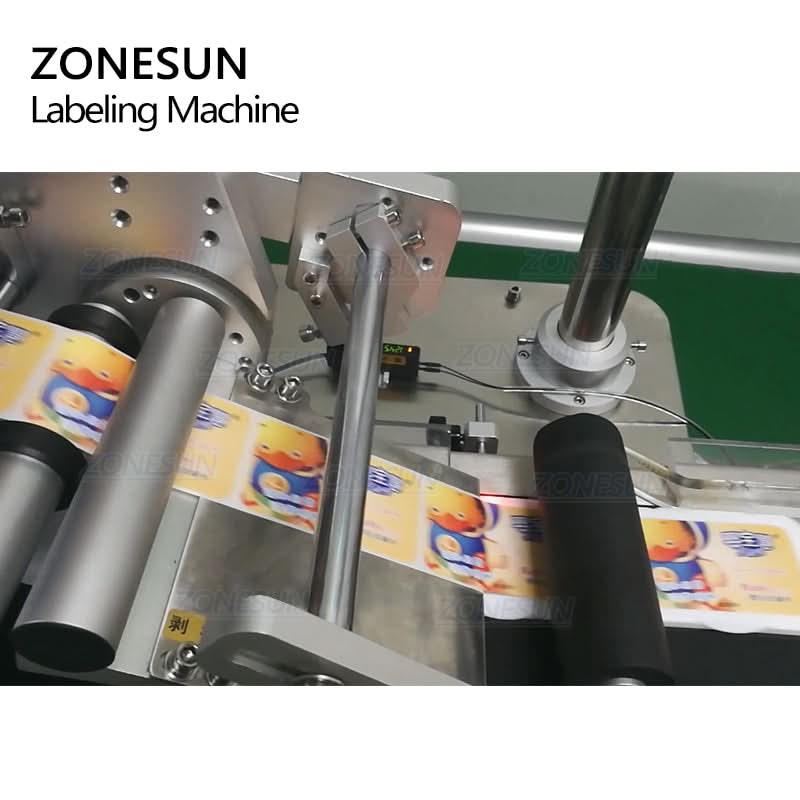

ELECTRIC EYES
The electric eyes accurately detect products and labels, helping prevent missed or wasted labels.
