Description

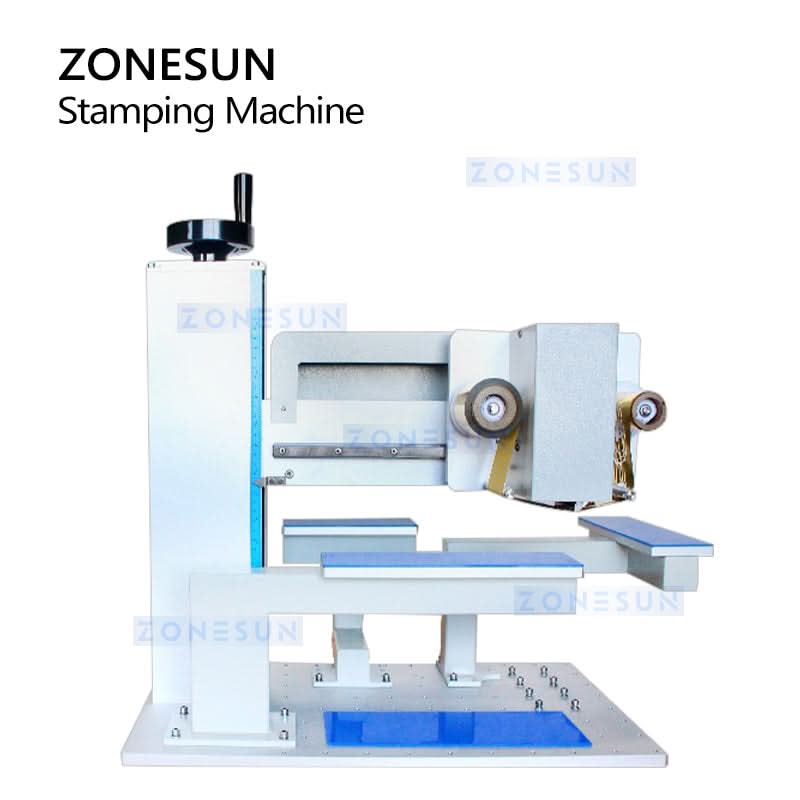

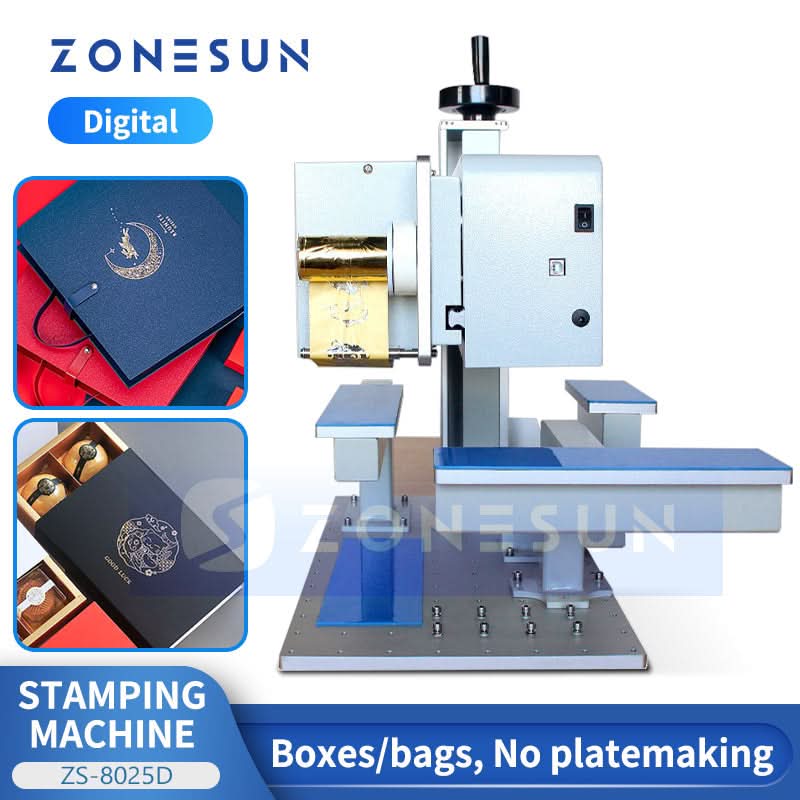

The ZONESUN ZS-8025D is a digital hot foil stamping machine engineered for precision printing on boxes, bags, and irregular surfaces. Its elevated platform design allows easy access to hollow or raised objects, making it ideal for packaging, crafts, and branding applications. Compatible with popular design software, it delivers clean, professional results on paper, plastic, leather, and more—perfect for small businesses and creative studios seeking high-quality customization.
Noted: programme on the machine can work on window's system only. It can't work on Mac OS system.
Parameter Specification
|
Model |
ZS-8025D |
|
Compatible Software |
Corel DRAw, Photoshop,Al,etc. Windows Os |
|
Port |
USD-B |
|
Foil Roll |
Electrochemical aluminum hot stamping foil |
|
Printing Material |
Paper, cardboard, adhesive stickers, plastic sheets, PET, PVC, PU, leather, frosted film, PVC, acrylic board, etc. |
|
Maximum Foiling Thickness |
3500mm |
|
Max Printing Area |
Length:220mm Width:57mm |
|
Printing Speed |
20-50 mm/s |
|
Print Head Lifespan |
150000m |
|
Power & Voltage |
150W & AC 110-240V 50 / 60Hz |
|
Packaging Size |
530 × 330 × 550mm |
|
Gross Weight / Net Weight |
29kg / 22.3kg |

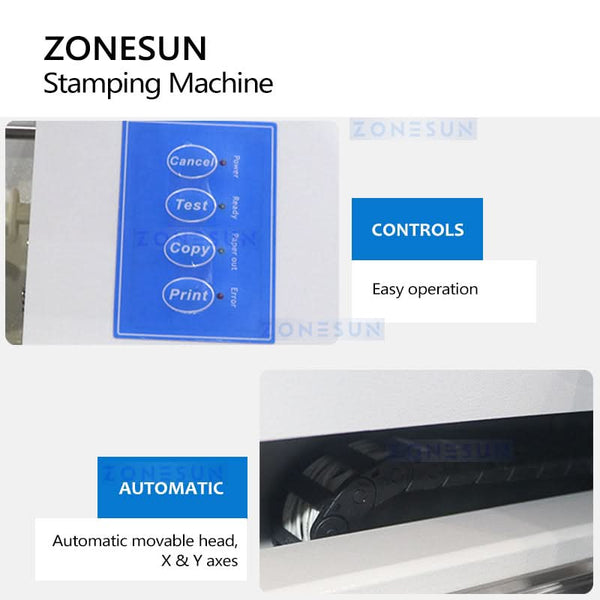

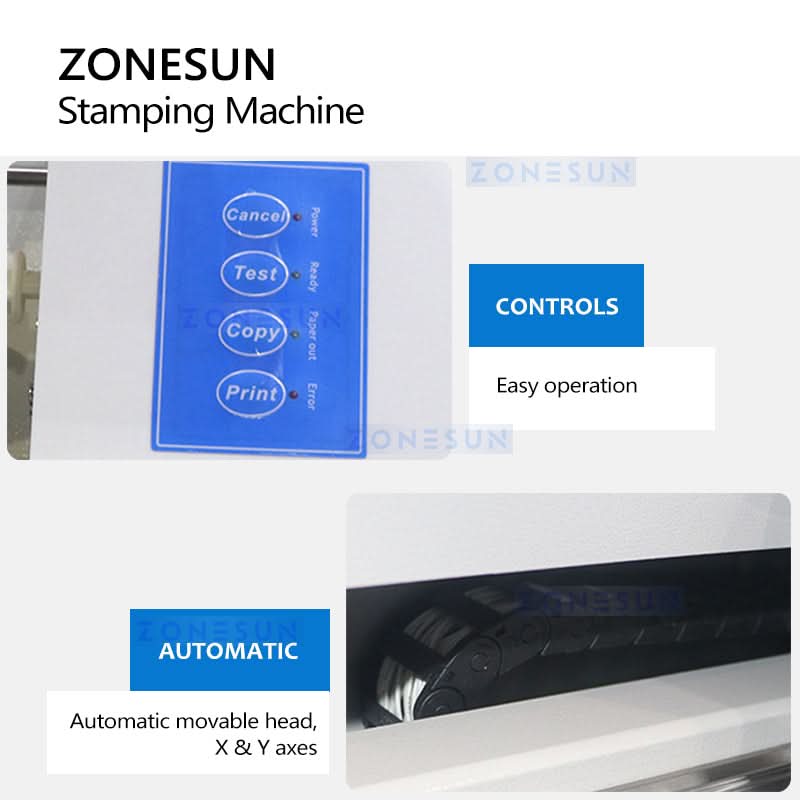

OPERATION PANEL
Status LEDs and physical keys allow the operator to monitor printer status in real time and perform test, copy or print-cancellation commands.
REWIND SHAFT
The rewind shaft automatically collects used hot foil in real time, supporting continuous feeding and tidy waste management.

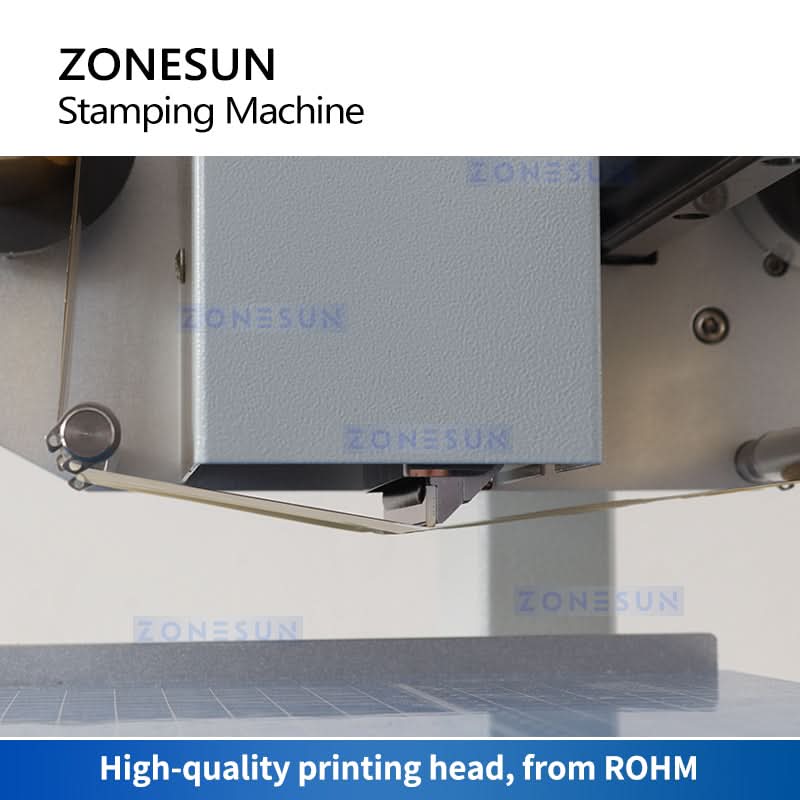

PRINTING HEAD
Localized heat and pressure transfer the hot-foil metallic layer onto products in real time for dynamic data printing.
MEASUREMENT SCALE
The integrated scale and indicator support fast, accurate adjustment of the stamping-head height for products of different thicknesses.
HEIGHT-ADJUSTMENT KNOB
The handwheel raises or lowers the stamping head for precise working-height adjustment to suit different product thicknesses.
