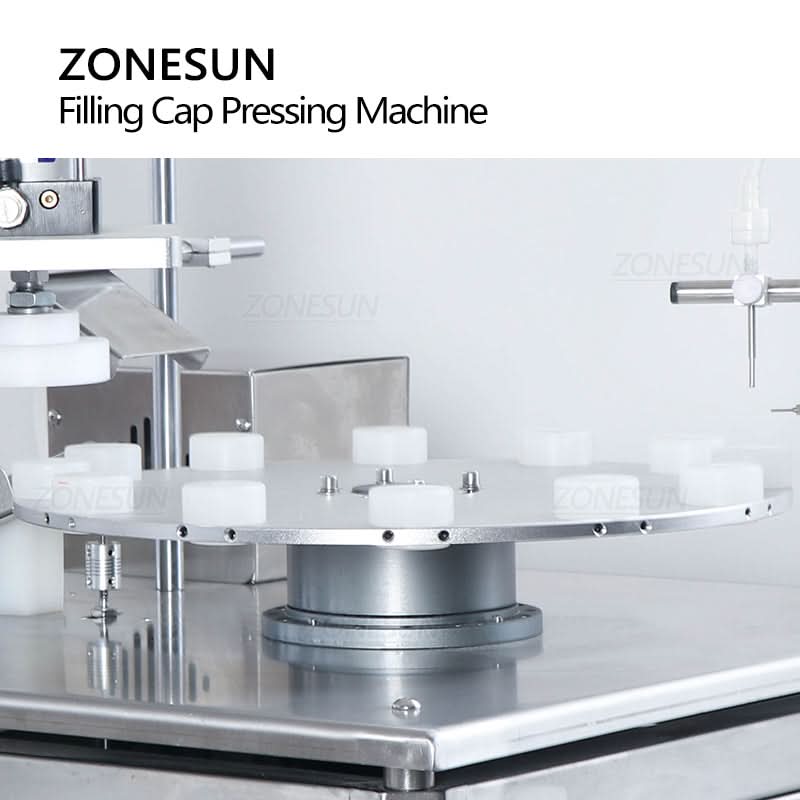

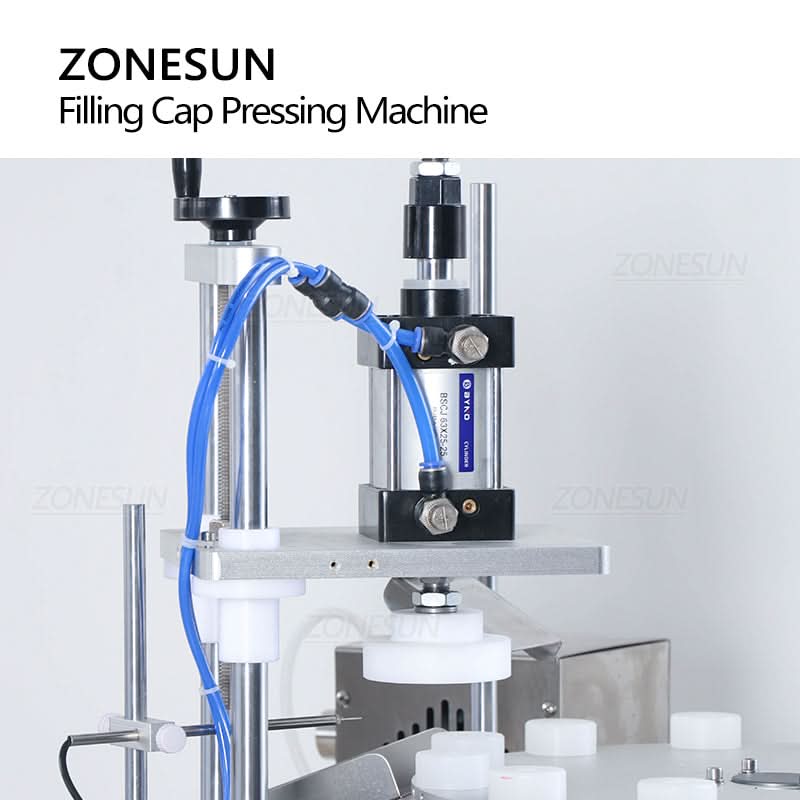

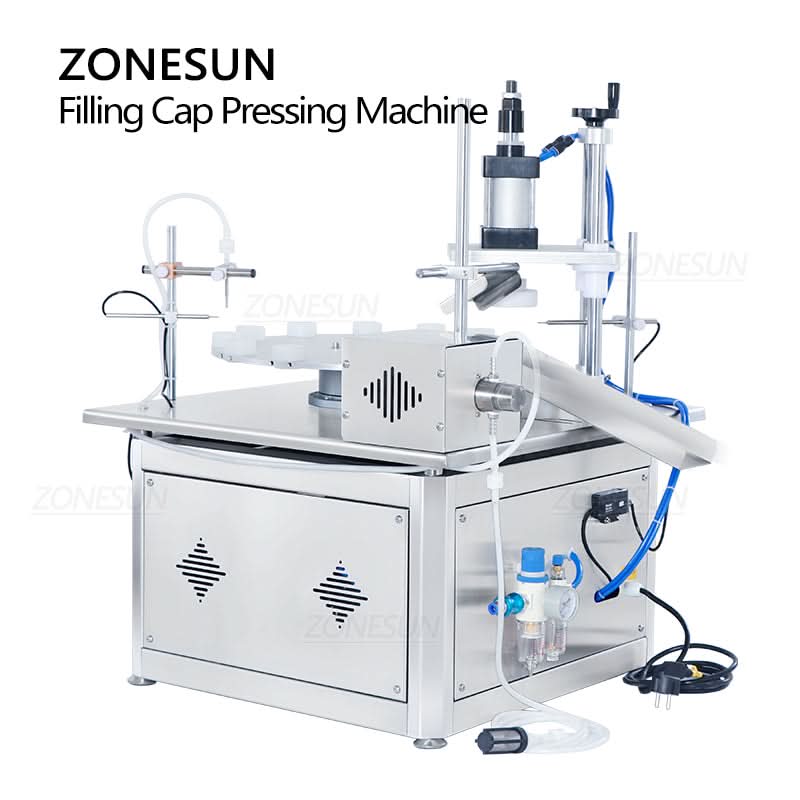

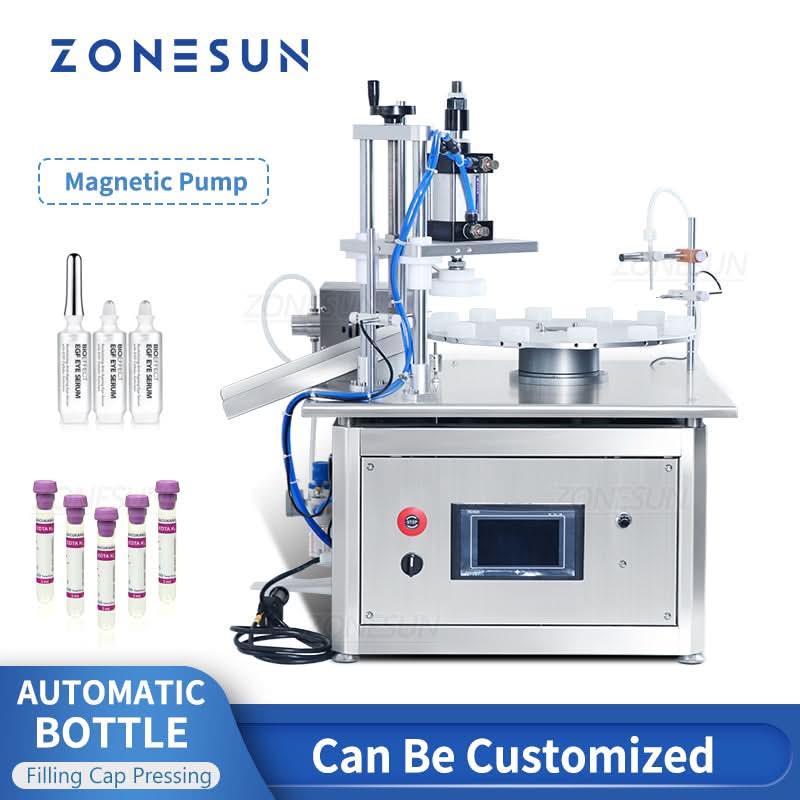

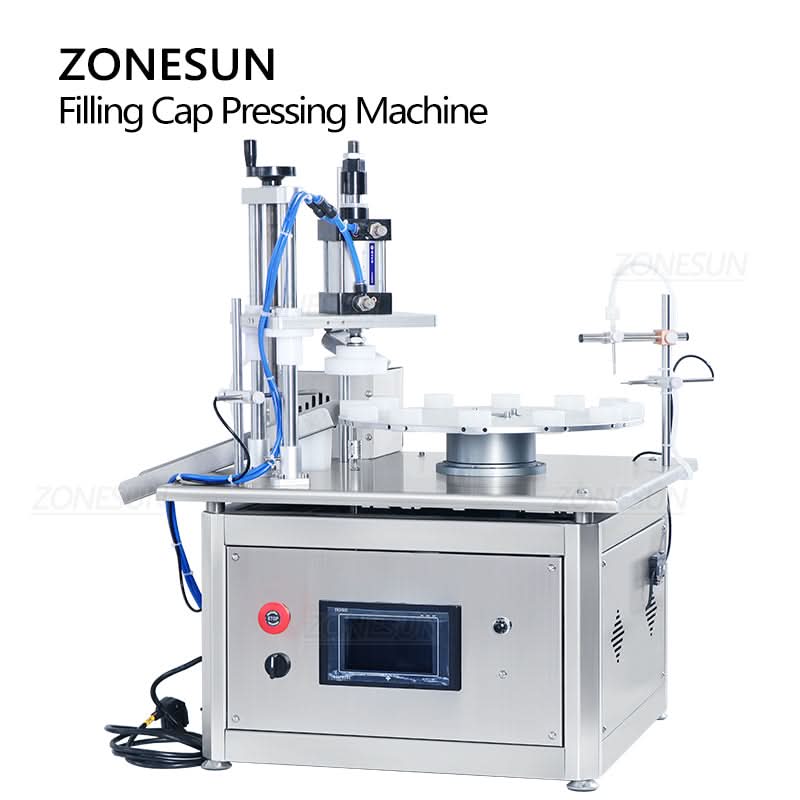

ZONESUN ZS-AFC1C Automatic Filling And Cap Pressing Machine Tube Portable Magnetic Pump Turntable Small Business Production Line
DESCRIPTION
Designed with magnetic pump, the filling and capping machine can accurately fill the liquid. Also, it can be assembled with labeling machine to realize automatic production. It is small in size, which is space-saving and portable.
APPLICATION
This machine is suitable for filling liquid such as solution and reagent in tubes or vials.
PARAMETER
|
Machine Model |
ZS-AFC1C |
|
Voltage |
110/220V |
|
Machine Pump |
Magnetic pump |
|
Machine Power |
500W |
|
Filling Range |
≤100ml |
|
Bottle Diameter |
10-40mm |
|
Bottle Height |
≤120mm(customizable for higher bottles) |
|
Cap Diameter |
Customizable |
|
Size of Filling Nozzle |
OD 2mm |
|
Working Speed |
20-50bottles/min(depend on liquid and bottle size) |
|
Machine Size |
About 580*580*800mm |
|
Machine Weight |
About 52kg |
|
Package Size |
About 800*670*990mm |
|
Package Weight |
About 77kg |
