Description

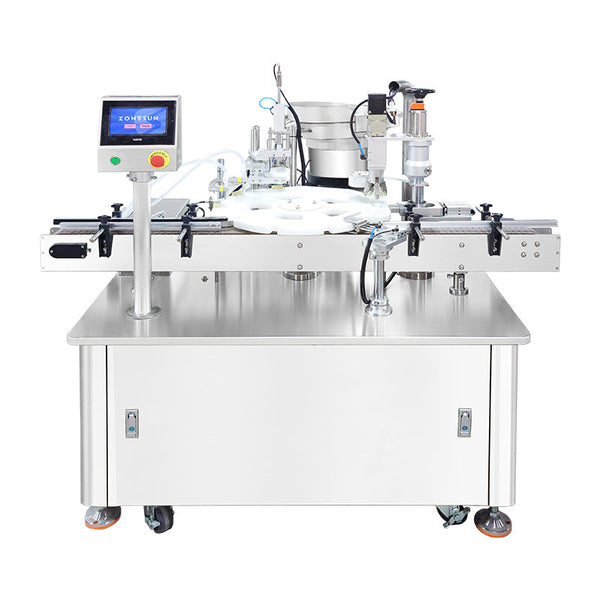

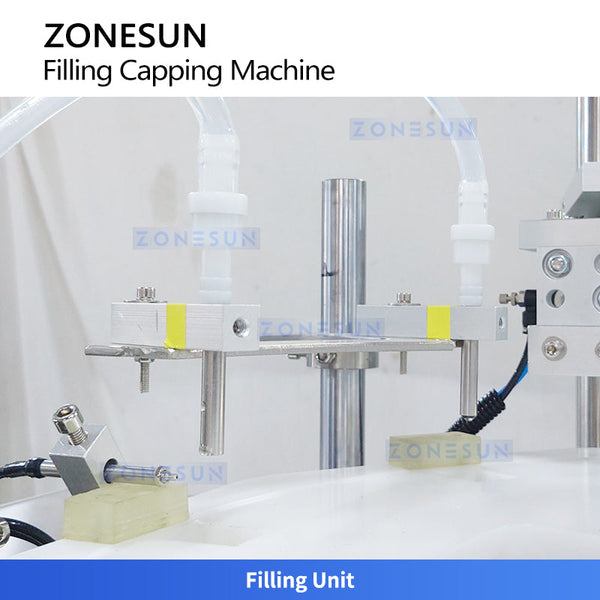

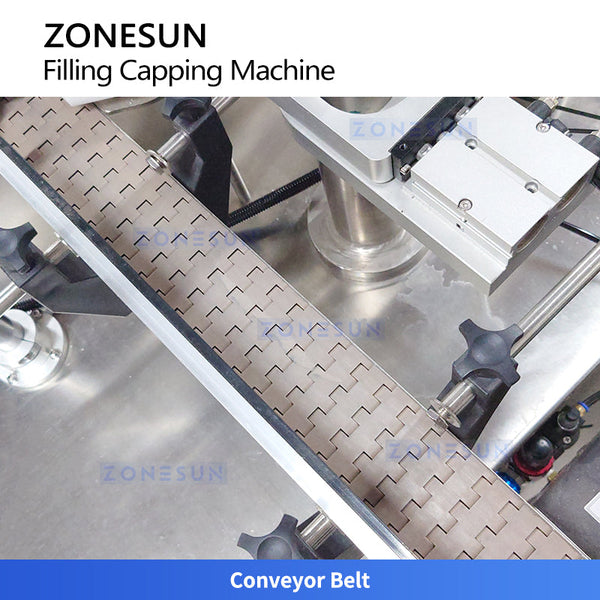

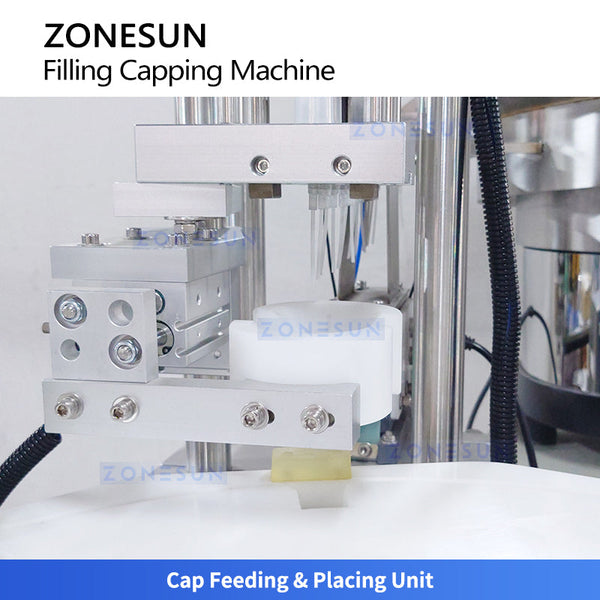

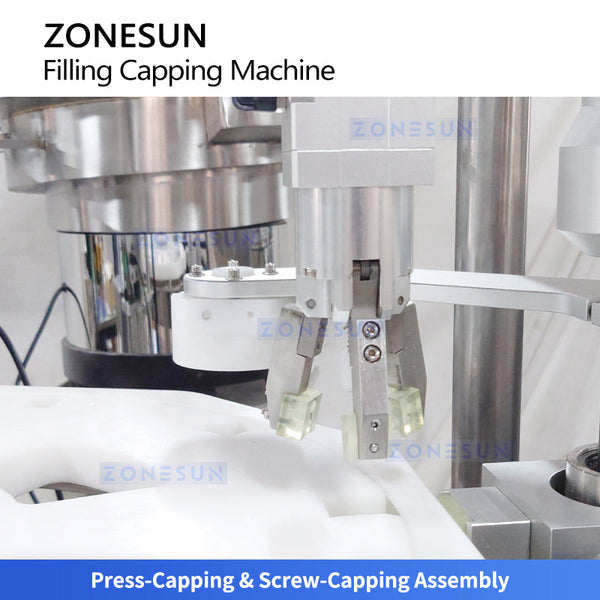

The ZONESUN ZS-AFC32B is an automatic liquid filling and capping machine that integrates peristaltic pump filling with cam-driven motion control. Equipped with dual peristaltic pumps, servo motors, and a rotary starwheel, it ensures precise, contamination-free filling and stable cap placement. The machine features a vibratory bowl for automatic cap feeding, a press-capping and screw-capping assembly for consistent torque control, and a conveyor system for smooth bottle transfer. Built with SUS304 stainless steel and customizable components, it is ideal for essential oils, eye drops, solvents, and other small-volume liquid products.
Parameter
- Model: ZS‑AFC32B
- Voltage: 110/220 V, 50–60 Hz
- Filling Pump: Peristaltic pump
- Hose Size: #17
- Nozzles: 2
- Filling Range: 10–60 ml (customizable)
- Filling Accuracy: ±1%
- Working Capacity: About 30 BPM
- Nozzle Material: SUS304
- Vibratory Bowl Material: SUS304
- Machine Size: About 1800 × 1670 × 1450 mm
- Package Size: About 2490 × 960 × 1670 mm
- Package Weight: About 632 kg
