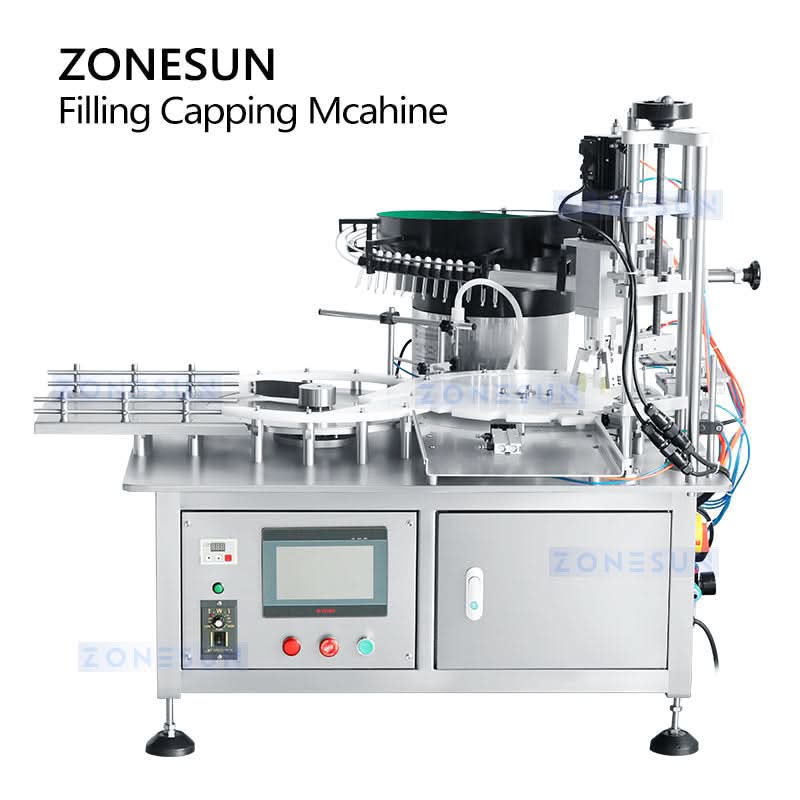

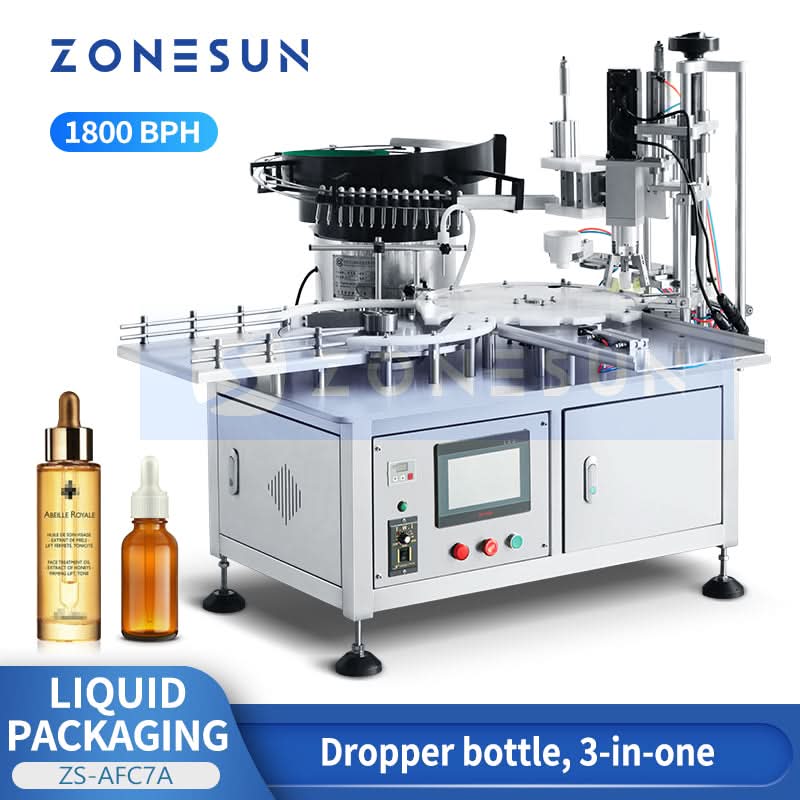

The ZONESUN ZS-AFC7A is a compact, high-efficiency liquid filling and capping solution tailored for small bottles such as eyedrops, essential oils, and fragrance samples. Designed for precision and automation, it handles bottle sorting, liquid filling, cap feeding, and tightening in one streamlined workflow. With a vibratory bowl cap feeder and advanced stepping motor drive, it enhances reliability and speed. The integrated touchscreen interface improves user control, making it ideal for laboratories, cosmetics, pharmaceuticals, and light industrial use.
Parameter Details
Machine Model ZS-AFC7A
Power 1000 W
Voltage 110/220V, 50–60 Hz
Filling Pump Magnetic Pump
Recommended Filling Range 10–100 ml
Max Pump Flow Rate 4 L/min
Suitable Bottle Height Approx. 30–60 mm
Suitable Bottle Diameter Approx. 20–50 mm
Suitable Cap Size Height ≤10–30 mm, Diameter ≤20–50 mm
Working Speed Approx. 20–30 bottles/min (depends on bottle size)
Turntable Type Stepping Motor
Package Size (Machine) Approx. 1500 × 900 × 1250 mm
Package Size (Bowl Sorter) Approx. 700 × 600 × 1500 mm
Package Weight (Machine) Approx. 180 kg
Package Weight (Bowl Sorter) Approx. 100 kg
PRODUCT DETAILS

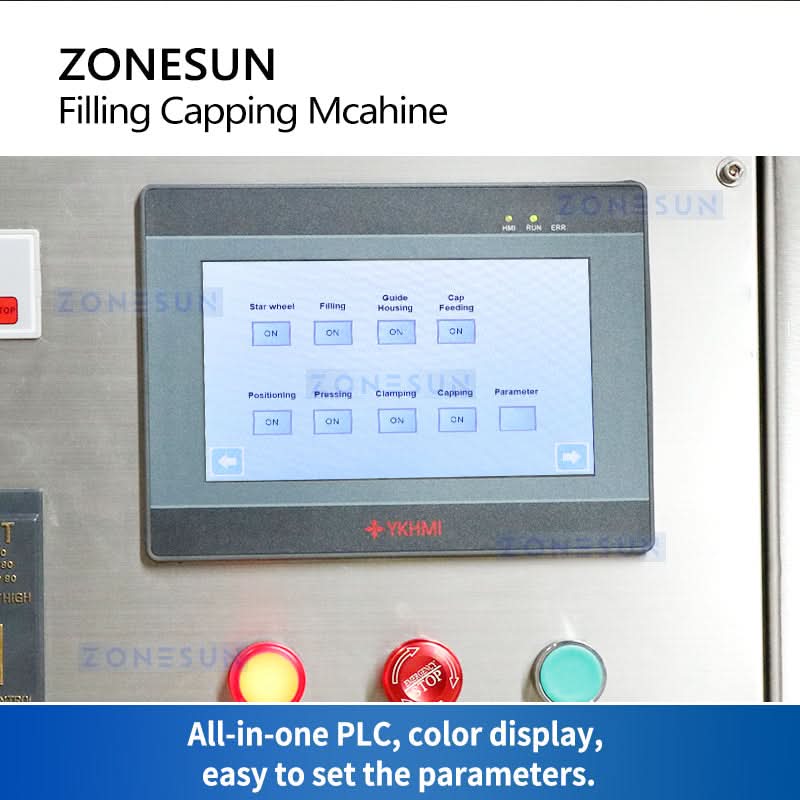

CONTROL PANEL
All-in-one PLC, color display, easy to set the parameters.

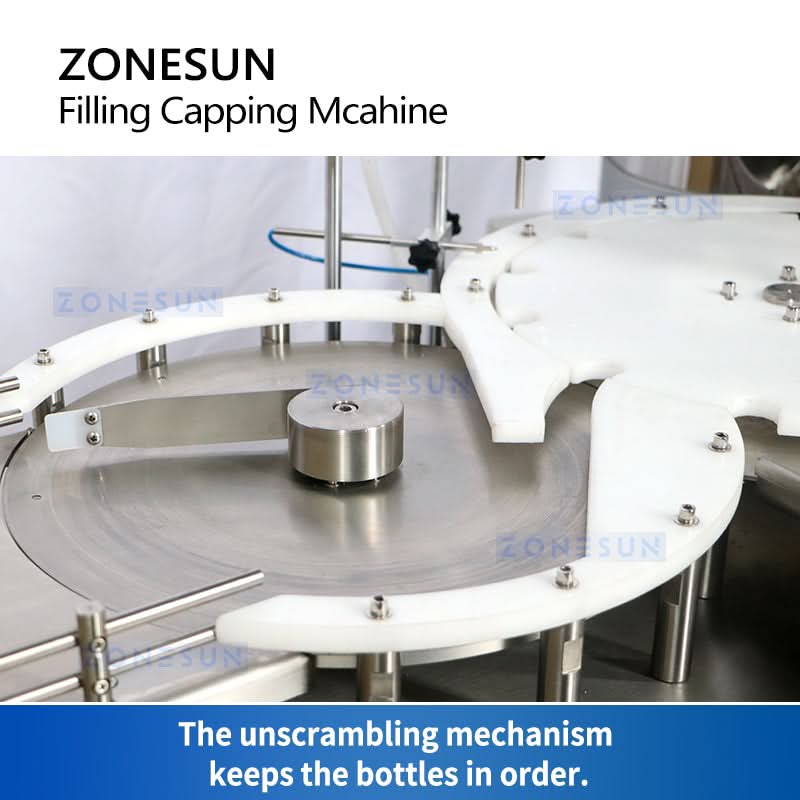

TURNTABLE
The unscrambling mechanism keeps the bottles in order.

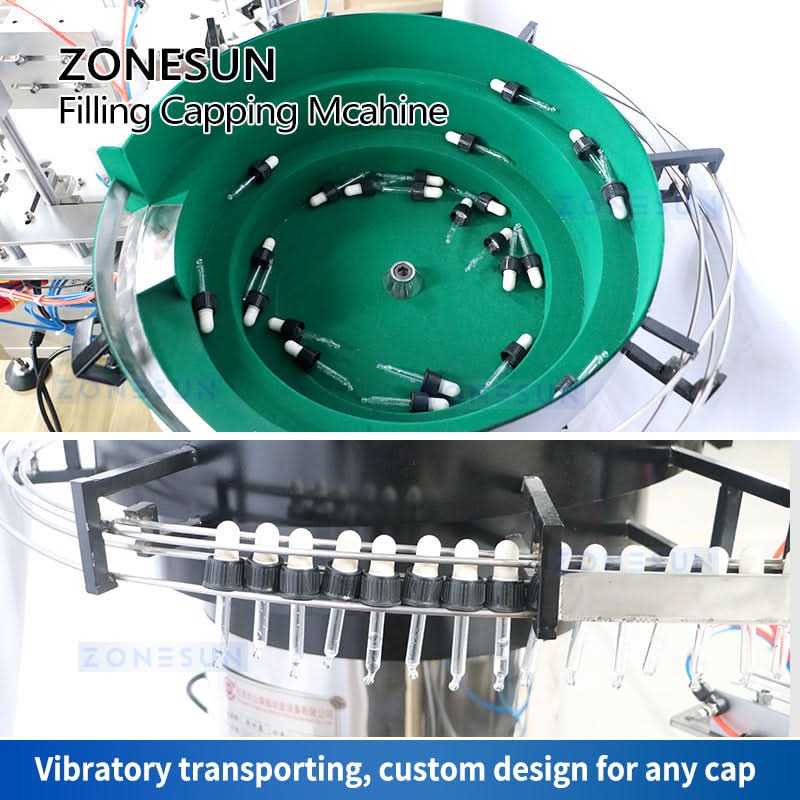

VIBRATORY FEEDER
Vibratory transporting, custom design for any cap, contact us for details.
LIQUID FILLING
The filling station dispenses liquid into each bottle.
CAP PLACEMENT
The cap-dropping station places caps onto the filled bottles.
SCREW CAPPING
The capping station tightens the caps after placement.

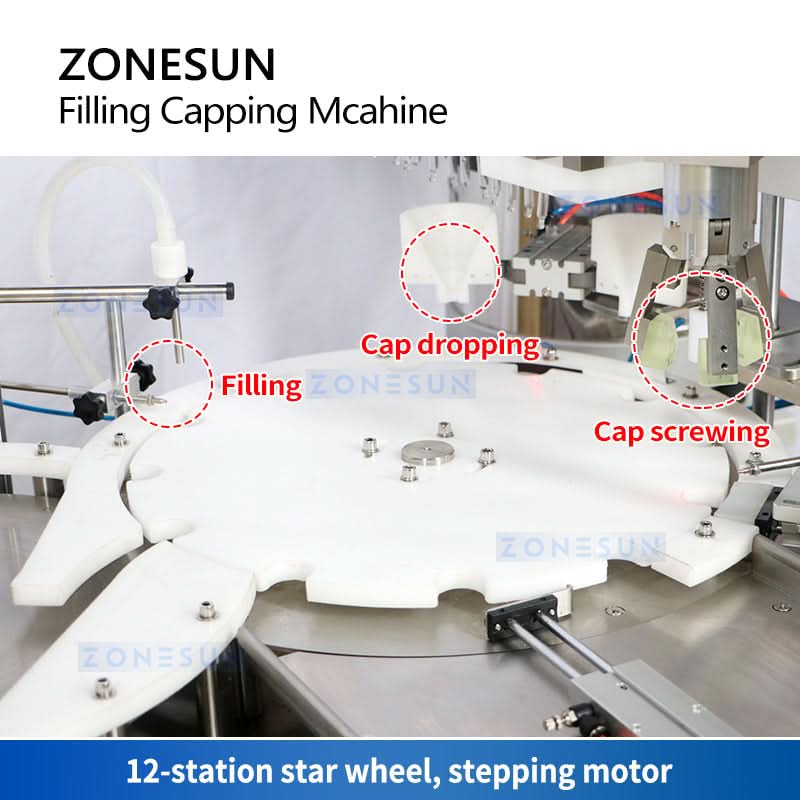

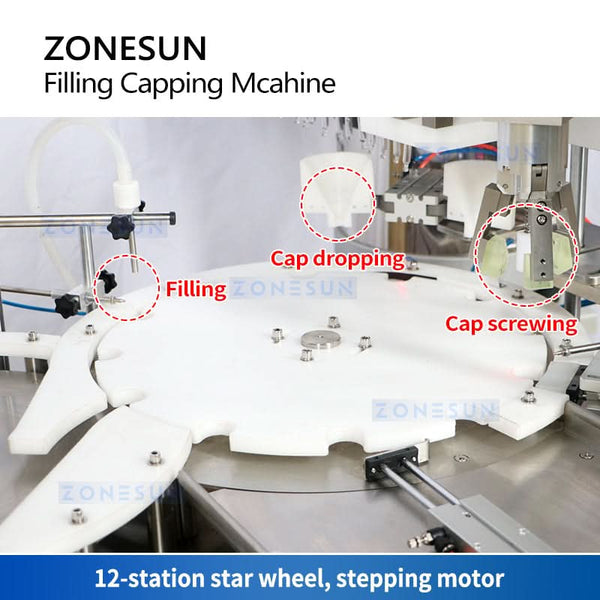

STARWHEEL
Stepping motor for transporting the bottles, 12 stations, integrating filling, cap feeding, cap screwing, and ejecting.
FEEDING
With a cap feeder, custom size.
CAPPING
Robotic hand. It won't stop until the cap is screwed.
