ZONESUN ZS-AFMC 24000BPH Carbonated Drink PET Bottle Filling Line

Price: $198,000.00

Please check your cart or click "Buy It Now" to view shipping costs

Shipping Information

Shipping methods and costs vary by machine, package size, destination, and delivery method. Available options may include express delivery, air freight, sea freight, or logistics services.

To view the available shipping options and estimated cost, add the product to your cart and enter your delivery address at checkout.

DDP (Delivered Duty Paid) service may be available for selected destinations. For large machines, customized equipment, or complete production lines, please contact us before ordering so we can confirm the shipping method, packing requirements, freight cost, and estimated delivery time.

For non-DDP shipments, import duties, customs clearance fees, local taxes, and other destination charges may apply.

Production Capacity :24000 BPH

24000 BPH

12000 BPH

Voltage:110v

Product variants

DESCRIPTION

This fully automatic filling system integrates washing, filling, and sealing into one streamlined operation for carbonated beverages. Compatible with both PET plastic and glass bottles, it offers high-speed, efficient performance. Engineered with a scientifically sound design, it’s ideal for large-scale bottling in beverage production lines.

PARAMETERS

Model	Capacity/500ml	Bottle size	Weight(KG)	Dimensions(mm)
ZS-AFMC 14-12-5	2000-3000bph	200-2000ml	3500	251620162700
ZS-AFMC 16-16-5	3000-4500bph	200-2000ml	5500	300022002800
ZS-AFMC 24-24-8	5000-6500bph	200-2000ml	8000	415026002900
ZS-AFMC 32-32-8	8000-10000bph	200-2000ml	10000	455027502900
ZS-AFMC 40-40-10	10000-12000bph	200-2000ml	12000	545033002900
ZS-AFMC 50-50-12	12000-24000bph	200-2000ml	14000	650038003200

Model	ZS-AFMC 24-24-8
Output Capacity	6500BPH on 500ml PET Bottle
Rinsing /Filling / Capping heads Quantity	24pcs/24pcs/8pcs
PET bottle size	Bottle Diameter Φ50~495mm Bottle Highness: 160~310mm, Bottle neck:28mm, for Bottle Volume 250-2000ml
Suitable to fill	Water & Carbonated drink
Washing Water Required	2000 liter per hour
Washing Pressure	0.4Mpa
Required	380V AC60HZ 3-phase (other power supply is available)
Working Power	24V DC
Control Panel Power	0.7MPa
Compressed Air Pressure (for caps arranger)	0.4m3/min
Compressed Air Consumption(for caps arranger)	2800x2400x2650mm
Machine Dimension	4000kg approximately

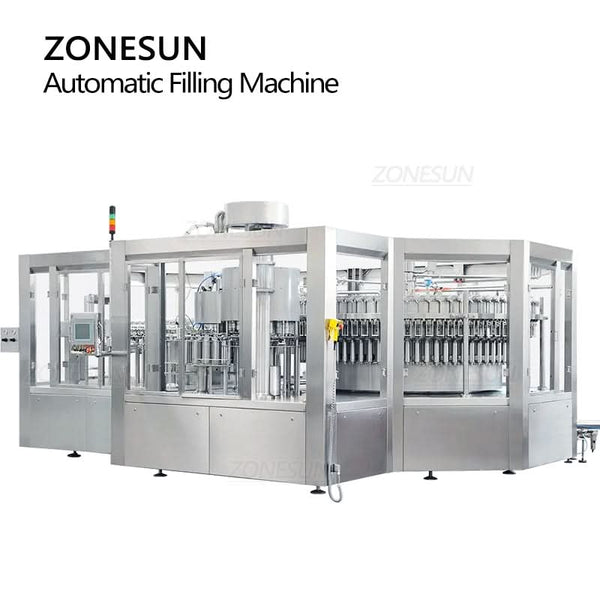

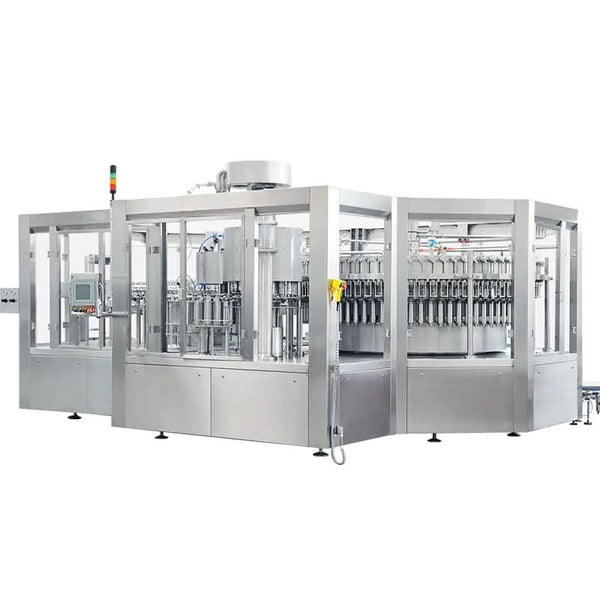

ZONESUN ZS-AFMC 24000BPH Full Automatic PET Bottle Carbonated Water Filling System

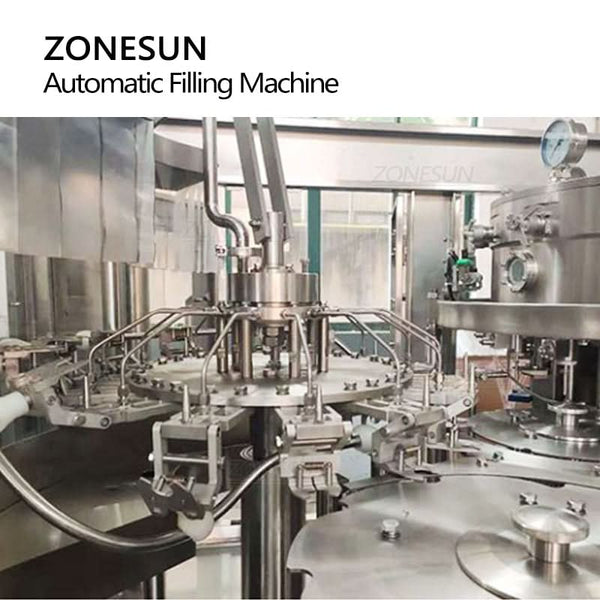

WASHING SYSTEM

The SUS 304 stainless-steel rinsing heads gently clamp bottles for washing. The stainless-steel water pumps deliver pressurized rinsing water and help reduce water consumption.

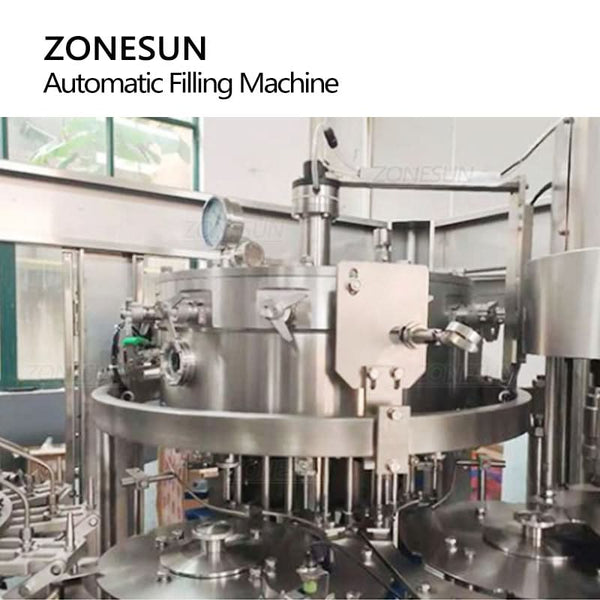

FILLING SYSTEM

The PLC-controlled filling system supports accurate filling. A pressure-filling method can be used, and all product-contact parts and the liquid tank are made of SUS 304 stainless steel.

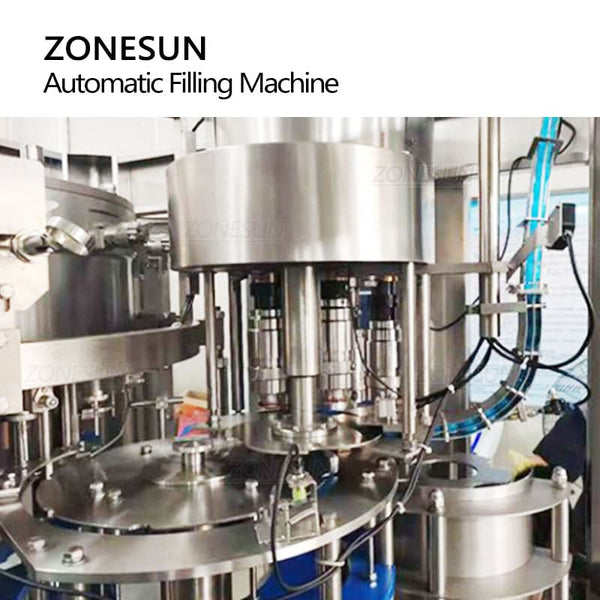

CAPPING SYSTEM

The electromagnetic capping heads help reduce cap damage. SUS 304 stainless-steel capping components are easy to disassemble, while the low-position cap feeder supports automatic cap feeding.
