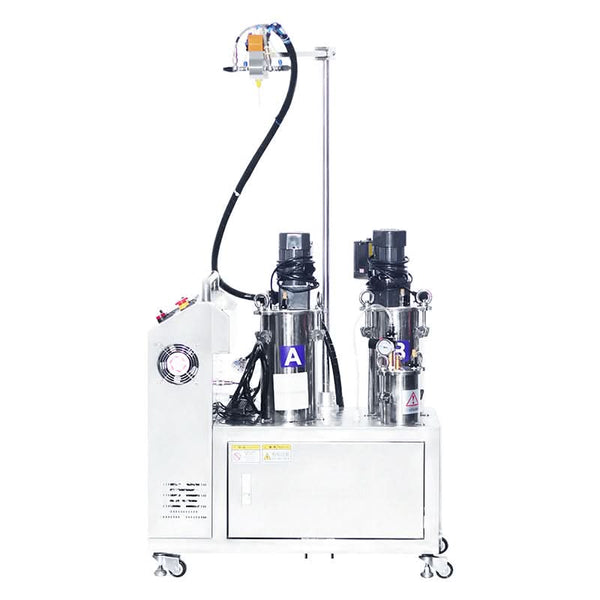

Introducing our Automatic Dual Liquid Dispensing Machine, designed for precise and efficient dispensing of various AB adhesives and two-component glues. This advanced machine features a high suction capability, ensuring no dripping during operation for a clean and professional finish. With its automatic mixing ratio control, it delivers exceptional accuracy for all your adhesive applications. Ideal for industrial use, this machine streamlines the dispensing process, increasing productivity while maintaining high-quality results.
PARAMETER
Model: ZS-AGD2
Working voltage: AC220V/50Hz0.5kw
power supply: 1000W
Use air source: 0.5-0.6mpa
working temperature: 5-40°C
Working humidity: 20-90%
Batching accuracy: ±2%
Measurement accuracy: ±2%
Glue filling speed: 1g/s-9.99g/digital setting
Glue ratio: 1:1-10:1 optional
gross weight: 160KG
overall size: L80/W40/H143 c.m

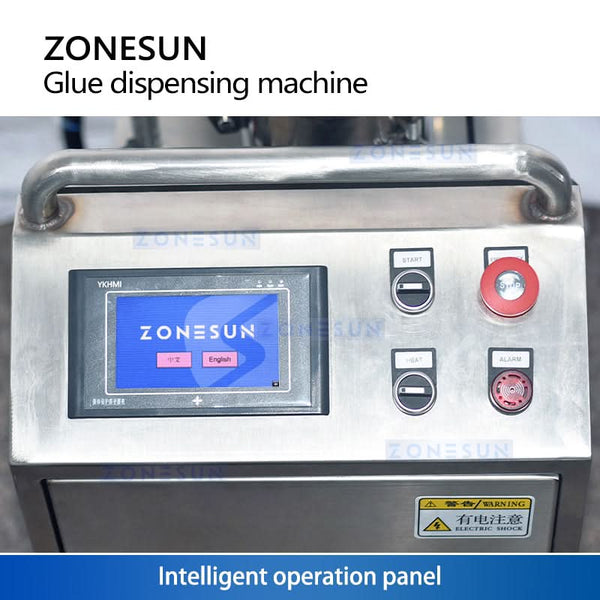

Equipped with PLC smart touch screen to simplify operation and monitoring. The output of AB glue can be adjusted independently, and up to 10 different dispensing parameter files can be saved.

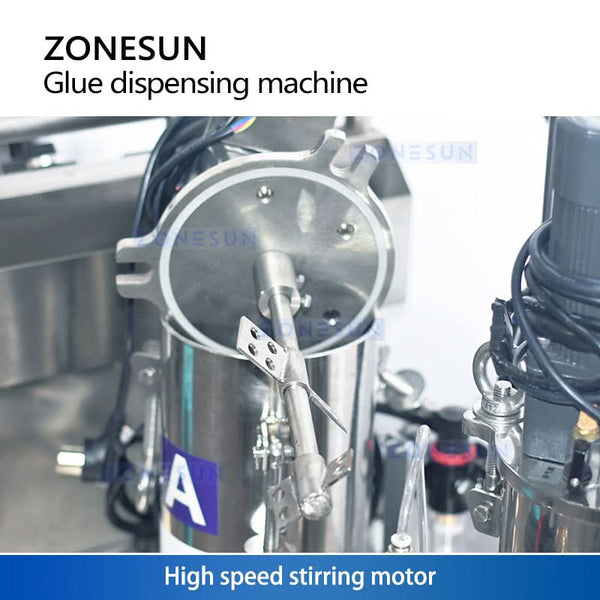

The machine uses a high-power motor to drive the double stirring rod combined with the heating tube to prevent glue precipitation.

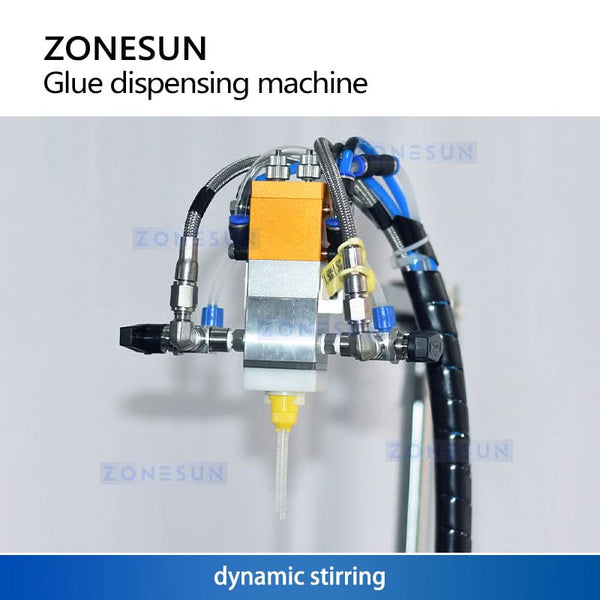

The machine is equipped with an adjustable DC stirring motor, and the double liquid recovery valve ensures that the adhesive is distributed smoothly and evenly without drawing.

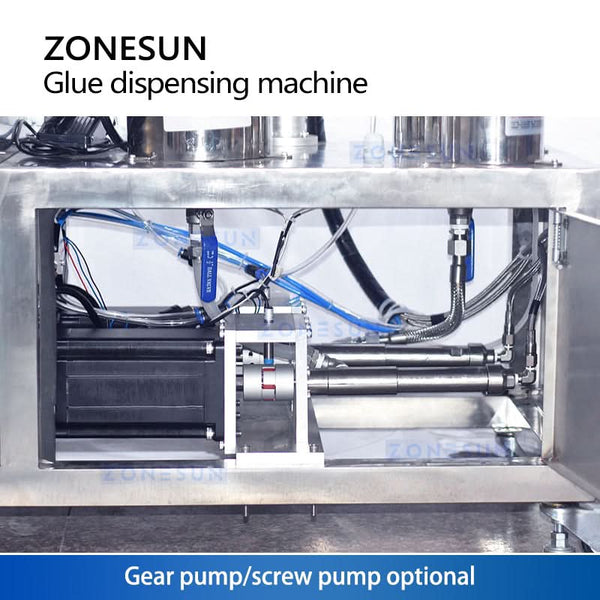

Dual stepper motors, dual metering pumps, automatic glue proportioning, accuracy up to ±2%
Stores and dispenses larger volumes of adhesive and is used with heated hoses to ensure the adhesive maintains good flow characteristics even in low temperature environments.
