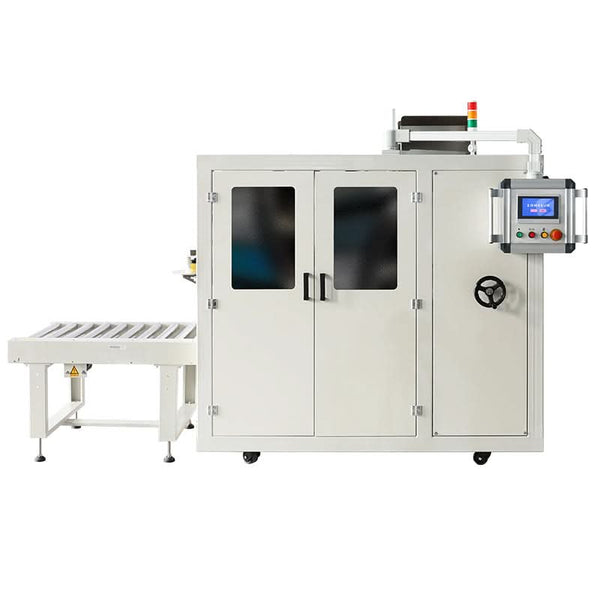

Our high-performance carton erector delivers 1800 boxes per hour (bph), significantly boosting your fulfillment efficiency. This powerful machine features a reliable fold mechanism and a unique cam-driven system, eliminating belt-related synchronization issues for perfectly formed cartons every time. Automatic carton feeding ensures continuous, uninterrupted operation.
Key Features:
- 1800 bph Output: Massive speed increase.
- Reliable Folding: Perfect cartons, every time.
- Cam-Driven System: Eliminates belt issues.
- Automatic Feeding: Continuous operation, no downtime.
- High-Performance Motor: Maximum efficiency.
Ideal for e-commerce businesses packaging small boxes and parcels, this carton erector maximizes your throughput and minimizes labor costs.
Parameter
Model ：ZS-CSPM3
Voltage： AC220V, 50Hz / AC110V, 60Hz
Power ：750W
Working Speed： 10–30 pieces/min
Carton Storage： Approx. 70 pieces
Tunnel Height： 960–1000mm
Air Pressure ：0.5–0.7 MPa
Air Consumption： Approx. 200L/min
Net Weight： Approx. 600kg
Applicable Carton Size： L:130–290mm, W:80–180mm, H:90–180mm
Machine Dimensions ：1900 × 1200 × 2000mm (L × W × H)

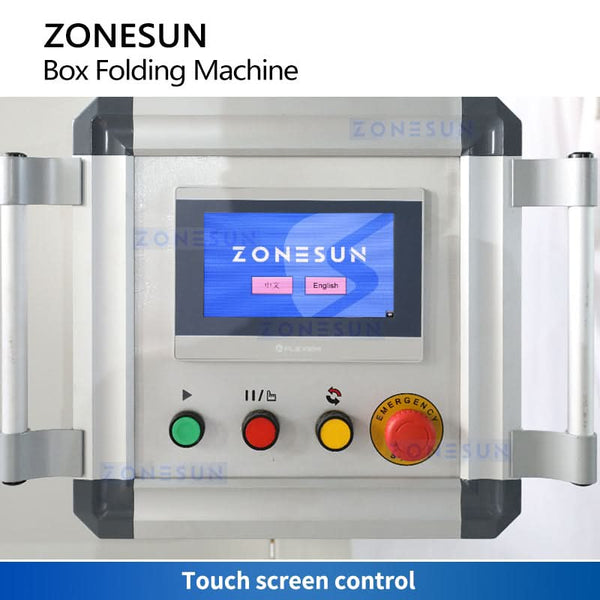

CONTROL PANEL
The touchscreen provides simple control, displays operating data, and supports convenient machine adjustment and debugging.

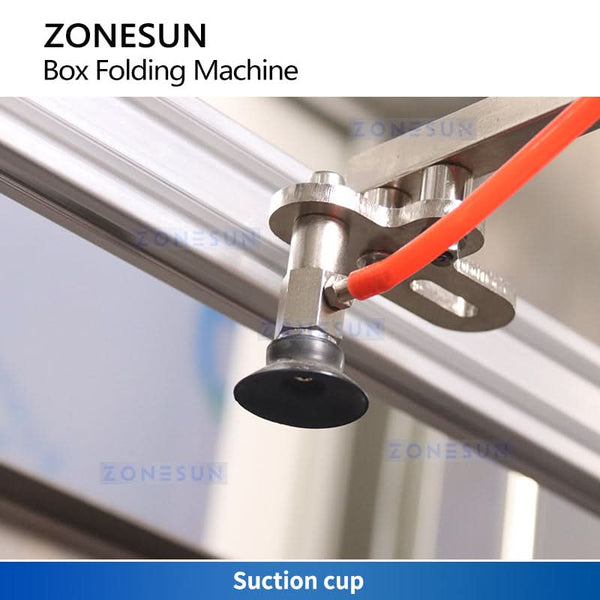

SUCTION CUP
Uses a strong-grip suction cup to pick up the paperboard and support box forming.

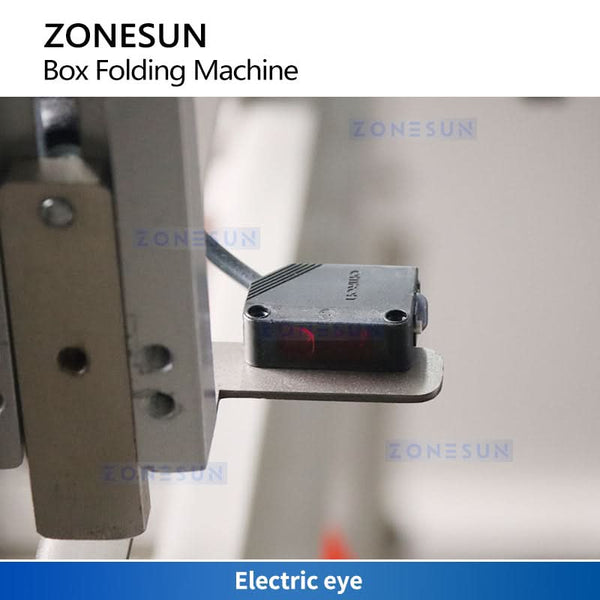

PHOTOELECTRIC SENSOR
Detects the presence and position of boxes to help align each box correctly for folding.

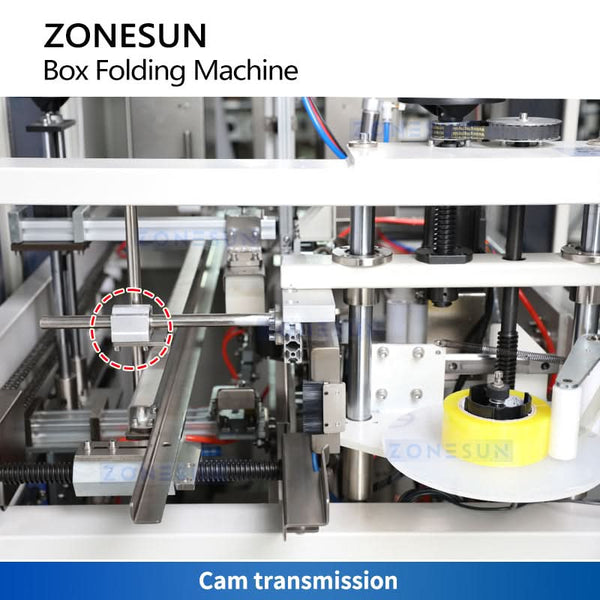

CAM TRANSMISSION
The rotating, reciprocating cam mechanism pushes cartons forward without a belt conveyor, supporting smooth movement.

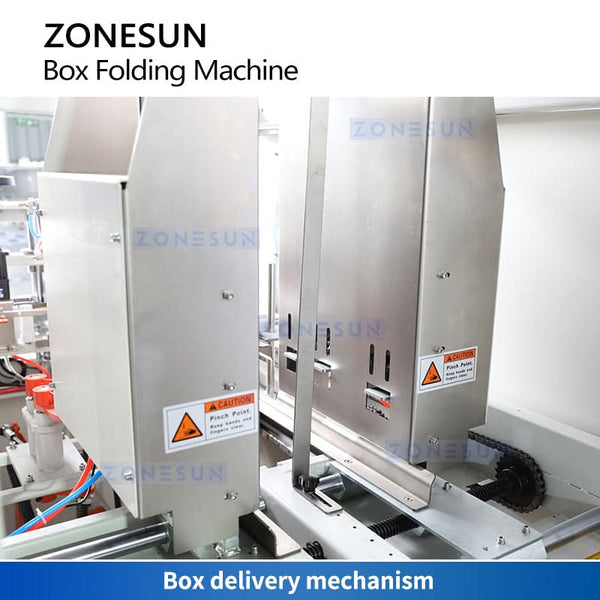

BOX FEEDING
Stores flat paperboard for continuous feeding and can be replenished without stopping the machine.
