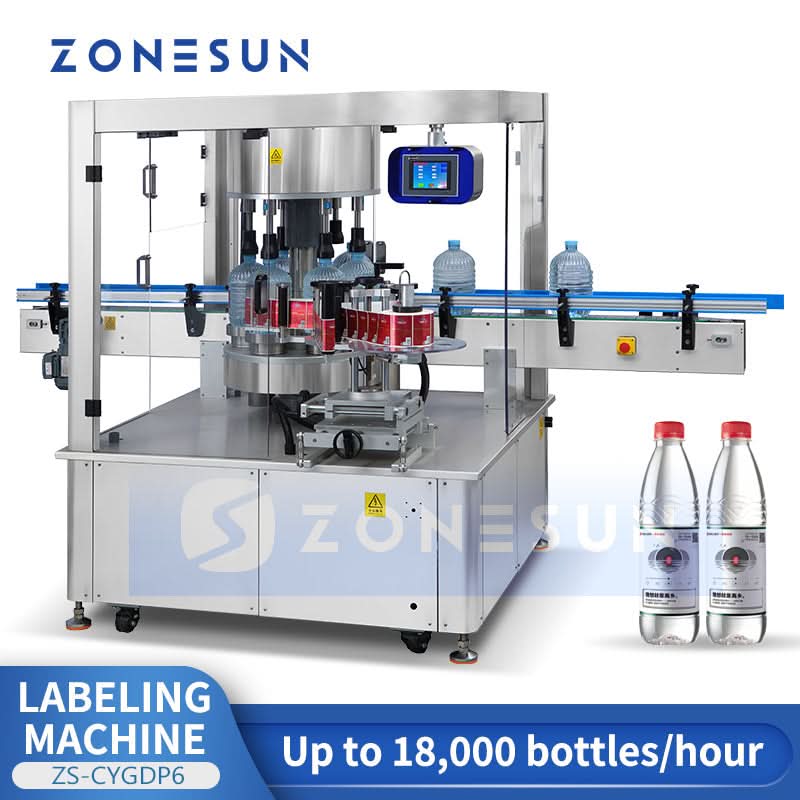

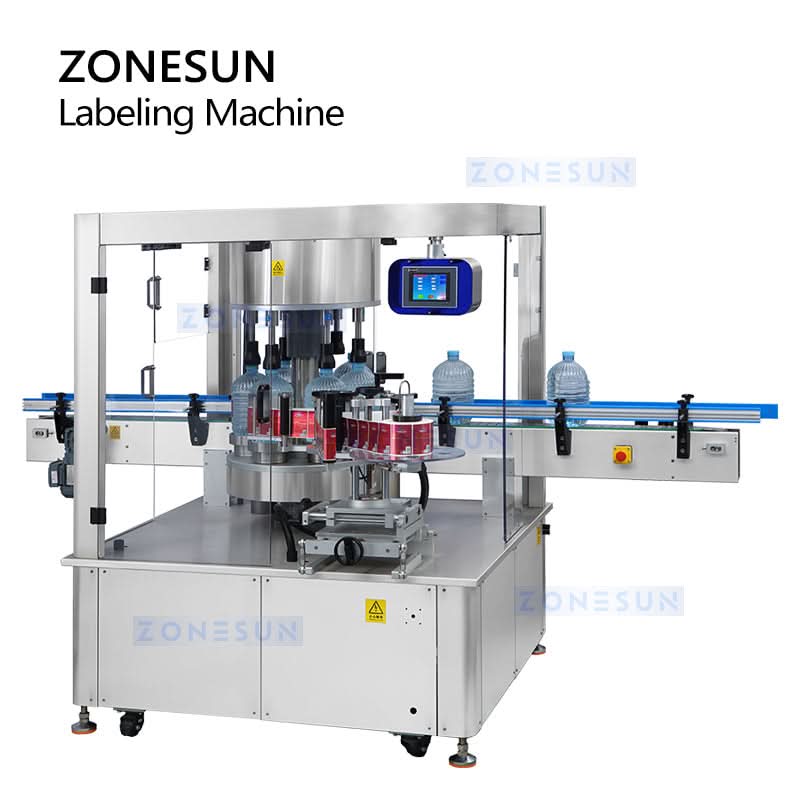

The ZS-CYGDP6 is a fully automatic labeling machine designed to apply self-adhesive labels to cylindrical containers such as plastic bottles, glass bottles, and metal cans. Engineered for precision and speed, it supports both single-side and double-side labeling, making it ideal for diverse packaging lines.
Its intelligent conveyor system ensures smooth container positioning and accurate label application, enhancing production efficiency. Widely used in food, beverage, cosmetics, and pharmaceutical industries, this machine offers a flexible solution for labeling various container shapes and sizes.
Parameter
| Model | ZS-CYGDP6 |
|---|---|
| Power Supply | 3-phase 380V, 50Hz, 12kW |
| Air Supply | 8 kg/cm² |
| Working Speed | 15,000–18,000 bottles/hour |
| Conveyor Speed | 0–30 m/min (adjustable) |
| Labeling Accuracy | ±1 mm |
| Required Label Size | Max Width: 200 mm, Max Length: 280 mm |
| Label Roll Size Inner Diameter: | 76 mm, Outer Diameter: <400 mm |
| Applicable Bottle Size | Max Diameter: 130 mm, Height: 120–400 mm |
| Gluing Temperature | 120–160°C |

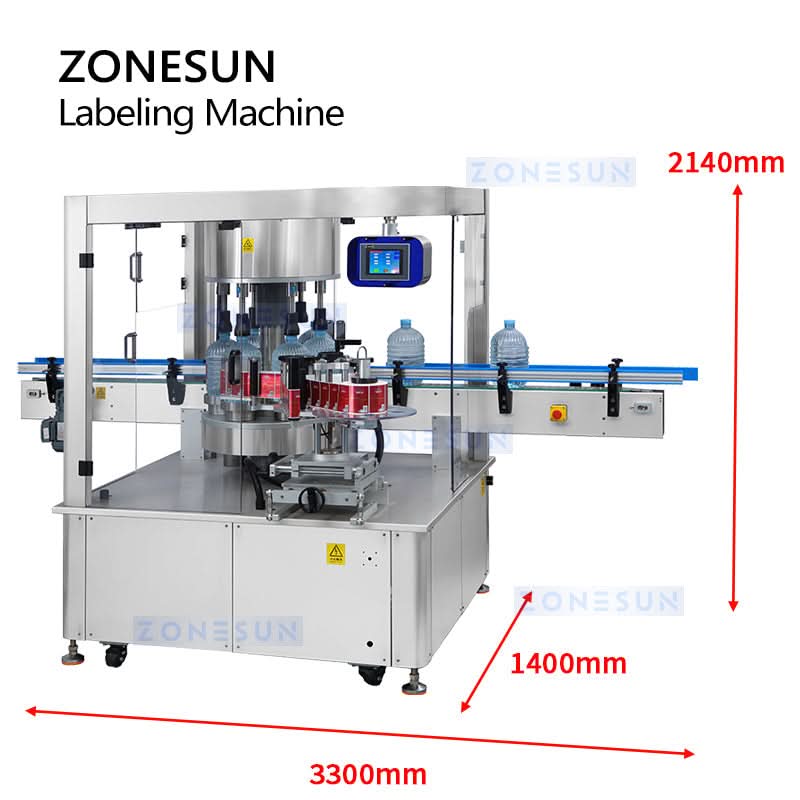

| Machine Size | 3300 × 1400 × 2140 mm (L×W×H) |
| Machine Weight | Approx. 2,500 kg |

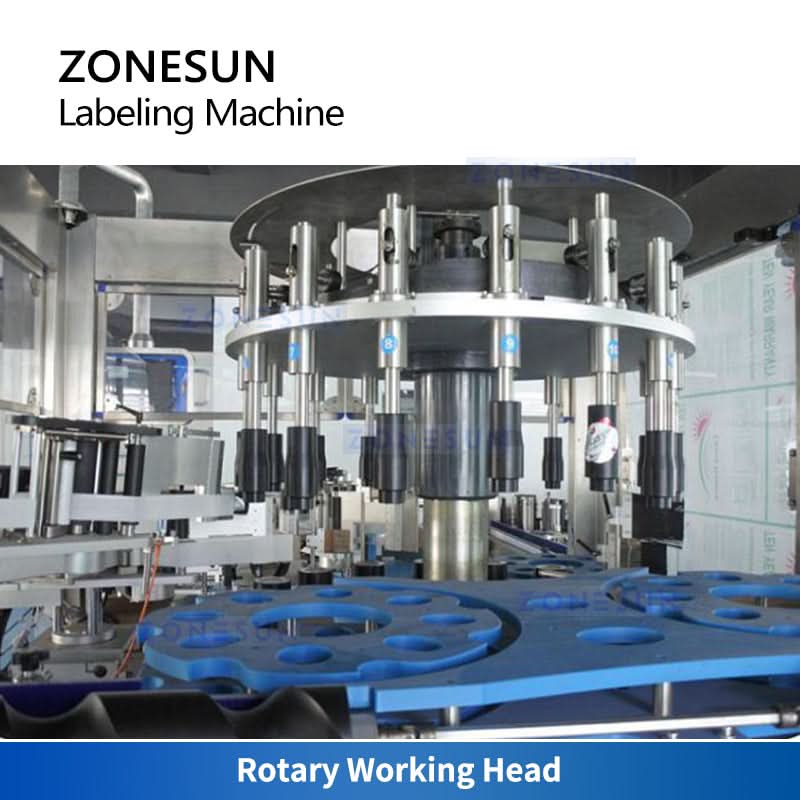

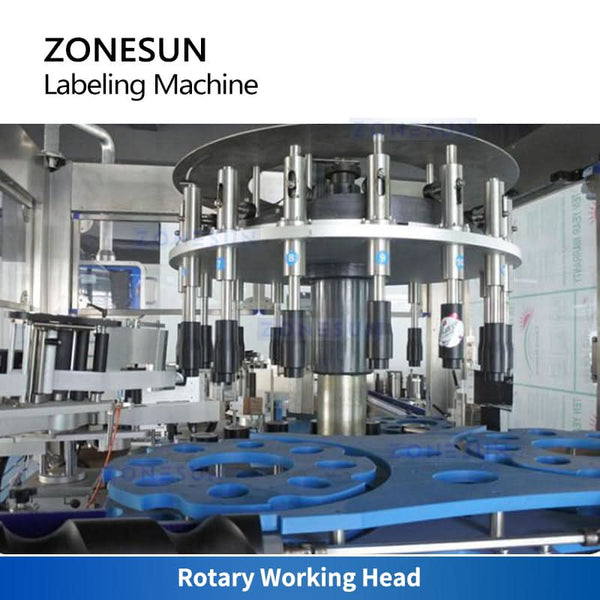

ROTARY WORKING HEAD
The rotary working head can be customized according to the product and supports up to 36 stations for different production requirements.

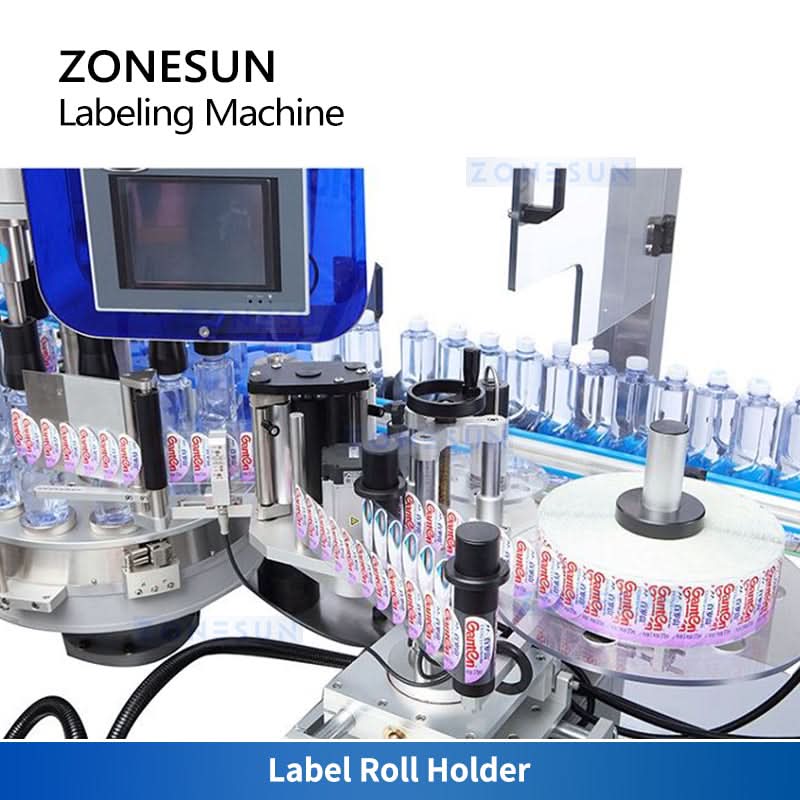

LABEL ROLL HOLDER
The mechanical label roll holder helps prevent the label roll from breaking due to excessive speed.

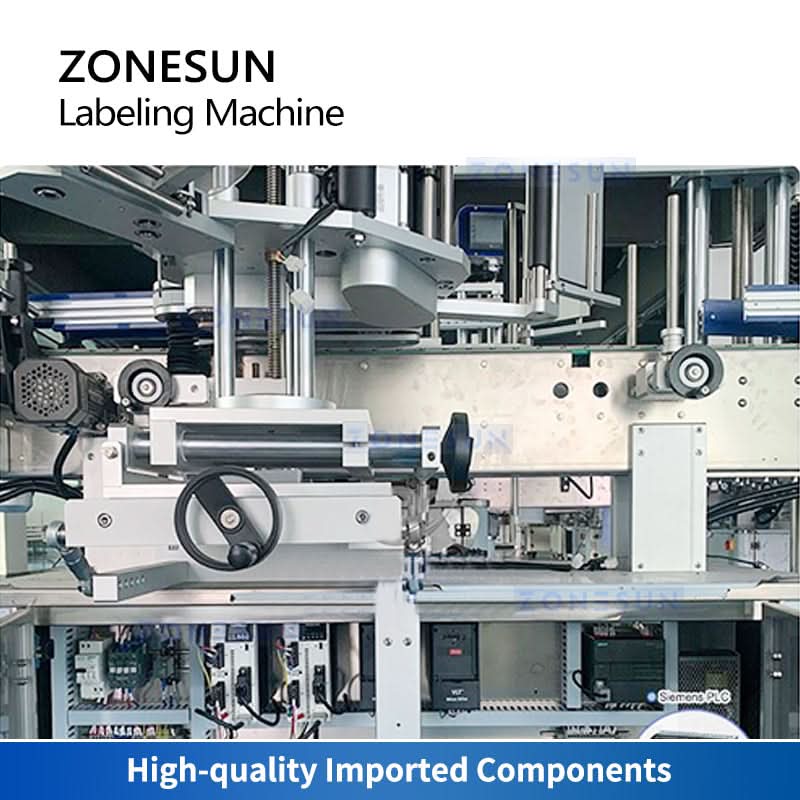

IMPORTED COMPONENTS
Imported electrical components help support machine stability and safety.
