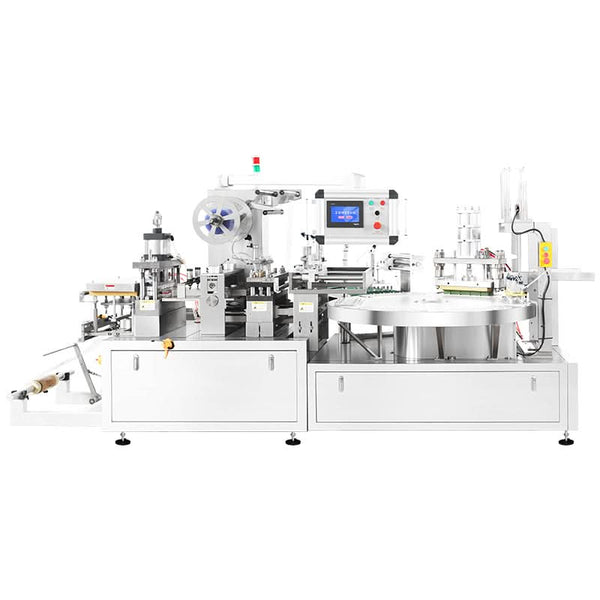

The ZONESUN ZS-DDP350 Automatic Rotary Blister Packaging Machine forms and seals plastic blister packs with paperboard backing. It integrates film unwinding, positive and negative pressure forming, cutting, rotary transfer, product and paperboard placement, heat sealing, and finished-pack discharge.
Features
- Positive and Negative Pressure Forming: Forms customized blister cavities for different product shapes.
- Rotary Indexing Table: Transfers blister trays through loading, sealing, and discharge stations.
- Easy Mold Change: Supports production involving different products and frequent packaging changeovers.
- Touchscreen Control: Adjusts forming temperature, sealing time, rotary speed, and other operating parameters.
- Scrap Film Recycling: Collects waste film generated during forming and cutting.
- Custom-Designed Molds: Molds are produced according to product and packaging requirements.
Specifications
| Machine Model | ZS-DDP350 |
| Cutting Frequency | 10–25 times/min |
| Adjustable Travel Range | 35–160 mm |
| Maximum Forming Area | 340 × 160 mm |
| Maximum Forming Depth | 38 mm; customizable up to 60 mm |
| Forming and Heating Power | 1.8 kW × 2 |
| Sealing and Heating Power | 3.5 kW |
| Total Power | 10 kW |
| Power Supply | 380 V / 50 Hz; 480 V / 50 Hz optional |
| Main Motor Power | 1.5 kW |
| Air Pump Flow Rate | ≥0.6 m³/min |
| Applicable Film Roll | Diameter ≤400 mm × width 350 mm × thickness 0.2–0.5 mm |
| Applicable Paperboard | ≤350 × 200 × 0.5 mm |
| Overall Dimensions | 3650 × 2500 × 1850 mm |
| Machine Weight | 1800 kg |
Air supply required: An external air source providing at least 0.6 m³/min is required. Automatic material feeding is optional.
Applications
Suitable for blister and paperboard packaging of hardware, stationery, toys, electronics, cosmetics, medical devices, automotive parts, kitchenware, and other compatible products.

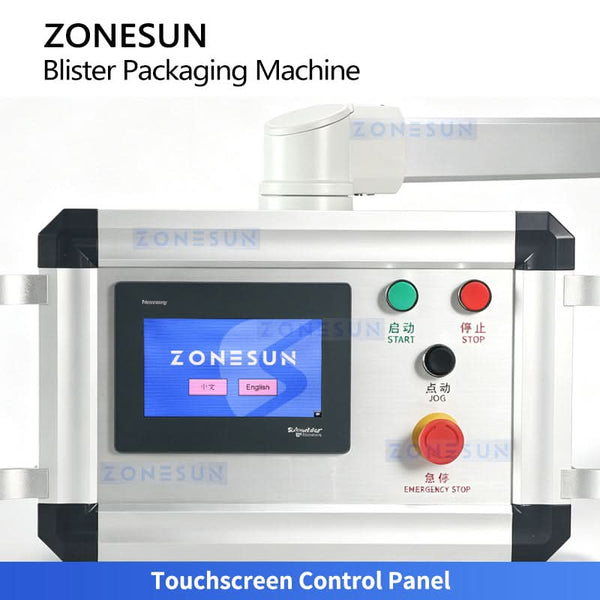

Touchscreen Control Panel
Allows operators to set forming temperature, sealing time, rotary speed, and other parameters while monitoring machine status.

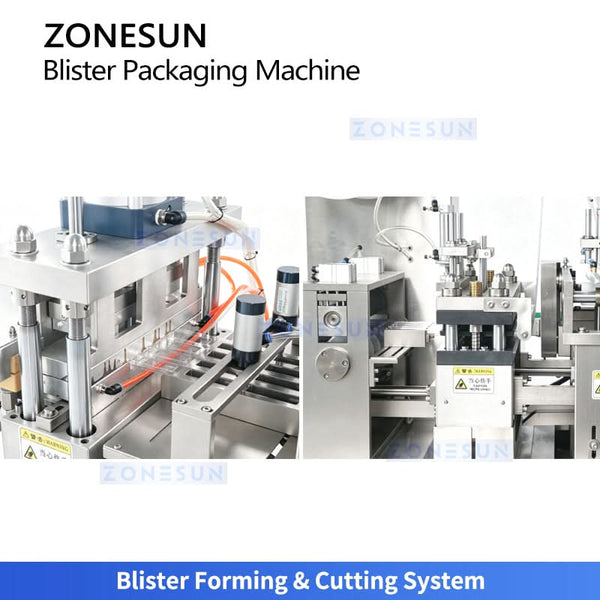

Blister Forming and Cutting System
Heats the plastic film and uses positive and negative pressure to form blister cavities, then cuts them to the required shape and size.

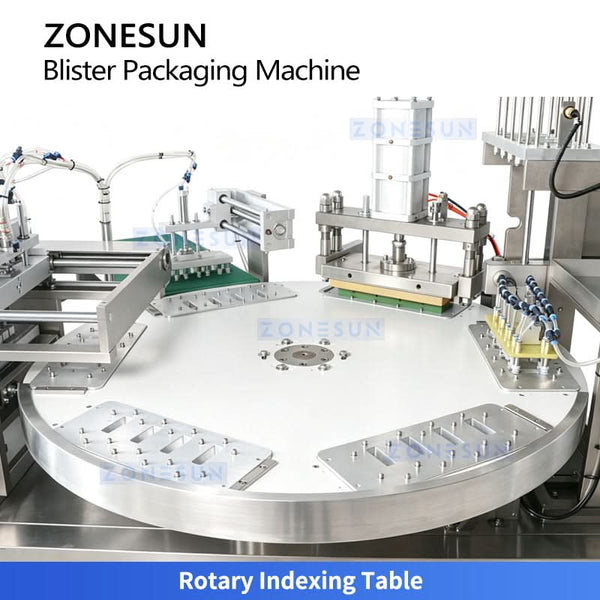

Rotary Indexing Table
Transfers blister trays through each station, allowing manual product placement before automatic heat sealing and discharge.

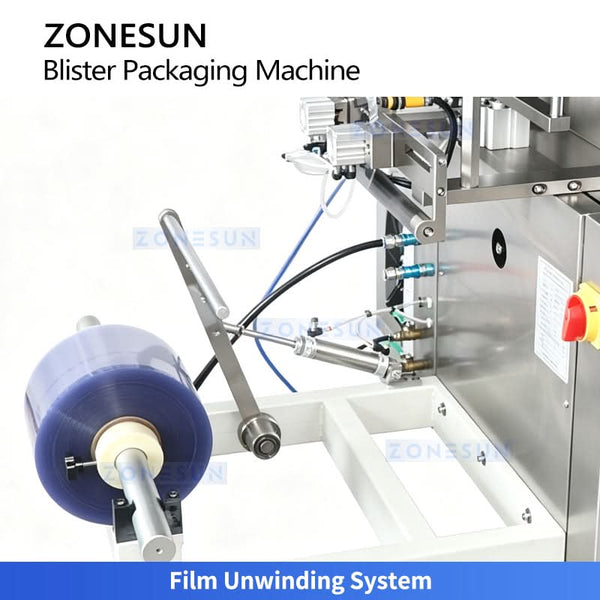

Film Unwinding System
Continuously supplies plastic film to the forming station for stable material feeding.
Scrap Film Recycling System
Collects waste film generated after forming and cutting to support cleaner, continuous operation.

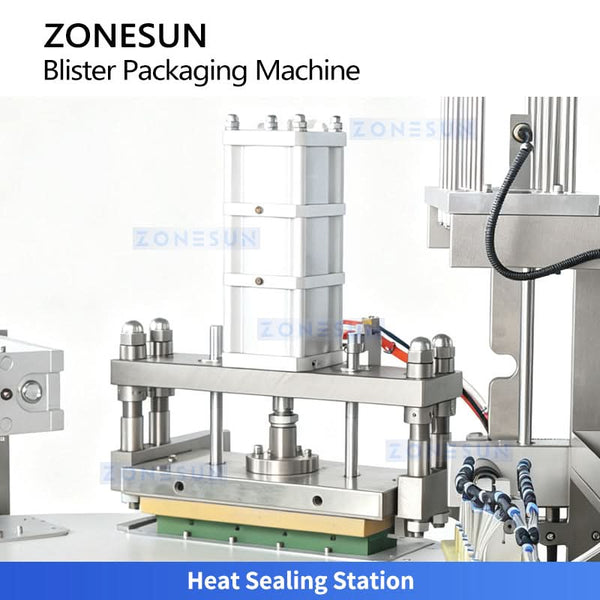

Heat Sealing Station
Applies controlled heat and pressure to seal paper backing securely onto the blister.
Finished Product Outlet
Transfers completed blister packs to collection or downstream processes such as cartoning and secondary packaging.
