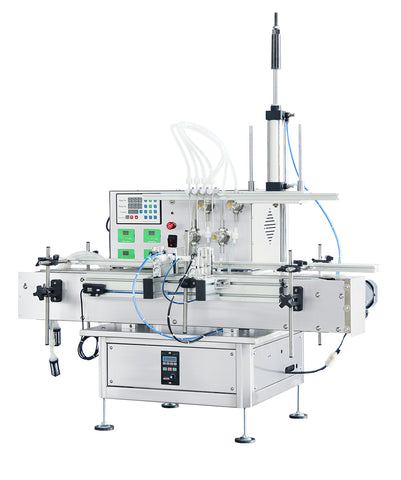

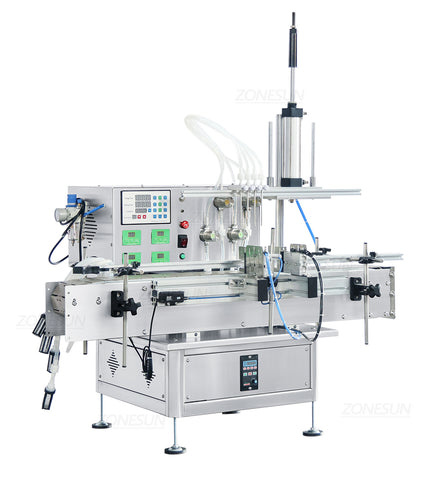

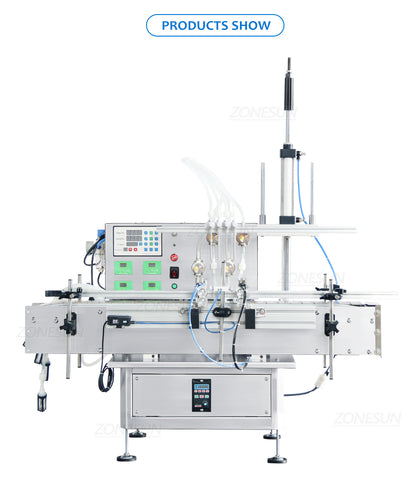

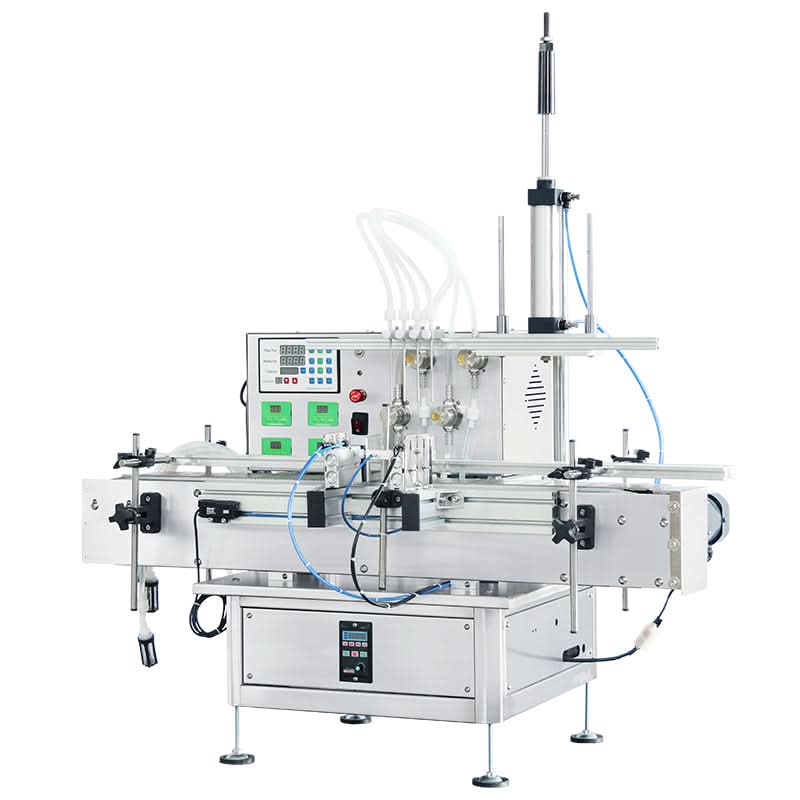

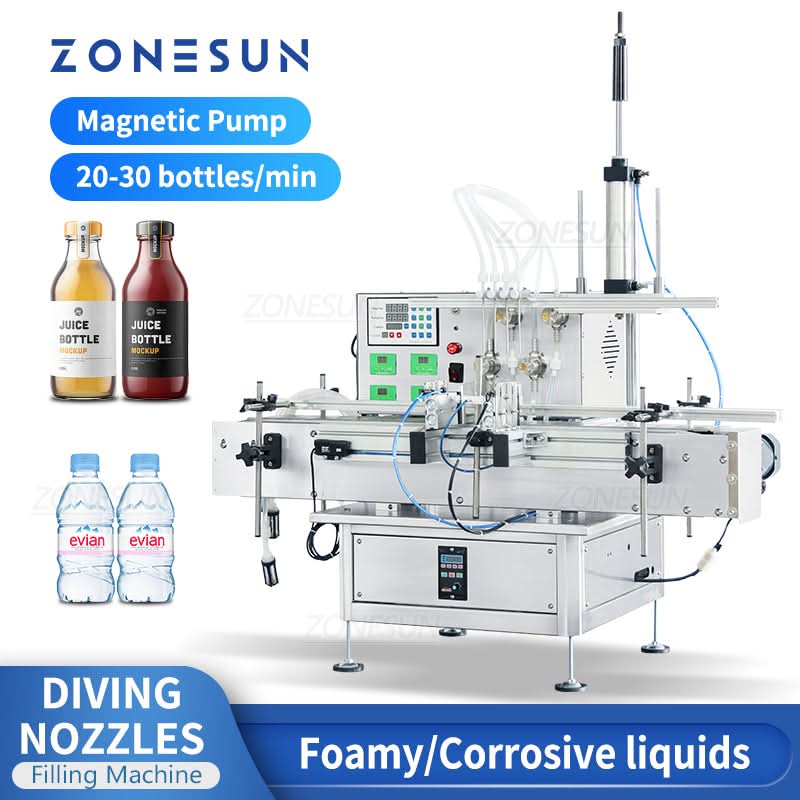

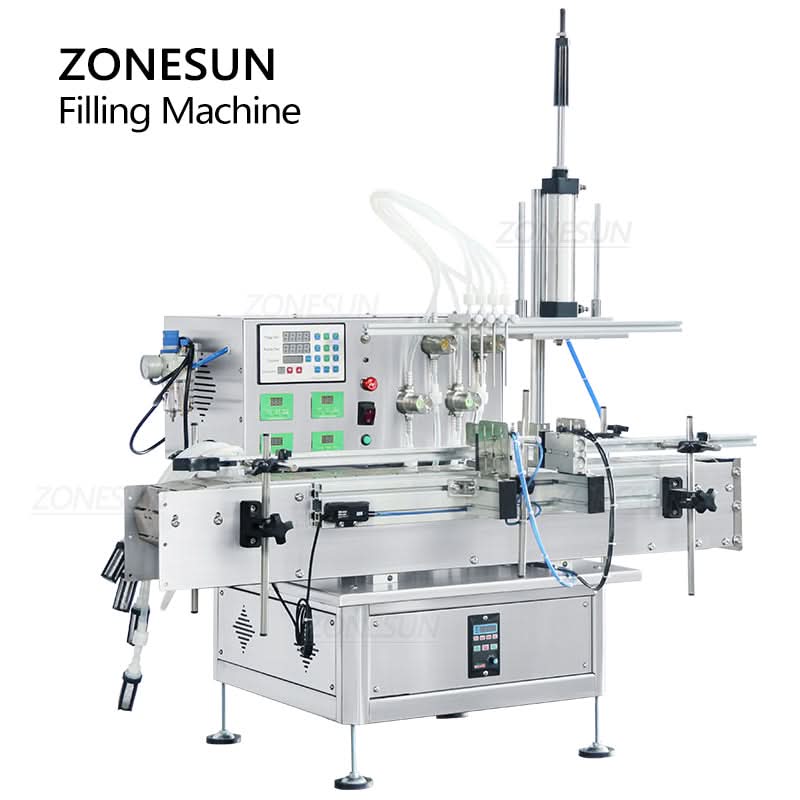

The ZONESUN ZS-DTMP4AL automatic liquid filling machine is designed for precise bottling of foamy and low-viscosity liquids such as essential oils, perfumes, beverages, and more. Equipped with four diving nozzles and magnetic pumps, it ensures high filling accuracy and minimizes dripping. The integrated chain conveyor offers strong load capacity and smooth transport of heavier containers. This tabletop unit can be paired with labeling and capping machines to create a compact automated production line—ideal for cosmetics, pharmaceuticals, and daily chemical industries.

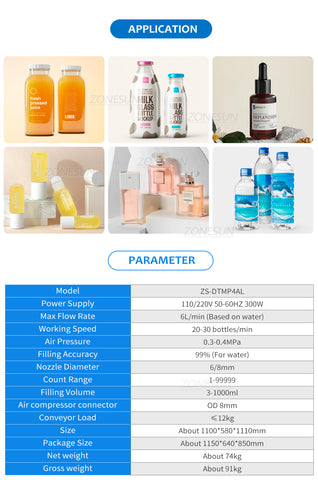

Parameter ZS-DTMP4AL
Machine Model ZS-DTMP4AL
Power Supply 110V / 220V, 50–60Hz, 300W
Max Flow Velocity 5500mL/min (per nozzle, based on water)
Working Speed 20–30 bottles/min
Air Pressure 0.3–0.4MPa
Filling Accuracy ≤±1% (for water)
Filling Nozzle Diameter 6mm / 8mm
Delay Range 0.01–999.9s
Count Range 1–99999 times
Filling Volume 3–1000mL
Air Compressor Connector Size Outer Diameter 8mm
Machine Model ZS-DTMP4AL
Power Supply 110V / 220V, 50–60Hz, 300W
Max Flow Velocity 5500mL/min (per nozzle, based on water)
Working Speed 20–30 bottles/min
Air Pressure 0.3–0.4MPa
Filling Accuracy ≤±1% (for water)
Filling Nozzle Diameter 6mm / 8mm
Delay Range 0.01–999.9s
Count Range 1–99999 times
Filling Volume 3–1000mL
Air Compressor Connector Size Outer Diameter 8mm

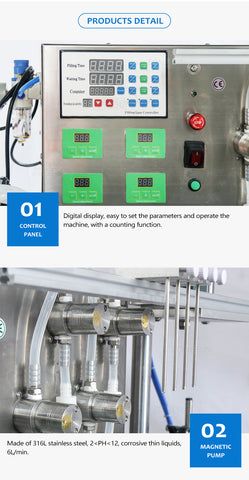

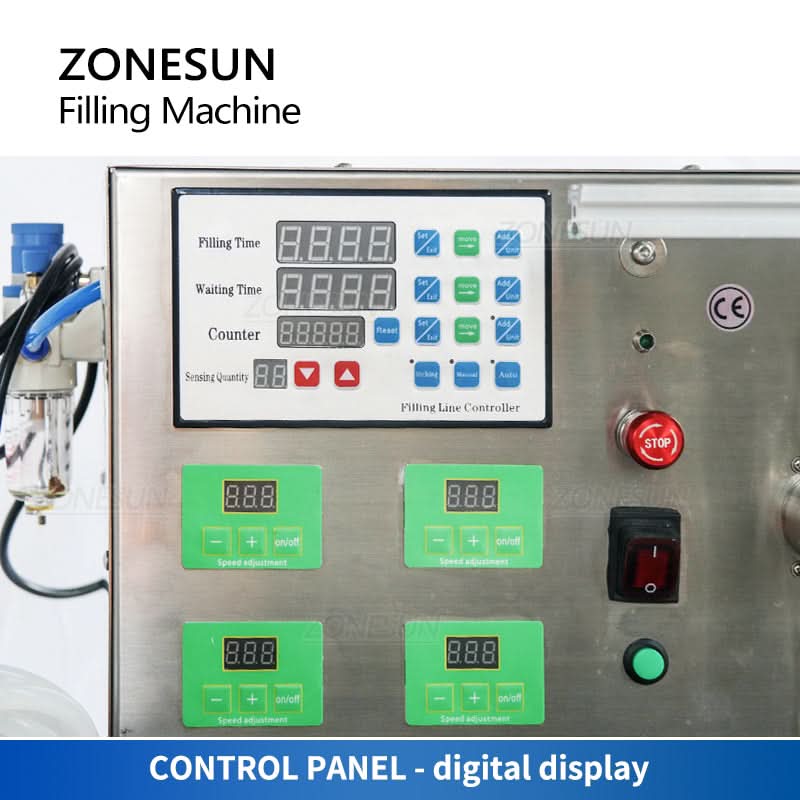

CONTROL PANEL
The digital control panel simplifies parameter setting and machine operation and includes a counting function.

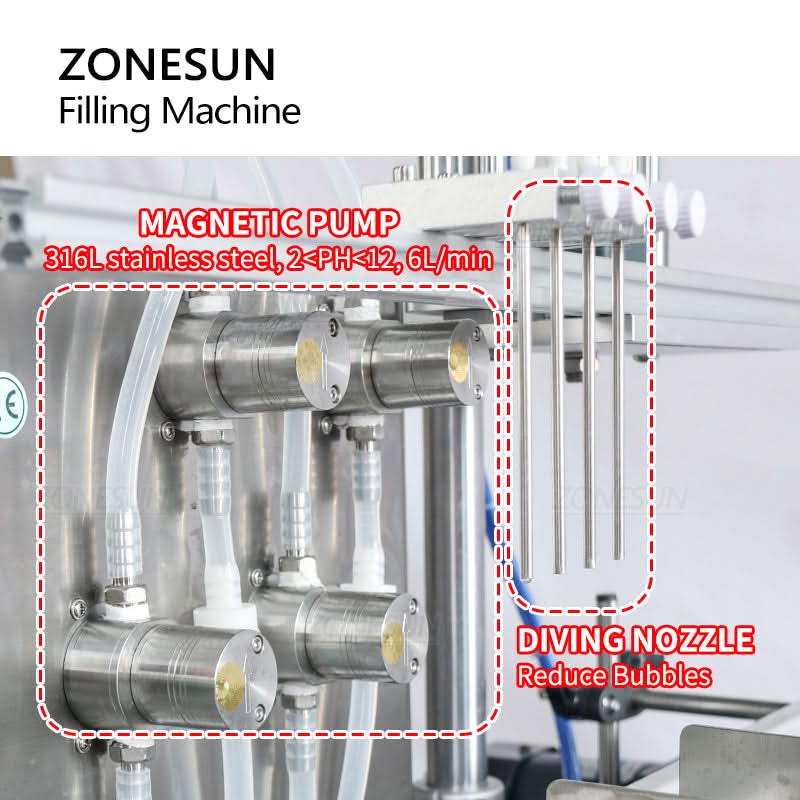

316L STAINLESS STEEL MAGNETIC PUMP
The 316L stainless steel magnetic pump is suitable for low-viscosity corrosive liquids with a pH range of 2–12 and provides a flow rate of 6 L/min.

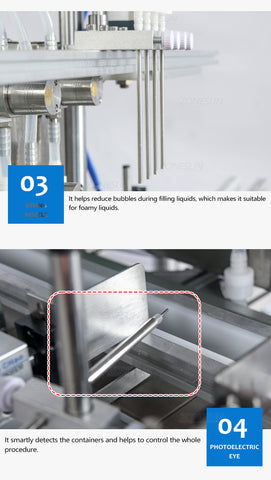

DIVING NOZZLES
The diving nozzles help reduce bubbles during filling, making them suitable for foamy liquids.

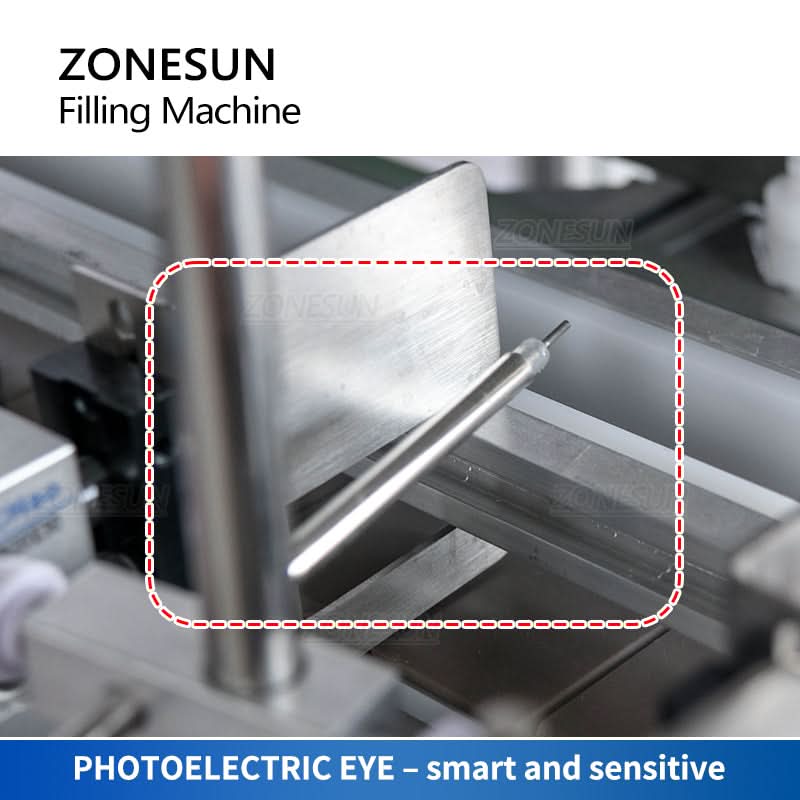

PHOTOELECTRIC SENSOR
The photoelectric sensor detects containers and helps control the filling process.

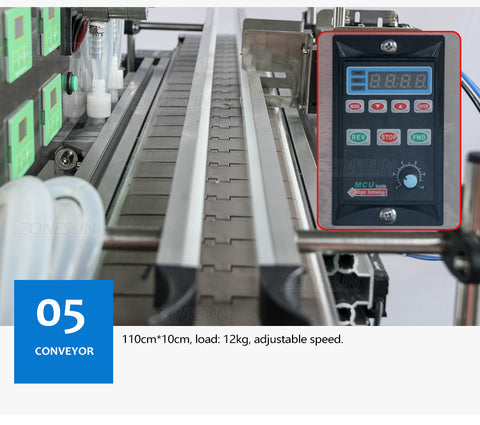

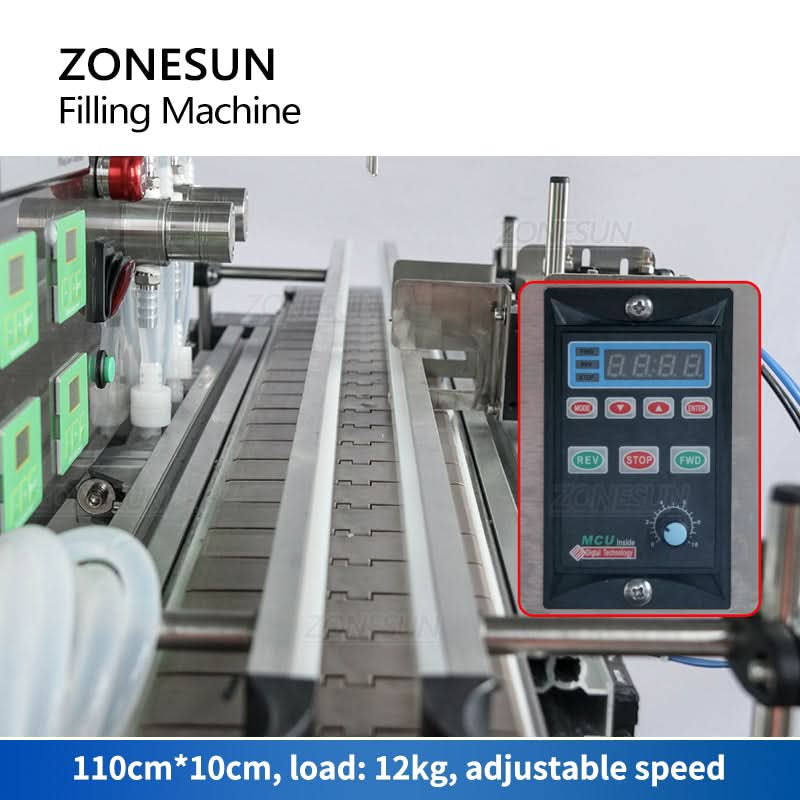

CONVEYOR
The 110 × 10 cm conveyor supports loads up to 12 kg and has adjustable speed.
