Specification Details
Machine Model ZS-DTPP4D Filling Machine
Power Supply AC110V/220V 50Hz–60Hz, 60W per pump
Filling Range Up to 2500ml/min
Maximum Flow 2500ml/min per nozzle (with water)
Filling Nozzles 4 (customizable)
Working Speed 30–50 bottles/min (depends on liquid & bottle)
Air Pressure 0.3–0.4 MPa
Filling Accuracy ≤ ±1% (for water)
Nozzle Diameter 6mm / 8mm
Delay Range 0.01 – 999.9 seconds
Conveyor Belt Length 1.0 meter
Air Compressor Connector Size OD 8mm
Package Size Approx. 1150 × 770 × 840 mm
Package Weight Approx. 110 kg
Capping Machine
Bottle Height 60–270 mm
Bottle Caps Diameter 18–70 mm
Working Speed 20–40 bottles/min (depends on bottle & cap)
Working Voltage AC 220V/110V 50–60Hz
Working Pressure 0.4–0.6 MPa
Air Compressor Connector Size OD 8 mm
Conveyor Length 1117 mm
Net Weight / Gross Weight Approx. 69 kg / 100 kg
Package Size Approx. 1150 × 640 × 1120 mm
Machine Size Approx. 1200 × 610 × 950 mm
Machine Model ZS-TB500A Labeling Machine
Voltage 110V 60Hz / 220V 50Hz
Working Speed About 20–60 bottles/min
Suitable Labeling Size 15–140 mm (W) × 25–300 mm (L)
Roll Inside Diameter φ75 mm
Roll Outside Diameter φ250 mm
Suitable Bottle Diameter About 30–100 mm
Conveyor Size About 1310 × 100 mm
Package Size About 1460 × 700 × 960 mm
Package Weight About 125.5 kg
DIGITAL CONTROL PANEL
The control panel displays detailed operating data for easier machine adjustment and control. Its memory function also records the production quantity.

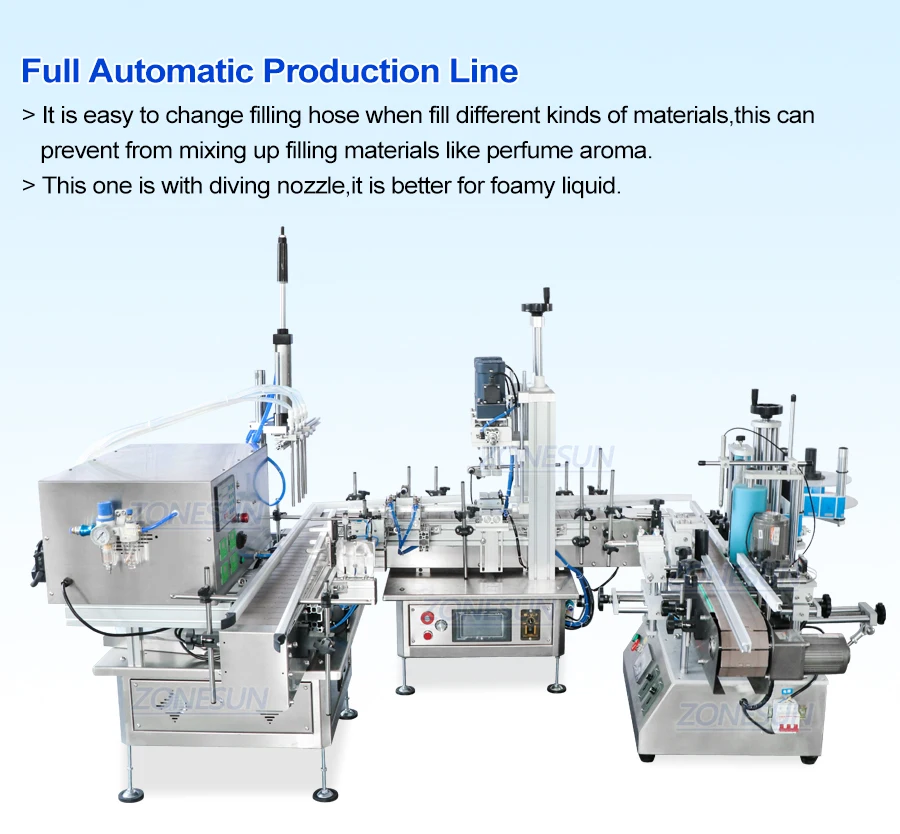

DIVING FILLING NOZZLES
A larger air cylinder controls the travel of the diving nozzles. This nozzle design is suitable for foamy liquids and helps improve filling quality.
AUTOMATIC CAPPING
The capping unit is designed for various cap styles, including e-liquid bottle caps, spray bottle caps, and beverage bottle caps. It automatically presses and tightens the caps to improve working efficiency.
AUTOMATIC CONVEYOR
The conveyor transfers bottles automatically, helping reduce manual handling, streamline the production process, and improve operating accuracy.
THREE-WHEEL LABELING SYSTEM
Three labeling wheels rotate the bottles during labeling to help prevent bubbles beneath the labels and achieve a consistent labeling result. The system is suitable for double-sided labeling.
ADJUSTABLE LABELING CONTROLS
Rotary knobs adjust the positions of the labeling wheels, label-separating plate, and winding bar to support accurate label placement and consistent labeling quality.
