ZONESUN ZS-FAL180R9 Paste Filling Capping Labeling Line for Bottles

Price: $11,489.00

Please check your cart or click "Buy It Now" to view shipping costs

Shipping Information

Shipping methods and costs vary by machine, package size, destination, and delivery method. Available options may include express delivery, air freight, sea freight, or logistics services.

To view the available shipping options and estimated cost, add the product to your cart and enter your delivery address at checkout.

DDP (Delivered Duty Paid) service may be available for selected destinations. For large machines, customized equipment, or complete production lines, please contact us before ordering so we can confirm the shipping method, packing requirements, freight cost, and estimated delivery time.

For non-DDP shipments, import duties, customs clearance fees, local taxes, and other destination charges may apply.

voltage:110v

Product variants

The ZS-FAL180R9 automated production line integrates paste filling, capping, and labeling into a compact desktop format. Equipped with dual pneumatic piston filling heads, it handles viscous liquids like glue, cream, honey, and gel with high precision. Independent nozzle controls allow flexible filling ranges, while intelligent bottle detection ensures accurate and efficient operation. The labeling system supports single or double-sided application on round bottles, making it ideal for cosmetics, pharmaceuticals, and daily chemical packaging.

ZS-GY2C Liquid Filling Machine Specifications
Parameter Specification
Model ZS-GY2C
Voltage Supply 220V / 110V, 50/60Hz
Power 130W
Filling Accuracy ≤±0.5%
Filling Speed 10–20 bottles/min
Filling Volume 5–100 / 10–300 / 50–500 / 100–1000 / 500–3000 / 1000–5000ml (selectable)
Conveyor Size 200cm × 10cm
Filling Nozzle Size Φ10mm
Required Air Pressure 0.4–0.6MPa
Air Compressor Connector Size OD 8mm
Air Consumption ≥0.1m³/min

ZS-XG16 Capping Machine Specifications
Parameter Specification
Model ZS-XG16
Bottle Height 30–300mm
Cap Diameter 18–70mm
Bottle Diameter 20–160mm
Working Speed 20–60 bottles/min (varies by cap/bottle size & shape)
Working Voltage AC220V / 110V, 50–60Hz
Working Air Pressure 0.4–0.6MPa
Air Compressor Connector Size OD 8mm
Machine Dimensions Approx. 1930 × 740 × 1600mm
Package Dimensions Approx. 2000 × 820 × 1760mm
Net / Gross Weight Approx. 113kg / 192.5kg

ZS-TB260 Labeling Machine Specifications
Parameter Specification
Model ZS-TB260
Power Supply AC220V 50Hz/60Hz, 1500W
Labeling Capacity 25–50 pcs/min (depends on bottle size)
Labeling Accuracy ±1.0mm
Suitable Bottle Diameter φ30–100mm
Label Size (L)15–200mm × (H)15–150mm
Roll Inside Diameter φ76mm
Roll Outside Diameter φ350mm
Conveyor Size 1950(L) × 100(W)mm
Machine Size Approx. 2000 × 1400 × 1300mm
Packing Size Approx. 2120 × 940 × 1500mm
Net/Gross Weight Approx. 226kg / 290kg

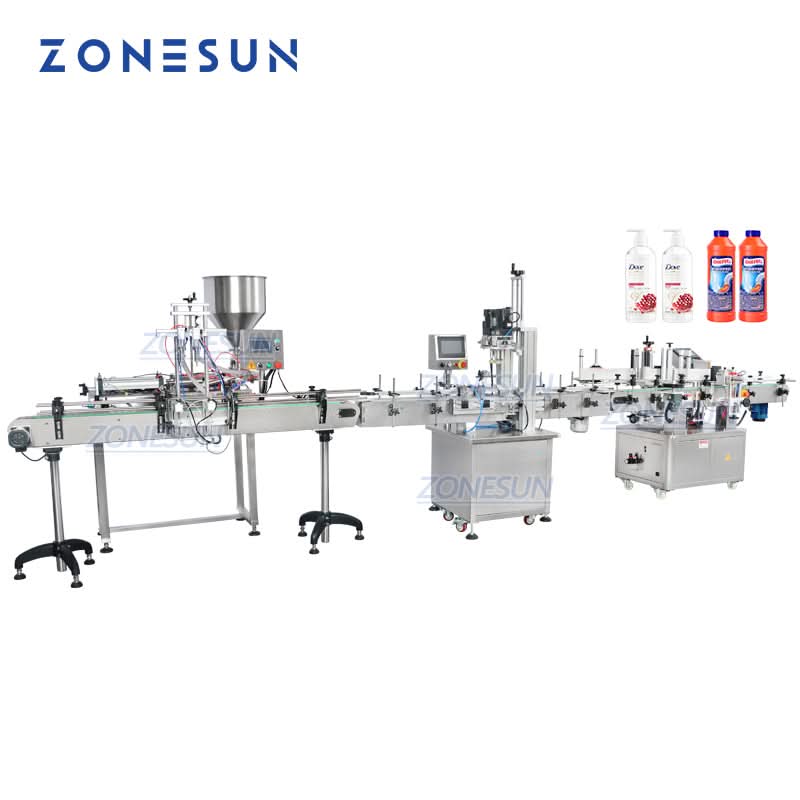

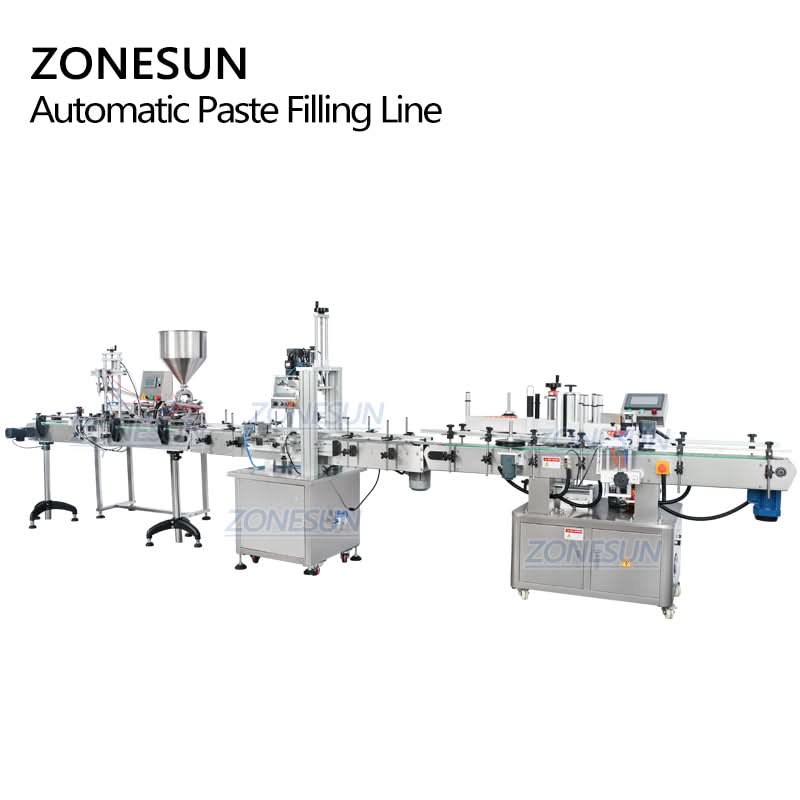

ZONESUN ZS-FAL180R9 Desktop Double Head Piston Pump Paste Filling Capping And Labeling Machine Line

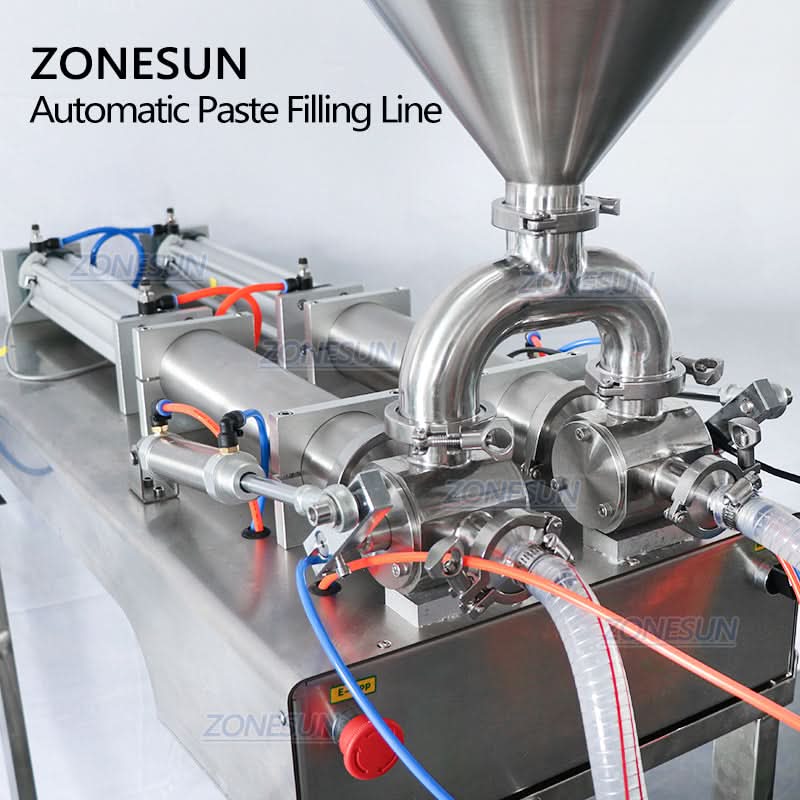

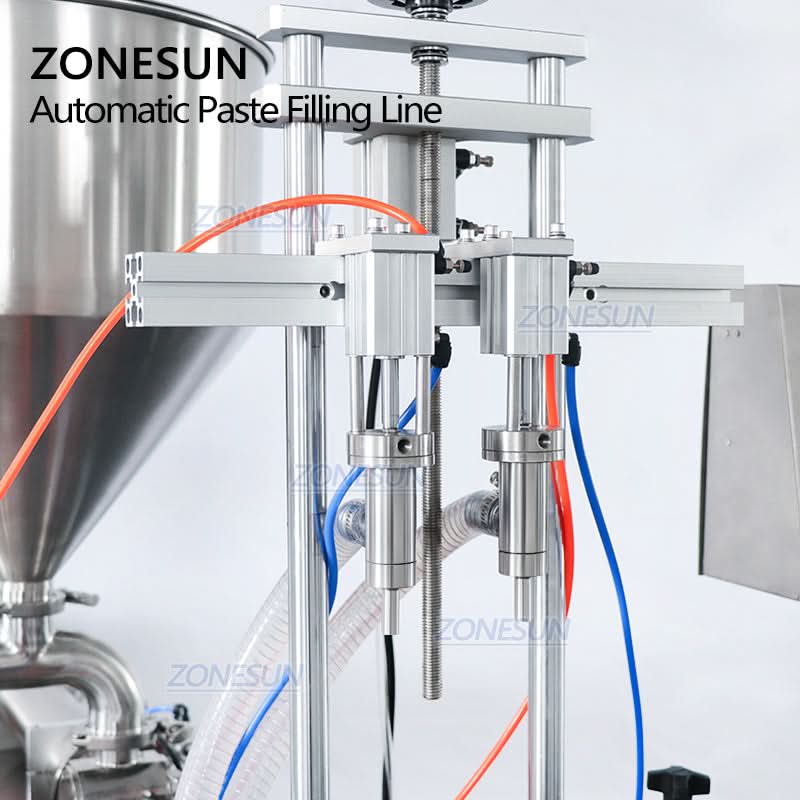

ANTI-DRIP FILLING AND BOTTLE DETECTION

The filling nozzle features an anti-drip design, while electric eyes detect passing bottles to help prevent missed containers and support accurate filling.

TOUCHSCREEN CONTROL PANEL

The touchscreen clearly displays operating parameters for convenient setup. The standard interface is in English, and other languages can be customized as required.
