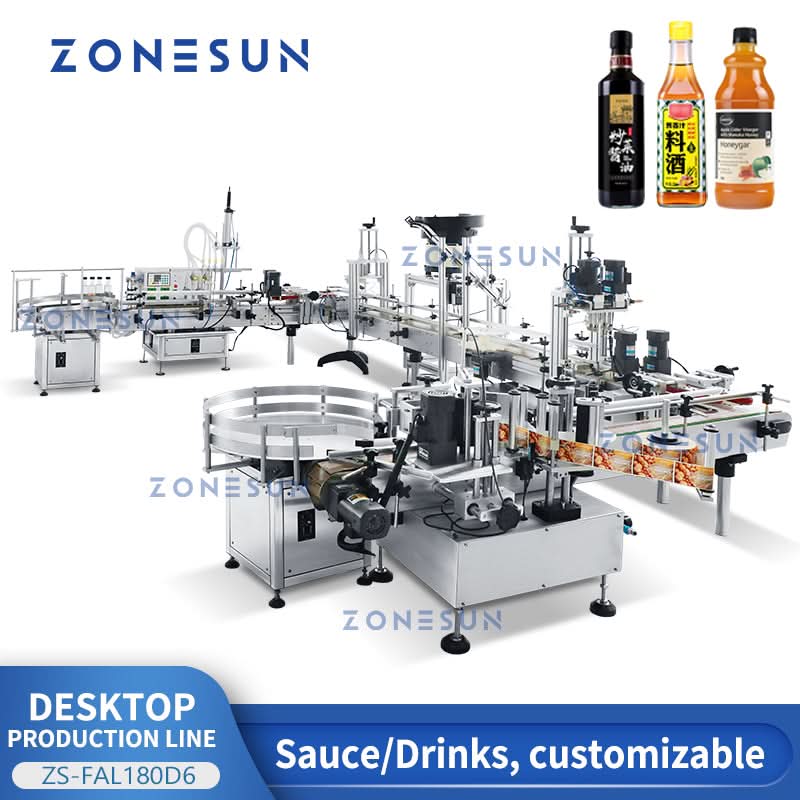

ZONESUN ZS-FAL180D6 Full Automatic Desktop Production Line Magnetic Pump Liquid Filling Round Bottle Labeling Capping Machine
DESCRIPTION

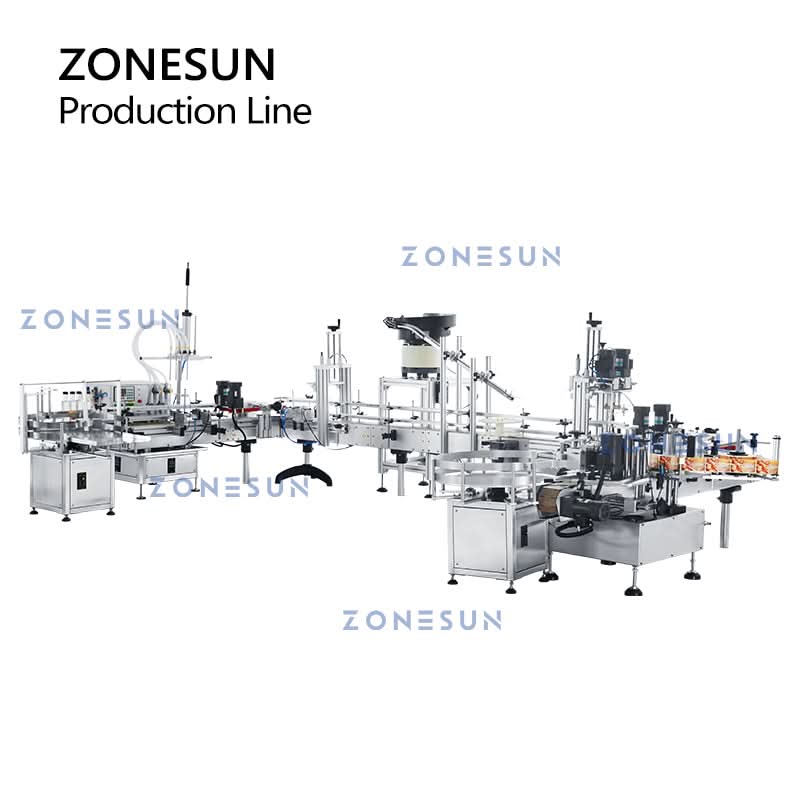

This line consistsofan unscrambler, a filler, a cap feeder, a capper, a label applicator, and a collector. It is widely used in the food, daily chemical, and cosmetics industries. It greatly saves working space.
PARAMETER
|
Unscrambler |
|
|
Model |
ZS-LP600Z |
|
Turntable Diameter |
600mm |
|
Suitable Bottle Diameter |
30-80mm |
|
Suitable Bottle Height |
≤2500mm |
|
Working Speed |
40-60 bottles/min(depends on bottle size) |
|
Motor Power |
40W |
|
Power Supply |
220V/50-60HZ |
|
Net Weight |
About 27.5kg |
|
Package Size |
About 700*740*960mm |
|
Gross Weight |
About 60kg |
|

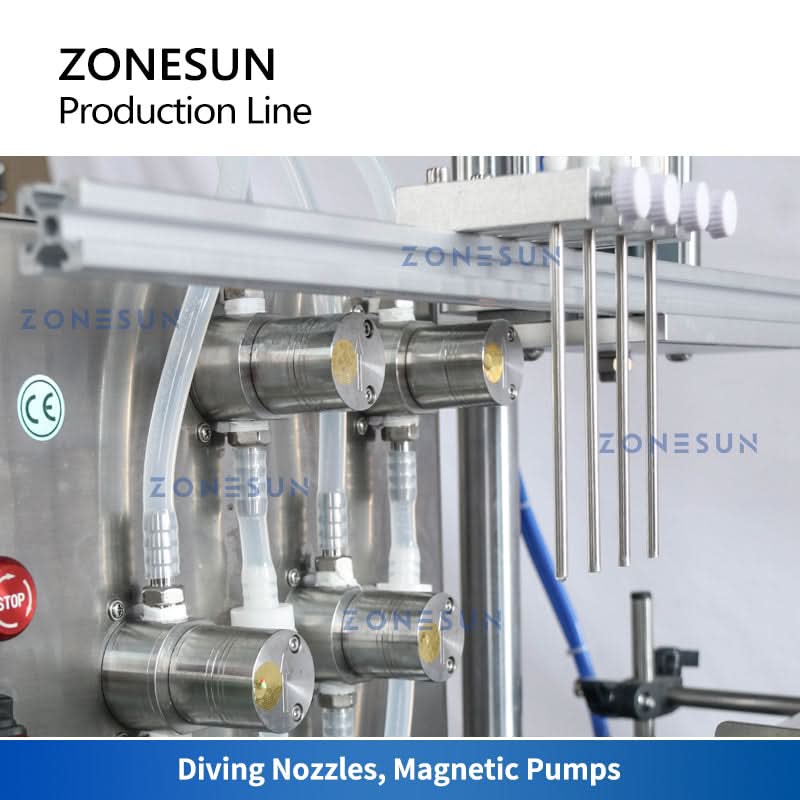

Filling Machine |
|
|
Machine model |
ZS-DTMP4AL |
|
Power supply |
110/220V 50-60HZ 300W |
|
Maximum flow velocity |
6000ml/min (Each nozzle and base on water) |
|
Working speed |
20-30 bottles/min |
|
Air pressure |
0.3-0.4MPa |
|
Filling accuracy |
≤±1% (For water) |
|
Diameter of filling nozzle |
6/8mm |
|
Delay range |
0.01-999.9s |
|
Count range |
1-99999 Times |
|
Filling volume |
3-1000ml |
|
Size of air compressor connector |
OD8mm |
|
Machine size |
About 1100*580*1110mm |
|
Package size |
About 1140*650*840mm |
|
Net weight/Gross weight |
About 74kg/90kg |
|

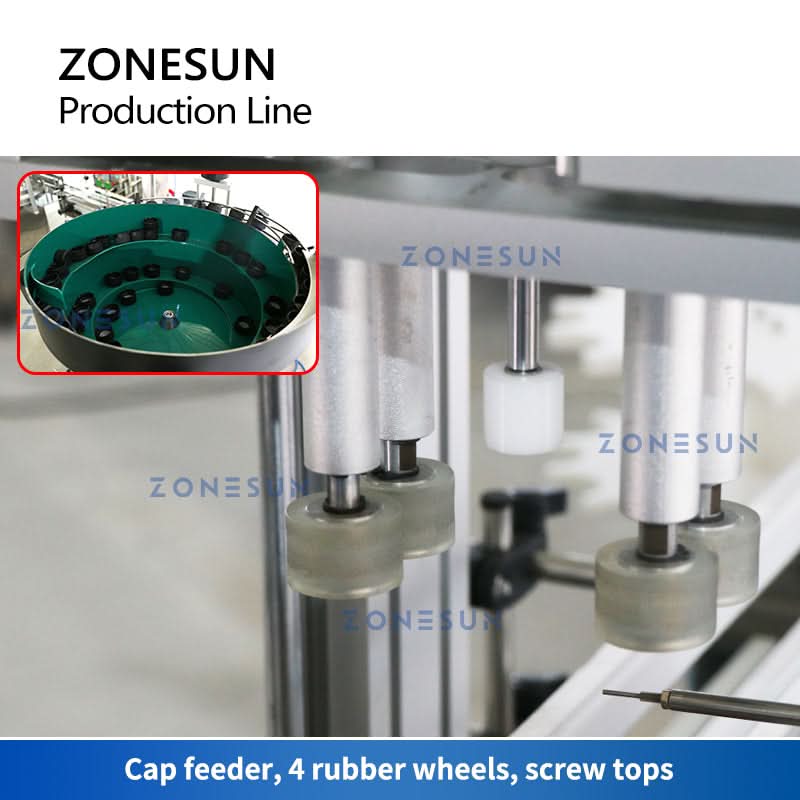

Vibratory Bowl |
|
|
Machine Power |
110/220V 50-60HZ |
|
Material |
Stainless Steel |
|
Suitable Caps Diameter |
Customizable |
|
Working Speed |
|
|
Machine Size |
|
|
Capping Machine |
|
|
Model |
ZS-XG1870V |
|
Bottle height |
60-270mm |
|
Bottle Caps Diameter |
18-70mm |
|
Working speed |
20-40 bottles/minute(depending on bottle and caps) |
|
Working voltage |
AC220V/110V 50-60HZ |
|
Working pressure |
0.4-0.6 MPa |
|
Machine size |
About 2130*1090*1040mm |
|
Package size |
About 1160*610*1140mm |
|
Package weight |
About 97.5kg |
|
Conveyor length |
1117mm |
|
Size of air compressor connector |
OD 8mm |
|

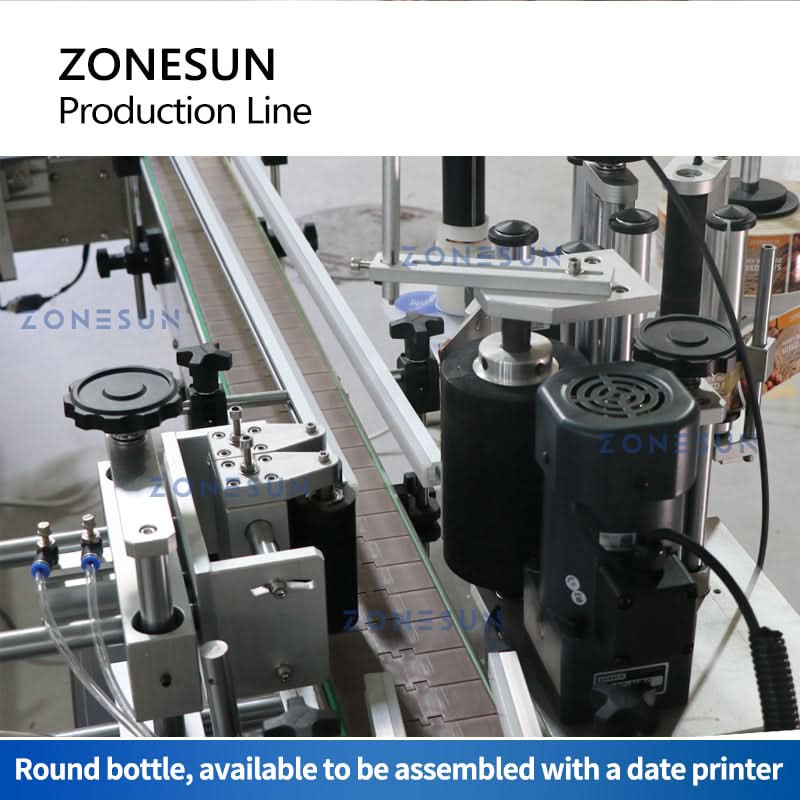

Labeling Machine |
|
|
Voltage |
110V-60HZ / 220V-50HZ |
|
Working Speed |
About 20-50bottles/min |
|
Suitable Labeling Size |
15-140mm (W) X 25-300mm (L) |
|
Roll inside diameter (mm) |
φ76mm |
|
Roll outside diameter (mm) |
φ350mm |
|
Suitable Bottle Diameter |
≤100mm |
|
Package Size |
About 1270*530*820mm |
|
Package Weight |
About 125kg |
|

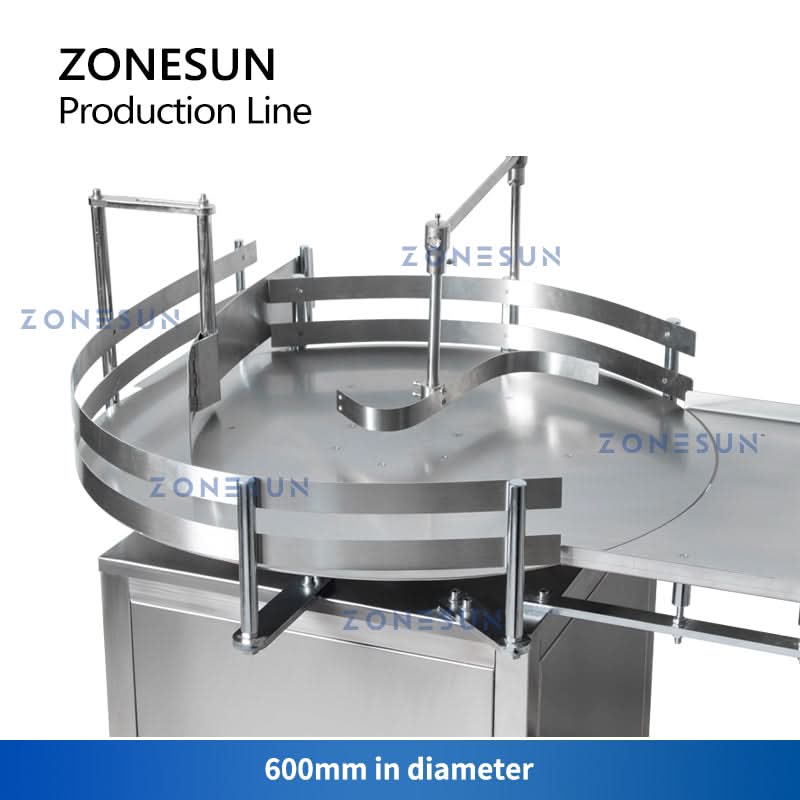

Turntable |
|
|
Model |
ZS-SP600Z |
|
Turntable Diameter |
600mm |
|
Suitable Bottle Diameter |
30-80mm |
|
Suitable Bottle Height |
≤2500mm |
|
Working Speed |
40-60 bottles/min (Depends on bottle size) |
|
Motor Power |
40W |
|
Power Supply |
220V/50-60HZ |
|
Package size |
About 700*740*740mm |
|
Net weight/Gross weight |
About 32.5kg/50kg |
