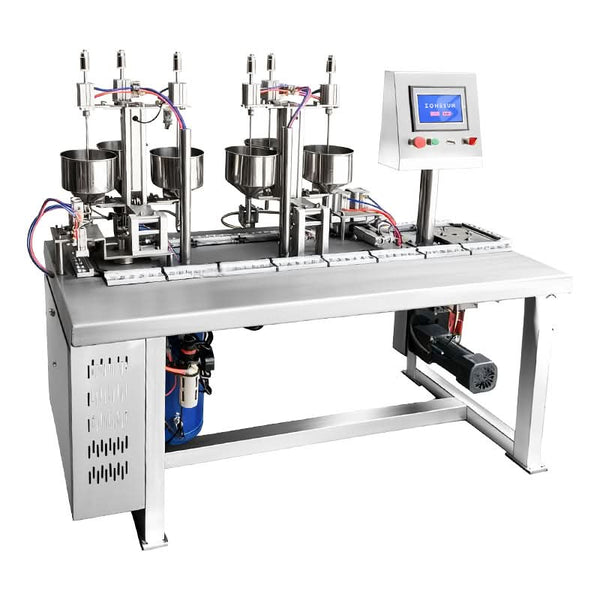

Zonesun ZS-FAL20 Watercolor Paint Filling and Capping Machine Art Paint Packaging Machine

Description

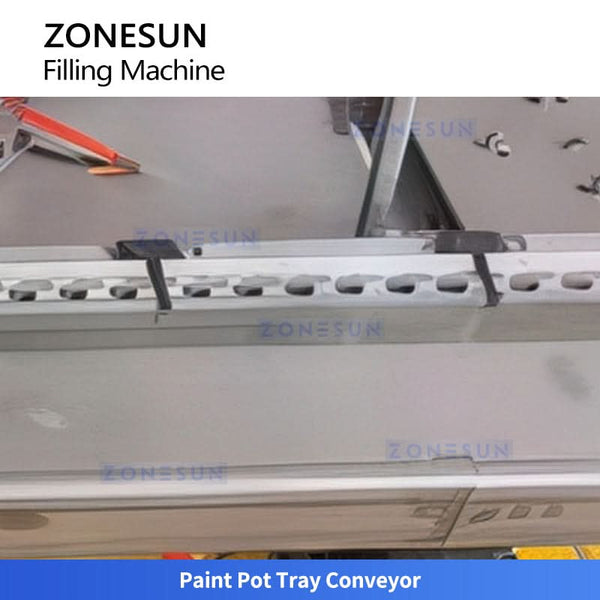

The ZONESUN ZS-FAL20 Watercolor Paint Filling Capping Machine is designed for precise, efficient, and clean filling of watercolor paints into multi-cavity plastic boxes. Supporting up to eight colors and operating at 20–42 cycles per minute, it features a modular filling system, paint input station, and integrated pressing unit for sealing. The tray conveyor ensures stable transport through filling and sealing stages, and at the discharge point, its open-bottom design enables upward ejection of filled pots into the collection box. With ±0.05 ml dosing accuracy and a compact footprint, it’s ideal for small-scale production of kids’ paint sets and artistic supplies.

Parameter

• Model Name: ZS-FAL20
• Power Supply: Single-phase 220V
• Power Consumption: 500 W
• Air Source Requirement: 0.1 m³/min, 0.4 MPa
• Filling Volume Range: 1–5 ml
• Filling Accuracy:
  • ±0.05 ml per cup
  • Within ±1 ml for six consecutive cups (depends on material)
• Filling Speed: 20–42 cycles/min (depends on operator proficiency)
• Hopper Capacity: 3 kg
• Color Filling Options: Eight colors available; 1–8 freely selectable
• Machine Dimensions: 1698 × 588 × 1260 mm
• Machine Weight: 150 kg

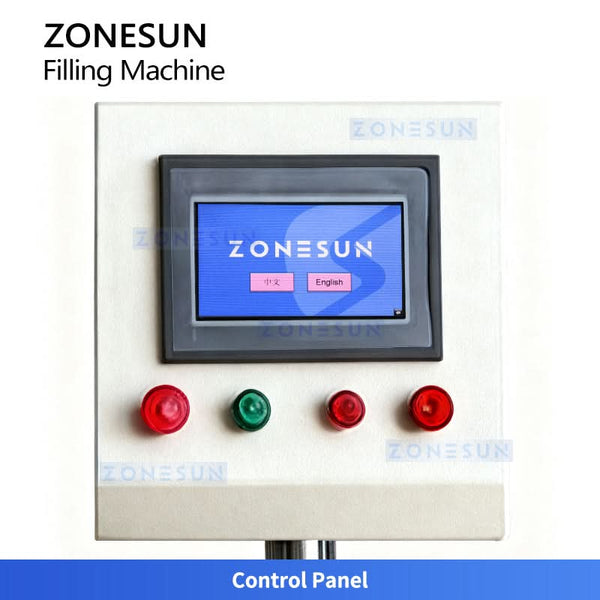

CONTROL PANEL
Displays system status and adjusts filling parameters, with start, stop, emergency shutdown, and fault-alert functions.

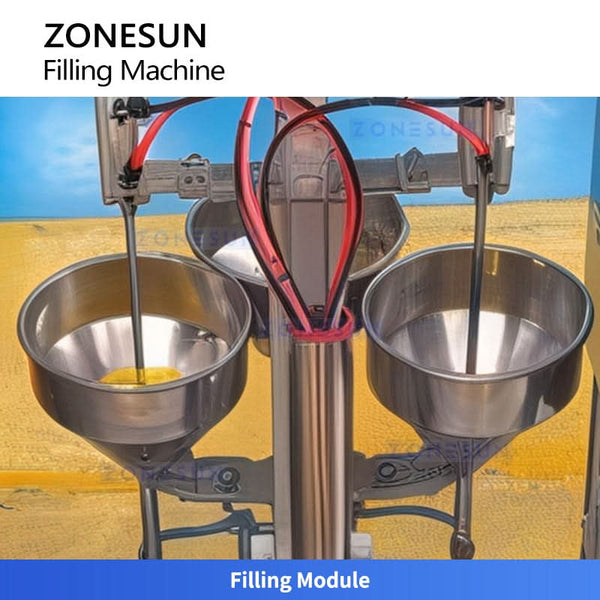

PAINT FILLING
Pneumatic nozzles dispense paint from stainless-steel hoppers for precise dosing and clean flow.

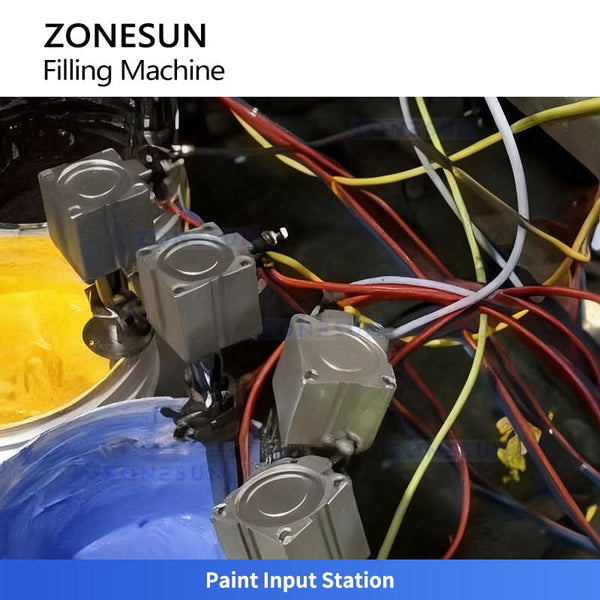

PAINT FEEDING
Transfers paint from buckets through tubing and controls flow and color switching before delivery to the filling heads.

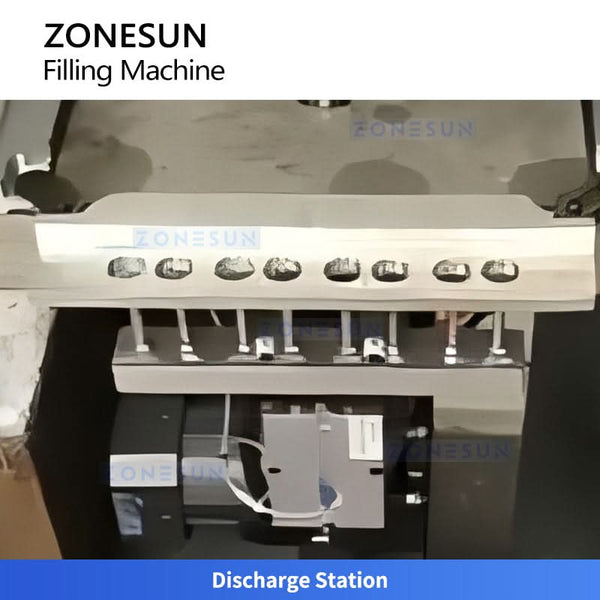

DISCHARGE STATION
Raises filled paint pots through the open tray base for clean discharge into the collection box.
