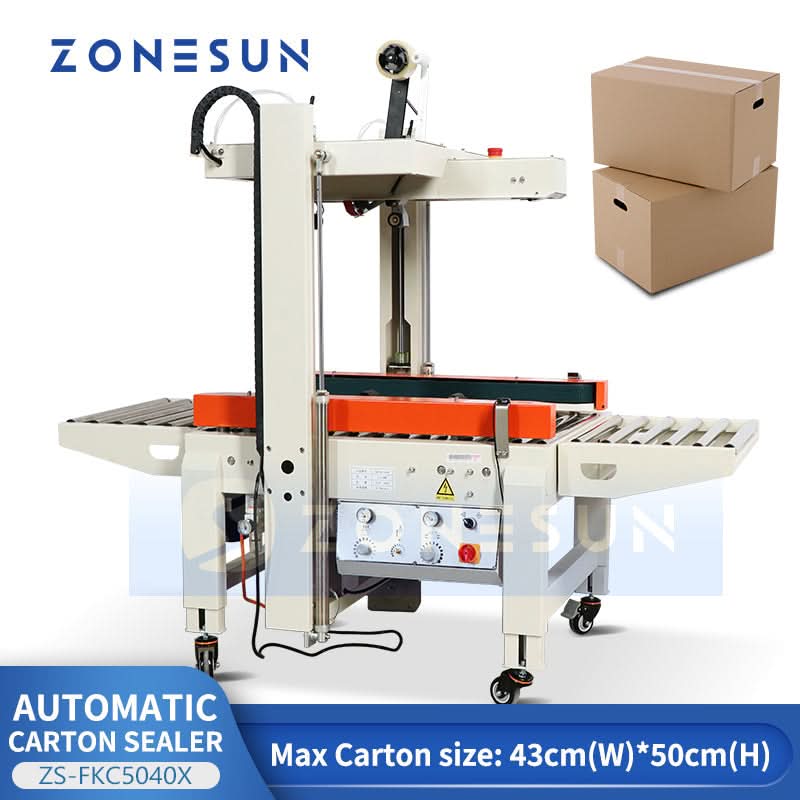

ZONESUN ZS-FKC5040X Automatic Carton Top and Bottom Sealing Machine
DESCRIPTION
The automatic and pneumatic carton sealer is equipped with photoelectric sensors that automatically detect the loading carton and begin clamping. This feature eliminates the need for users to manually adjust the side and top clamps, making the sealing process faster and more efficient. Whatever your packaging needs are, you can rely on ZONSUN.
PARAMETER
|
Machine Model |
ZS-FKC5040X |
|
Machine Power |
110/220V, 50-60Hz, 240W |
|
Conveyor Speed |
18m/min |
|
Tape Width |
≤60mm |
|
Transmission mode |
Conveyor belt transmission on both sides |
|

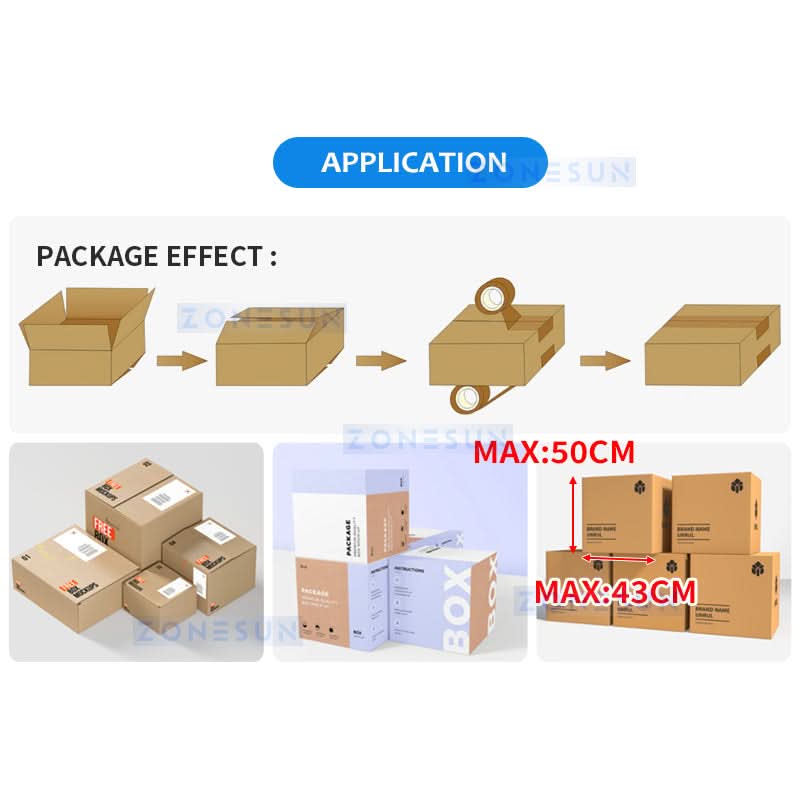

Max Carton Size |
432*508mm (W*H) |
|
Min Carton Size |
355*305*127mm |
|
Package Size |
About 110*100*172m |
|
Package Weight |
About 252kg |
PRODUCT DETAILS

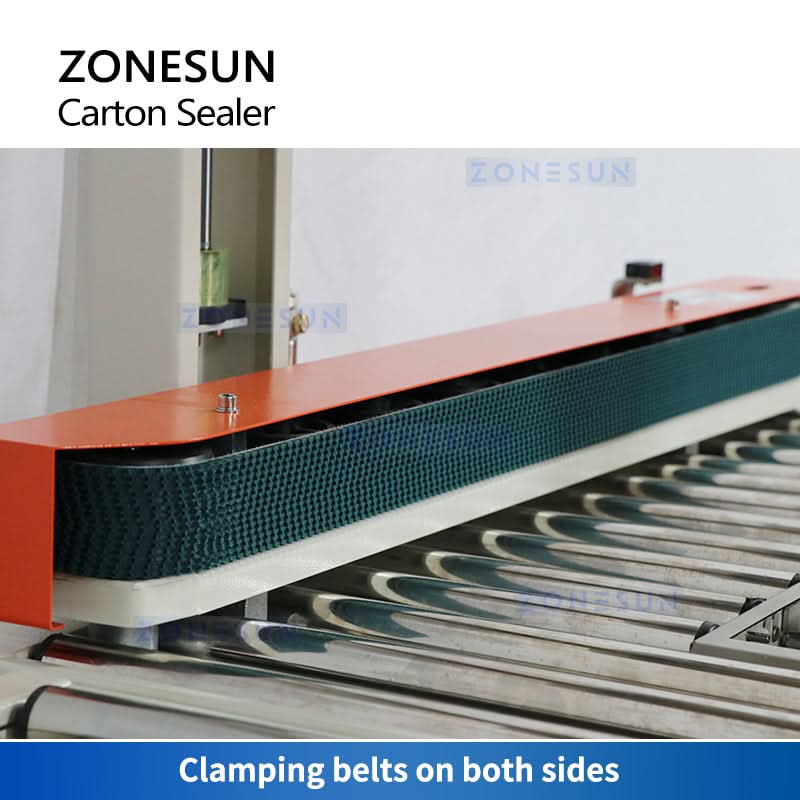

CLAMPING BELT
On both sides, hold the cartons in place, high-quality materials, durable and long-lasting.

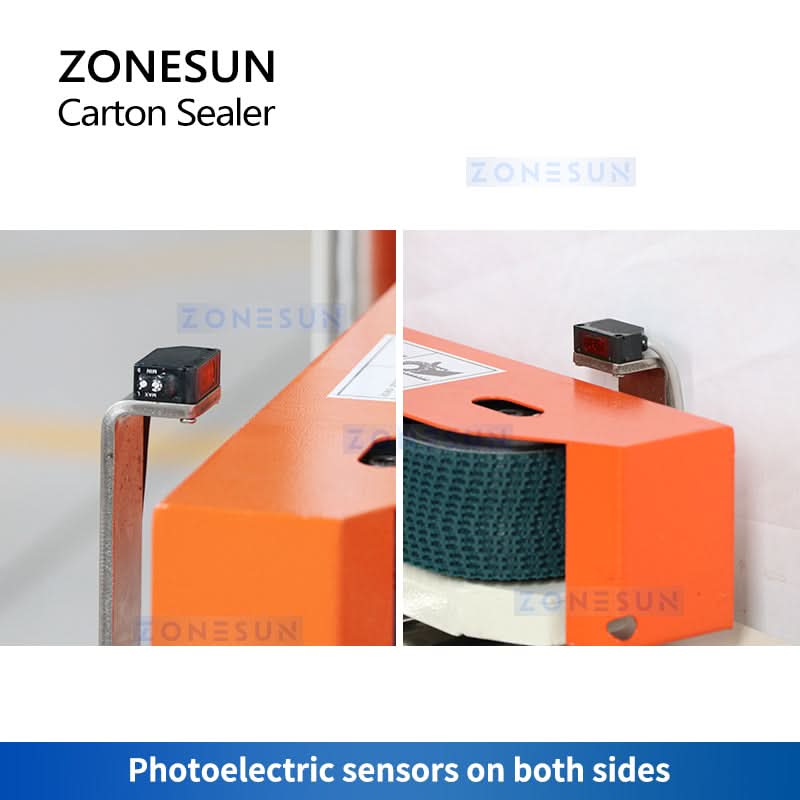

SENSING
Photoelectric eyes on both sides, smarting detecting for the loading cartons.

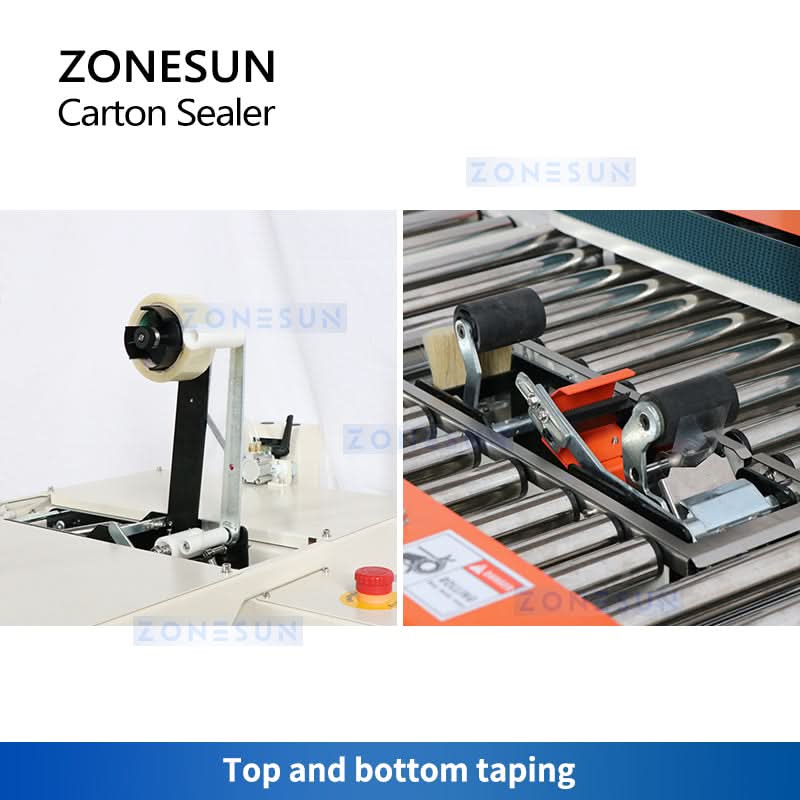

TAPING MECHANISM
Responsible for applying the tape to the cartons, ensuring that they are securely sealed and ready for shipping or storage.
