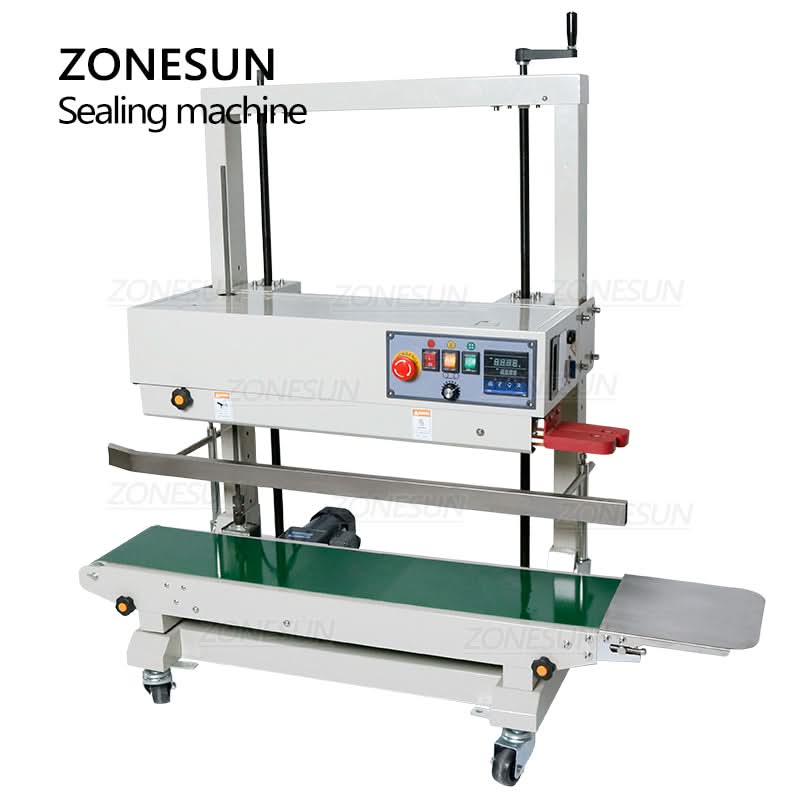

ZONESUN ZS-FR1100 Vertical Continuous Band Food Pouch Plastic Bag Heat Packing Sealing Machine
Parameter
|
Machine Model |
ZS-FR1100 |
|
Voltage |
220V/50Hz 110V/60Hz |
|
Power |
1235W |
|
Sealing Speed |
0-12m/min |
|
Sealing Width |
6-12mm |
|
Sealing Height |
80-600mm |
|
Single-layer Film Thickness |
≤0.08mm |
|
Temperature Range |
0-300℃ |
|
Size pf Tray |
250mm*240mm(L*W) |
|
Conveyor Size |
980mm(L)*200mm(W) |
|
Conveyor Loading Capacity |
≤15kg |
|
Machine Size |
1243mm*580mm*1228mm(L*W*H) |
|
Machine Weight |
80kg |
|
Package Size |
1200mm*695mm*1250mm |
|
Package Weight |
107.5kg |
Description

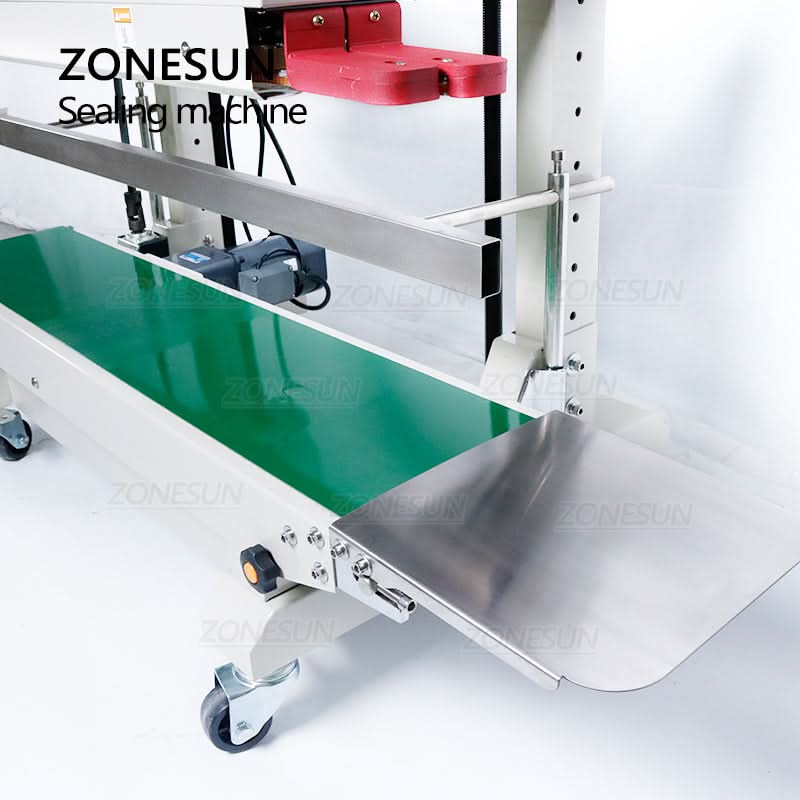

This semi automatic sealing machine is with a bracket, which makes it can adjust the working height and work for larger bags.The conveyor will help to transport finished products,save labor and time.This machine is suitable for aluminium foil bag,plastic bag,paper bag,shrinkable film bag etc.The embossing pattern can be customized according to your need. The conveyor has a large loading capacity, which can reach 15kg.
Notice

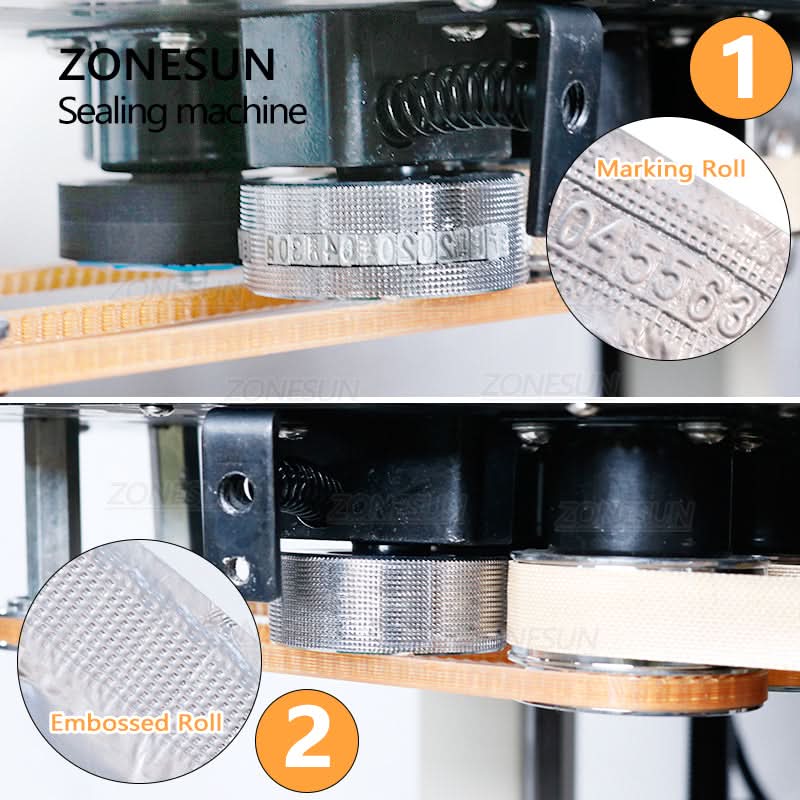

This machine can be equipped with fonts, which can help to print batch or production date on the products. We can customize the fonts for you. If you need, please contact us. Thank you.
