ZONESUN ZS-FS100L Automatic Rotor Pump Paste and Liquid Sachet Packaging Machine

Description

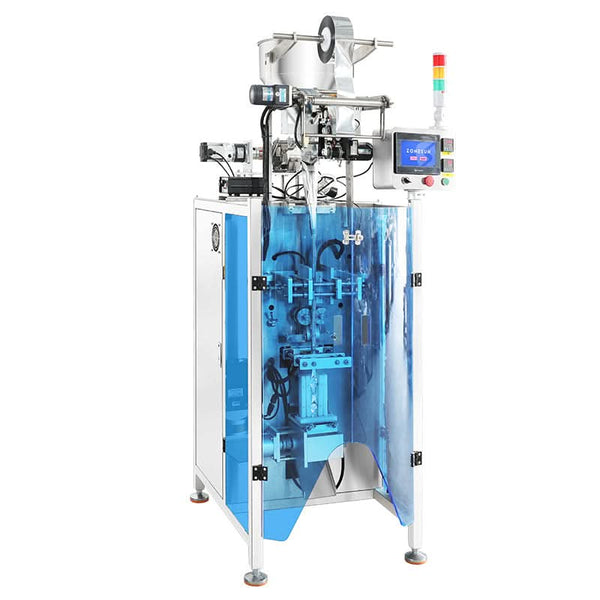

The ZONESUN ZS-FS100L is a compact vertical form-fill-seal (VFFS) machine for paste and liquid sachet packaging. Its rotor pump (rotary lobe pump) transfers and dispenses material from the hopper into sachets. The machine integrates film pulling, bag forming, rotor pump filling, heat sealing, and sachet cutting in one unit. Suitable applications include compatible sauces, chocolate paste, creams, and liquids. Working speed is 30–50 bags per minute, with a filling range of 5–100 ml and filling accuracy of ±1%; actual output and accuracy depend on material properties, filling volume, and operating conditions.

Parameter

• Machine Model: ZS-FS100L
• Working Speed: 30–50 bags/min
• Filling Range: 5–100 ml
• Filling Pump: Rotor Pump (Rotary Lobe Pump)
• Suitable Materials: Compatible Pastes and Liquids
• Filling Accuracy: ±1%
• Bag Size Supported: Length 50–150 mm / Width 20–40 mm
• Power Consumption: 4 kW
• Voltage: 220V
• Machine Weight: 340 kg
• Machine Dimensions: 1080 × 790 × 1750 mm

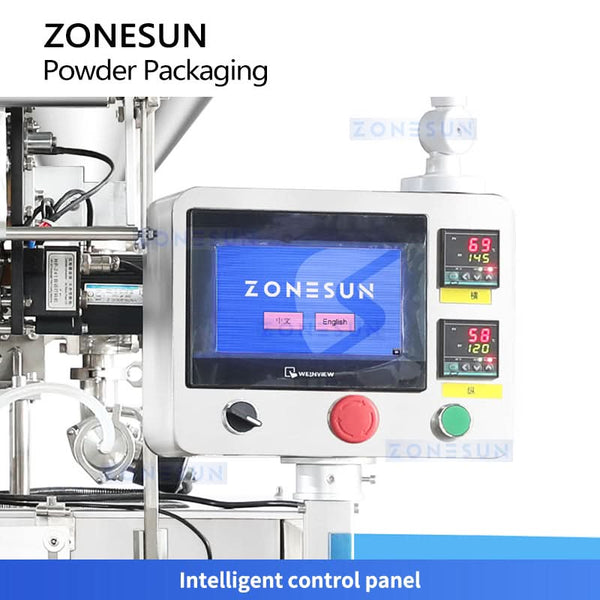

CONTROL PANEL
Supports customizable languages, packaging-parameter control, machine-status monitoring, and operating adjustments.

ROTOR PUMP FILLING STRUCTURE
Uses a rotary lobe mechanism to transfer paste and liquid materials from the hopper to the filling system with controlled, continuous flow.

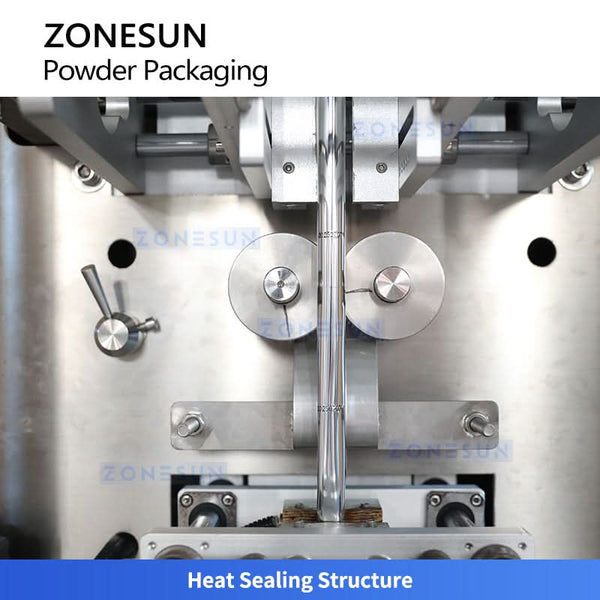

HEAT SEALING
Applies heat and pressure to seal the packaging film into airtight sachets.

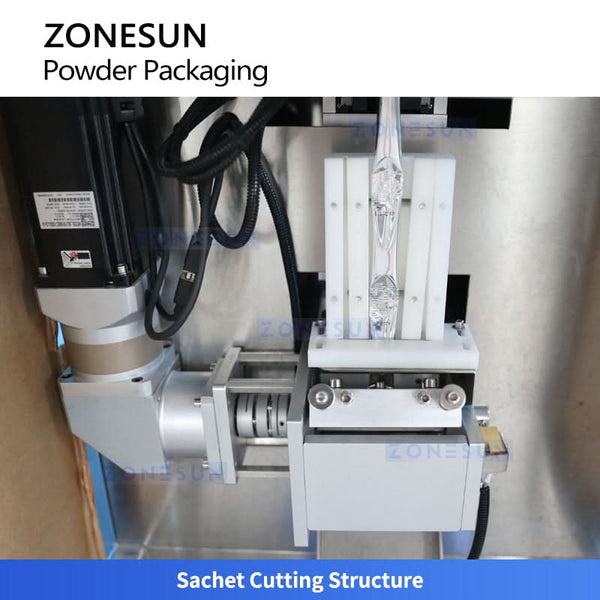

SACHET CUTTING
Cuts continuous film into uniform sachets with clean edges, using a positioning block for accurate alignment.

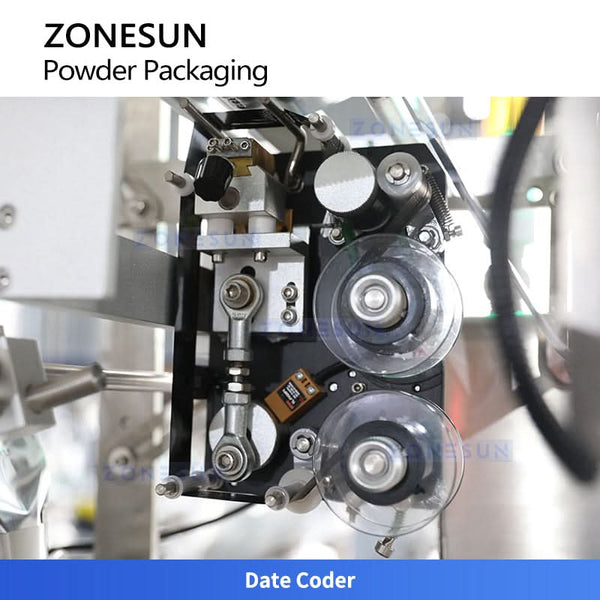

DATE CODING
Prints production dates, batch numbers, and expiry information in synchronization with the packaging cycle.
