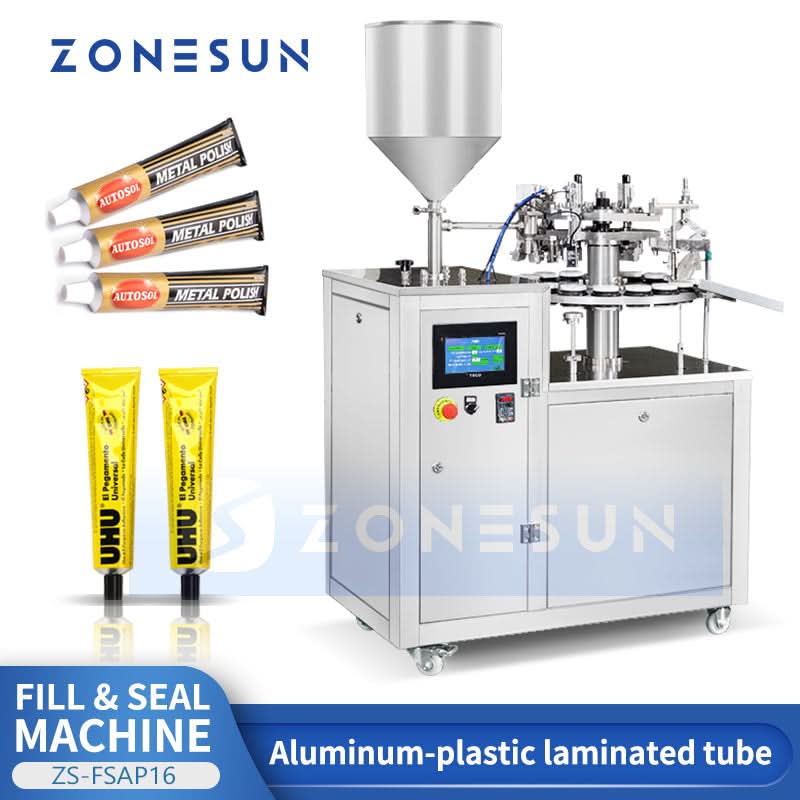

ZONESUN ZS-FSAP16 Automatic Paste Filling Tube Edge Folding Sealing Machine
DESCRIPTION

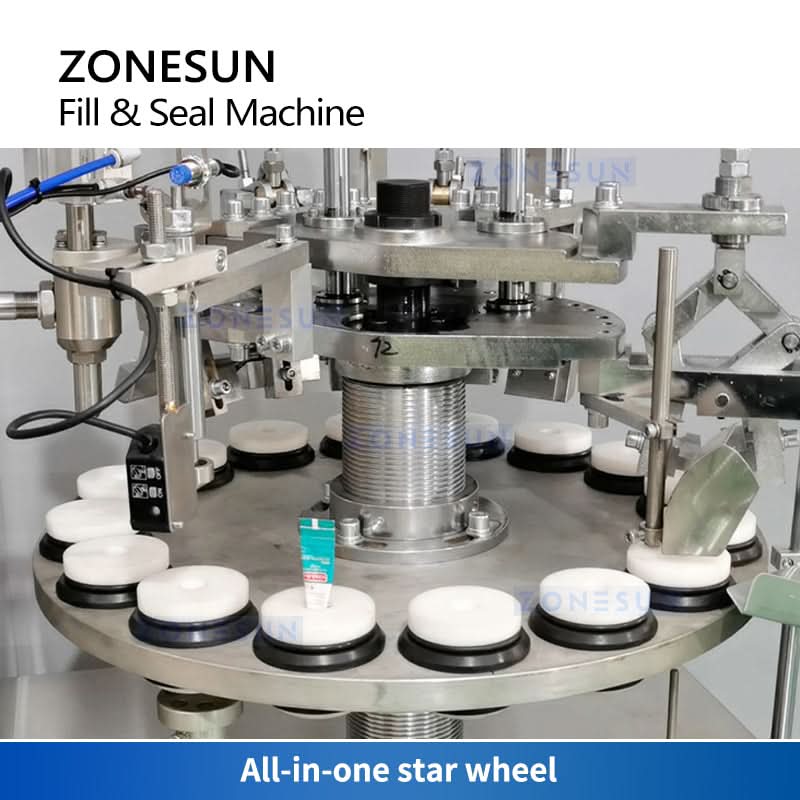

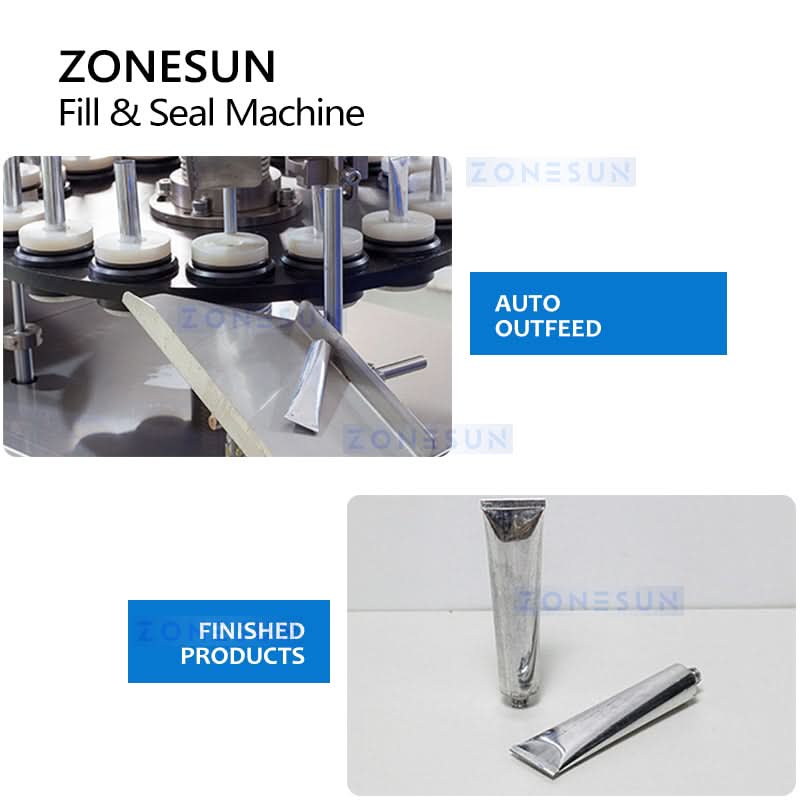

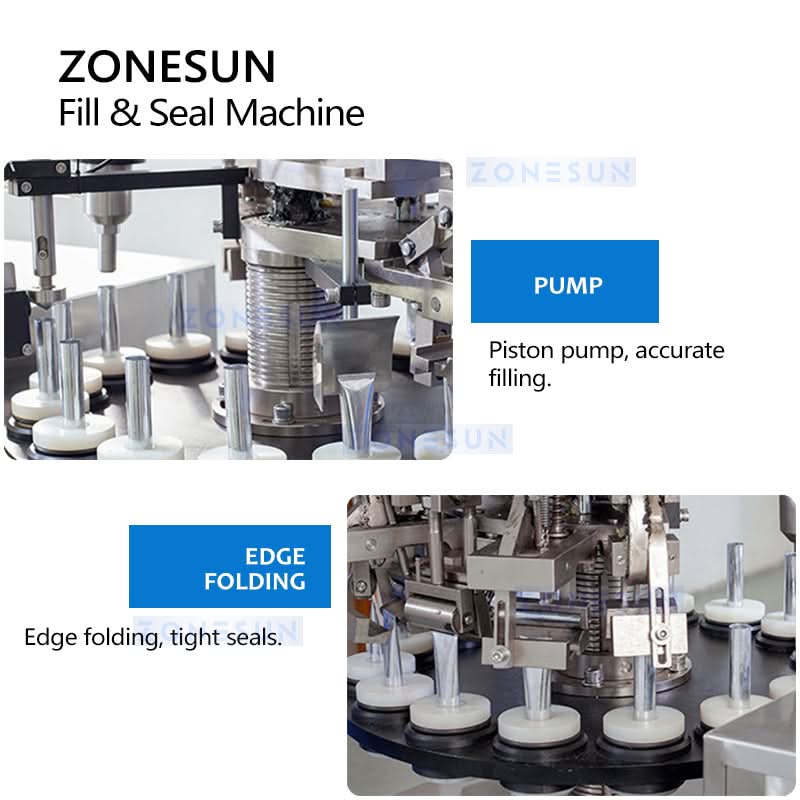

This machine features a streamlined process that begins with manually placing the tube in the star wheel station. From there, the tube moves to the turning station where the mark point at the top of the tube is sensed and rotated to the correct direction. Next, the tube moves to the filling station where it is filled using a precision piston pump. Once filled, the tube moves to the edge folding and sealing station, ensuring a secure and professional seal. Finally, the tube is discharged, ready for use.
Our monoblock is equipped with advanced PLC controls, making it easy to operate and control. Its high level of automation and precision make it the perfect choice for small and medium-sized businesses looking to enhance their packaging process.
Whatever your packaging needs are, you can rely on ZONESUN.
PARAMETER
|
Model |
ZS-FSAP16 |
|
Capacity |
10-45 pcs/min |
|
Tube |
Φ10mm-Φ50mm |
|
Tube Height |
20mm-250mm (customizable) |
|
Control system |
PLC |
|
Power supply |
220V, 50Hz |
|
Air consumption |
0.3m³/min |
|
Dimension |
1000mm*600mm*1700mm(L*W*H) |
|
Equipment Material |
SUS 304 |
|

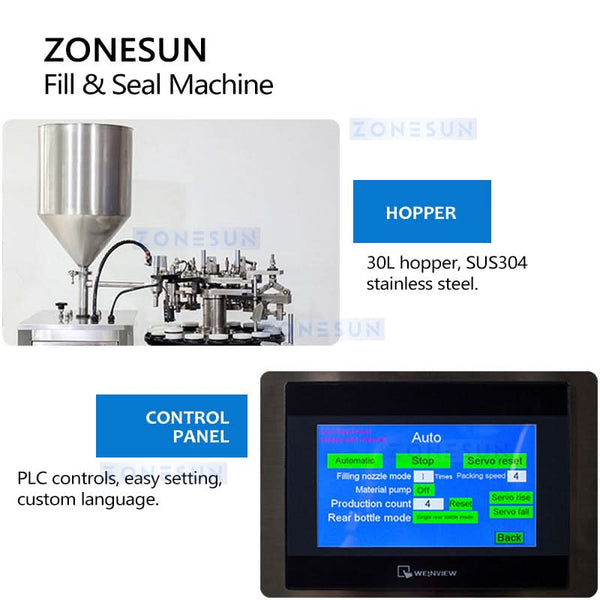

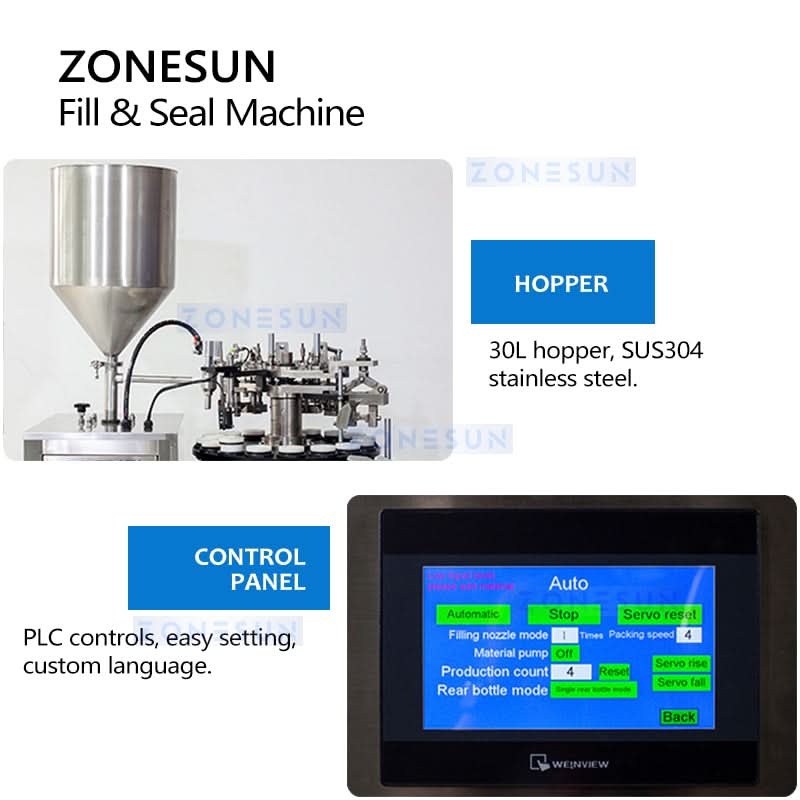

Hopper |
30L |
|
Weight |
400KG |
