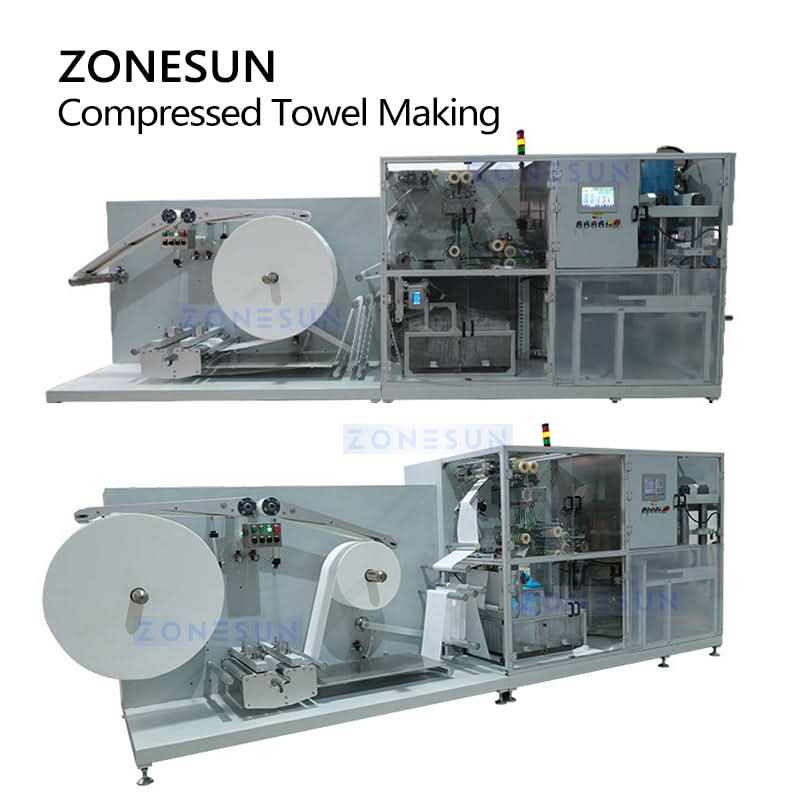

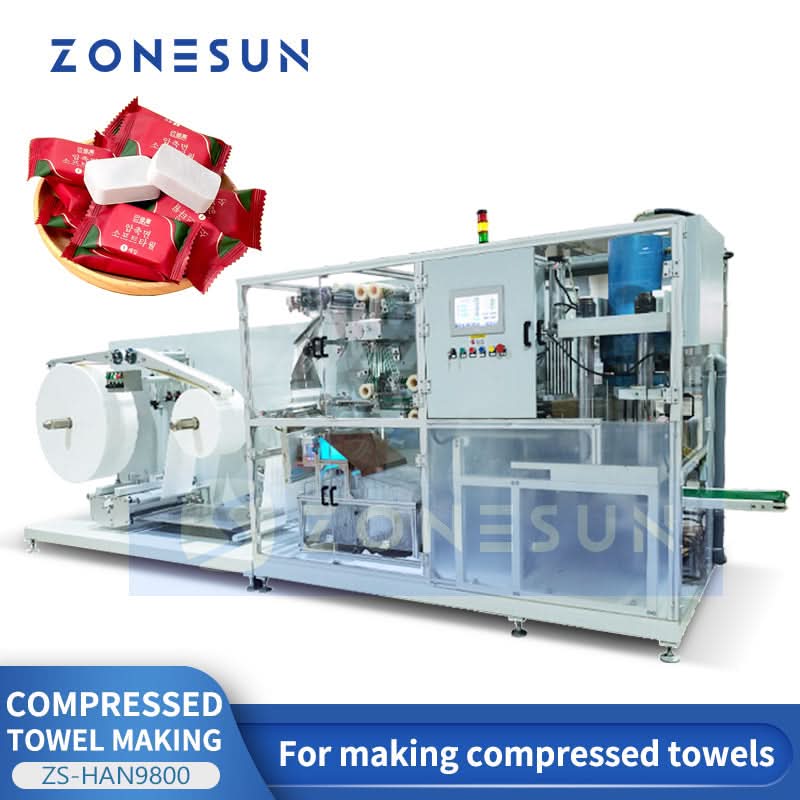

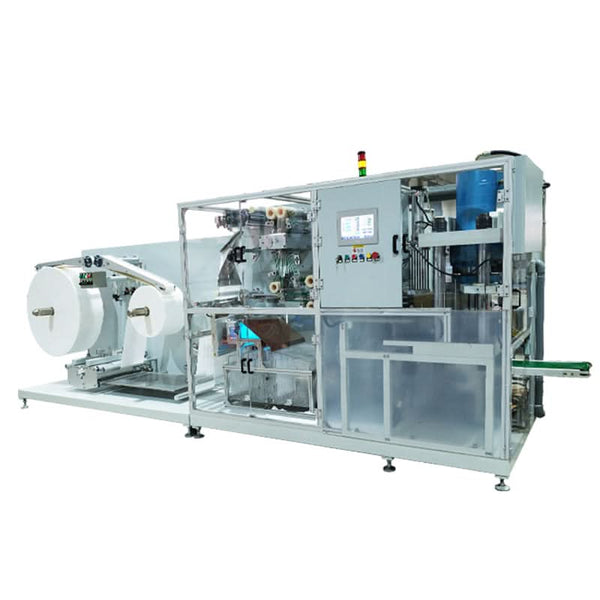

The ZS-HAN9800 is a fully automated machine engineered for producing disposable compressed towels, widely used in hospitality, travel, and personal care. It integrates fabric feeding, folding, cutting, steam sterilization, and compression into a seamless workflow. Each cycle produces 12 neatly formed towels, ensuring high output and consistent quality. With precision punching and mold shaping, this machine delivers hygienic, compact towels ready for packaging. Trust ZONESUN for reliable, high-efficiency towel production.
Parameter Details
Model ZS-HAN9800
Power Supply 380V, 50Hz, 15KW
Size of Non-woven Fabric Inner core diameter: 76 mm<br>Outer diameter: ≤1200 mm
Folding Type Vertical fold 2–3 times, horizontal fold in half
Unfolded Fabric Size Length: 200–300 mm<br>Width: 200–300 mm
Applicable Package Size 160 mm (L) × 200 mm (W) × 50 mm (H)
Working Speed 200–250 packs/min
Machine Size 2000 mm (L) × 790 mm (W) × 1550 mm (H)
Machine Weight Approx. 650 kg

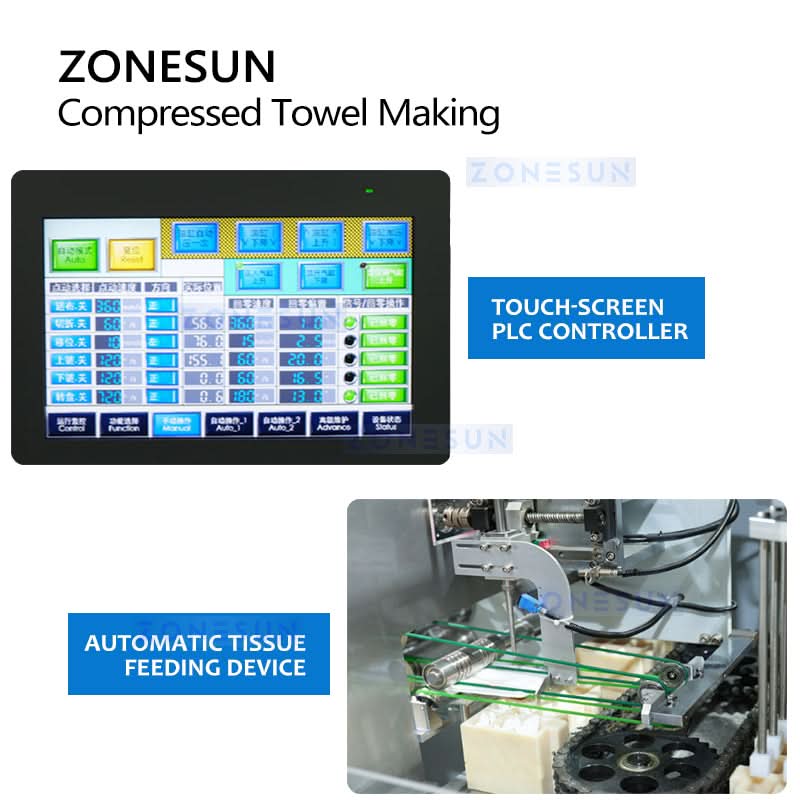

TOUCHSCREEN PLC CONTROLLER
The touchscreen PLC provides centralized control of the machine’s operating settings.
AUTOMATIC TISSUE FEEDING
The automatic feeding device supplies nonwoven material to the production process.

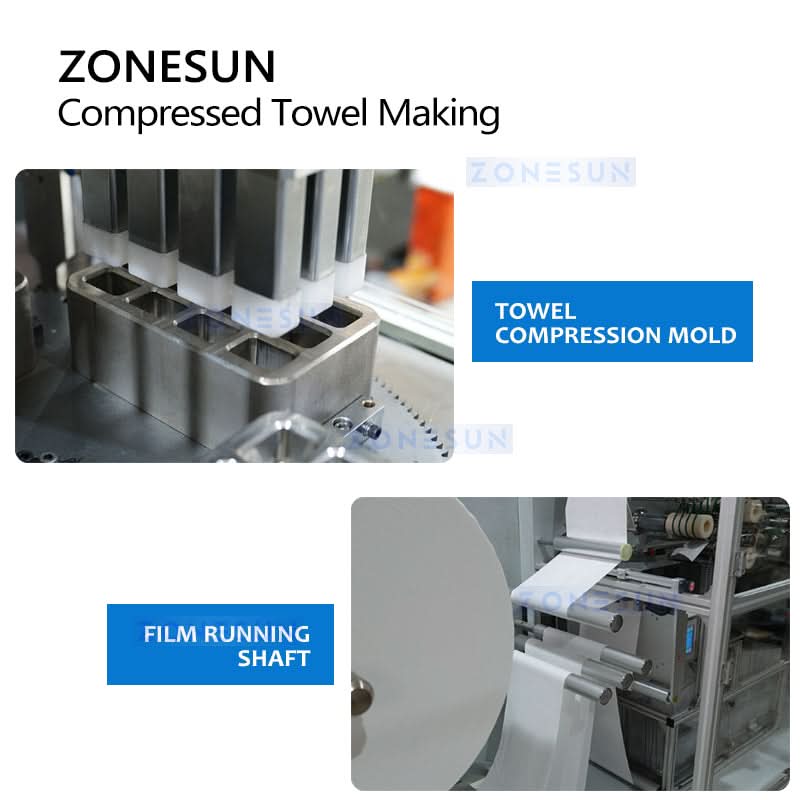

TOWEL COMPRESSION MOLD
The compression mold forms the folded material into compact towel pieces.
FILM FEEDING SHAFT
The film-feeding shaft supplies packaging film to the machine.
TISSUE FOLDING DEVICE
The folding device processes the material before compression and packaging.
