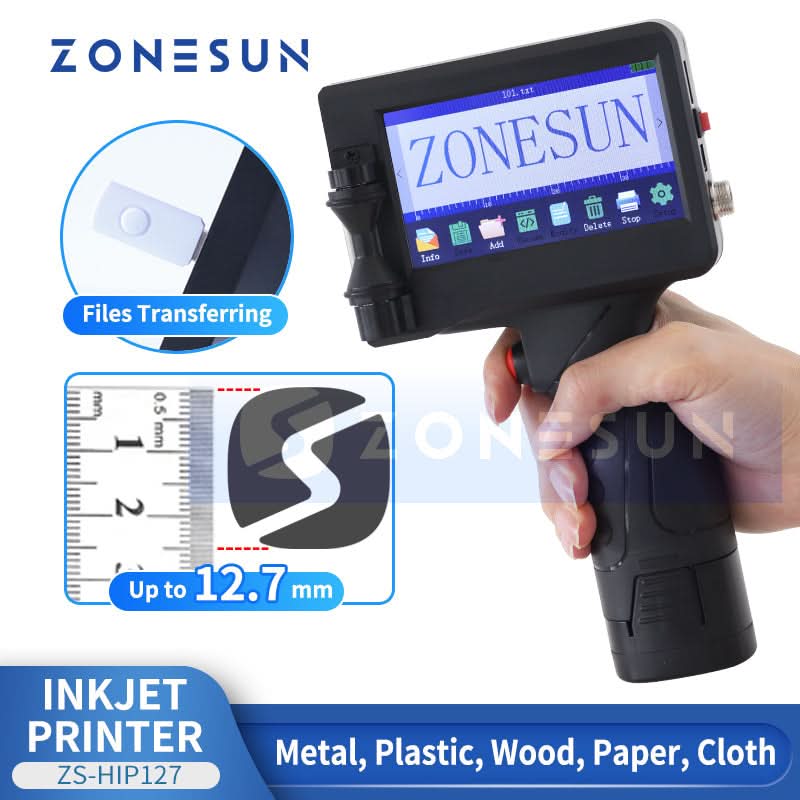

The ZONESUN ZS-HIP127 is a portable handheld inkjet printer for printing dates, batch numbers, text, logos, barcodes and QR codes. Its 4.3-inch touchscreen supports direct content editing, while compatible TXT and BMP files can be imported through the USB port. It can print on compatible flat, concave and convex surfaces such as cartons, bags, pipes, metal sheets and wood. Printing results depend on the selected ink and surface material, so sample testing is recommended before purchase.
Key Features
- Portable Handheld Coding — Prints dates, batch numbers, text, logos, barcodes and QR codes directly on products and packaging.
- 4.3-Inch Touchscreen — Edit text, time, counters, images and codes through the Chinese or English interface.
- Up to 600 DPI — Supports a printing height of 2–12.7 mm and 1–6 rows, depending on the content layout.
- USB File Import — Imports compatible TXT and BMP files through the Type-A USB port.
- Rechargeable Battery — The removable 16.8V, 2800 mAh battery supports cordless handheld operation.
- Optional Inline Integration — The photoelectric port can connect to compatible optional sensing equipment for automated printing.
- Six Ink Colors — Available with black, red, blue, green, yellow or white ink cartridges.
Specifications
| Model | ZS-HIP127 |
| Display | 4.3-inch touchscreen |
| Print Resolution | Up to 600 DPI |
| Printing Height | 2–12.7 mm |
| Printing Rows | 1–6 |
| Printing Distance | 2–5 mm |
| Ink Colors | Black, Red, Blue, Green, Yellow, White |
| Cartridge Capacity | 45 mL |
| USB Port | Type-A |
| Languages | Chinese / English |
| Supported Content | Text, date, counter, image, logo, barcode and QR code |
| Battery | 16.8V, 2800 mAh rechargeable battery |
| Machine Size | 22.8 × 12.7 × 9.5 cm |
| Package Size | 27 × 19 × 16 cm |
| Net Weight | 0.6 kg |
| Gross Weight | 1.1 kg |
Applications

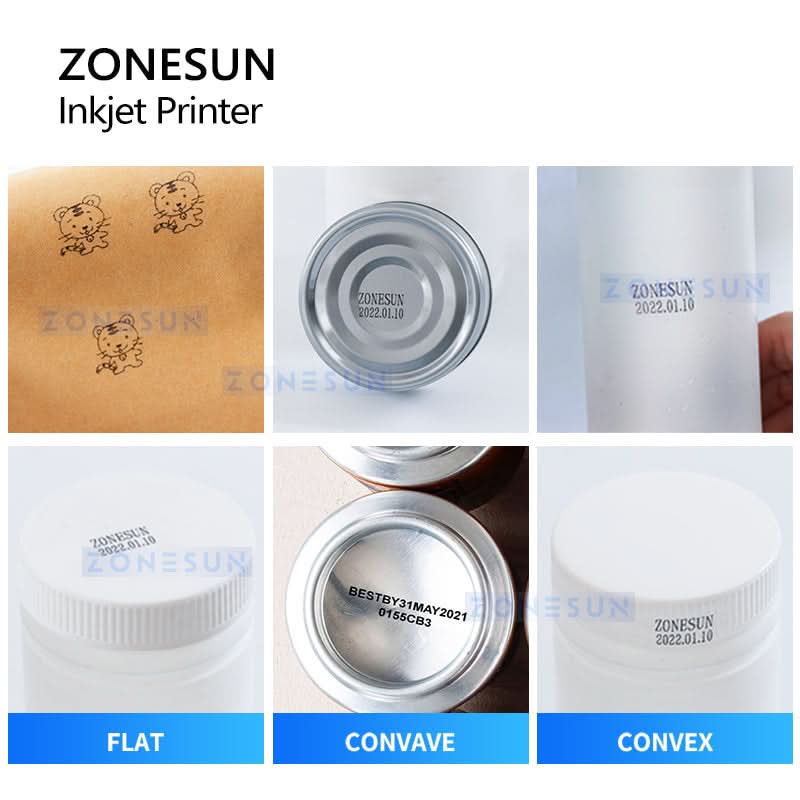

Suitable for coding expiry dates, batch numbers, barcodes, QR codes and logos on compatible cartons, food bags, PVC pipes, metal sheets, wood and other packaging materials. Ink adhesion and drying performance vary by cartridge type and surface, so test the actual material before production.
Optional Integration Note: The photoelectric port supports compatible optional sensing equipment. A sensor, bracket and conveyor are not included unless shown in the selected SKU contents.

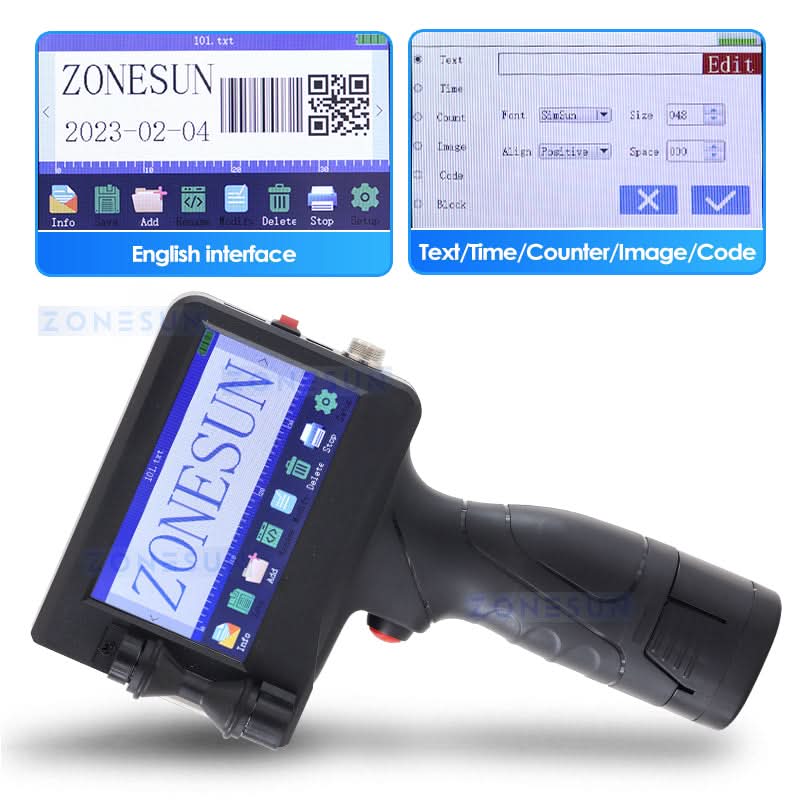

TOUCHSCREEN CONTROL
Edit text, dates, counters, images, barcodes and QR codes through the 4.3-inch interface.

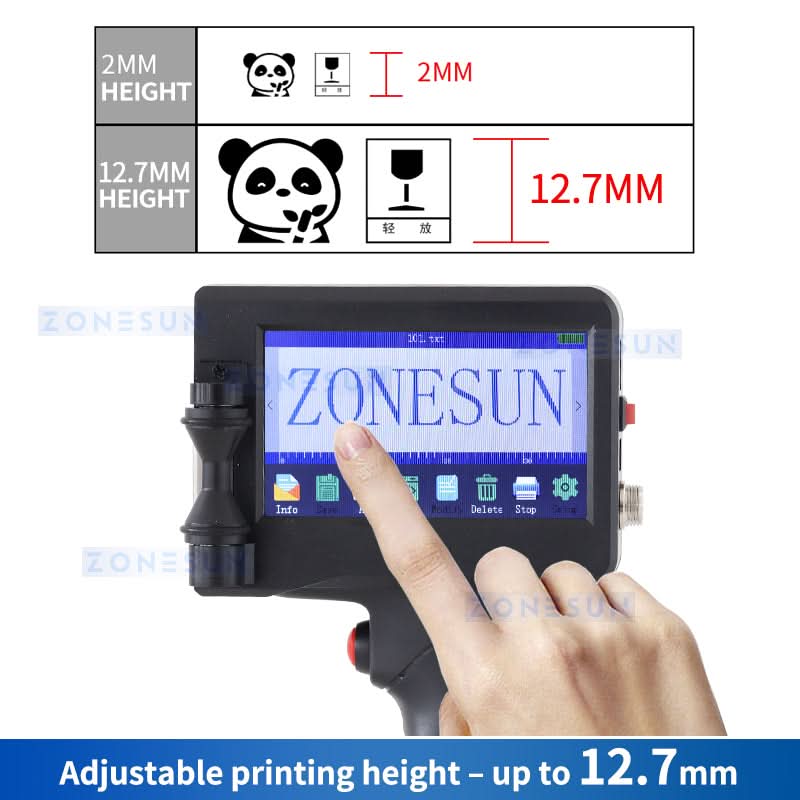

ADJUSTABLE PRINT FORMAT
The printer supports a 2–12.7 mm printing height and up to six rows, depending on the content layout.

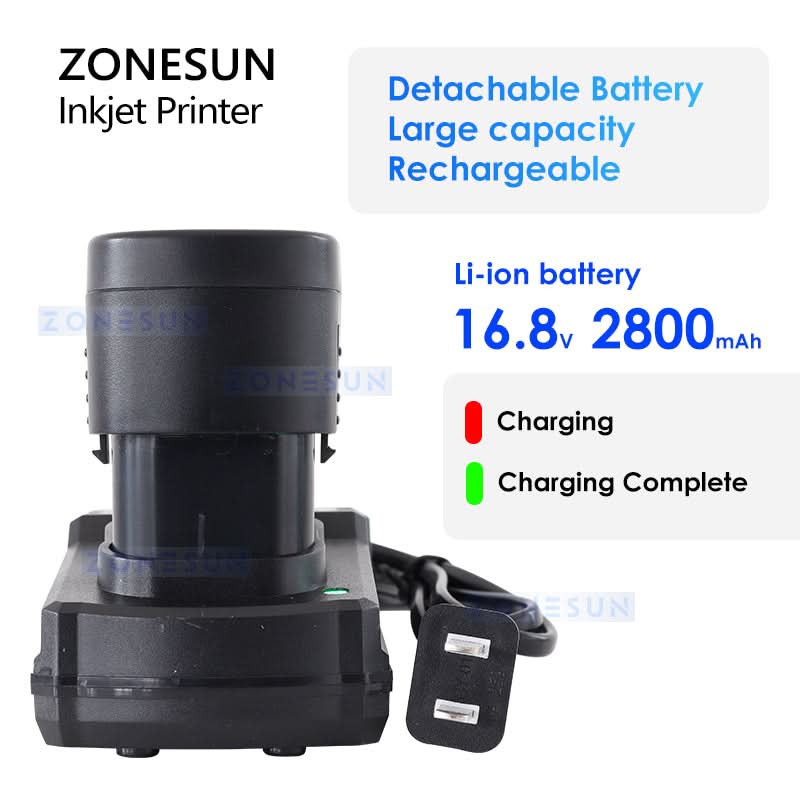

RECHARGEABLE BATTERY
The removable 16.8V, 2800 mAh battery supports portable operation and should be detached from the printer for charging.

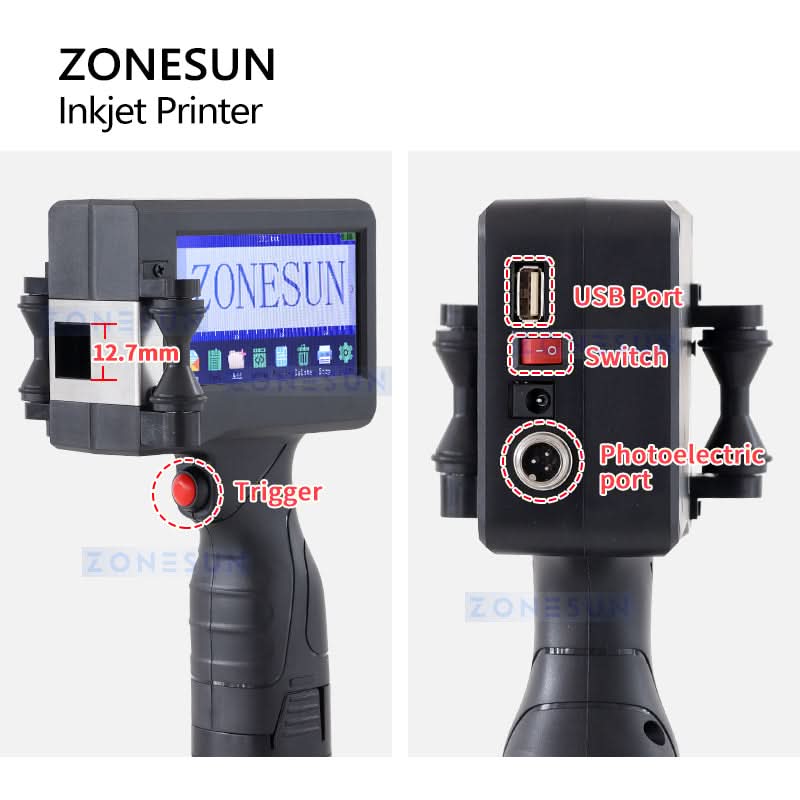

USB AND PHOTOELECTRIC PORTS
The USB port supports compatible TXT and BMP file import. The photoelectric port is designed for connection to optional automatic sensing equipment.
INK CARTRIDGE OPTIONS
Choose black, red, blue, green, yellow or white ink according to the application. Test adhesion and drying performance on the actual material before production.
CARTRIDGE HANDLING
Do not remove or tear the flexible circuit at the bottom of the ink cartridge.
