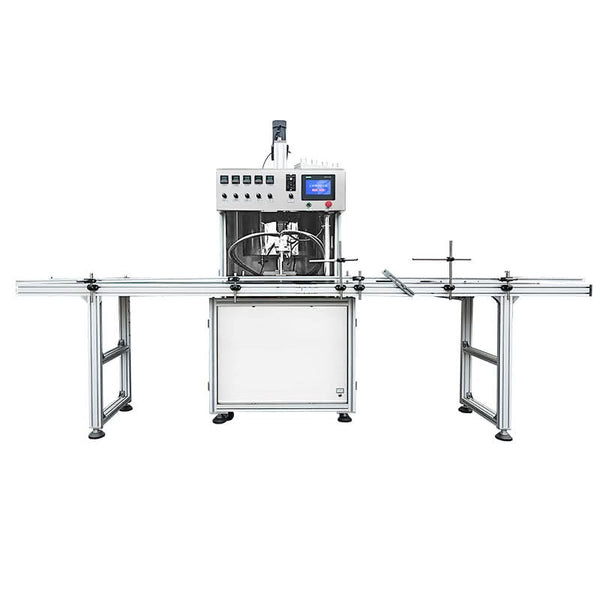

Introducing our state-of-the-art heated filling machine with 4-head piston filling system. It is ideal for precise filling of a wide range of viscous and liquid products including cooling oils, ointments, foundation creams, pomades, lipsticks and lip glosses. The double-layered heating barrel ensures even heating of the material and the piston pump is driven by a servo motor, providing smooth, accurate filling with minimal noise for a comfortable production environment.
Parameter
Model ZS-JRF4
Voltage 380V / 50Hz
Power 7.5 kW
Stirring Speed 0–90 rpm
Hopper Size 150 L
Capacity 20–50 pcs/min
Conveyor Size 3000 × 200 mm
Machine Dimensions 3000 × 850 × 1950 mm
Packing Size 1580 × 1000 × 2150 mm
Gross Weight Approx. 380 kg

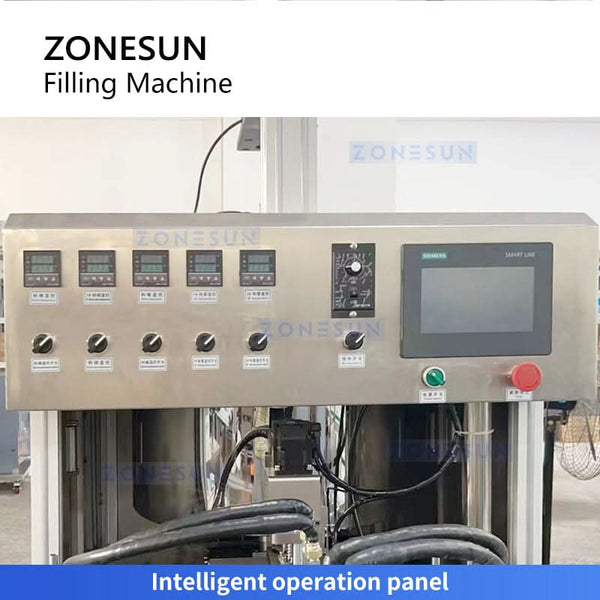

OPERATION PANEL
The touchscreen interface makes the filling process easy to control and monitor.
FILLING NOZZLES
Four lifting nozzles fill simultaneously. A back-suction device helps prevent dripping.

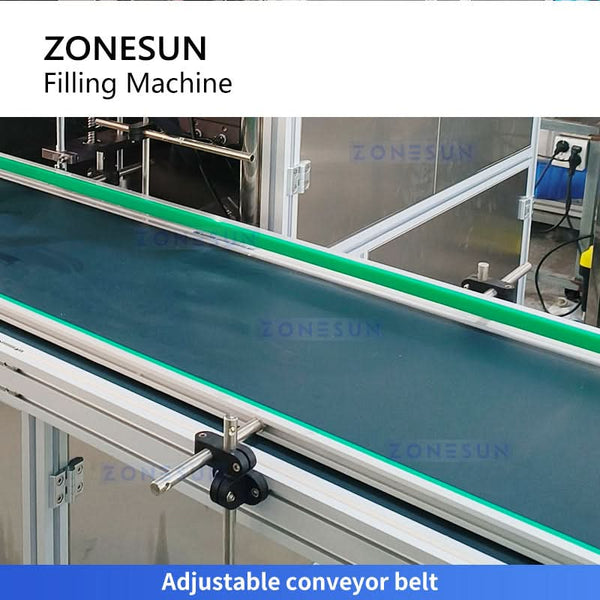

CONVEYOR BELT
Guide rails on both sides help prevent products from tilting while the belt moves bottles smoothly through the line.

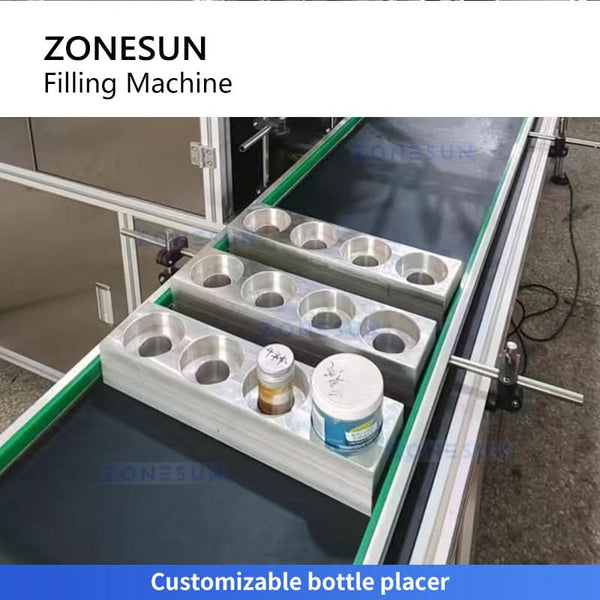

CUSTOMIZABLE BOTTLE POSITIONER
Positions each bottle accurately for filling and helps prevent liquid from dripping onto the conveyor belt.
