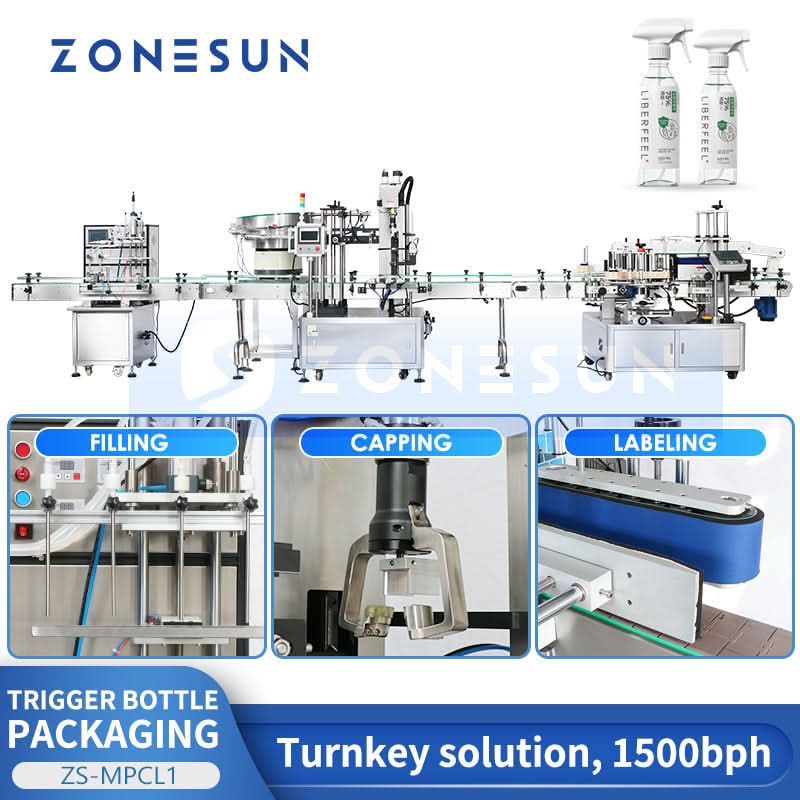

ZONESUN ZS-MPCL1 Automatic Trigger Bottle Liquid Filling Capping Labeling Production Line Magnetic Pump
DESCRIPTION

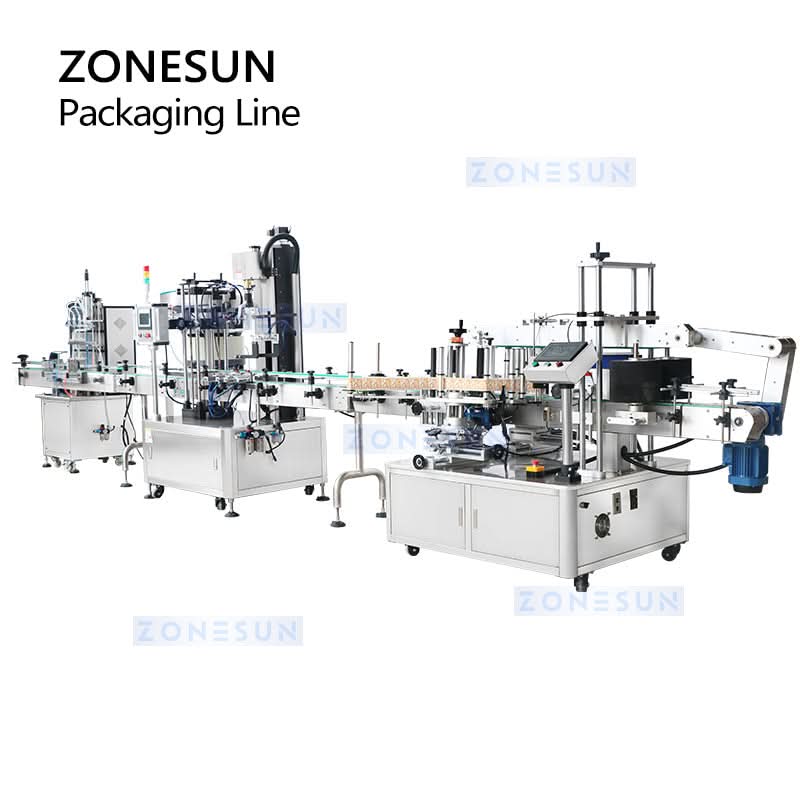

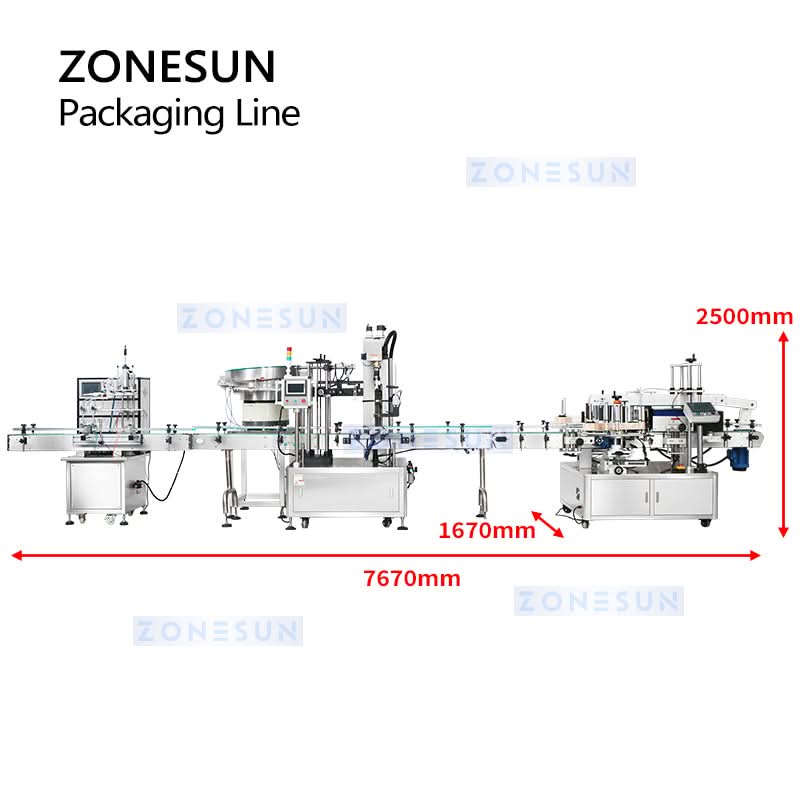

This trigger bottle packaging line is the perfect solution for businesses looking to streamline their packaging process. The line consists of a high-quality filling machine, a reliable capping machine, and a precision labeling machine. With this packaging line, you can efficiently package your trigger bottles with ease. Whatever your packaging needs are, you can rely on ZONESUN.
PARAMETER
|

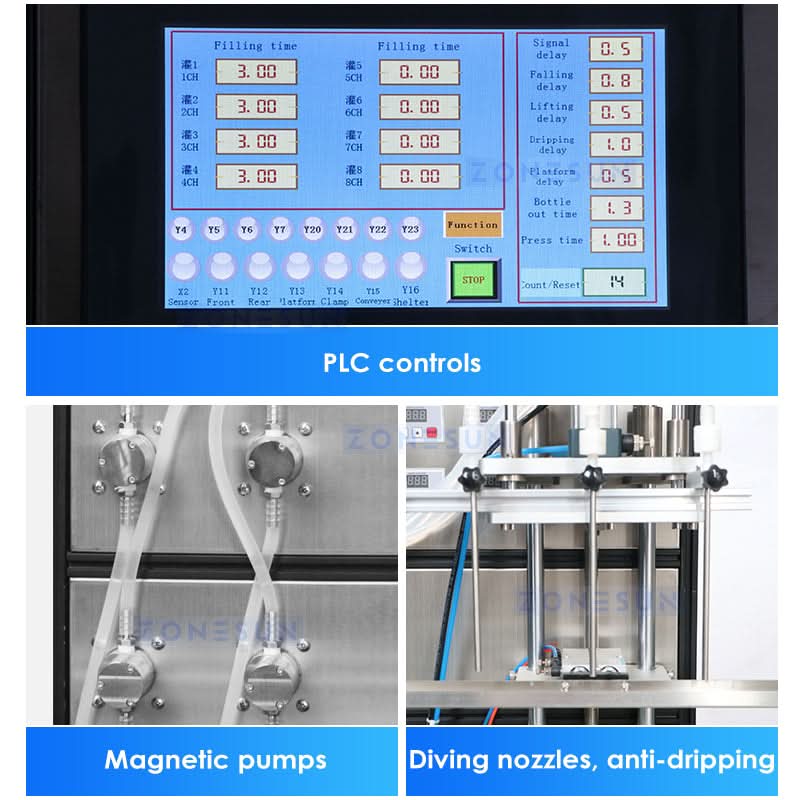

Filling Machine |
||||
|
Machine Model |
ZS-VTMP80C |
|||
|
Container size |
φ20-160mm H30-300mm |
|||
|
Max flow rate |
6000ml/min |
7500ml/min |
12000ml/min |
|
|
Material of pump |
316stainless steel |
316stainless steel |
316stainless steel |
|
|
Filling accuracy |
≤±1% (based on water) |
|||
|
Filling speed |
20-50pcs/min |
25-60pcs/min |
40-65pcs/min |
|
|
Power supply |
220V-50Hz/110V-60Hz |
|||
|
The whole machine power |
2000W |
|||
|
Size of air compressor connector |
OD 8mm |
|||
|
Packing weight |
About 150kg |
|||
|
Packing size |
About 2000*820*1580mm |
|||
|

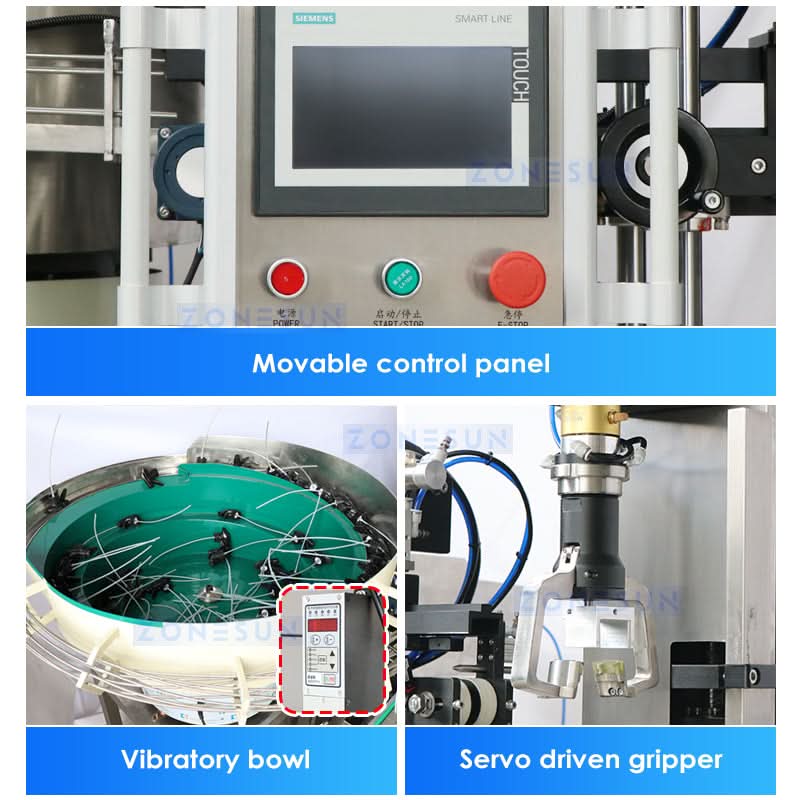

Capping Machine |
||||
|
Machine Model |
ZS-XG445 |
|||
|
Voltage |
110/220V |
|||
|
Power |
900W |
|||
|
Capacity |
5-25 bottles/min (based on bottle and cap size) |
|||
|
Material |
304 SUS |
|||
|
Air pressure |
0.6-0.8Mpa |
|||
|
Suitable bottles |
Customize according to the sample |
|||
|
Cap feeding way |
Pneumatic fetch |
|||
|
Capping way |
Servo drive screw capping |
|||
|
Machine size |
About 2900*950*2000mm |
|||
|
Packaging size |
About 3020*905*2140mm(machine) About 1870*1220*840mm (Vibratory bowl sorter) |
|||
|
Packaging weight |
About 600kg(machine)/ 316kg (Vibratory bowl sorter) |
|||
|

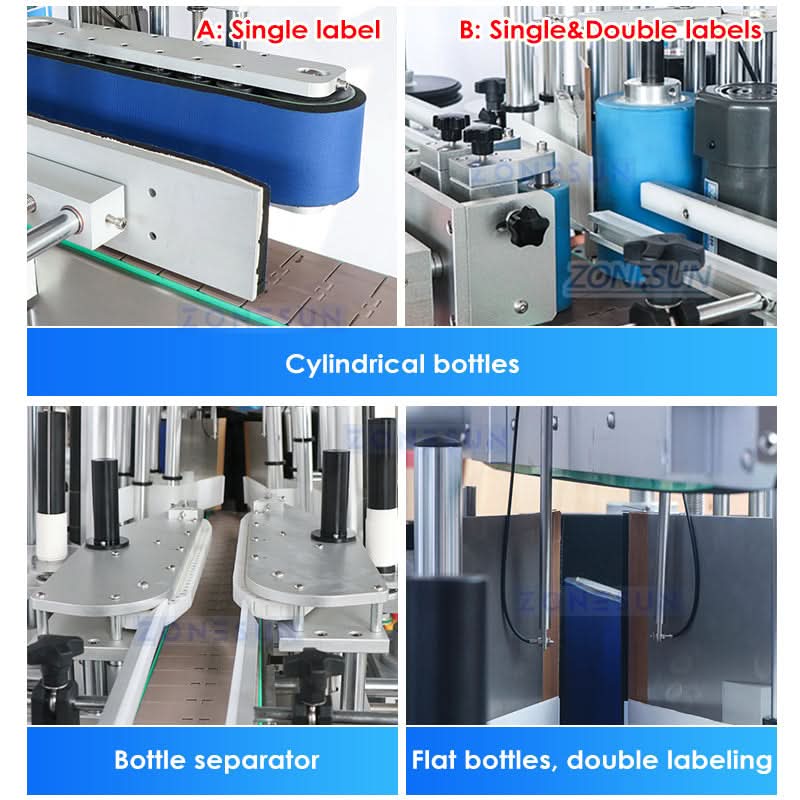

Labeling Machine |
||||
|
Machine Model |
ZS-TB300A |
ZS-TB300B |
||
|
Labeling capacity(pcs/min) |
60-350PCS /min(depends on bottle size) |
|||
|
Labeling material thickness |
20-120mm |
|||
|
Labeling material height |
30-350mm |
|||
|
Label size(mm) |
(L)25- 300mm (H)15-200mm |
|||
|
Round Bottle |
Single Side |
Single & Double Side |
||
|
Flat Bottle |
Double Side |
|||
|
Roll inside(mm) |
Φ76mm |
|||
|
Roll outside diameter(mm) |
Φ350mm |
|||
|
Machine size (mm) |
About 2120*940*1500mm |
|||
|
Power supply |
AC220V 50Hz/60Hz 1500W |
|||
|
Packing Size |
About 2850*1300*1900mm |
|||
|
Net weight/Gross weight |
About 450kg/650kg |
|||
