DESCRIPTION

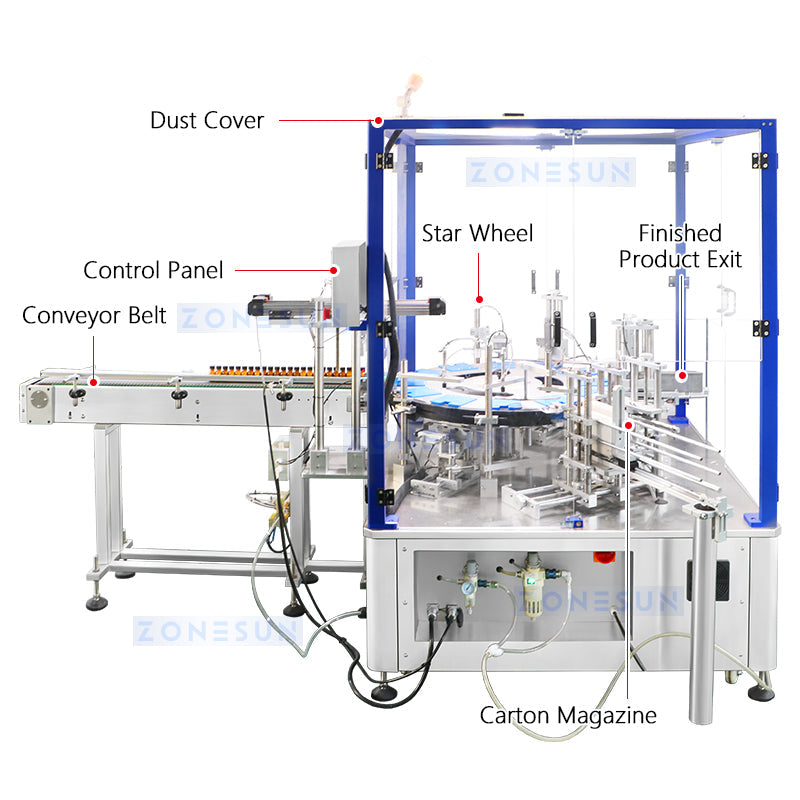

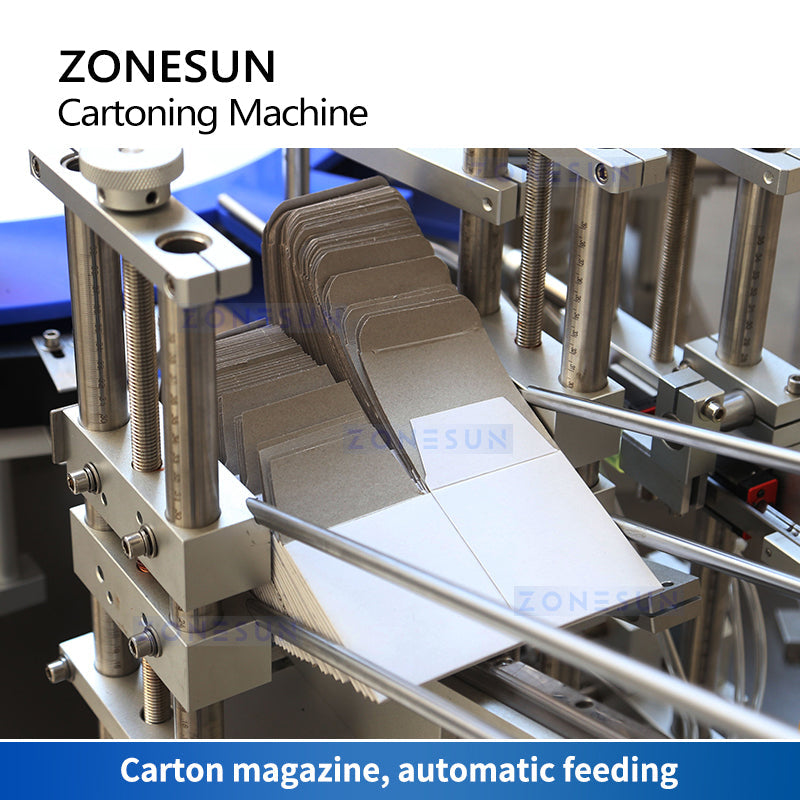

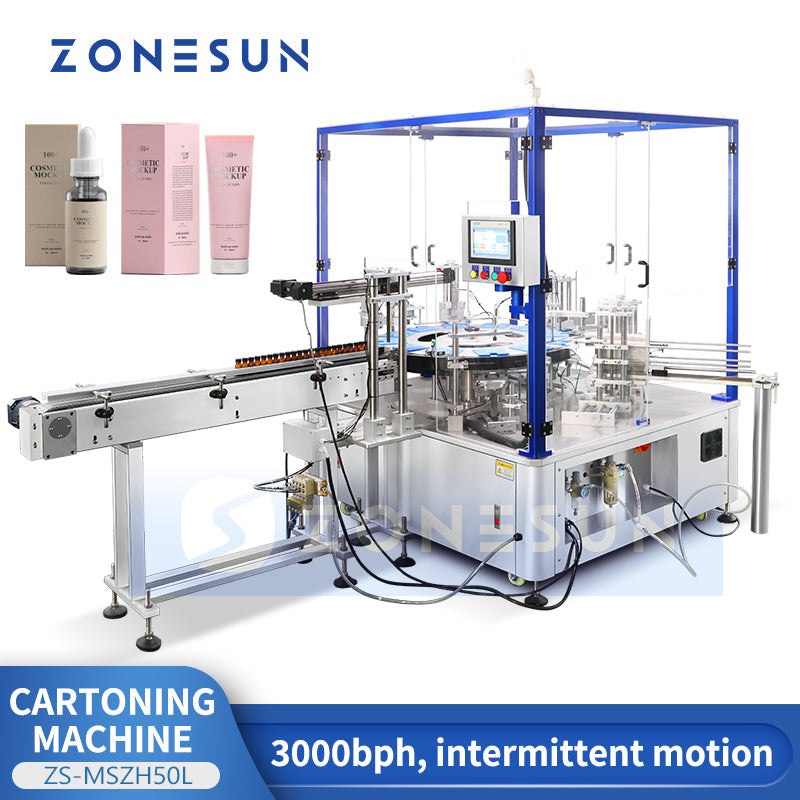

Introducing our new vertical cartoning machine with an intermittent motion system, designed to efficiently pack your products into paper boxes. With a star wheel rotary structure, the machine has four stations: the paper box feeding station, bottom folding station, product feeding station, and top folding station. This machine is perfect for businesses looking to streamline their packaging process and improve efficiency, especially for reverse tuck cartons, lock bottom cartons, and crash bottom cartons.
Whatever your packaging needs are, you can rely on ZONESUN.
Parameter
(Packaging Speed): The from 5 to 30 boxes per minute.
Height: 52-195 mm
Width: 25-80 mm
Thickness: 25-80 mm
(Motor Power): 0.3-0.5 kW.
(Voltage): voltage 220V or 110V.
(Compressed Air Pressure):0.7-0.8 MPa.
(Compressed Air Consumption): 200L/min (12 m³/h).
(Equipment Dimensions): 1100 mm × 1550 mm × 1900 mm.
CONTROL SYSTEM

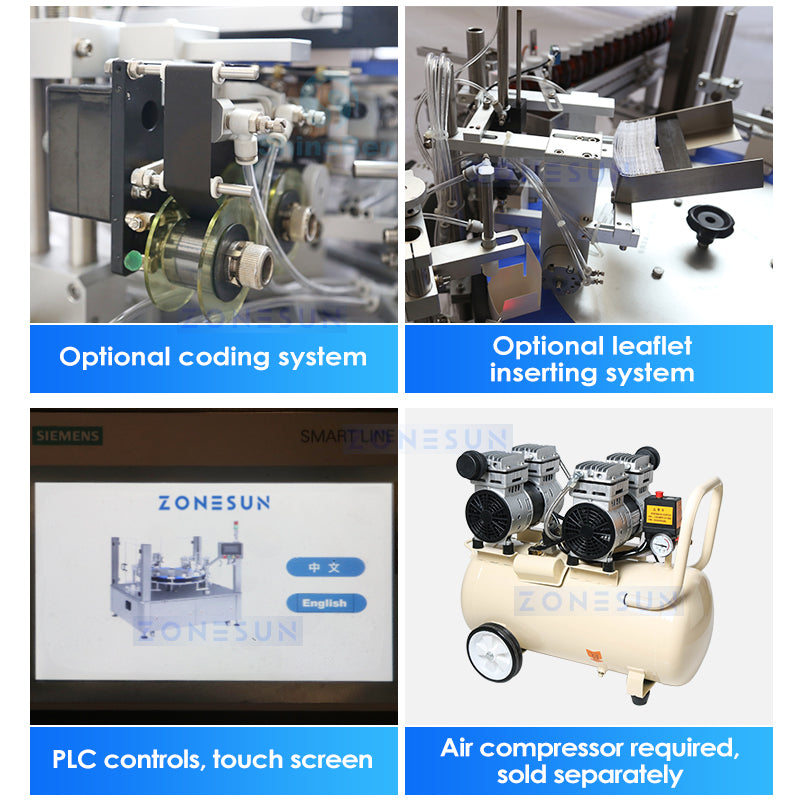

The touchscreen interface provides straightforward operation and control, while the signal tower indicates machine status.
LOADING STATION

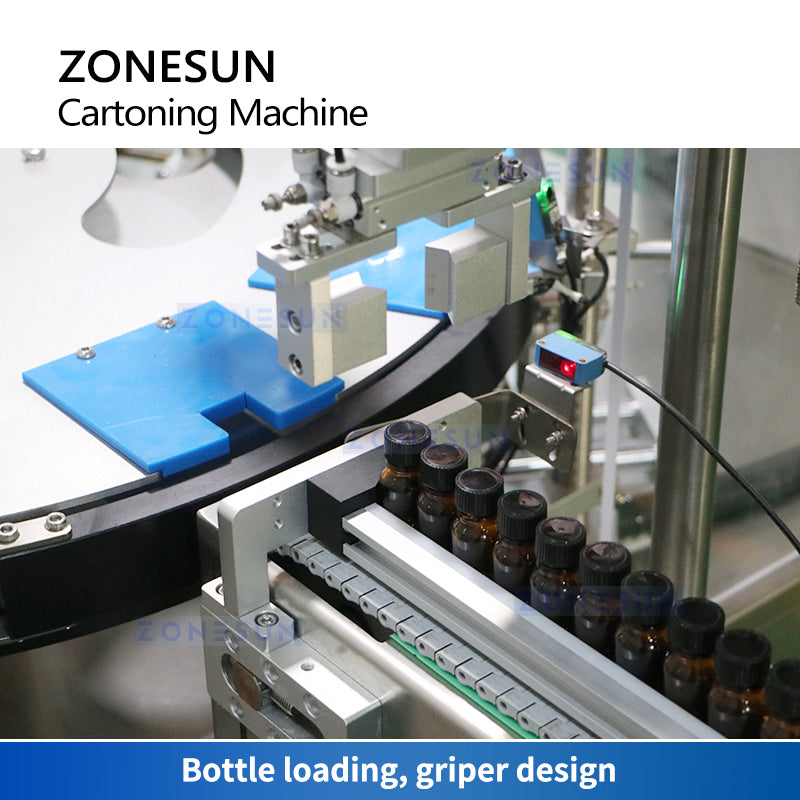

A photoelectric sensor detects products accurately, while the conveyor guides them toward the star wheel.
STAR WHEEL
The star wheel holds containers during cartoning and can be adjusted to suit different products.

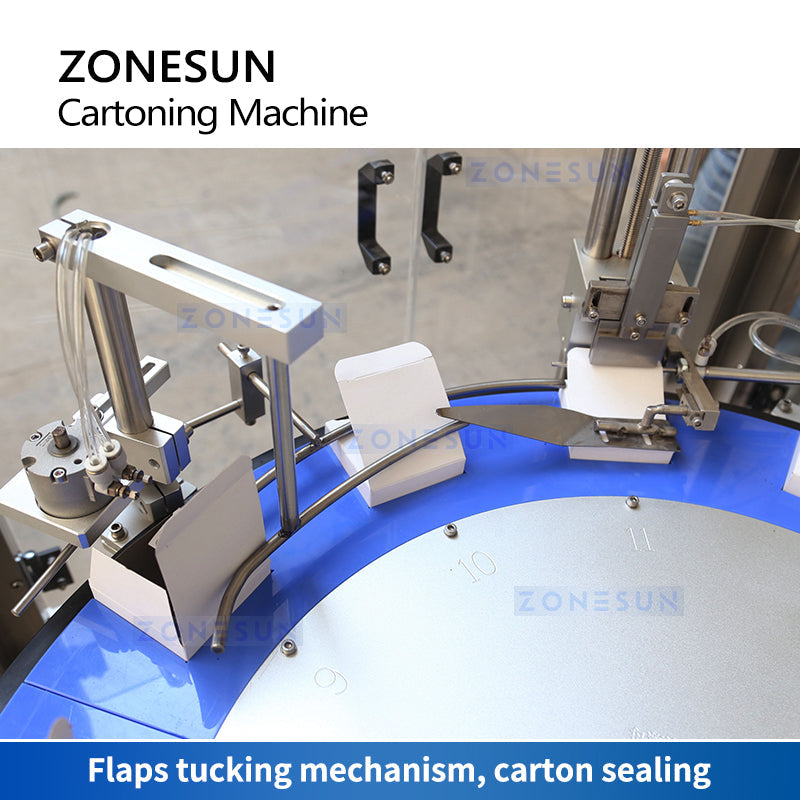

CARTON TUCKING
The minor flaps are folded first, followed by the major flaps, preparing the carton for release.
