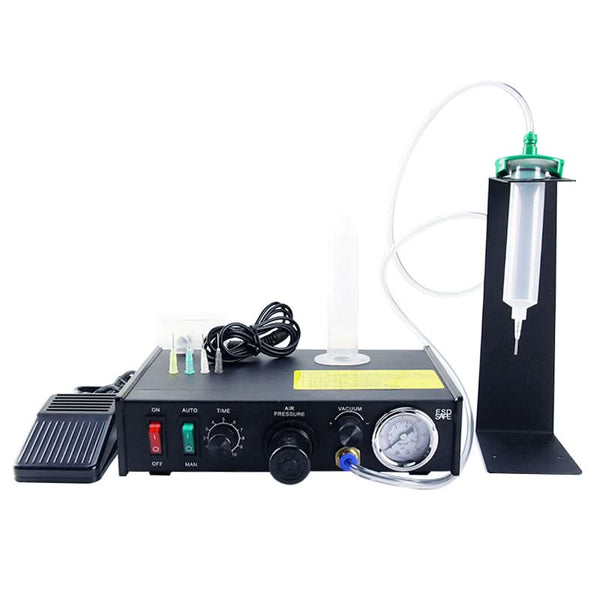

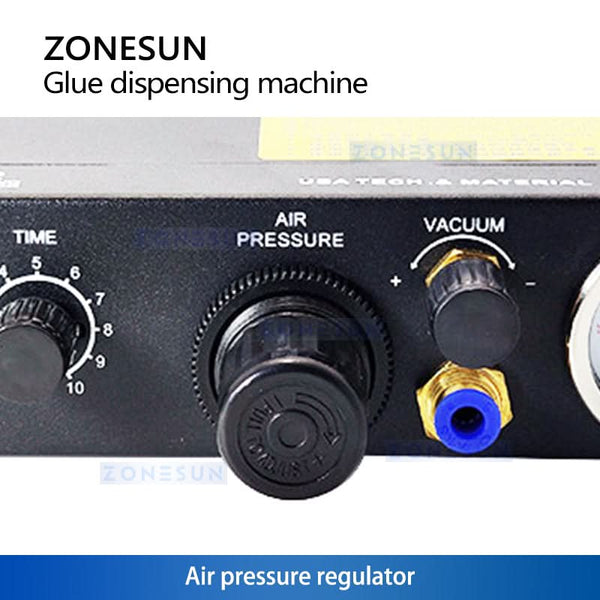

Introducing our innovative Pneumatic Dispensing Machine, designed for precision and efficiency in liquid application. This advanced device uses high-pressure air to dispense liquids through a foot pedal or hand switch, allowing for flexible manual or semi-automatic operation. With a high-precision digital timer that controls dispensing time down to the millisecond, it minimizes glue waste and ensures accurate application. Adjust the air pressure and dispensing time to suit your needs, and select the appropriate needle to control flow and timing effectively. The vacuum suction feature manages viscosity changes, preventing leaks and enhancing efficiency. This versatile dispenser is perfect for various industries and can be customized to meet specific customer requirements.
SPECIFICATIONS
| Model | ZS-PGD2 |
| Input Power Supply | 220–240V, 50Hz AC |
| Repeatability | ±0.5% |
| Internal Voltage | 12–24V DC |
| Minimum Drop Volume | 0.01 ml |
| Input Air Pressure | 2.5–7 bar (35–100 psi) |
| Air Pressure Output | 0.1–5.5 bar (1–78 psi) |
| Dimensions | 235 × 225 × 63 mm |
| Net Weight | 2.20 kg |

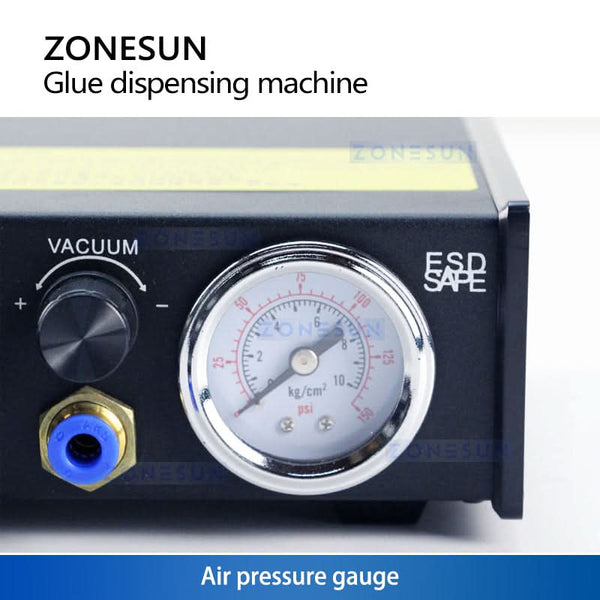

Intuitively displays the air pressure input by the pump, timely prevents hose bursting, and ensures safe operation.

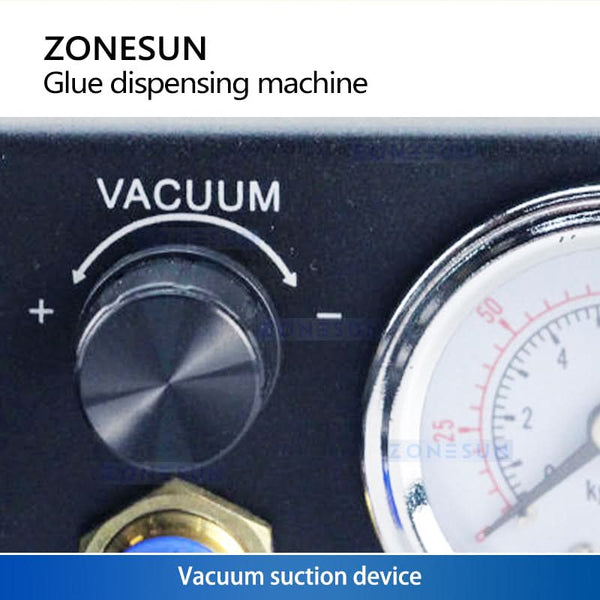

Effectively solves the problem of syringe overflow and leakage, maintains a clean working environment, and improves efficiency.

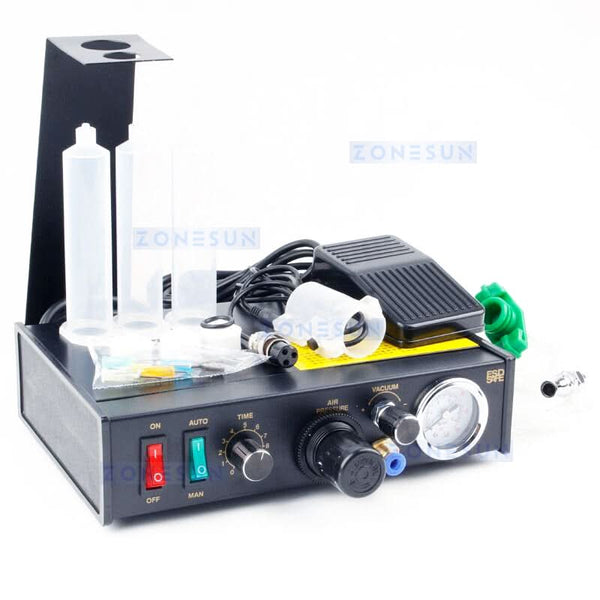

Provides manual switch and foot switch options, which can easily switch modes and are simple to operate.
