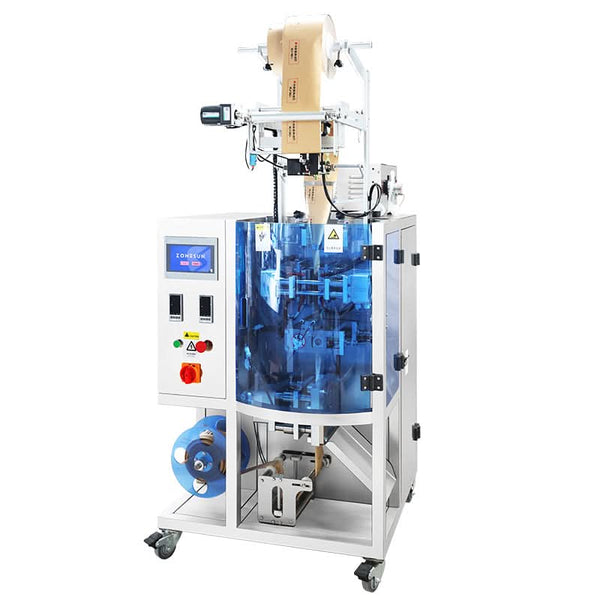

Zonesun ZS-PL240YX Custom Pouch Filling and Sealing Machine Film Forming Packaging Machine

Description

The ZONESUN ZS-PL240YX shaped pouch filling and sealing machine integrates automatic measuring, filling, forming, sealing, punching, and cutting for liquid sachets. It offers high filling accuracy, fast output, and easy operation. Sealing and cutting molds are fully customizable to match specific pouch designs. Widely us ed in food, cosmetics, and pharmaceutical industries, the machine supports optional coding, mixing, and heating functions to meet diverse production needs. Note: An external air compressor is required and must be purchased separately. Please contact customer service for customization details.

Parameter

• Model: ZS-PL240YX
• Voltage: 110/220V, 50–60Hz
• Power: 2 kW
• Metering Method: Piston pump, Magnetic pump
• Packaging Form: Round corner & back side sealing (customizable)
• Dosage Range: 1–30 ml (customizable)
• Bag Size: Length 40–160 mm; Width 20–110 mm
• Packaging Speed: 20–55 bags/min (depending on actual material)
• Machine Size (L×W×H): 780 × 750 × 1800 mm
• Machine Weight: About 300 kg

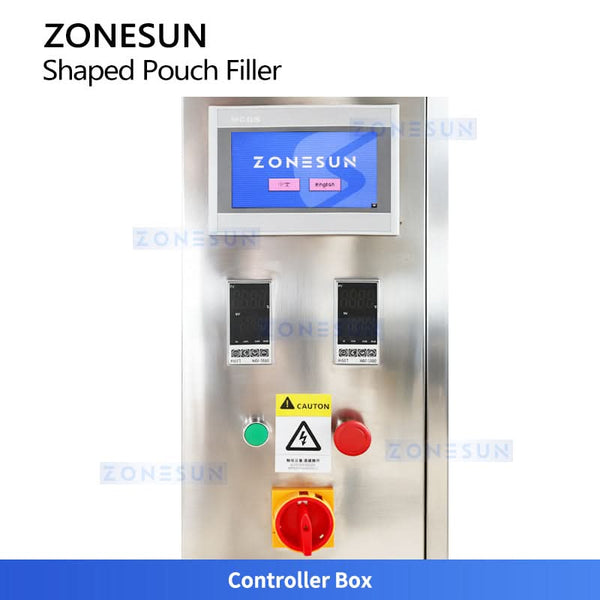

CONTROLLER BOX
Integrates the HMI, sensors, and switches to manage feeding, sealing, cutting, and safety functions.

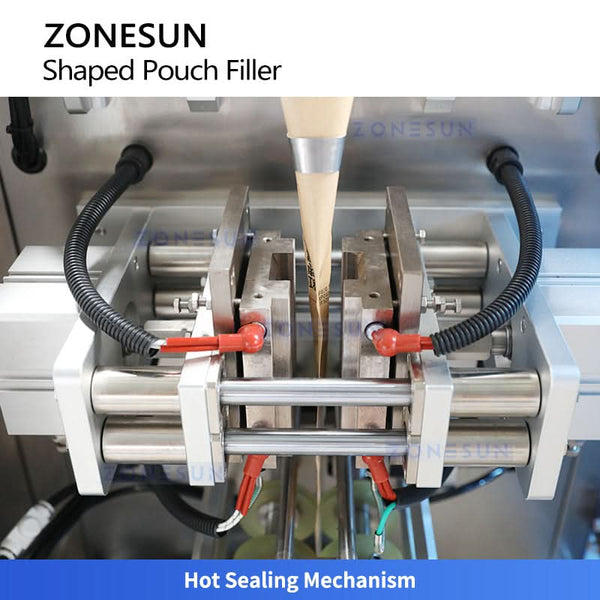

HEAT SEALING
Applies controlled temperature, pressure, and dwell time to form consistent, leak-resistant sealed edges.

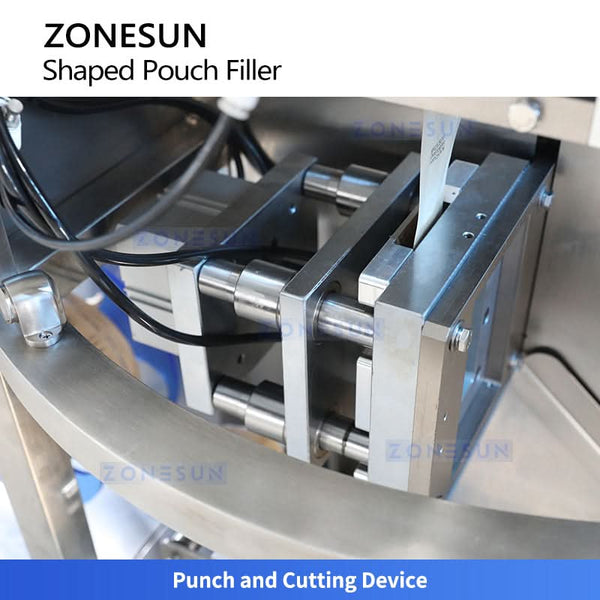

BAG CUTTING
Punches and cuts the film to separate bags with clean edges and accurate dimensions.

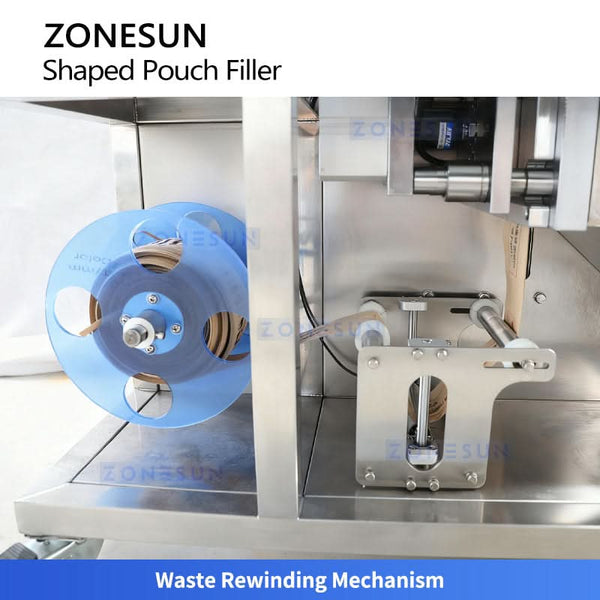

WASTE FILM REWINDING
Collects excess film after cutting to support a cleaner, more hygienic working area.

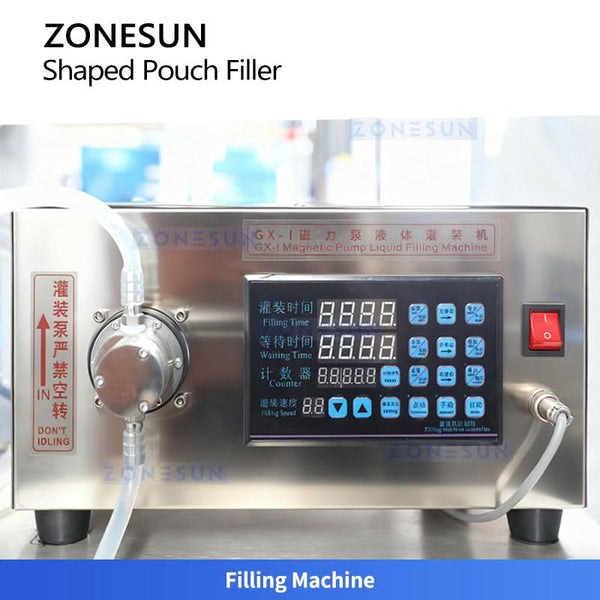

MAGNETIC PUMP FILLING
Dispenses precise liquid volumes into pouches with adjustable flow rate, filling time, and anti-drip control.

FILM HOLDER
Maintains stable unwinding tension and accurate film alignment for downstream forming.

CODER
Prints batch numbers, dates, or logos on the packaging film.
