DESCRIPTION

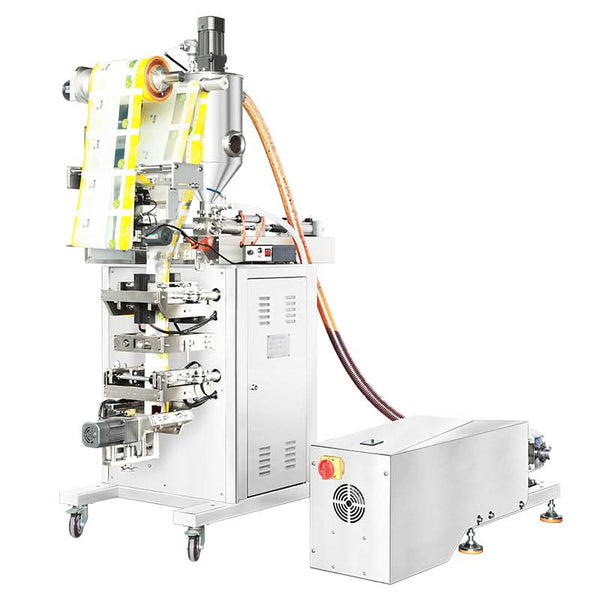

Introducing our state-of-the-art sauce filling and sealing machine, designed for a variety of pastes and liquids, including ketchup, soy sauce and oils. This fully automatic machine streamlines the entire process from bag making to filling and sealing, ensuring consistent quality and efficiency. The four-side sealing packaging design maximizes packaging efficiency while significantly reducing labor costs. Ideal for food production facilities wishing to increase productivity and maintain high hygiene standards.
| Parameter | ZS-S100RP | ZS-S200RP | ZS-S300RP |
|---|---|---|---|
| Model | ZS-S100RP | ZS-S200RP | ZS-S300RP |
| Power Supply | 220V/AC, 50Hz, 1.6KW | 220V/AC, 50Hz, 1.6KW | 220V/AC, 50Hz, 1.8KW |
| Air Source | 0.8Mpa, 150L/min | 0.8Mpa, 180L/min | 0.8Mpa, 250L/min |
| Bag Length | 50–150mm | 50–150mm | 50–300mm |
| Bag Width | 25–120mm | 25–120mm | 70–190mm |
| Film Width | 50–260mm | 50–260mm | 140–400mm |
| Bag Capacity | 5–100ml | 50–300ml | 100–1000ml |
| Packaging Speed | 30–50 bags/min | 25–40 bags/min | 20–30 bags/min |
| Sealing Form | Three-side / Four-side / Back sealing | Same as ZS-S100RP | Same as ZS-S100RP |
| Machine Size | 760×1380×1700mm | 760×1380×1700mm | 900×1800×2040mm |
| Machine Weight | 300kg | 300kg | 500kg |

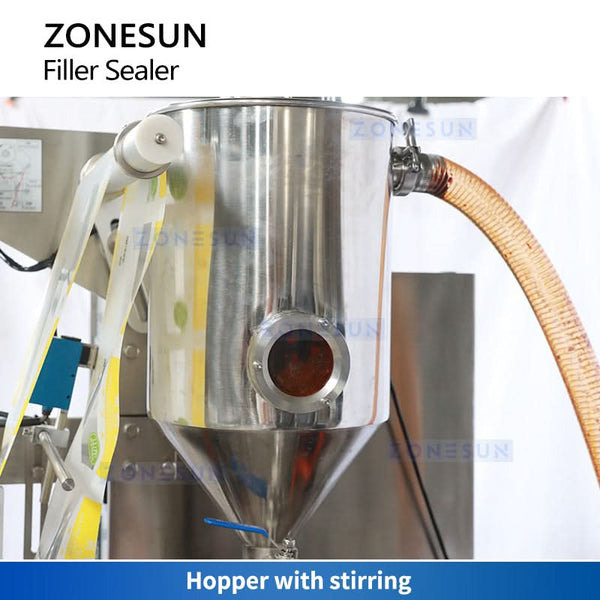

HOPPER AND STIRRING
The 304 stainless steel hopper helps resist corrosion and wear and includes a stirring function.

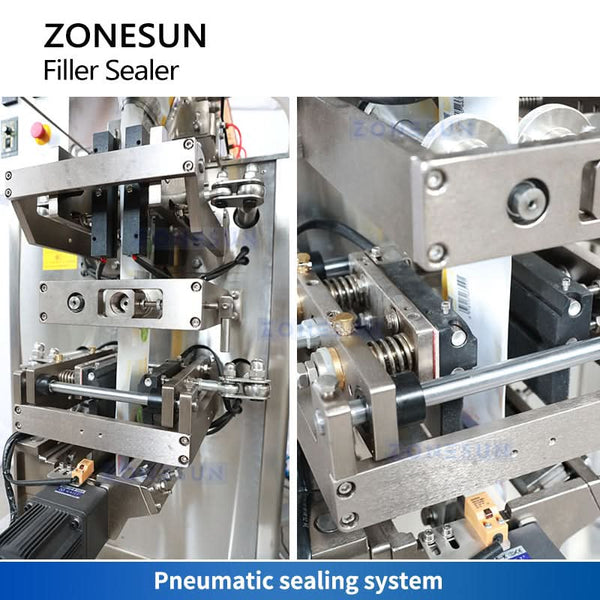

SEALING PART
Four-sided pneumatic sealing provides a secure seal.
ELECTRIC EYE
The photoelectric eye controls deflection, printing, filling, and sealing steps automatically.

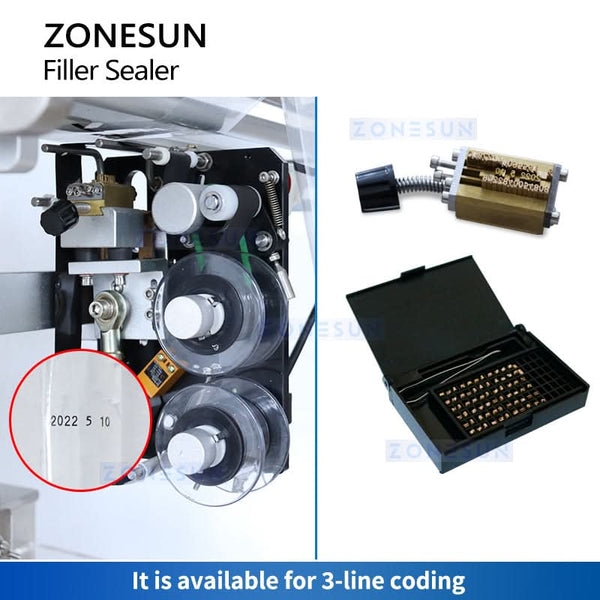

CODER
An optional coder with character dies is available for three-line coding.
FORMING PART
The forming unit shapes the packets and is customized to the required bag format.
