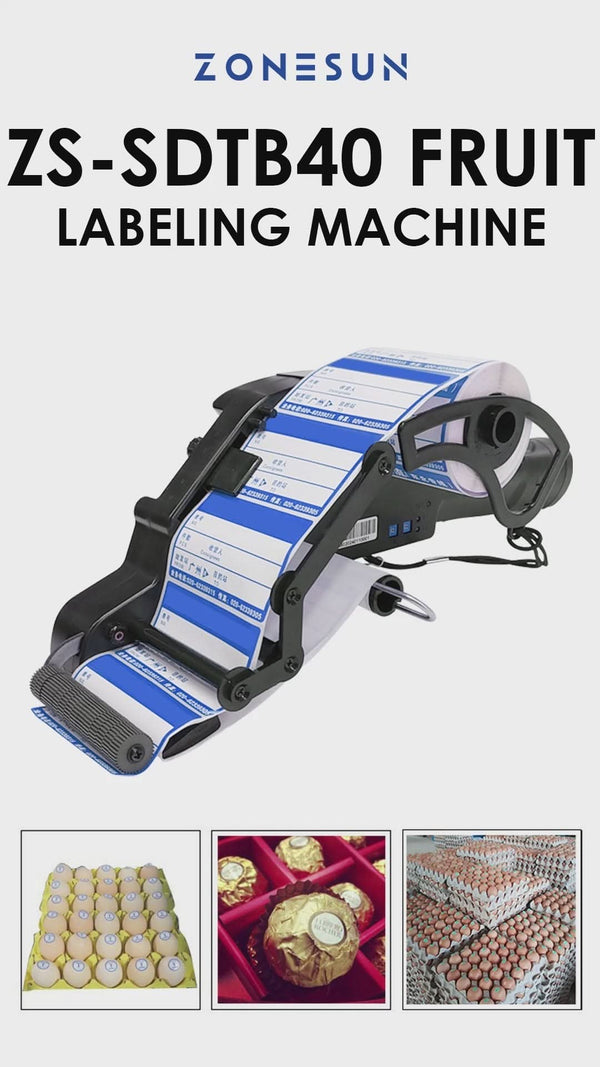

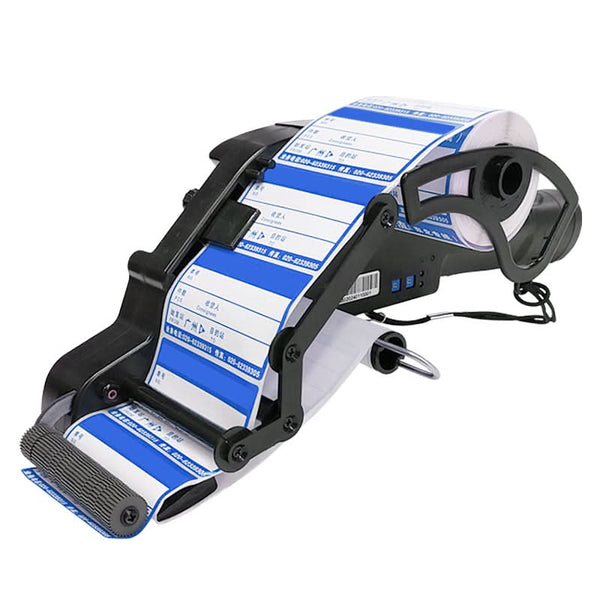

The ZONESUN ZS-SDTB40 is a handheld electric label applicator for applying labels to compatible products, boxes and cartons. Its portable format supports labeling tasks where the operator moves between items or workstations.
Choose the 40mm or 80mm Option
This listing offers 40mm and 80mm configurations. The published label-width specification is 15–40 mm. Confirm the full label width and length range, roll dimensions and supplied configuration for the selected option before ordering.
Contact us to check label compatibility with your label dimensions, liner width, roll core and outer diameter, roll direction, and photos of the surface you want to label. Send a label sample if the material or shape needs checking.
Key Features
- Handheld electric application: A portable tool for operator-controlled labeling tasks.
- Battery operation: Listed 3500 mAh / 12V lithium battery.
- Compact format: Listed machine dimensions of 400 × 90 × 125 mm and net weight of 0.73 kg.
- Product and packaging applications: For compatible products, boxes and cartons, subject to label and surface fit.
Technical Specifications
| Model | ZS-SDTB40 |

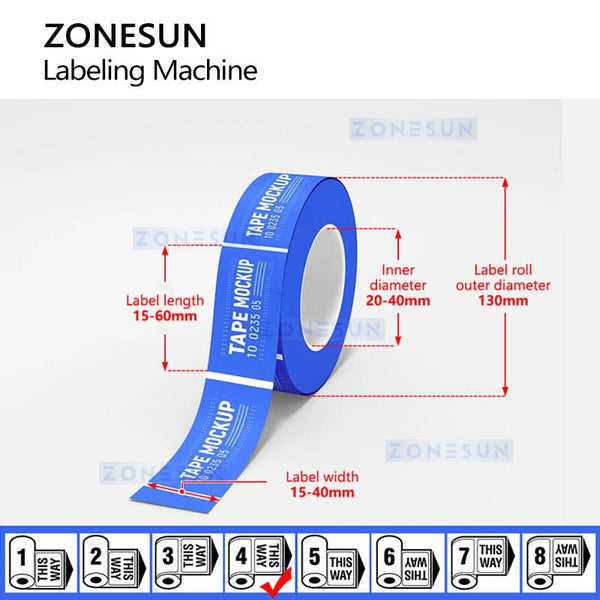

| Label Width | 15–40 mm; confirm the width range for your selected 40mm or 80mm configuration |
| Label Length | 15–60 mm |
| Machine Dimensions | 400 × 90 × 125 mm |
| Net Weight | 0.73 kg |
| Gross Weight | 1.70 kg |
| Label Roll Core Inner Diameter | 20–40 mm |
| Label Material Specification | Confirm label and liner thickness, material and stiffness using a sample |

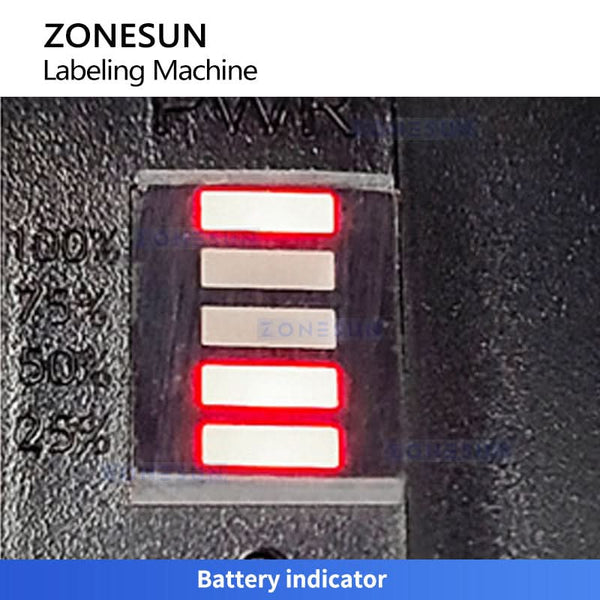

| Battery Capacity | 3500 mAh / 12V lithium battery |
| Listed Adapter Input | AC 100–240V, 50/60Hz |
| Listed Adapter Output | DC 13V, 1.3A |
Confirm which specifications apply to your selected 40mm or 80mm configuration, including machine dimensions and weight. Ask us to confirm the maximum label roll outer diameter before purchasing label rolls.
Battery Runtime & Charging
The listed operating-time reference is up to 18 hours. Actual runtime depends on labeling frequency, operating conditions and battery condition. Contact us to confirm the test conditions, charging time and supplied charger for your configuration.
Prepare Your Labels
- Check label width and length against the selected configuration.
- Confirm the liner width, label spacing and unwind direction.
- Check roll core and outer diameter before ordering rolls.
- Confirm film, synthetic-paper, transparent or special-shaped labels using actual sample specifications.
- Check adhesion and application on your actual packaging surface before a production batch.
Frequently Asked Questions
Is this a label printer?
This listing is for a label applicator used to apply labels to products. Arrange any required label printing separately and confirm your roll format with us.
Can I use the same label roll on both options?
Confirm compatibility separately for the 40mm and 80mm configurations. Label dimensions, liner width and roll specifications must match the selected machine.
Can it label curved or irregular products?
Send photos or a sample of the intended labeling area so we can check the surface, label shape and application requirements.
What is included with the machine?
Contact us to confirm the supplied battery, charger, accessories and whether any sample label roll is included with your order.
