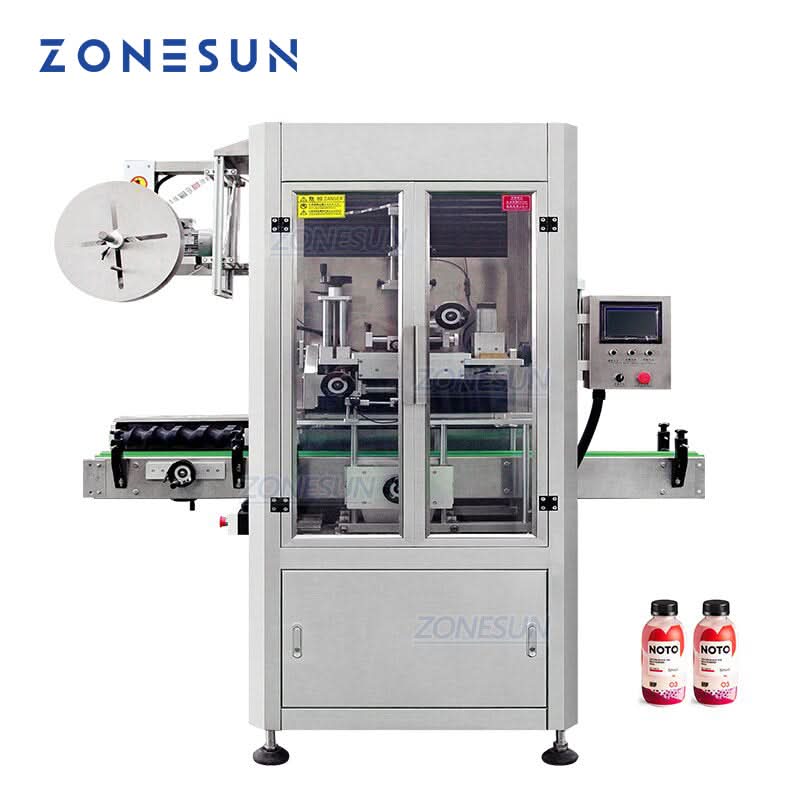

The ZONESUN ZS-STB150 delivers fast, precise shrink sleeve labeling for bottles of all shapes—round, square, or oval. It automatically feeds, positions, and cuts film for consistent labeling without manual intervention, streamlining production for beverage, cosmetics, and personal care industries. With customizable bottle and label support, plus compatibility with heat shrinking units, it offers full integration and high-speed performance in packaging lines.
| Parameter Details | |
| Machine Model | ZS-STB150 |
|---|---|
| Bottle Diameter Range | φ28 mm – φ125 mm (customizable) |
| Bottle Height | 30 mm – 280 mm (customizable) |
| Label Length | 30 mm – 250 mm (customizable) |
| Label Thickness | 0.03 mm – 0.13 mm (PVC, PET, OPS supported) |
| Sleeve Standard Error | ±1.5 mm |
| Paper Tube Inner Diameter | 5″ – 10″ (adjustable) |
| Machine Speed | 150 bottles/min (depends on label size) |
| Voltage | 220V |
| Power | 1.5 KW |
| Conveyor Belt Length Standard | 2 m |
| Host Size | Approx. 2100 mm × 850 mm × 2000 mm (L × W × H) |
| Weight | Approx. 400 kg |
AUTOMATIC FILM PULLING
The electric eye enables the machine to pull the film automatically for convenient operation.

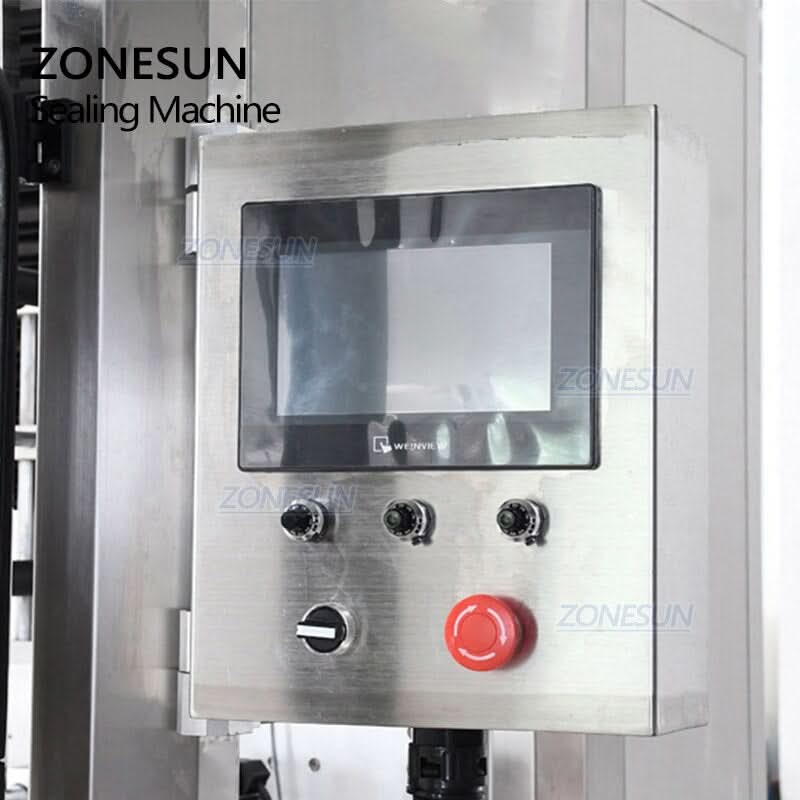

TOUCHSCREEN CONTROL PANEL
The touchscreen clearly displays operating parameters and supports precise adjustments to help achieve a consistent labeling result.
BOTTLE SEPARATING COMPONENT
The bottle-separating component spaces bottles before labeling so they enter the machine in sequence, helping improve the labeling result.

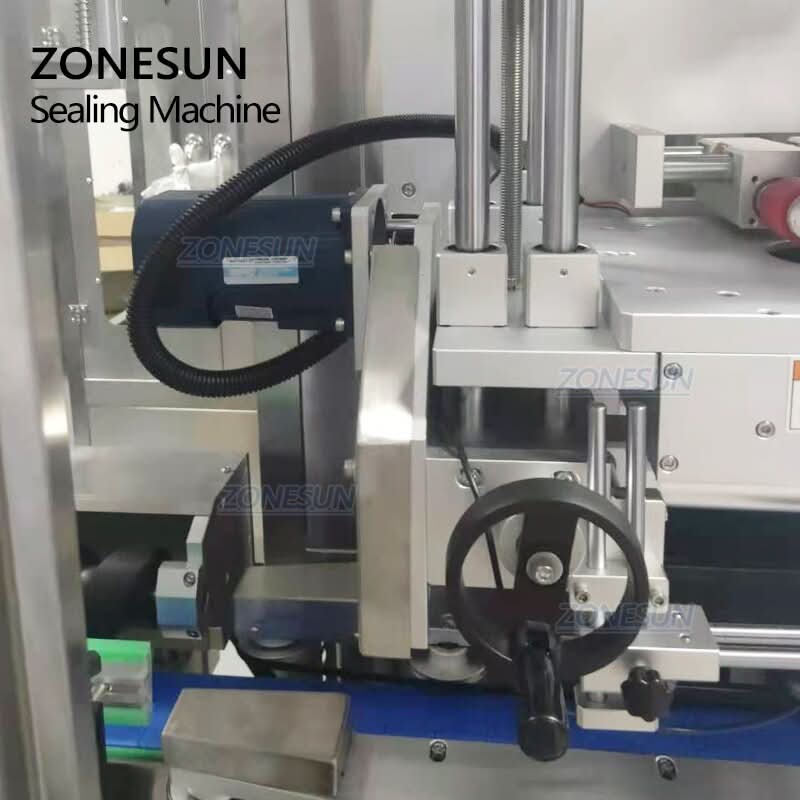

POSITION ADJUSTMENT
Rotary knobs adjust the positions of different mechanisms to support accurate sleeve-label placement and consistent production quality.

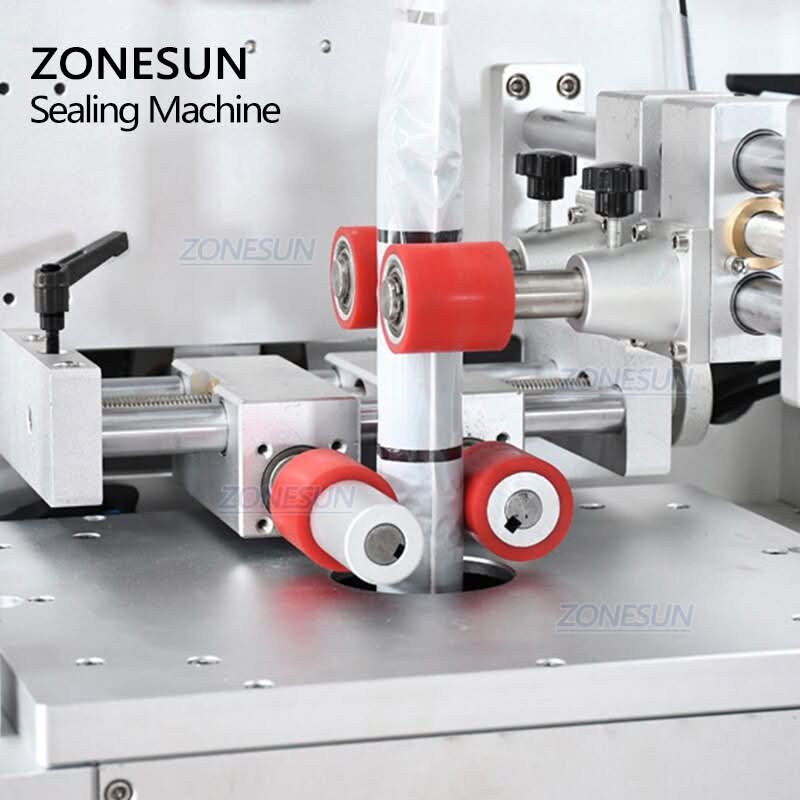

AUTOMATIC LABEL FEEDING
The label-feeding mechanism starts automatically when the system detects a bottle. It is suitable for bottles 30–280 mm high, and the machine can be customized as required.
SOFT BRUSH
A soft brush helps improve sleeve placement before the film-shrinking process.
