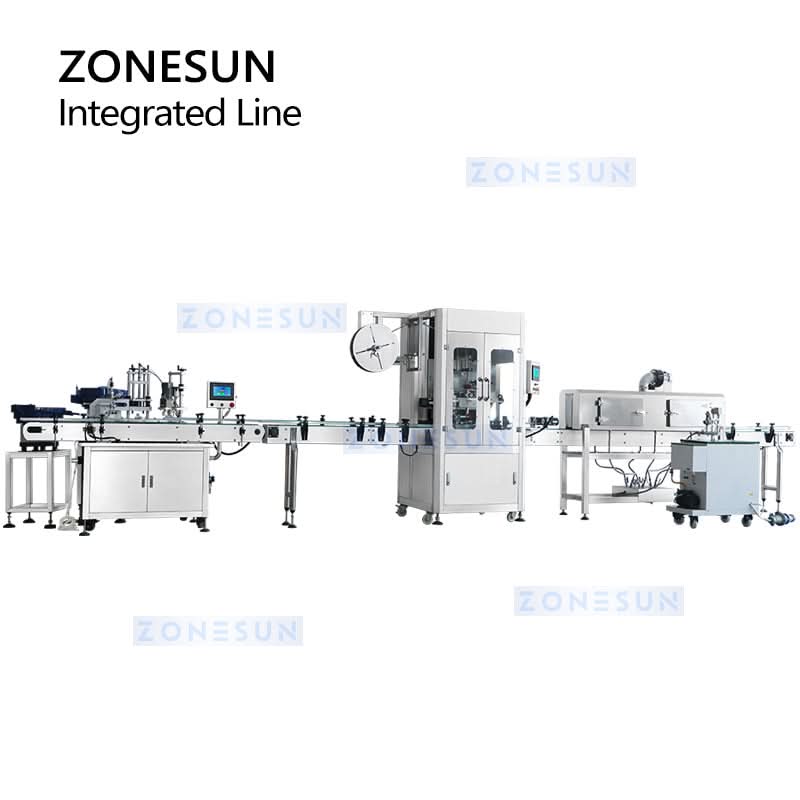

ZONESUN ZS-STB150R Automatic Magnetic Pump Liquid Filling Capping Sleeve Lableling Shrinking Production Line
DESCRIPTION
This bottle packaging line is a complete solution for businesses looking to improve their packaging process. The line includes a high-quality filling and capping 4-in-1 machine, a reliable sleeve labeling machine, and a precision shrink tunnel. With this packaging line, you can efficiently package your bottles with ease and accuracy. Whatever your packaging needs are, you can rely on ZONESUN.
PARAMETER
|

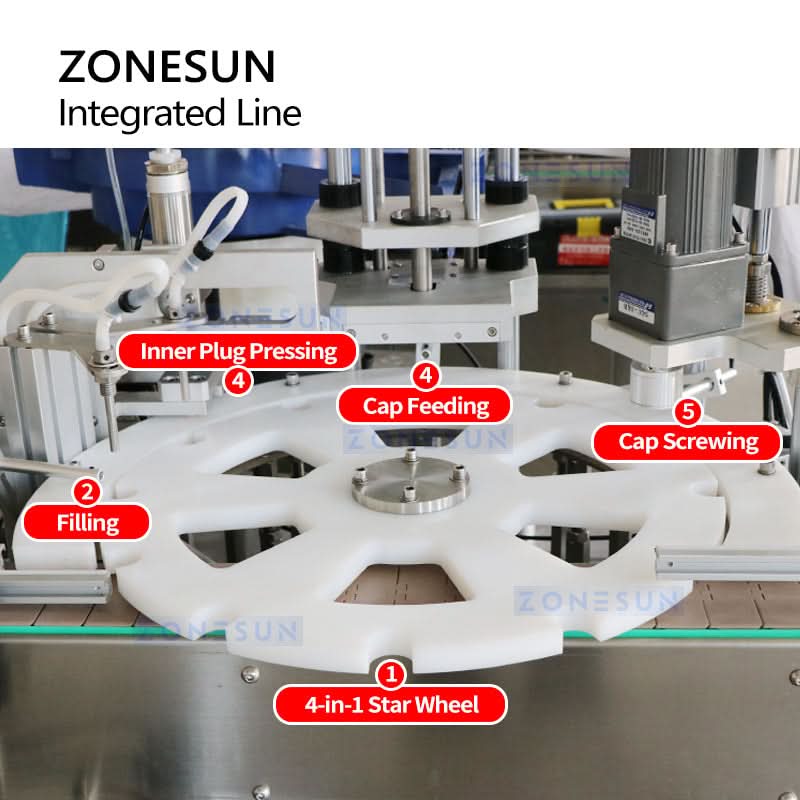

Filling Machine |
ZS-AFC14 |
|
Voltage |
220V/110V 50-60Hz |
|
Power |
1.5kW |
|
Filling Pump |
316 Stainless Steel Magnetic Pump |
|
Working Speed |
About 30 bottles/min (depending on bottle size and filling materials) |
|
Max Flow Rate |
4L/min*2(based on water) |
|
Suitable Bottle Size |
Can be customized |
|
Suitable Bottle Cap Size |
Can be customized |
|
Air Pressure |
0.4-0.6MPa |
|
Machine Size |
About 2040*820*1430mm |
|
Package Size |
About 2140*1600*890mm |
|
Package Weight |
About 381.5kg |
|

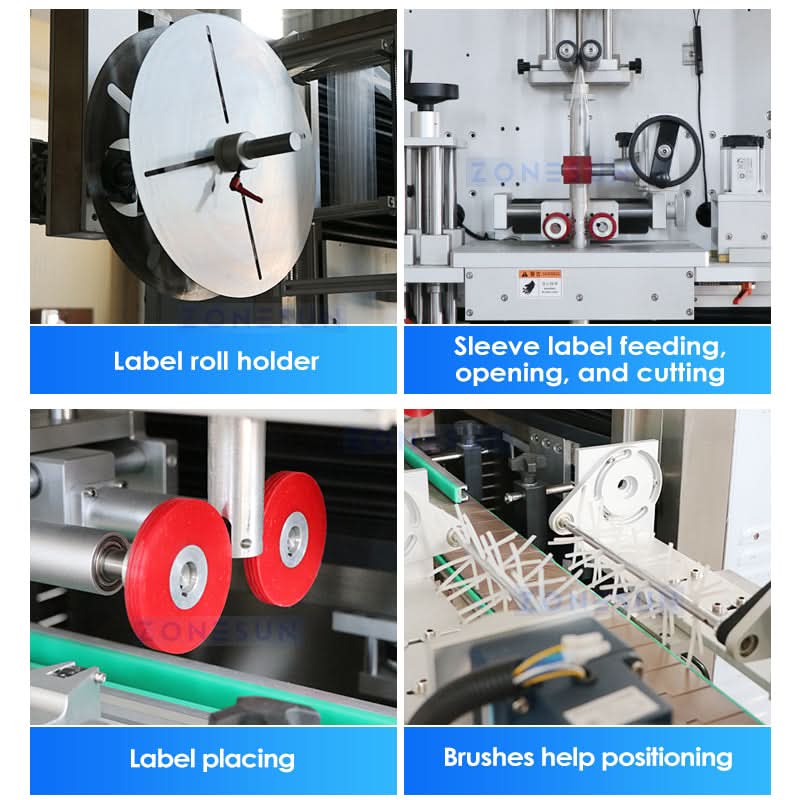

Sleeve Labeling Machine |
ZS-STB150 |
|
Bottle diameter range |
φ28mm-φ125mm (can be customized) |
|
Bottle height |
30mm ~ 280mm (can be customized) |
|
Label length |
30mm~250mm (can be customized) |
|
Label thickness |
0.03 mm~0.13 mm (PVC, PET, OPS) |
|
Sleeve standard error |
±1.5mm |
|
Paper tube inner diameter |
5"~10" (can be adjusted) |
|
Machine speed |
150 bottles/min (based on label length) |
|
Voltage |
220V Single Phase |
|
Power |
1.5KW |
|
Conveyor belt |
standard 2M |
|
Machine size |
About 2950*1030*1870 mm |
|
Machine weight |
About 464Kg |
|
Package size |
About 2250*1250*2140 mm |
|
Package weight |
About 493Kg |
|

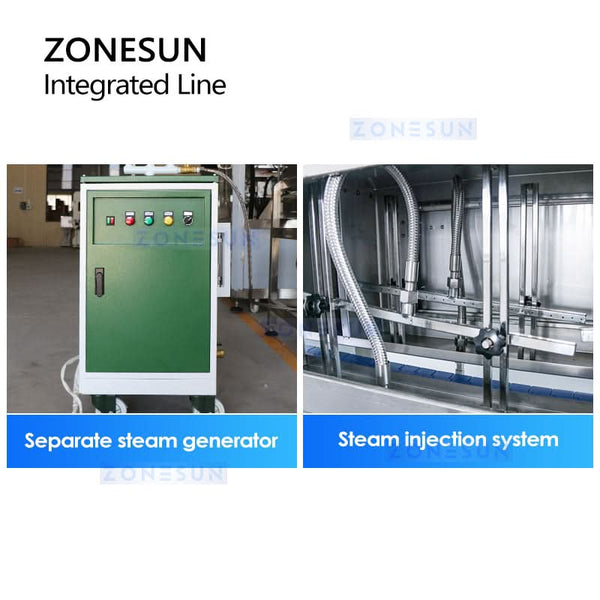

Shrink Tunnel |
|
|
Tunnel length |
About 1800mm |
|
Tunnel width |
About 395mm |
|
Tunnel height |
About 360mm |
|
Suitable bottle diameter |
≤80mm |
|
Conveyor height |
About 900mm |
|
Machine size |
About 3050*480*1330mm |
|
Machine weight |
About 86kg |
|
Package size |
About 1905*610*1720mm |
|
Package weight |
About 143kg |
