Application
Voltage 220V / 50Hz
Labeling Accuracy ±1.0mm
Labeling Capacity 40–120 pieces/min
Applicable Product Length 40–400mm
Applicable Product Width 40–200mm
Applicable Product Thickness 0.2–5mm
Label Length 6–300mm
Label Width 15–120mm
Label Roll Inner Diameter Ø76mm
Label Roll Outer Diameter Ø300mm
Package Dimensions (approx.) 2530×920×1530mm
Package Weight (approx.) 330kg

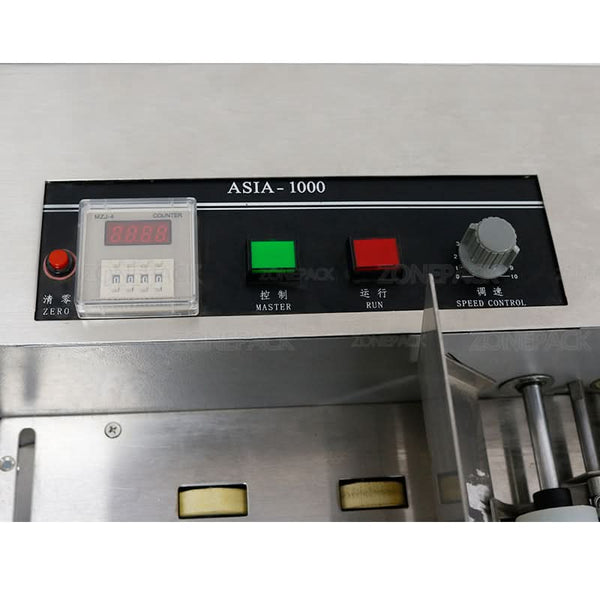

PAGING SPEED AND COUNTER
The paging speed can be adjusted to match the labeling speed. A target quantity can be preset, and the machine stops when the set count is reached.
BAFFLE ADJUSTMENT
The baffle width and thickness settings can be adjusted to suit the product dimensions.
PHOTOELECTRIC COUNTING SENSOR
The photoelectric counting sensor provides accurate product counting.

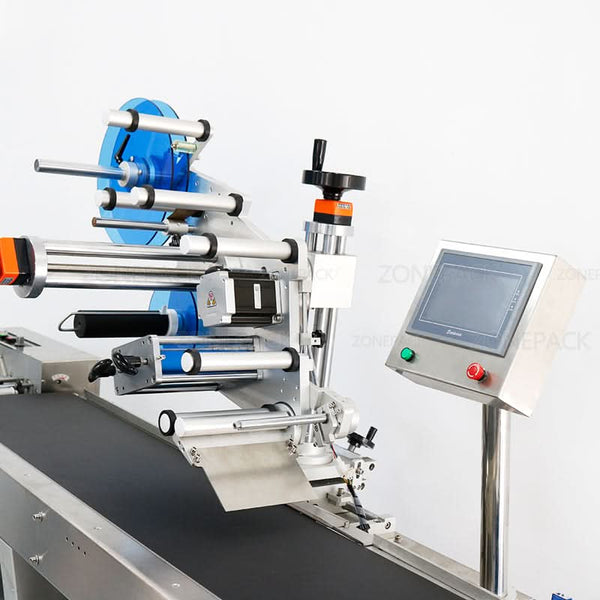

TOUCHSCREEN
The touchscreen displays fault prompts and allows operating parameters to be adjusted quickly.
LABEL CORRECTION
The label-correction mechanism supports accurate label positioning and can be adjusted using the digital control knob.
ELECTRICAL COMPONENTS
High-quality electrical components support reliable machine operation.
ELECTRIC EYES
The electric eyes support accurate label detection and placement.
AUTOMATIC MATERIAL COLLECTION
The automatic material-collection mechanism supports an efficient workflow and reduces manual handling.
