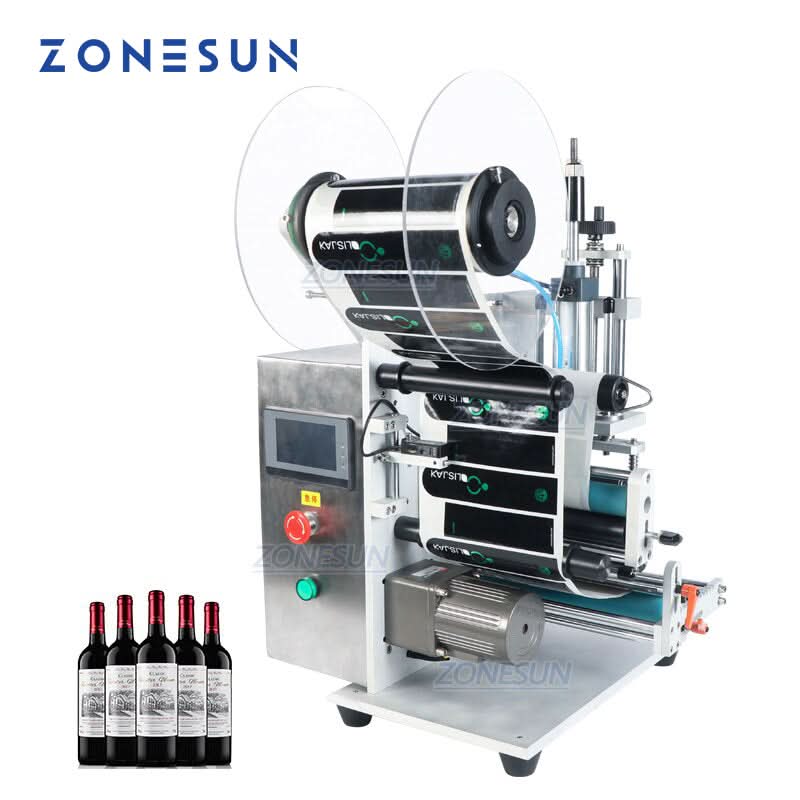

ZONESUN ZS-TB100SW Semi Automatic Round Bottle Labeling Machine

$1,098.00
Shipping calculated at checkout.
Voltage: 110v
Pre-sale Support Quality Guarantee About Shipping

Product Description

This semi automatic labeling machine is suitable for single side and double side labeling,It can be equipped with date coder to print production date or batch number.

Parameter

Machine Model

ZS-TB100SW

Main Feature

Wider Labeling

Power Supply

110V/220V 50-60HZ

Working Speed

15-35 pcs/min

Labeling Accuracy

±1mm

Air Pressure

0.4-0.6MPa

Label Outputting Direction

Right

Labeling Object Diameter

φ10-150mm

Labeling Object Height

≤380mm

Suitable Label Size

≤200mm(W)

Label Roll OD

φ220mm

Label Roll ID

φ75mm

Size of Air Compressor Connector

OD8mm

Machine Size

About 415*420*690mm

Package Weight

About 480*575*685mm

Net weight/Gross weight

About 32kg/42kg
