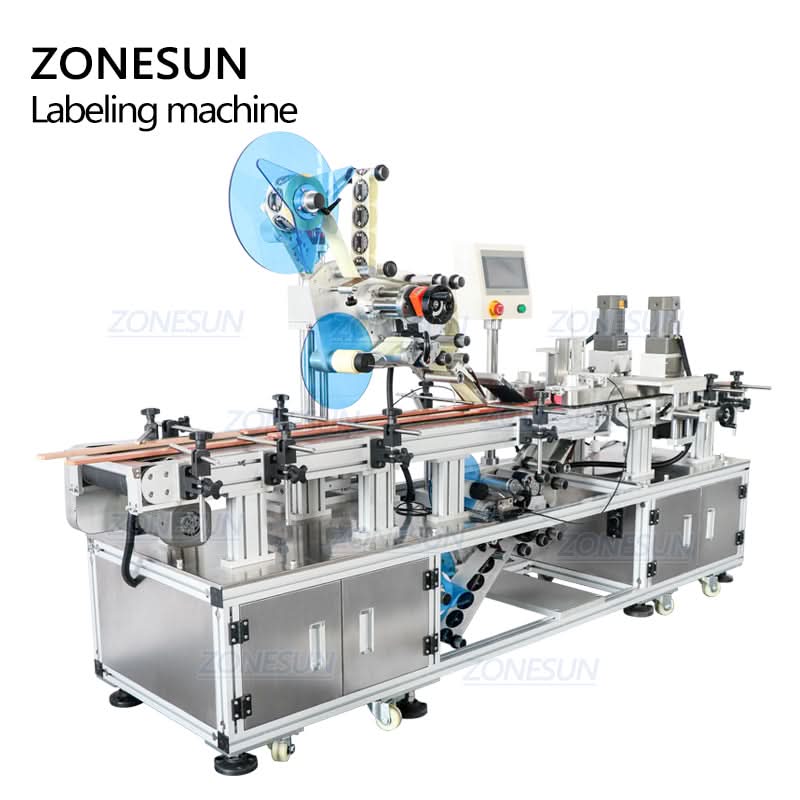

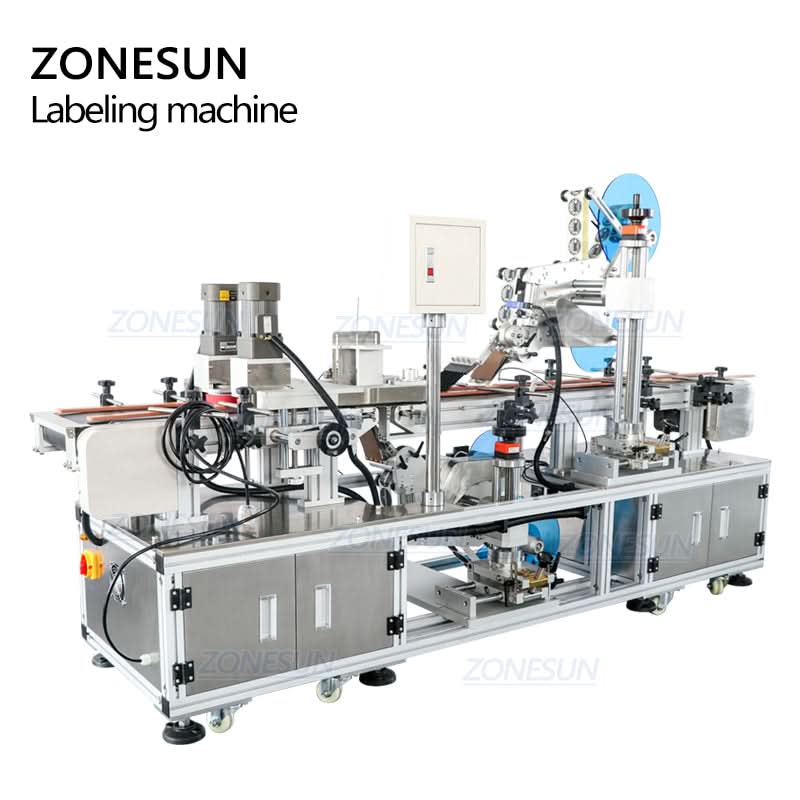

The ZS-TB113B automatic labeling machine is designed for precision top and bottom flat labeling on cosmetic boxes, packaging bags, books, and similar products. Engineered for seamless integration with filling and capping machines, it enables a fully automated production line. With high-speed performance and customizable labeling dimensions, it suits a variety of applications in food, cosmetic, and pharmaceutical industries, delivering consistent and accurate label placement.
Parameter Specification
Machine Model ZS-TB113B Labeling Machine
Power Supply 110V / 220V, 50–60Hz
Working Speed 20–80 pieces/min (based on product and label size)
Labeling Accuracy ±1mm
Suitable Labeling Object Customized
Suitable Label Size Customized
Label Roll Outer Diameter φ300mm
Label Roll Inner Diameter φ76mm
Machine Size Approx. 2490(L) × 6250(W) × 1410(H)mm
Machine Weight Approx. 369kg
Package Size Approx. 2740(L) × 1040(W) × 1510(H)mm
Package Weight Approx. 491kg

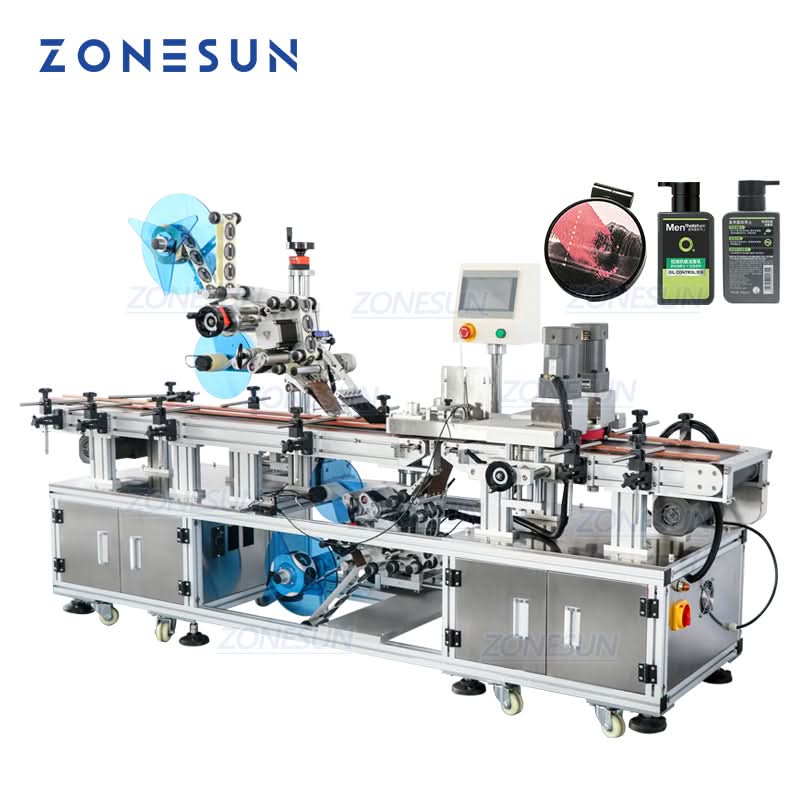

TOUCHSCREEN CONTROL PANEL The touchscreen clearly displays operating parameters for easier machine adjustment and testing, supporting accurate label placement. FRONT-AND-BACK LABELING Designed for flat surfaces, the machine applies labels or film to the front and back of products such as laundry detergent bottles. ADJUSTABLE LABEL SENSOR The label-sensor sensitivity can be adjusted to suit different labeling objects and support accurate label placement.

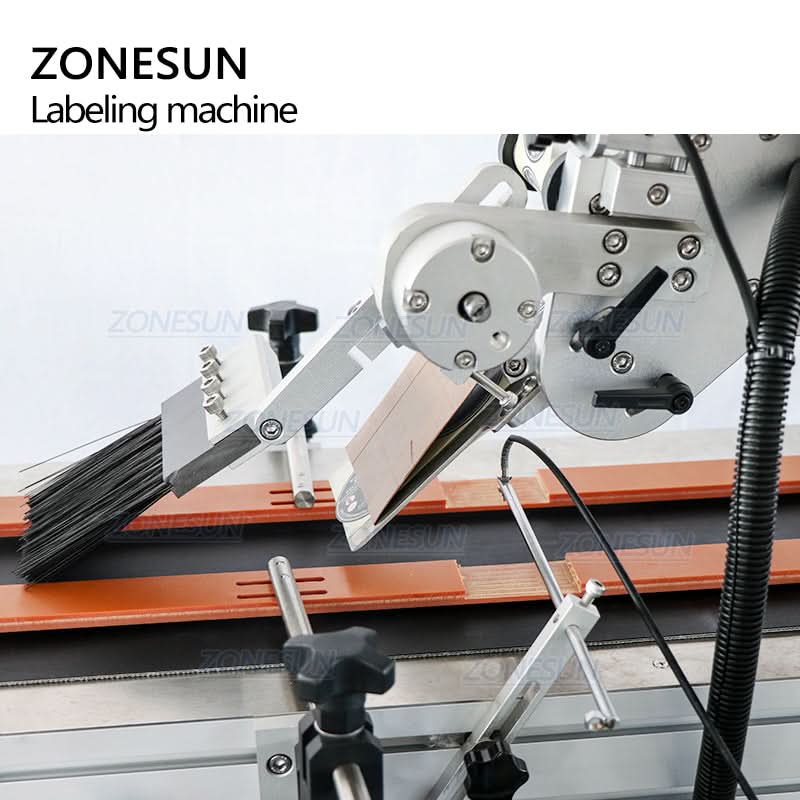

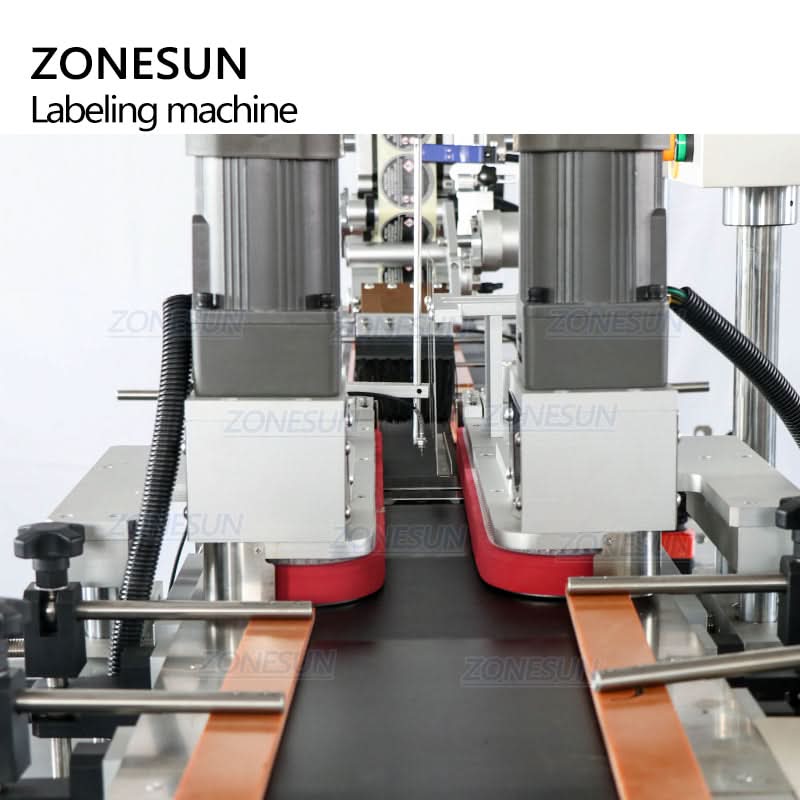

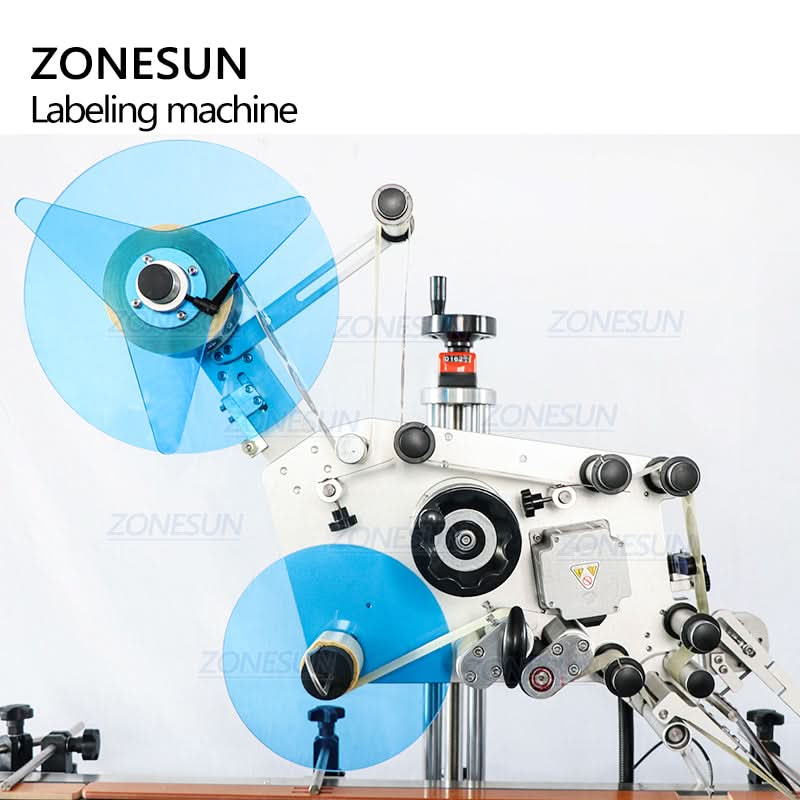

STABLE LABEL HANDLING High-quality machine components keep the label web flat during operation and support long-term use. AUTOMATIC CONVEYOR The conveyor transfers labeling objects steadily and efficiently, helping improve labeling speed and quality.
