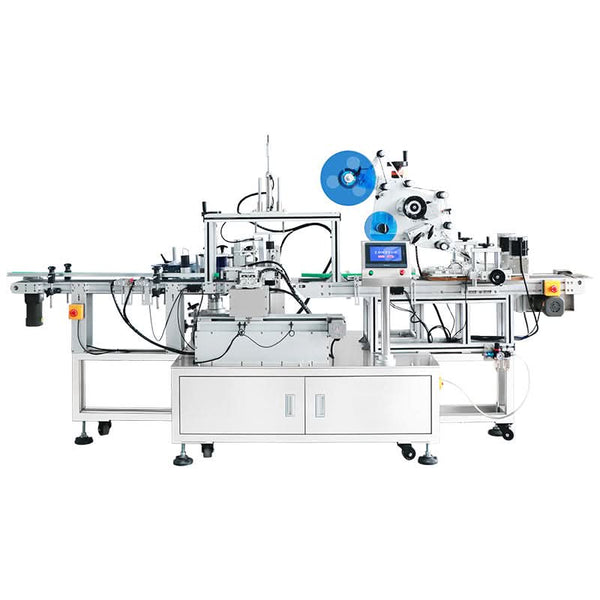

Description
The machine is designed for precise top and multi-sided labeling. It supports single-sided, double-sided, three-sided and wrap-around labeling to meet a variety of packaging needs. Equipped with an integrated batch/date coding system, it can form an automated production line with the filling and capping machine. It is very suitable for the food, beverage, cosmetics and chemical industries, ensuring efficient, precise labeling and professional packaging results.
Parameter
- Machine Model: ZS-TB822X
- Voltage: 220V 50Hz 570W
- Applicable Label Size: Customized According to Product
- Applicable Product Size: Customized According to Product
- Max. Label Roll Outer Diameter: φ280 mm
- Label Roll Inner Diameter: φ76 mm
- Labeling Accuracy: ±1 mm
- Labeling Speed: 25–45 PCS/MIN. (Stepper Motor Edition), 30–60 PCS/MIN. (Servo Motor Edition)
- Conveyor Speed (m/min): 5–18 m/Min.
- Air Pressure (Mpa): 0.4–0.6 Mpa
- Machine Dimensions: Approx. 3100×1280×1680 mm
- Machine Weight: Approx. 200 KG

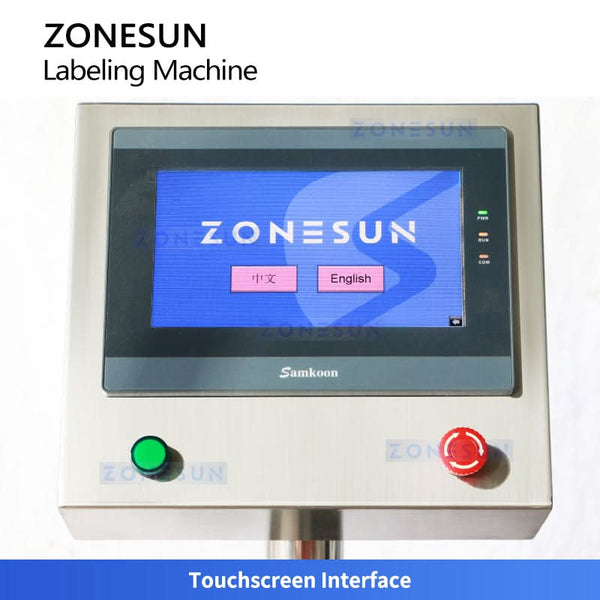

CONTROL PANEL
User-friendly touchscreen with guided operation and intuitive parameter adjustment.

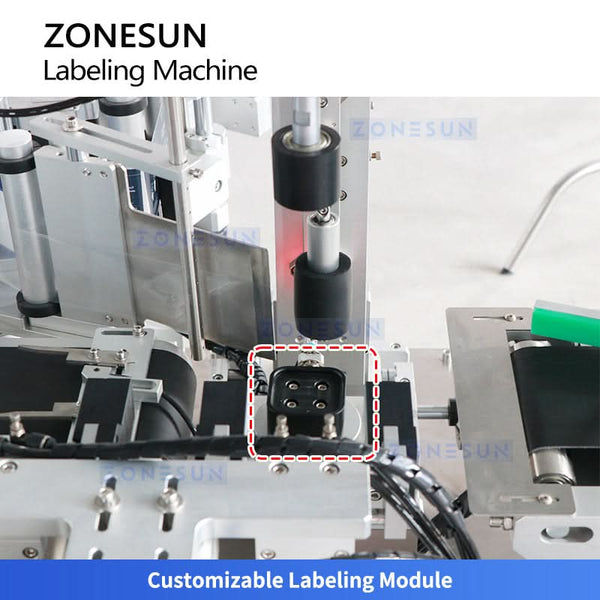

MULTI-SIDE LABELING MODULE
The labeling module supports single-side, three-side, and wrap-around labeling. Mold sizes can be customized.
Supports single-side, three-side, and wrap-around labeling with customizable

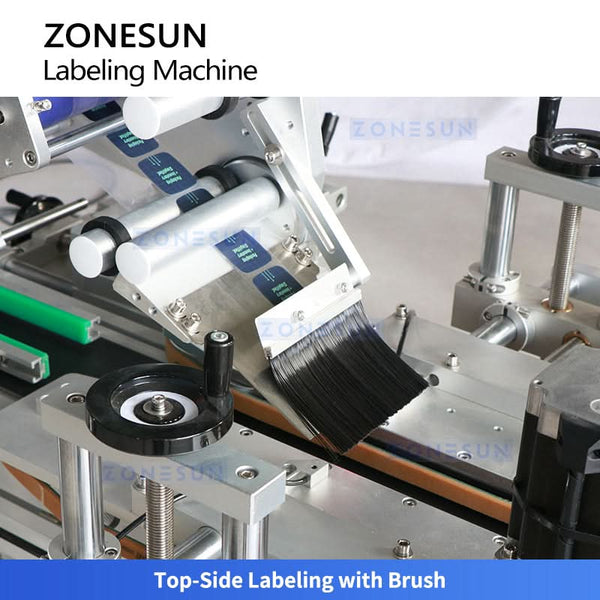

LABEL-SMOOTHING BRUSH
The brush helps remove bubbles and improve labeling quality.
Equipped with a brush to eliminate bubbles and enhance labeling quality.

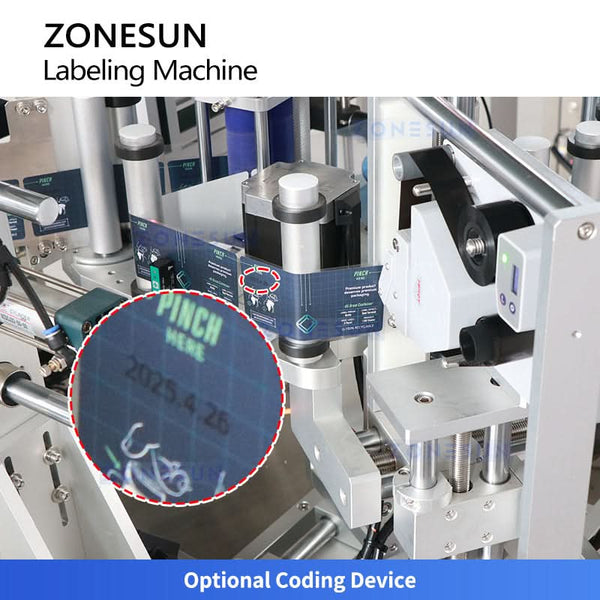

DATE-CODING DEVICE
The coding device prints production dates and batch numbers during labeling.
Supports printing of production dates and batch numbers to improve efficiency.

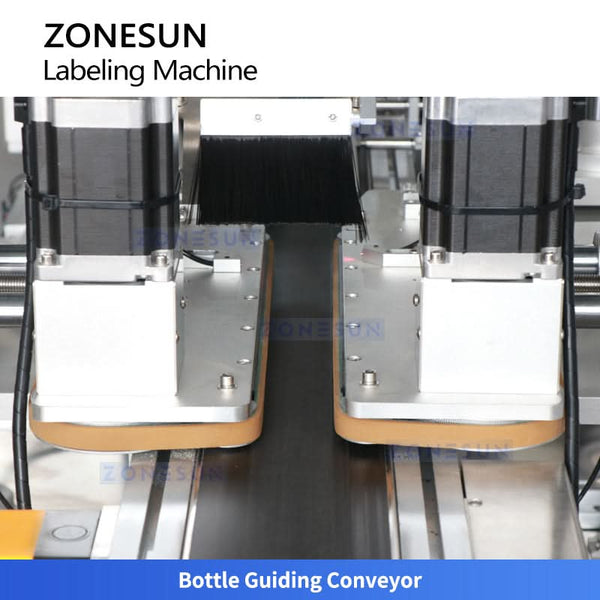

Ensures bottles remain upright during transport for accurate labeling.
ELECTRICAL SYSTEM
The organized wiring supports stable machine operation and easier maintenance.
Neat wiring ensures stable machine performance and easier maintenance.
